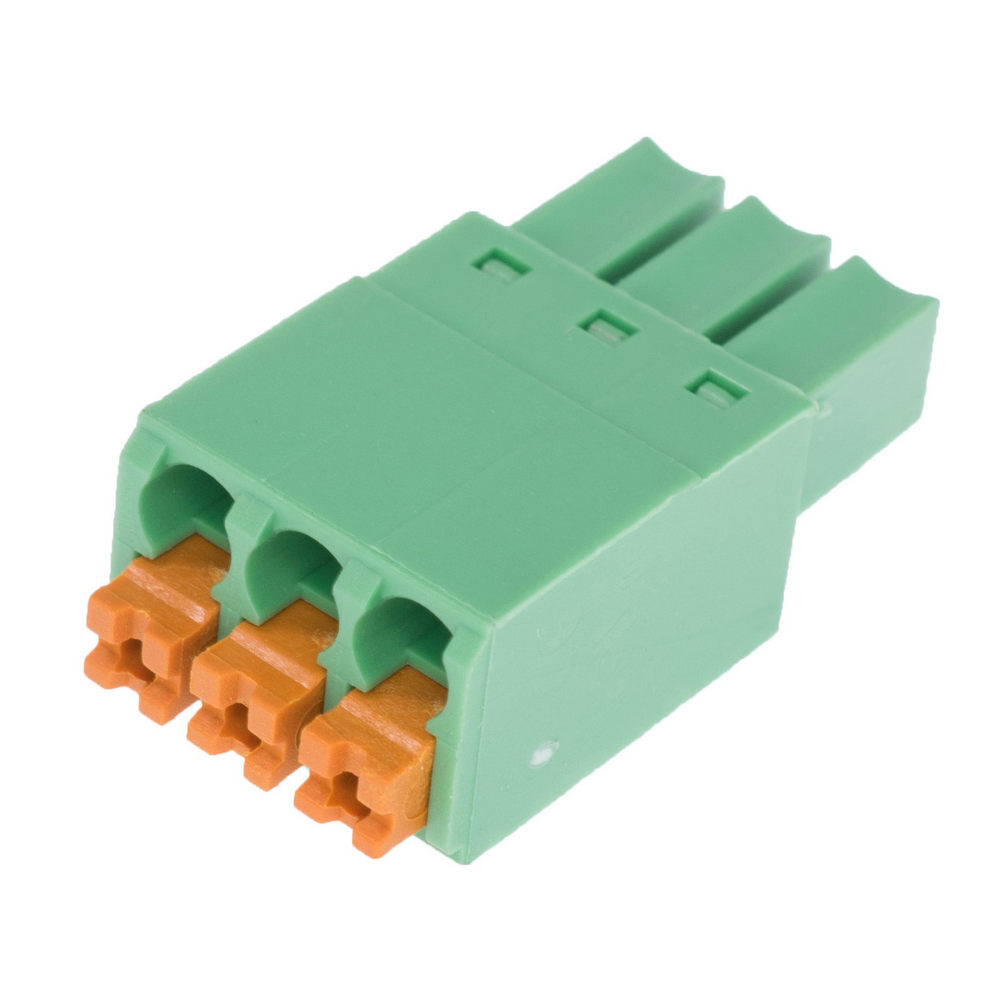

15EDGKN-3.5-03P-14-1000AH DEGSON ELECTRONICS
Hersteller: DEGSON ELECTRONICS
Category: Pluggable terminal blocks
Description: Pluggable terminal block; 3.5mm; ways: 3; straight; plug; female
Type of connector: pluggable terminal block
Contacts pitch: 3.5mm
Number of ways: 3
Spatial orientation: straight
Connector: plug
Kind of connector: female
Mechanical mounting: for cable
Electrical mounting: spring clamp
Wire cross-section: 0.2...1mm2
Wire size: 28AWG...16AWG
Colour: green
Rated voltage: 0.25kV
Locking system: friction lock
Current rating: 8A
Body material: polyamide 66
Flammability rating: UL94V-0
Connector pinout layout: 1x3
Conform to the norm: CE; UL; VDE
Operating temperature: -40...105°C
Contact material: phosphor bronze
Number of terminals: 3
Connector variant: with push button
Category: Pluggable terminal blocks
Description: Pluggable terminal block; 3.5mm; ways: 3; straight; plug; female
Type of connector: pluggable terminal block
Contacts pitch: 3.5mm
Number of ways: 3
Spatial orientation: straight
Connector: plug
Kind of connector: female
Mechanical mounting: for cable
Electrical mounting: spring clamp
Wire cross-section: 0.2...1mm2
Wire size: 28AWG...16AWG
Colour: green
Rated voltage: 0.25kV
Locking system: friction lock
Current rating: 8A
Body material: polyamide 66
Flammability rating: UL94V-0
Connector pinout layout: 1x3
Conform to the norm: CE; UL; VDE
Operating temperature: -40...105°C
Contact material: phosphor bronze
Number of terminals: 3
Connector variant: with push button
auf Bestellung 3059 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
61+ | 1.17 EUR |
90+ | 0.8 EUR |
95+ | 0.76 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 15EDGKN-3.5-03P-14-1000AH DEGSON ELECTRONICS
Category: Pluggable terminal blocks, Description: Pluggable terminal block; 3.5mm; ways: 3; straight; plug; female, Type of connector: pluggable terminal block, Contacts pitch: 3.5mm, Number of ways: 3, Spatial orientation: straight, Connector: plug, Kind of connector: female, Mechanical mounting: for cable, Electrical mounting: spring clamp, Wire cross-section: 0.2...1mm2, Wire size: 28AWG...16AWG, Colour: green, Rated voltage: 0.25kV, Locking system: friction lock, Current rating: 8A, Body material: polyamide 66, Flammability rating: UL94V-0, Connector pinout layout: 1x3, Conform to the norm: CE; UL; VDE, Operating temperature: -40...105°C, Contact material: phosphor bronze, Number of terminals: 3, Connector variant: with push button, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote 15EDGKN-3.5-03P-14-1000AH nach Preis ab 0.76 EUR bis 1.17 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
15EDGKN-3.5-03P-14-1000AH | Hersteller : DEGSON ELECTRONICS |
Category: Pluggable terminal blocks Description: Pluggable terminal block; 3.5mm; ways: 3; straight; plug; female Type of connector: pluggable terminal block Contacts pitch: 3.5mm Number of ways: 3 Spatial orientation: straight Connector: plug Kind of connector: female Mechanical mounting: for cable Electrical mounting: spring clamp Wire cross-section: 0.2...1mm2 Wire size: 28AWG...16AWG Colour: green Rated voltage: 0.25kV Locking system: friction lock Current rating: 8A Body material: polyamide 66 Flammability rating: UL94V-0 Connector pinout layout: 1x3 Conform to the norm: CE; UL; VDE Operating temperature: -40...105°C Contact material: phosphor bronze Number of terminals: 3 Connector variant: with push button Anzahl je Verpackung: 1 Stücke |
auf Bestellung 3059 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||
+1 |

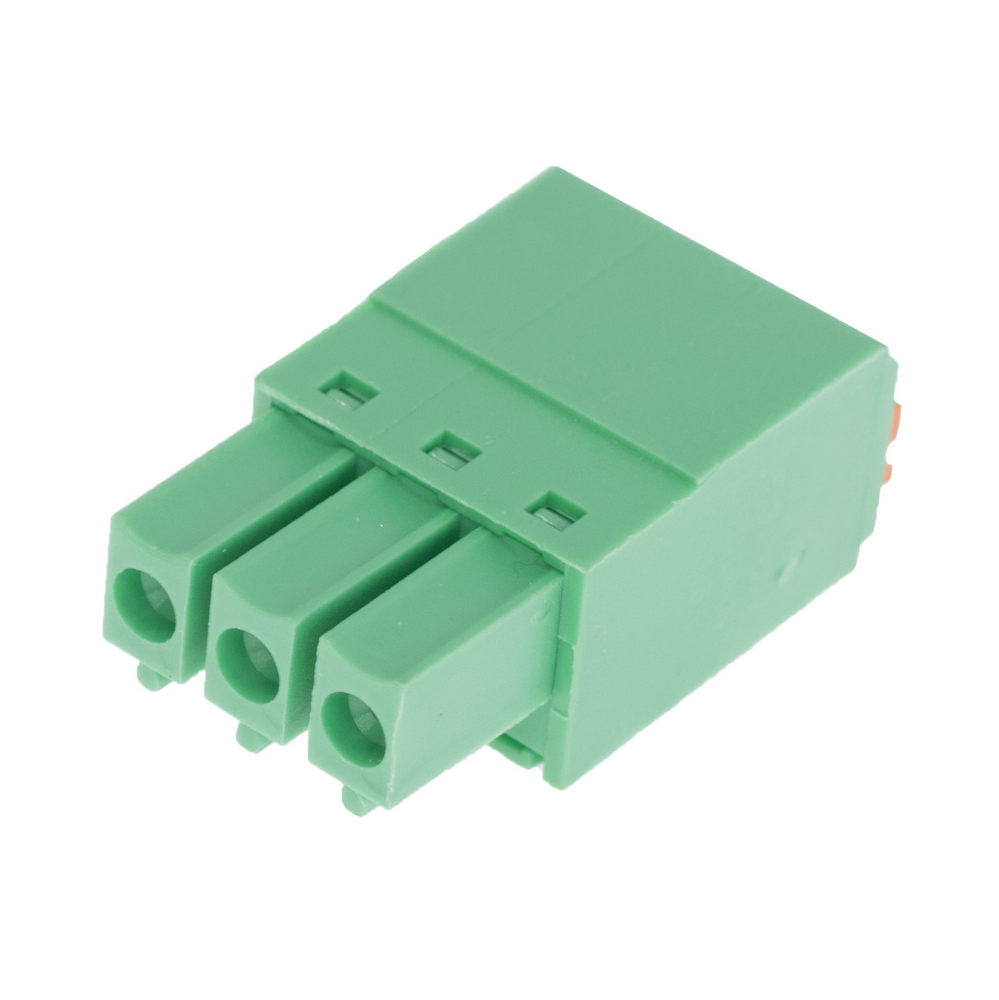

Клеммник 15EDGKN-3.5-03P-14-1000AH Produktcode: 139626 |
Hersteller : Degson |
Steckverbinder, Reihenklemmen > Steckverbindungen Klemmenblock Beschreibung: Рознімний клемник, крок: 3,5 mm, прямий, вилка. Матеріал контакту: фосфориста бронза, луджена Schritt, mm: 3,5 mm Anzahl Kontakte: 3 Verpackung: 3 Клемник роз'ємного типу Номінальний струм: 5 A Пружинний затискач |
Produkt ist nicht verfügbar
|
