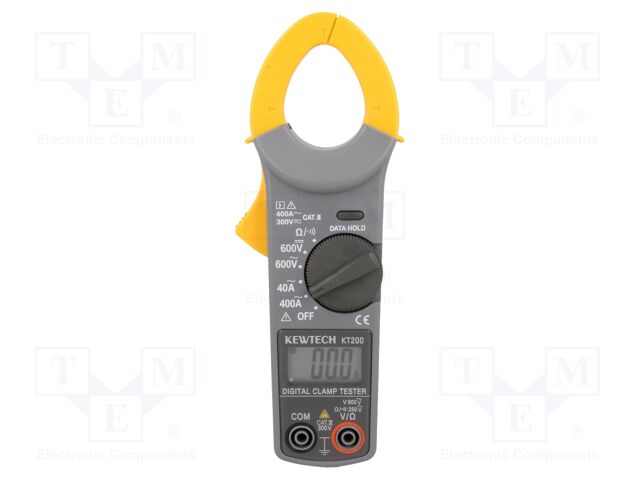

KT200 KYORITSU
Hersteller: KYORITSU
Category: Meters and AC Clamp Probes
Description: Meter: multifunction; digital,pincers type; LCD; 3,75 digit; 13mm
Type of meter: multifunction
Kind of meter: digital; pincers type
Measuring instrument features: automatic power-off; autoranging on voltage and resistance ranges; ergonomic body shape enables one-hand operation; HOLD function
Kind of display used: LCD
Display parameters: 3,75 digit
Display height 1: 13mm
Sampling: 2,5x/s
Max. diameter of measured cable: 30mm
AC current measuring range: 10mA...40A; 400A
AC current measuring accuracy: ±(2% + 6 digit)
DC voltage measuring range: 100mV...400V; 600V
DC voltage measuring accuracy: ±(1.5% + 5 digit)
AC voltage measuring range: 100mV...400V; 600V
AC voltage measuring accuracy: ±(2% + 5 digit)
Resistance measuring range: 100mΩ...400Ω; 4kΩ
Continuity test: acoustic indication; <50Ω
Dimensions: 184x44x27mm
Weight with battery: 250g
Power supply: battery LR03 AAA 1,5V x2
Measurement: AC current; AC voltage; DC voltage; resistance
Conform to the norm: CAT II 600V; CAT III 300V; EN 61010
Standard equipment: test leads
Battery/ rechargeable battery: battery LR03 AAA 1,5V x2
Resistance measuring accuracy: ±(2%+5 digit)
