Produkte > Gehäuse, Halter, Montage- und Installationselemente > Lüfter und Zubehör > Lüfter Sunon 45x45x10mm 12VDC Axial EB45101S2-999 Leiser 27dB 1,44W Gleitlager (KD1245PFS2.11)

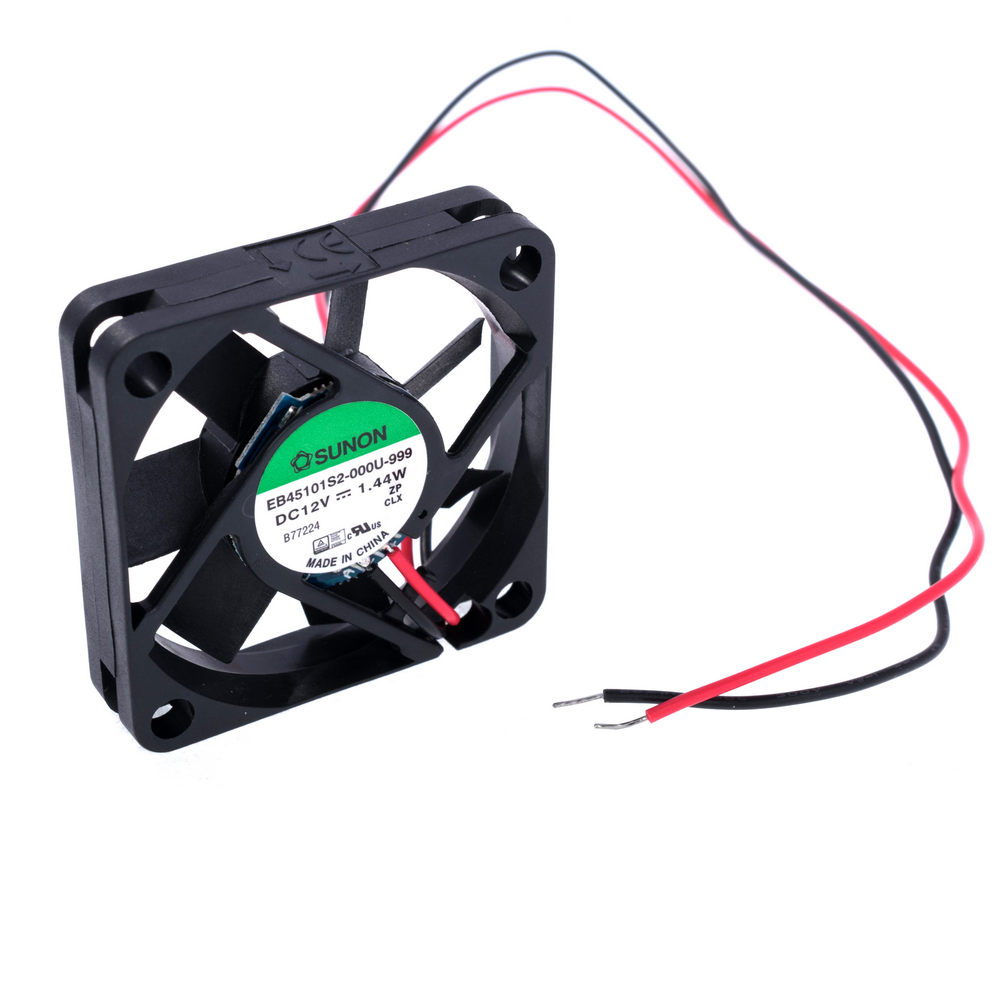

Lüfter Sunon 45x45x10mm 12VDC Axial EB45101S2-999 Leiser 27dB 1,44W Gleitlager (KD1245PFS2.11)
Produktcode: 53558
Hersteller: SunonAbmessungen, mm: 45x45x10
Spannung, V: 12 DC
Luftvolumen, m3/Stunde: 15,6
Leistung, Watt: 1,44
Lärm, dB: 27
Rotationsgeschwindigkeit, r/min: 5000
Beschreibung: Lager rutsch
ZCODE: 8414 51 00 90
verfügbar 40 Stück:
14 Stück - stock Köln
26 Stück - lieferbar in 3-4 Wochen
Anzahl | Preis ohne MwSt |
---|---|
1+ | 3.25 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details Lüfter Sunon 45x45x10mm 12VDC Axial EB45101S2-999 Leiser 27dB 1,44W Gleitlager (KD1245PFS2.11) Sunon
Lüfter Sunon 45x45x10mm 12VDC Axial EB45101S2-999 Leiser
27dB 1,44W Gleitlager
Eigenschaften:
Betriebsspannung nominal 12VDC
Betriebsspannungsbereich
4,5…13,8 VDC
Nennstrom 0,12A
Abmessungen: 45x45x10 mm
Lager: Gleitlager
Leistung
1,44 W
Luftstrom 15,6m3/h
Drehzahl 5.000(+/-
15%) U/min
Geräuschpegel
27 dBA
Statische Druck 3.04mm H2O
Isolationswiderstand
500MOhm
Temperaturbereich: -10...+70 °C
Anschluss 2 Leitungen 300mm 26AWG
Gewicht 18,5 g
Produktcode 53558
Weitere Produktangebote Lüfter Sunon 45x45x10mm 12VDC Axial EB45101S2-999 Leiser 27dB 1,44W Gleitlager (KD1245PFS2.11) nach Preis ab 2.04 EUR bis 3.39 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EB45101S2-000U-999 | Hersteller : SUNON |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 45x45x10mm; 15.6m3/h; 27dBA; slide bearing Enclosure material: thermoplastic Current rating: 0.12A Flammability rating: UL94V-0 Operating temperature: -10...70°C Wire size: 26AWG Cable length: 0.3m Leads: lead x2 Impeller material: thermoplastic Insulation class: A Kind of Bearing: slide bearing Fan efficiency: 15.6m3/h Static pressure: 3.04mm H2O Noise level: 27dBA Rotational rate/speed: 5000 (±15%)rpm Fan motor: brushless DC Current and power consumption tolerance: ±15% Power consumption: 1.44W Fan dimensions: 45x45x10mm Type of fan: DC Operating voltage: 4.5...13.8V Supply voltage: 12V DC Additional functions: autorestart Min. insulation resistance: 500MΩ Kind of fan: axial Anzahl je Verpackung: 1 Stücke |
auf Bestellung 3909 Stücke: Lieferzeit 7-14 Tag (e) |
|
|||||||||||
EB45101S2-000U-999 | Hersteller : SUNON |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 45x45x10mm; 15.6m3/h; 27dBA; slide bearing Enclosure material: thermoplastic Current rating: 0.12A Flammability rating: UL94V-0 Operating temperature: -10...70°C Wire size: 26AWG Cable length: 0.3m Leads: lead x2 Impeller material: thermoplastic Insulation class: A Kind of Bearing: slide bearing Fan efficiency: 15.6m3/h Static pressure: 3.04mm H2O Noise level: 27dBA Rotational rate/speed: 5000 (±15%)rpm Fan motor: brushless DC Current and power consumption tolerance: ±15% Power consumption: 1.44W Fan dimensions: 45x45x10mm Type of fan: DC Operating voltage: 4.5...13.8V Supply voltage: 12V DC Additional functions: autorestart Min. insulation resistance: 500MΩ Kind of fan: axial |
auf Bestellung 3909 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||
EB45101S2-000U-999 | Hersteller : Sunon | DC Fans DC Fan, 45x45x10mm, 12VDC, 9.2CFM, 1.44W, 27dBA, 5000RPM, 0.12inchH2O, Sleeve |
Produkt ist nicht verfügbar |
Mit diesem Produkt kaufen

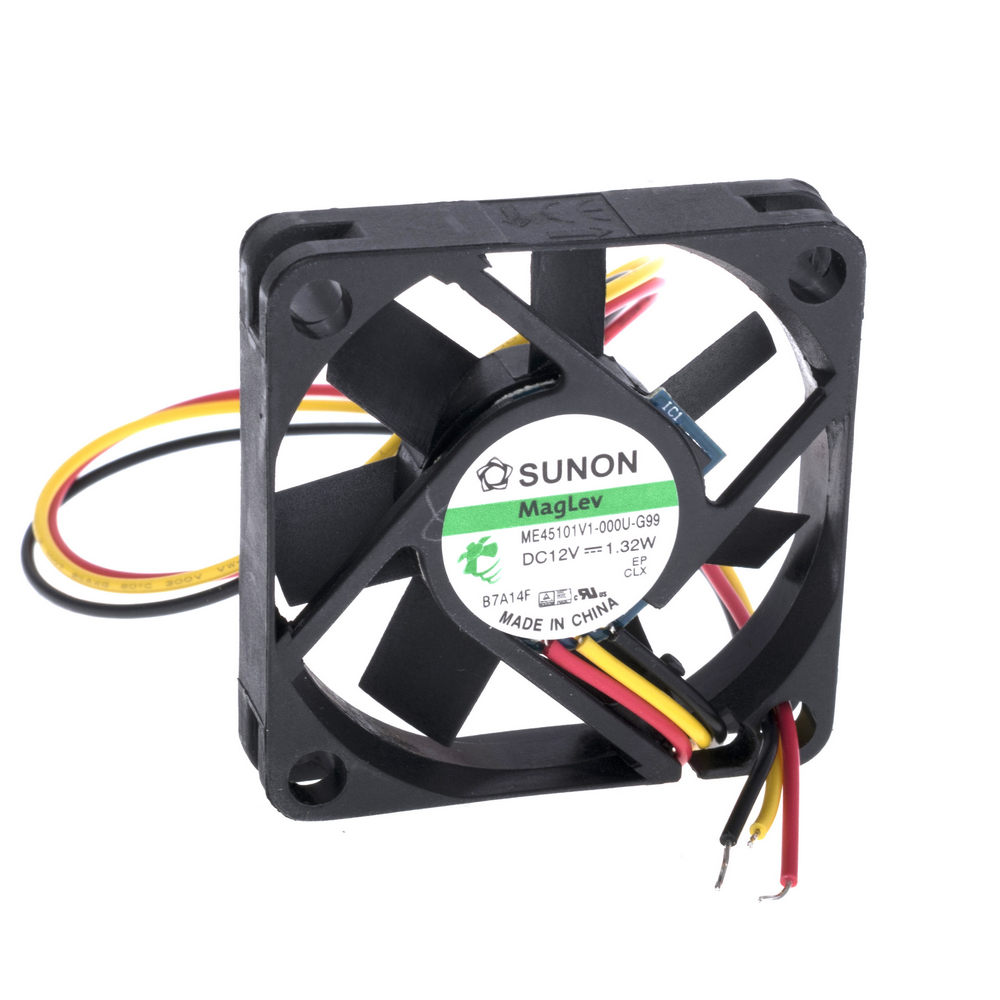

ME45101V1-G99 Produktcode: 53247 |
