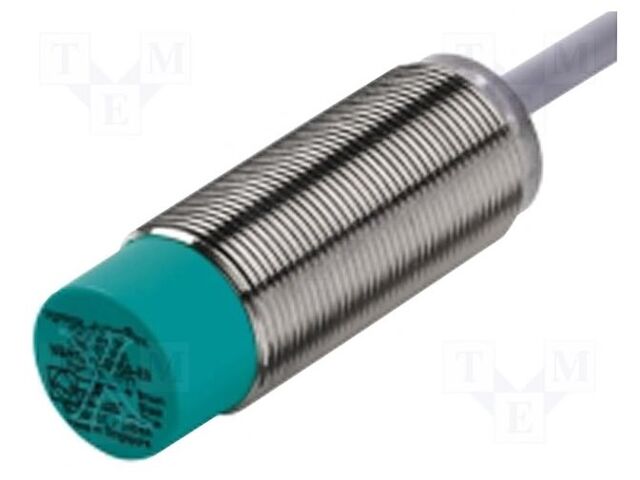

NBN12-18GM50-A2 PEPPERL+FUCHS
Hersteller: PEPPERL+FUCHS
Category: DC Cylindrical Inductive Sensors
Description: Sensor: inductive; OUT: PNP / NO + NC; 0÷12mm; 10÷30VDC; M18; IP67
Overall length: 50mm
IP rating: IP67
Supply voltage: 10...30V DC
Body material: brass
Thread length: 37mm
Body plating: nickel
Max. operating current: 0.2A
Switching frequency max: 1kHz
Switch housing: M18
Range: 0...12mm
Output configuration: PNP / NO + NC
Connection: lead 2m
Kind of forehead: non-embedded
Type of sensor: inductive
Operating temperature: -25...70°C
Anzahl je Verpackung: 1 Stücke
Category: DC Cylindrical Inductive Sensors
Description: Sensor: inductive; OUT: PNP / NO + NC; 0÷12mm; 10÷30VDC; M18; IP67
Overall length: 50mm
IP rating: IP67
Supply voltage: 10...30V DC
Body material: brass
Thread length: 37mm
Body plating: nickel
Max. operating current: 0.2A
Switching frequency max: 1kHz
Switch housing: M18
Range: 0...12mm
Output configuration: PNP / NO + NC
Connection: lead 2m
Kind of forehead: non-embedded
Type of sensor: inductive
Operating temperature: -25...70°C
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details NBN12-18GM50-A2 PEPPERL+FUCHS
Category: DC Cylindrical Inductive Sensors, Description: Sensor: inductive; OUT: PNP / NO + NC; 0÷12mm; 10÷30VDC; M18; IP67, Overall length: 50mm, IP rating: IP67, Supply voltage: 10...30V DC, Body material: brass, Thread length: 37mm, Body plating: nickel, Max. operating current: 0.2A, Switching frequency max: 1kHz, Switch housing: M18, Range: 0...12mm, Output configuration: PNP / NO + NC, Connection: lead 2m, Kind of forehead: non-embedded, Type of sensor: inductive, Operating temperature: -25...70°C, Anzahl je Verpackung: 1 Stücke.
