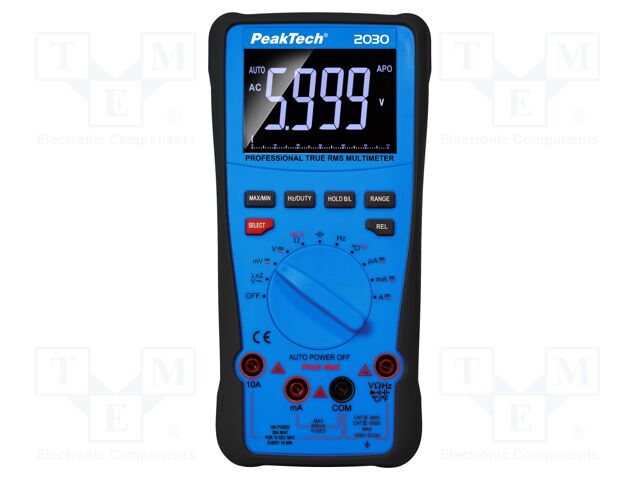

P 2030 PEAKTECH
Hersteller: PEAKTECH
Category: Portable digital multimeters
Description: Digital multimeter; LCD; 3,83 digit (6000); -20÷1000°C
Kind of display used: LCD
DC voltage measuring accuracy: ±(0,5% + 3 digits); ±(0.8% + 10 digits) (1 kV)
DC current measuring accuracy: ±(1.2% + 8 digits) (600 mA); ±(2% + 5 digits) (6 A; 10 A); ±(0,8% + 10 digits) (600 µA; 6000 µA; 60 mA)
Measuring instrument features: automatic power-off; HOLD function; MIN/MAX function; overload protection; overvoltage protection
AC voltage measuring accuracy: ±(1,2% + 10 digits) (1 kV); ±(0,8% + 5 digits)
AC current measuring accuracy: ±(1% + 15 digits) (600 µA; 6000 µA; 60 mA); ±(2% + 5 digits) (600 mA); ±(3% + 10 digits) (6 A; 10 A)
Capacitance measuring accuracy: ±(3,5% + 20 digits); ±(5% + 10 digits) (600 µF; 6 mF)
Frequency measuring accuracy: ±(0,5% + 4 digits)
Continuity test: acoustic indication; <50Ω
Battery/ rechargeable battery: battery 6F22 9V x1
Dimensions (W x H x D): 201x101x68mm
DC voltage measuring range: 60mV; 600mV; 6V; 60V; 600V; 1kV
AC voltage measuring range: 60mV; 600mV; 6V; 60V; 600V; 1kV
Capacitance measuring range: 60nF; 600nF; 6µF; 60µF; 600µF; 6mF
Display parameters: 3,83 digit (6000)
Temperature measuring range: -20...1000°C
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
AC current measuring range: 600µA; 6000µA; 60mA; 600mA; 6A; 10A
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Test: 0.4mA @2000mV
Type of meter: digital multimeter
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; resistance; temperature
Frequency measuring range: 10Hz; 100Hz; 1kHz; 10kHz; 100kHz; 1MHz; 20MHz
DC current measuring range: 600µA; 6000µA; 60mA; 600mA; 6A; 10A
Temperature measurement accuracy: ±(1,5% + 15 digits) (>620°C); ±(1% + 50 digits) (<620°C)
Power supply: battery 6F22 9V x1
Standard equipment: adapter; soft case; test probe x1; thermocouple; user's manual
Resistance measuring accuracy: ±(1% + 25 digits) (60 MΩ); ±(0,8% + 3 digits) (6 kΩ;60 kΩ; 600 kΩ; 6 MΩ); ±(0,8% + 5 digits) (600 Ω)
Category: Portable digital multimeters
Description: Digital multimeter; LCD; 3,83 digit (6000); -20÷1000°C
Kind of display used: LCD
DC voltage measuring accuracy: ±(0,5% + 3 digits); ±(0.8% + 10 digits) (1 kV)
DC current measuring accuracy: ±(1.2% + 8 digits) (600 mA); ±(2% + 5 digits) (6 A; 10 A); ±(0,8% + 10 digits) (600 µA; 6000 µA; 60 mA)
Measuring instrument features: automatic power-off; HOLD function; MIN/MAX function; overload protection; overvoltage protection
AC voltage measuring accuracy: ±(1,2% + 10 digits) (1 kV); ±(0,8% + 5 digits)
AC current measuring accuracy: ±(1% + 15 digits) (600 µA; 6000 µA; 60 mA); ±(2% + 5 digits) (600 mA); ±(3% + 10 digits) (6 A; 10 A)
Capacitance measuring accuracy: ±(3,5% + 20 digits); ±(5% + 10 digits) (600 µF; 6 mF)
Frequency measuring accuracy: ±(0,5% + 4 digits)
Continuity test: acoustic indication; <50Ω
Battery/ rechargeable battery: battery 6F22 9V x1
Dimensions (W x H x D): 201x101x68mm
DC voltage measuring range: 60mV; 600mV; 6V; 60V; 600V; 1kV
AC voltage measuring range: 60mV; 600mV; 6V; 60V; 600V; 1kV
Capacitance measuring range: 60nF; 600nF; 6µF; 60µF; 600µF; 6mF
Display parameters: 3,83 digit (6000)
Temperature measuring range: -20...1000°C
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
AC current measuring range: 600µA; 6000µA; 60mA; 600mA; 6A; 10A
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Test: 0.4mA @2000mV
Type of meter: digital multimeter
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; resistance; temperature
Frequency measuring range: 10Hz; 100Hz; 1kHz; 10kHz; 100kHz; 1MHz; 20MHz
DC current measuring range: 600µA; 6000µA; 60mA; 600mA; 6A; 10A
Temperature measurement accuracy: ±(1,5% + 15 digits) (>620°C); ±(1% + 50 digits) (<620°C)
Power supply: battery 6F22 9V x1
Standard equipment: adapter; soft case; test probe x1; thermocouple; user's manual
Resistance measuring accuracy: ±(1% + 25 digits) (60 MΩ); ±(0,8% + 3 digits) (6 kΩ;60 kΩ; 600 kΩ; 6 MΩ); ±(0,8% + 5 digits) (600 Ω)
auf Bestellung 2 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis ohne MwSt |
|---|---|
| 1+ | 80.37 EUR |
