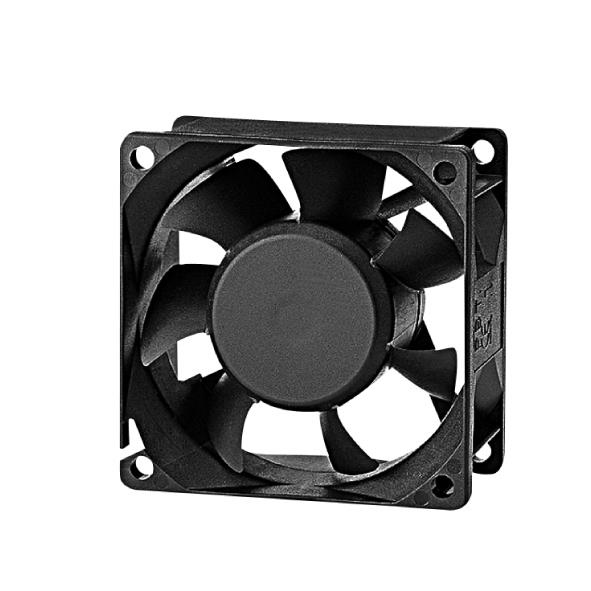

PMD1207PTB1-A.(2).GN SUNON
Hersteller: SUNON
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 70x70x25mm; 83.25m3/h; 45dBA; ball bearing
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V
Fan dimensions: 70x70x25mm
Power consumption: 4.4W
Current rating: 0.37A
Fan efficiency: 83.25m3/h
Noise level: 45dBA
Kind of Bearing: ball bearing
Rotational rate/speed: 5100 (±10%)rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: lead x2
Operating temperature: -10...70°C
Cable length: 0.3m
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 9.14mm H2O
Wire size: 24AWG
Anzahl je Verpackung: 1 Stücke
Category: DC12V Fans
Description: Fan: DC; axial; 12VDC; 70x70x25mm; 83.25m3/h; 45dBA; ball bearing
Type of fan: DC
Kind of fan: axial
Supply voltage: 12V DC
Operating voltage: 4.5...13.8V
Fan dimensions: 70x70x25mm
Power consumption: 4.4W
Current rating: 0.37A
Fan efficiency: 83.25m3/h
Noise level: 45dBA
Kind of Bearing: ball bearing
Rotational rate/speed: 5100 (±10%)rpm
Current and power consumption tolerance: ±15%
Min. insulation resistance: 10MΩ
Impeller material: thermoplastic
Enclosure material: thermoplastic
Insulation class: A
Leads: lead x2
Operating temperature: -10...70°C
Cable length: 0.3m
Flammability rating: UL94V-0
Additional functions: autorestart
Fan motor: brushless DC
Static pressure: 9.14mm H2O
Wire size: 24AWG
Anzahl je Verpackung: 1 Stücke
auf Bestellung 129 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl | Preis ohne MwSt |
---|---|
6+ | 12.08 EUR |
10+ | 10.74 EUR |
50+ | 9.67 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details PMD1207PTB1-A.(2).GN SUNON
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 70x70x25mm; 83.25m3/h; 45dBA; ball bearing, Type of fan: DC, Kind of fan: axial, Supply voltage: 12V DC, Operating voltage: 4.5...13.8V, Fan dimensions: 70x70x25mm, Power consumption: 4.4W, Current rating: 0.37A, Fan efficiency: 83.25m3/h, Noise level: 45dBA, Kind of Bearing: ball bearing, Rotational rate/speed: 5100 (±10%)rpm, Current and power consumption tolerance: ±15%, Min. insulation resistance: 10MΩ, Impeller material: thermoplastic, Enclosure material: thermoplastic, Insulation class: A, Leads: lead x2, Operating temperature: -10...70°C, Cable length: 0.3m, Flammability rating: UL94V-0, Additional functions: autorestart, Fan motor: brushless DC, Static pressure: 9.14mm H2O, Wire size: 24AWG, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote PMD1207PTB1-A.(2).GN nach Preis ab 9.67 EUR bis 20.25 EUR
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PMD1207PTB1-A.(2).GN | Hersteller : SUNON |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 70x70x25mm; 83.25m3/h; 45dBA; ball bearing Type of fan: DC Kind of fan: axial Supply voltage: 12V DC Operating voltage: 4.5...13.8V Fan dimensions: 70x70x25mm Power consumption: 4.4W Current rating: 0.37A Fan efficiency: 83.25m3/h Noise level: 45dBA Kind of Bearing: ball bearing Rotational rate/speed: 5100 (±10%)rpm Current and power consumption tolerance: ±15% Min. insulation resistance: 10MΩ Impeller material: thermoplastic Enclosure material: thermoplastic Insulation class: A Leads: lead x2 Operating temperature: -10...70°C Cable length: 0.3m Flammability rating: UL94V-0 Additional functions: autorestart Fan motor: brushless DC Static pressure: 9.14mm H2O Wire size: 24AWG |
auf Bestellung 129 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||
PMD1207PTB1-A.(2).GN | Hersteller : Sunon | PMD1207PTB1-A.(2).GN |
auf Bestellung 165 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||
PMD1207PTB1-A.(2).GN | Hersteller : Sunon Fans |
Description: FAN AXIAL 70X25MM 12VDC WIRE Packaging: Box Voltage - Rated: 12VDC Size / Dimension: Square - 70mm L x 70mm H Bearing Type: Ball RPM: 5100 RPM Air Flow: 49.0 CFM (1.37m³/min) Width: 25.00mm Weight: 0.199 lb (90.26 g) Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 2 Wire Leads Approval Agency: CE, CUR, TUV, UL Fan Type: Tubeaxial Noise: 45.0dB(A) Static Pressure: 0.360 in H2O (89.7 Pa) Part Status: Obsolete Power (Watts): 4.4 W |
Produkt ist nicht verfügbar |
||||||||||||
PMD1207PTB1-A.(2).GN | Hersteller : Sunon | DC Fans Axial Fan, 70x70x25mm, 12VDC, 49CFM, 0.36"H2O, Ball, Wire, Auto Restart |
Produkt ist nicht verfügbar |
