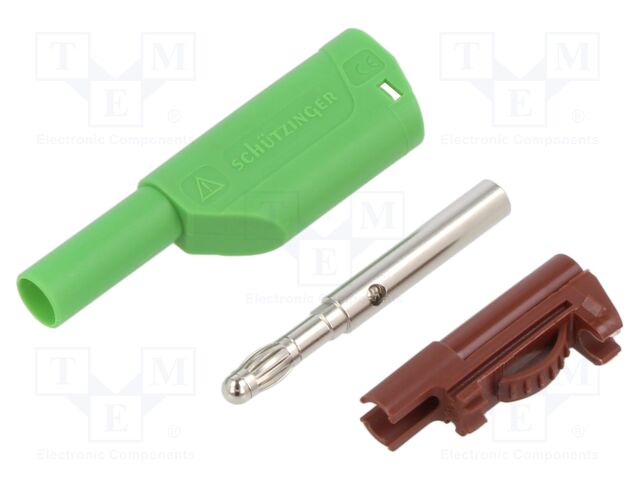

Technische Details SFK 8500 S NI / AS / GN SCHЬTZINGER
Category: 4mm Banana Plugs, Description: Plug; 4mm banana; 32A; 1kV; green; insulated; Max.wire diam: 4mm, Connector: plug, Type of connector: 4mm banana, Current rating: 32A, Rated voltage: 1kV, Colour: green, Connector variant: insulated, Max. wire diameter: 4mm, Overall length: 46mm, Contact plating: nickel plated, Wire cross-section: 2.5mm2, Mounting: on cable, Operating temperature: -25...80°C, Connection: screwed, Insulator material: polyamide, Conform to the norm: CAT II 1000V; EN 61010, Manufacturer series: SFK 8500 S Ni / AS /.
Weitere Produktangebote SFK 8500 S NI / AS / GN
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt |
---|---|---|---|---|---|
SFK 8500 S NI / AS / GN | Hersteller : SCHÜTZINGER |
Category: 4mm Banana Plugs Description: Plug; 4mm banana; 32A; 1kV; green; insulated; Max.wire diam: 4mm Connector: plug Type of connector: 4mm banana Current rating: 32A Rated voltage: 1kV Colour: green Connector variant: insulated Max. wire diameter: 4mm Overall length: 46mm Contact plating: nickel plated Wire cross-section: 2.5mm2 Mounting: on cable Operating temperature: -25...80°C Connection: screwed Insulator material: polyamide Conform to the norm: CAT II 1000V; EN 61010 Manufacturer series: SFK 8500 S Ni / AS / |
Produkt ist nicht verfügbar |
