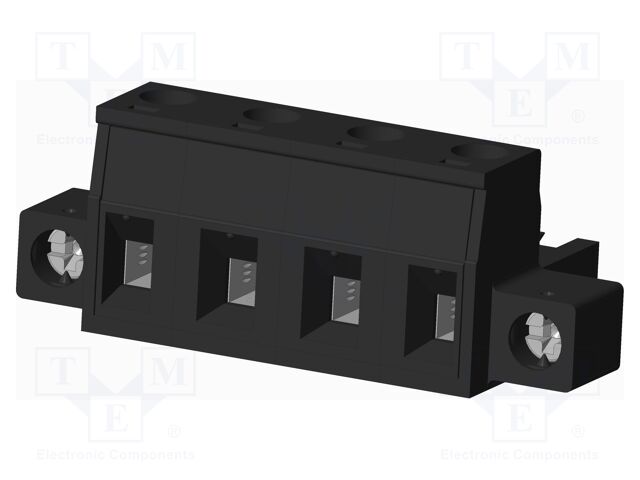

TJ0401020000G AMPHENOL ANYTEK
Hersteller: AMPHENOL ANYTEK
Category: Pluggable terminal blocks
Description: Pluggable terminal block; 7.62mm; straight; plug; female; black
Type of connector: pluggable terminal block
Contacts pitch: 7.62mm
Spatial orientation: straight
Connector: plug
Kind of connector: female
Mechanical mounting: for cable
Electrical mounting: screw terminal
Wire size: 24AWG...12AWG
Colour: black
Flammability rating: UL94V-0
Body material: PA66
Contact plating: tinned
Operating temperature: -40...115°C
Number of pins: 4
Rated voltage: 300V
Current rating: 12A
Contact material: phosphor bronze
Anzahl je Verpackung: 1 Stücke
Category: Pluggable terminal blocks
Description: Pluggable terminal block; 7.62mm; straight; plug; female; black
Type of connector: pluggable terminal block
Contacts pitch: 7.62mm
Spatial orientation: straight
Connector: plug
Kind of connector: female
Mechanical mounting: for cable
Electrical mounting: screw terminal
Wire size: 24AWG...12AWG
Colour: black
Flammability rating: UL94V-0
Body material: PA66
Contact plating: tinned
Operating temperature: -40...115°C
Number of pins: 4
Rated voltage: 300V
Current rating: 12A
Contact material: phosphor bronze
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details TJ0401020000G AMPHENOL ANYTEK
Category: Pluggable terminal blocks, Description: Pluggable terminal block; 7.62mm; straight; plug; female; black, Type of connector: pluggable terminal block, Contacts pitch: 7.62mm, Spatial orientation: straight, Connector: plug, Kind of connector: female, Mechanical mounting: for cable, Electrical mounting: screw terminal, Wire size: 24AWG...12AWG, Colour: black, Flammability rating: UL94V-0, Body material: PA66, Contact plating: tinned, Operating temperature: -40...115°C, Number of pins: 4, Rated voltage: 300V, Current rating: 12A, Contact material: phosphor bronze, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote TJ0401020000G
Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt |
---|---|---|---|---|---|
TJ0401020000G | Hersteller : Amphenol Anytek |
Description: TERM BLOCK PLUG 4POS STR 7.62MM Features: Mating Flange, Retention Latches (Non-Wire Side) Packaging: Bulk Color: Black Mounting Type: Free Hanging (In-Line) Number of Positions: 4 Pitch: 0.300" (7.62mm) Type: Plug, Female Sockets Operating Temperature: -40°C ~ 115°C Termination Style: Screw Number of Levels: 1 Wire Gauge or Range - AWG: 12-24 AWG Positions Per Level: 4 Plug Wire Entry: 180° Contact Mating Finish: Tin Current - UL: 20 A Voltage - UL: 300 V |
Produkt ist nicht verfügbar |
||
TJ0401020000G | Hersteller : Amphenol Anytek | Pluggable Terminal Blocks 762 TB PLUGGABLE PLUG WF |
Produkt ist nicht verfügbar |
||
TJ0401020000G | Hersteller : AMPHENOL ANYTEK |
Category: Pluggable terminal blocks Description: Pluggable terminal block; 7.62mm; straight; plug; female; black Type of connector: pluggable terminal block Contacts pitch: 7.62mm Spatial orientation: straight Connector: plug Kind of connector: female Mechanical mounting: for cable Electrical mounting: screw terminal Wire size: 24AWG...12AWG Colour: black Flammability rating: UL94V-0 Body material: PA66 Contact plating: tinned Operating temperature: -40...115°C Number of pins: 4 Rated voltage: 300V Current rating: 12A Contact material: phosphor bronze |
Produkt ist nicht verfügbar |
