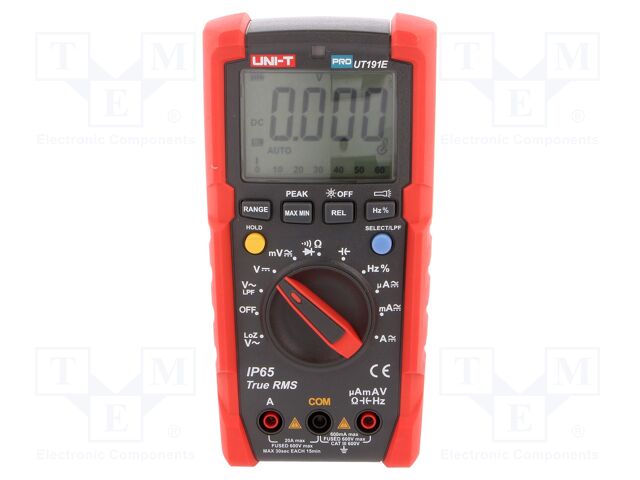

UT191E UNI-T
Hersteller: UNI-TCategory: Portable digital multimeters
Description: Digital multimeter; LCD; (5999); VDC: 600mV,6V,60V,600V; True RMS
Type of meter: digital multimeter
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; duty cycle; frequency; resistance
Kind of display used: LCD
Display parameters: (5999)
Bargraph: yes
DC voltage measuring range: 600mV; 6V; 60V; 600V
DC voltage measuring accuracy: ±(0.5% + 3 digit)
AC voltage measuring range: 600mV; 6V; 60V; 600V
AC voltage measuring accuracy: ±(0.7% + 3 digit)
DC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 20A
DC current measuring accuracy: ±(0.8% + 3 digit)
AC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 20A
AC current measuring accuracy: ±(1% + 3 digit)
True effective value measurement: True RMS
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Capacitance measuring range: 6nF; 60nF; 600µF; 6mF; 60mF
Capacitance measuring accuracy: ±(3%+ 5 digit)
Frequency measuring range: 10...1MHz
Frequency measuring accuracy: ±(0.1%+4 digit)
Resistance measuring accuracy: ±(0.8%+2 digit)
Duty cycle factor: 0.1...99.9%
Test: diodes
Continuity test: acoustic indication; <30Ω
IP rating: IP65
Weight with battery: 428g
Power supply: battery 6F22 9V x1
Standard equipment: case; test leads
Conform to the norm: CAT III 600V; EN 61010
Resistance to: fall from 2m height
Dimensions (W x H x D): 87x180x59mm
Measuring instrument features: auto and manual ranging; automatic display backlit; automatic polarization selection; automatic power-off; built-in torch; low battery indicator; low input impedance function (LoZ); low-pass filter; MIN/MAX function; PEAK HOLD function; PEAK HOLD function for AC measurements; REL function
Battery/ rechargeable battery: battery 6F22 9V x1
Illumination: yes
Anzahl je Verpackung: 1 Stücke
auf Bestellung 14 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis ohne MwSt |
|---|---|
| 1+ | 92.34 EUR |
| 3+ | 90.38 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details UT191E UNI-T
Category: Portable digital multimeters, Description: Digital multimeter; LCD; (5999); VDC: 600mV,6V,60V,600V; True RMS, Type of meter: digital multimeter, Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; duty cycle; frequency; resistance, Kind of display used: LCD, Display parameters: (5999), Bargraph: yes, DC voltage measuring range: 600mV; 6V; 60V; 600V, DC voltage measuring accuracy: ±(0.5% + 3 digit), AC voltage measuring range: 600mV; 6V; 60V; 600V, AC voltage measuring accuracy: ±(0.7% + 3 digit), DC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 20A, DC current measuring accuracy: ±(0.8% + 3 digit), AC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 20A, AC current measuring accuracy: ±(1% + 3 digit), True effective value measurement: True RMS, Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ, Capacitance measuring range: 6nF; 60nF; 600µF; 6mF; 60mF, Capacitance measuring accuracy: ±(3%+ 5 digit), Frequency measuring range: 10...1MHz, Frequency measuring accuracy: ±(0.1%+4 digit), Resistance measuring accuracy: ±(0.8%+2 digit), Duty cycle factor: 0.1...99.9%, Test: diodes, Continuity test: acoustic indication; .
