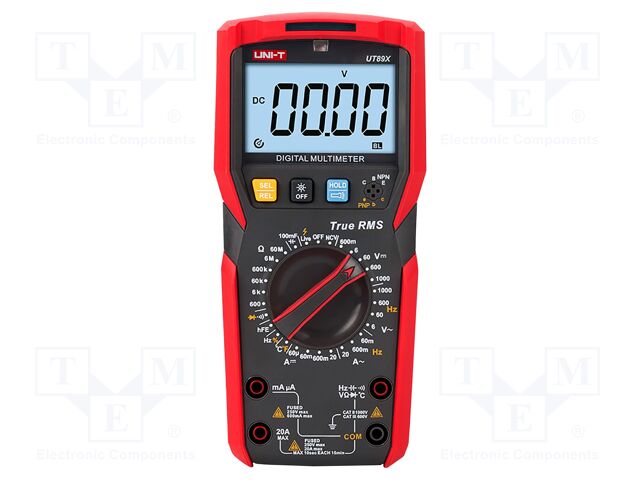

UT89X UNI-T
Hersteller: UNI-T
Category: Portable digital multimeters
Description: Digital multimeter; LCD; (6000); VDC: 600mV,6V,60V,600V,1kV
Type of meter: digital multimeter
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; resistance; temperature; transistors' gain hFE
Kind of display used: LCD
Display parameters: (6000)
DC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV
DC voltage measuring accuracy: ±(0.5% + 2 digit)
AC voltage measuring range: 6V; 60V; 600V; 1kV
AC voltage measuring accuracy: ±(0.8% + 5 digit)
DC current measuring range: 60µA; 60mA; 600mA; 20A
DC current measuring accuracy: ±(0.8% + 8 digit)
AC current measuring range: 60mA; 600mA; 20A
AC current measuring accuracy: ±(1% + 12 digit)
True effective value measurement: True RMS
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Capacitance measuring range: 6nF; 60nF; 600nF; 6µF; 60µF; 600µF; 6mF; 60mF; 100mF
Capacitance measuring accuracy: ±(2.5%+ 20 digit)
Frequency measuring range: 10...10MHz
Frequency measuring accuracy: ±(0.1%+4 digit)
Temperature measuring range: -40...1000°C
Resistance measuring accuracy: ±(0.8%+3 digit)
Diode test: 0...3V
Continuity test: acoustic indication; <30Ω
Power supply: battery R03 AAA 1,5V x4
Standard equipment: temperature probe; test leads
Conform to the norm: CAT II 1000V; CAT III 600V; EN 61010
Related items: 5790D; 5793D; 5794D; 5795D; 5797D; BKP60; EX871515; EX881602; EX881603; EX881605; PKT-PTA; PKT-PTF-10; PKT-PTF-20; PKT-PTF-25; PKT-PTF-30; PKT-PTF-40; PKT-PTF-50; PKT-PTF-55; PKT-PTF-56; PKT-PTF-60; SE027; SE028; SE029; SE030; SE031; SE059; SE060; SE061; SE062; SE001; SE002; SE003; SE004; SE000; TESTO-06020393; TESTO-06020645; TESTO-06024592; TESTO-06024892; TESTO-06280020; TESTO-06281292; TESTO-06287533; TP200; TP400; TP870; TP873; TP873-5M; TP882; TP-111; TP-112; TP-02; TP-03; TP-04; TP-06; TP-08; TP-09; TPK-59; TPK-62; UTT10K; UTT12
Dimensions (W x H x D): 89x189x53mm
Measuring instrument features: automatic power-off; HOLD function; low battery indicator; MIN/MAX function; non-contact voltage detector; REL function
Battery/ rechargeable battery: battery R03 AAA 1,5V x4
Illumination: yes
Category: Portable digital multimeters
Description: Digital multimeter; LCD; (6000); VDC: 600mV,6V,60V,600V,1kV
Type of meter: digital multimeter
Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; resistance; temperature; transistors' gain hFE
Kind of display used: LCD
Display parameters: (6000)
DC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV
DC voltage measuring accuracy: ±(0.5% + 2 digit)
AC voltage measuring range: 6V; 60V; 600V; 1kV
AC voltage measuring accuracy: ±(0.8% + 5 digit)
DC current measuring range: 60µA; 60mA; 600mA; 20A
DC current measuring accuracy: ±(0.8% + 8 digit)
AC current measuring range: 60mA; 600mA; 20A
AC current measuring accuracy: ±(1% + 12 digit)
True effective value measurement: True RMS
Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ
Capacitance measuring range: 6nF; 60nF; 600nF; 6µF; 60µF; 600µF; 6mF; 60mF; 100mF
Capacitance measuring accuracy: ±(2.5%+ 20 digit)
Frequency measuring range: 10...10MHz
Frequency measuring accuracy: ±(0.1%+4 digit)
Temperature measuring range: -40...1000°C
Resistance measuring accuracy: ±(0.8%+3 digit)
Diode test: 0...3V
Continuity test: acoustic indication; <30Ω
Power supply: battery R03 AAA 1,5V x4
Standard equipment: temperature probe; test leads
Conform to the norm: CAT II 1000V; CAT III 600V; EN 61010
Related items: 5790D; 5793D; 5794D; 5795D; 5797D; BKP60; EX871515; EX881602; EX881603; EX881605; PKT-PTA; PKT-PTF-10; PKT-PTF-20; PKT-PTF-25; PKT-PTF-30; PKT-PTF-40; PKT-PTF-50; PKT-PTF-55; PKT-PTF-56; PKT-PTF-60; SE027; SE028; SE029; SE030; SE031; SE059; SE060; SE061; SE062; SE001; SE002; SE003; SE004; SE000; TESTO-06020393; TESTO-06020645; TESTO-06024592; TESTO-06024892; TESTO-06280020; TESTO-06281292; TESTO-06287533; TP200; TP400; TP870; TP873; TP873-5M; TP882; TP-111; TP-112; TP-02; TP-03; TP-04; TP-06; TP-08; TP-09; TPK-59; TPK-62; UTT10K; UTT12
Dimensions (W x H x D): 89x189x53mm
Measuring instrument features: automatic power-off; HOLD function; low battery indicator; MIN/MAX function; non-contact voltage detector; REL function
Battery/ rechargeable battery: battery R03 AAA 1,5V x4
Illumination: yes
auf Bestellung 1 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis ohne MwSt |
|---|---|
| 1+ | 71.5 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details UT89X UNI-T
Category: Portable digital multimeters, Description: Digital multimeter; LCD; (6000); VDC: 600mV,6V,60V,600V,1kV, Type of meter: digital multimeter, Measurement: AC current; AC voltage; capacitance; continuity; DC current; DC voltage; frequency; resistance; temperature; transistors' gain hFE, Kind of display used: LCD, Display parameters: (6000), DC voltage measuring range: 600mV; 6V; 60V; 600V; 1kV, DC voltage measuring accuracy: ±(0.5% + 2 digit), AC voltage measuring range: 6V; 60V; 600V; 1kV, AC voltage measuring accuracy: ±(0.8% + 5 digit), DC current measuring range: 60µA; 60mA; 600mA; 20A, DC current measuring accuracy: ±(0.8% + 8 digit), AC current measuring range: 60mA; 600mA; 20A, AC current measuring accuracy: ±(1% + 12 digit), True effective value measurement: True RMS, Resistance measuring range: 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ, Capacitance measuring range: 6nF; 60nF; 600nF; 6µF; 60µF; 600µF; 6mF; 60mF; 100mF, Capacitance measuring accuracy: ±(2.5%+ 20 digit), Frequency measuring range: 10...10MHz, Frequency measuring accuracy: ±(0.1%+4 digit), Temperature measuring range: -40...1000°C, Resistance measuring accuracy: ±(0.8%+3 digit), Diode test: 0...3V, Continuity test: acoustic indication; .
Weitere Produktangebote UT89X nach Preis ab 36.25 EUR bis 71.5 EUR
