Produkte > ABB > Alle Produkte des Herstellers ABB (7274) > Seite 122 nach 122

Hersteller: ABB
Category: Installation accessories
Description: Busbar; 10mm2; Poles: 1; 690VAC; 690VDC; Inom: 63A; No.of mod: 38
Number of poles: 1
Number of modules: 38
Current rating: 63A
Rated voltage: 690V AC; 690V DC
Short circuit current: 25kA
Type of installation accessories: busbar
Wire cross-section: 10mm²

Hersteller: ABB
Category: Installation accessories
Description: Busbar; 10mm2; Poles: 1; 690VAC; 690VDC; Inom: 63A; No.of mod: 57
Number of poles: 1
Number of modules: 57
Current rating: 63A
Rated voltage: 690V AC; 690V DC
Short circuit current: 25kA
Type of installation accessories: busbar
Wire cross-section: 10mm²

Hersteller: ABB
Category: Power Network Meters and Analyzers
Description: Meter: power quality analyser; on panel; digital,mounting; M4M
Type of meter: power quality analyser
Kind of measurement: indirect with 1A current transformer; indirect with 5A current transformer
Mounting: on panel
Kind of meter: digital; mounting
Kind of display used: colour; LCD 3,5"
Measurement: AC current; active power; AC voltage; apparent power; frequency; power factor; reactive power; THD
Manufacturer series: M4M
Kind of network: 3-wire; three-phase
AC voltage measuring range: 50...400V
Maximum current: 5A
Frequency: 50...60Hz
Accuracy class: 0.5S
True effective value measurement: True RMS
Interface: Bluetooth
IP rating: IP54 (from the front)
Supply voltage: 48...240V AC; 48...240V DC
Power consumption: 10W
Dimensions (W x H x D): 96x96x77mm
Software: dedicated mobile app
Number of digital outputs: 2

Hersteller: ABB
Category: Power Network Meters and Analyzers
Description: Meter: power quality analyser; on panel; digital,mounting; M4M
Type of meter: power quality analyser
Kind of measurement: indirect with 1A current transformer; indirect with 5A current transformer
Mounting: on panel
Kind of meter: digital; mounting
Kind of display used: colour; LCD 3,5"
Measurement: AC current; active power; AC voltage; apparent power; frequency; power factor; reactive power; THD
Manufacturer series: M4M
Kind of network: 4-wire; three-phase
AC voltage measuring range: 50...400V
Maximum current: 5A
Frequency: 50...60Hz
Accuracy class: 0.5S
True effective value measurement: True RMS
Output: programmable I/O x4
Interface: Bluetooth
Communictions protocol: BACnet/IP
IP rating: IP54 (from the front)
Supply voltage: 48...240V AC; 48...240V DC
Power consumption: 10W
Dimensions (W x H x D): 96x96x77mm
Software: dedicated mobile app
Touchpad: yes
Kind of connector: RJ45

Hersteller: ABB
Category: Panel Mount Switches, Standard 22mm
Description: Switch: rotary; 22mm; Stabl.pos: 3; black; none; IP66; prominent
Operating temperature: -25...70°C
Manufacturer series: M3S
Switch standard: 22mm
Mounting hole diameter: Ø22.5mm
Stable positions number: 3
Number of positions: 3
Actuator colour: black
Caution!: Contact sets must be ordered separately.
Button marking: I
IP rating: IP66
Illumination: none
Button shape: prominent
Type of switch: rotary
Switches features: short handle

Hersteller: ABB
Category: Panel Mount Switches, Standard 22mm
Description: Switch: rotary; 22mm; Stabl.pos: 3; green; MLB-1; IP66; prominent
Operating temperature: -25...70°C
Manufacturer series: M3S
Switch standard: 22mm
Mounting hole diameter: Ø22.5mm
Stable positions number: 3
Number of positions: 3
Actuator colour: green
Caution!: Contact sets must be ordered separately.; Illuminating unit has to be ordered separately
Button marking: I
IP rating: IP66
Illumination: MLB-1
Button shape: prominent
Type of switch: rotary
Switches features: short handle

Hersteller: ABB
Category: Panel Mount Switches, Standard 22mm
Description: Switch: rotary; 22mm; Stabl.pos: 3; transparent; MLB-1; IP66; M3S
Operating temperature: -25...70°C
Manufacturer series: M3S
Switch standard: 22mm
Mounting hole diameter: Ø22.5mm
Stable positions number: 3
Number of positions: 3
Actuator colour: transparent
Caution!: Contact sets must be ordered separately.; Illuminating unit has to be ordered separately
Button marking: I
IP rating: IP66
Illumination: MLB-1
Button shape: prominent
Type of switch: rotary
Switches features: short handle

Hersteller: ABB
Category: Panel Mount Switches, Standard 22mm
Description: Switch: rotary; 22mm; Stabl.pos: 3; red; none; IP66; prominent; M3S
Operating temperature: -25...70°C
Manufacturer series: M3S
Switch standard: 22mm
Mounting hole diameter: Ø22.5mm
Stable positions number: 3
Number of positions: 3
Actuator colour: red
Caution!: Contact sets must be ordered separately.
Button marking: I
IP rating: IP66
Illumination: none
Button shape: prominent
Type of switch: rotary
Switches features: short handle

Hersteller: ABB
Category: Surge Arresters
Description: Surge arrester; Type 1+2; Poles: 1+N; In 8/20us: 30kA; -40÷80°C
Mounting: for DIN rail mounting
Operating temperature: -40...80°C
Type of protection: surge arrester
Kind of surge arrester: Type 1+2
Number of poles: 1+N
Rated voltage: 1.5kV DC
Protection level at rated imp. current: 5kV
Rated impulse current In (10/350)µs: 10kA
Rated impulse current In (8/20)µs: 30kA
IP rating: IP20
Application: photovoltaics

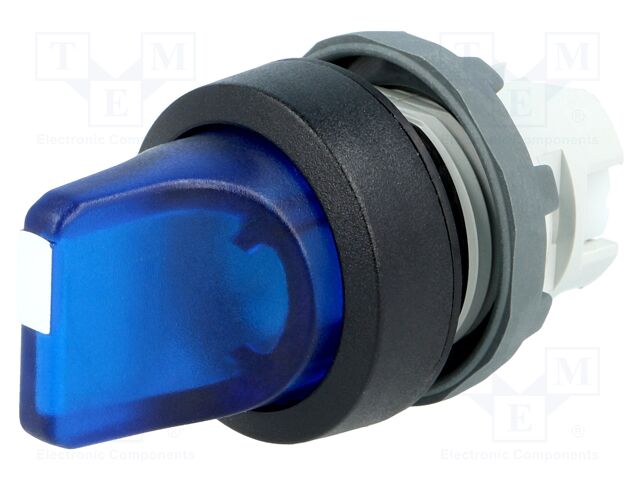

Hersteller: ABB
Category: Panel Mount Switches, Standard 22mm
Description: Switch: rotary; 22mm; Stabl.pos: 3; blue; MLB-1; IP66; prominent
Operating temperature: -25...70°C
Manufacturer series: M3S
Switch standard: 22mm
Mounting hole diameter: Ø22.5mm
Stable positions number: 3
Number of positions: 3
Actuator colour: blue
Caution!: Contact sets must be ordered separately.; Illuminating unit has to be ordered separately
Button marking: I
IP rating: IP66
Illumination: MLB-1
Button shape: prominent
Type of switch: rotary
Switches features: short handle

Hersteller: ABB
Category: Panel Mount Switches, Standard 22mm
Description: Switch: rotary; 22mm; Stabl.pos: 3; grey; none; IP66; prominent; M3S
Operating temperature: -25...70°C
Manufacturer series: M3S
Switch standard: 22mm
Mounting hole diameter: Ø22.5mm
Stable positions number: 3
Number of positions: 3
Actuator colour: grey
Caution!: Contact sets must be ordered separately.
Button marking: I
IP rating: IP66
Illumination: none
Button shape: prominent
Type of switch: rotary
Switches features: short handle

Hersteller: ABB
Category: Panel Mount Switches, Standard 22mm
Description: Switch: rotary; 22mm; Stabl.pos: 3; yellow; MLB-1; IP66; prominent
Operating temperature: -25...70°C
Manufacturer series: M3S
Switch standard: 22mm
Mounting hole diameter: Ø22.5mm
Stable positions number: 3
Number of positions: 3
Actuator colour: yellow
Caution!: Contact sets must be ordered separately.; Illuminating unit has to be ordered separately
Button marking: I
IP rating: IP66
Illumination: MLB-1
Button shape: prominent
Type of switch: rotary
Switches features: short handle

Hersteller: ABB
Category: Current Transformers
Description: Transformer: current; Iin: 1.25kA; Iout: 5A; 0.5@max10VA; 50÷60Hz
Mounting: for bus bar; on cable; screw
Operating temperature: -5...50°C
Manufacturer series: CT12-V
Dimensions (a x b x c): 109x26.5x41mm
Conductor rail size: 125mmx30mm; 3x 100mmx10mm; 4x 100mmx5mm; 4x 125mmx5mm
Accuracy class: 0.5 @max 10VA
Output current: 5A
Operating frequency: 50...60Hz
Input current: 1.25kA
Type of Transformer: current
IP rating: IP30

Hersteller: ABB
Category: Cable Ties - Holders
Description: Holder; cable ties
Cable accessories application: cable ties
Type of cable accessories: holder
