Produkte > DANFOSS > Alle Produkte des Herstellers DANFOSS (669) > Seite 8 nach 12

Wählen Sie Seite:   [  << Vorherige Seite ]  1 2 3 4 5 6 7 8 9 10 11 12  [ Nächste Seite >> ]
Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
FC-051P1K5T4E20H3BXCXXXSXXX FC-051P1K5T4E20H3BXCXXXSXXX DANFOSS pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B00149A91AA0C7&compId=VLT-Micro-Drive-FC-51-INS-EN.pdf?ci_sign=5ffd2092dc32d153b1abf420cf6bc3c0a92a569c Category: Three Phase Inverters
Description: Vector inverter; 1.5kW; 3x400VAC; 3x380÷480VAC; 0÷10V; IN: 6
Manufacturer series: VLT Micro Drive FC 51
Input 1 properties: current analog
Mounting: for DIN rail mounting; for wall mounting
Type of module: vector inverter
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Voltage output: 0...10V
Output frequency: 0...400Hz
Body dimensions: 176x75x168mm
Number of analog inputs: 1
Current rating: 3.7A
Number of analog outputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 6
Max motor power: 1.5kW
The programming method: keypad; PC
Electrical connection: screw terminals
Protection: anti-overload OPP; short circuit protection SCP
auf Bestellung 1 Stücke:
Lieferzeit 14-21 Tag (e)
1+740.55 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-051P22KT4E20H3BXCXXXSXXX DANFOSS pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B00149A91AA0C7&compId=VLT-Micro-Drive-FC-51-INS-EN.pdf?ci_sign=5ffd2092dc32d153b1abf420cf6bc3c0a92a569c Category: Three Phase Inverters
Description: Vector inverter; 22kW; 3x400VAC; 3x380÷480VAC; 0÷10V; IN: 6
Type of module: vector inverter
Max motor power: 22kW
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Input 1 properties: current analog
Voltage output: 0...10V
Current output: 0/4mA...20mA
Electrical connection: screw terminals
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Protection: anti-overload OPP; short circuit protection SCP
Number of inputs: 6
Number of analog inputs: 1
Operating temperature: 0...50°C
Output frequency: 0...400Hz
Current rating: 43A
Number of analog outputs: 2
Body dimensions: 335x165x248mm
Manufacturer series: VLT Micro Drive FC 51
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
FC-051P2K2S2E20H3BXCXXXSXXX FC-051P2K2S2E20H3BXCXXXSXXX DANFOSS pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B00149A91AA0C7&compId=VLT-Micro-Drive-FC-51-INS-EN.pdf?ci_sign=5ffd2092dc32d153b1abf420cf6bc3c0a92a569c Category: One Phase Inverters
Description: Vector inverter; Max motor power: 2.2kW; Usup: 200÷240VAC; IN: 6
Manufacturer series: VLT Micro Drive FC 51
Input 1 properties: current analog
Mounting: for DIN rail mounting; for wall mounting
Type of module: vector inverter
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Voltage output: 0...10V
Output frequency: 0...400Hz
Body dimensions: 239x90x194mm
Number of analog inputs: 1
Current rating: 9.6A
Number of analog outputs: 2
Inverter output voltage: 3 x 230V AC
Number of inputs: 6
Supply voltage: 200...240V AC
Max motor power: 2.2kW
The programming method: keypad; PC
Electrical connection: screw terminals
Protection: anti-overload OPP; short circuit protection SCP
auf Bestellung 6 Stücke:
Lieferzeit 14-21 Tag (e)
1+448.02 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-051P5K5T4E20H3BXCXXXSXXX FC-051P5K5T4E20H3BXCXXXSXXX DANFOSS pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B00149A91AA0C7&compId=VLT-Micro-Drive-FC-51-INS-EN.pdf?ci_sign=5ffd2092dc32d153b1abf420cf6bc3c0a92a569c Category: Three Phase Inverters
Description: Vector inverter; 5.5kW; 3x400VAC; 3x380÷480VAC; 0÷10V; IN: 6
Manufacturer series: VLT Micro Drive FC 51
Input 1 properties: current analog
Mounting: for DIN rail mounting; for wall mounting
Type of module: vector inverter
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Voltage output: 0...10V
Output frequency: 0...400Hz
Body dimensions: 239x90x194mm
Number of analog inputs: 1
Current rating: 12A
Number of analog outputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 6
Max motor power: 5.5kW
The programming method: keypad; PC
Electrical connection: screw terminals
Protection: anti-overload OPP; short circuit protection SCP
auf Bestellung 1 Stücke:
Lieferzeit 14-21 Tag (e)
1+1311.18 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-051PK37S2E20H3XXCXXXSXXX FC-051PK37S2E20H3XXCXXXSXXX DANFOSS pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B00149A91AA0C7&compId=VLT-Micro-Drive-FC-51-INS-EN.pdf?ci_sign=5ffd2092dc32d153b1abf420cf6bc3c0a92a569c Category: One Phase Inverters
Description: Vector inverter; Max motor power: 0.37kW; Usup: 200÷240VAC; IN: 6
Manufacturer series: VLT Micro Drive FC 51
Input 1 properties: current analog
Mounting: for DIN rail mounting; for wall mounting
Type of module: vector inverter
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Voltage output: 0...10V
Output frequency: 0...400Hz
Body dimensions: 150x70x148mm
Number of analog inputs: 1
Current rating: 2.2A
Number of analog outputs: 2
Inverter output voltage: 3 x 230V AC
Number of inputs: 6
Supply voltage: 200...240V AC
Max motor power: 0.37kW
The programming method: keypad; PC
Electrical connection: screw terminals
Protection: anti-overload OPP; short circuit protection SCP
auf Bestellung 2 Stücke:
Lieferzeit 14-21 Tag (e)
1+328.79 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-051PK37T4E20H3XXCXXXSXXX FC-051PK37T4E20H3XXCXXXSXXX DANFOSS pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B00149A91AA0C7&compId=VLT-Micro-Drive-FC-51-INS-EN.pdf?ci_sign=5ffd2092dc32d153b1abf420cf6bc3c0a92a569c Category: Three Phase Inverters
Description: Vector inverter; 0.37kW; 3x400VAC; 3x380÷480VAC; 0÷10V; IN: 6
Manufacturer series: VLT Micro Drive FC 51
Input 1 properties: current analog
Mounting: for DIN rail mounting; for wall mounting
Type of module: vector inverter
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Voltage output: 0...10V
Output frequency: 0...400Hz
Body dimensions: 150x70x148mm
Number of analog inputs: 1
Current rating: 1.2A
Number of analog outputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 6
Max motor power: 0.37kW
The programming method: keypad; PC
Electrical connection: screw terminals
Protection: anti-overload OPP; short circuit protection SCP
auf Bestellung 6 Stücke:
Lieferzeit 14-21 Tag (e)
1+437.31 EUR
5+425.01 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-051PK75S2E20H3XXCXXXSXXX FC-051PK75S2E20H3XXCXXXSXXX DANFOSS pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B00149A91AA0C7&compId=VLT-Micro-Drive-FC-51-INS-EN.pdf?ci_sign=5ffd2092dc32d153b1abf420cf6bc3c0a92a569c Category: One Phase Inverters
Description: Vector inverter; Max motor power: 0.75kW; Usup: 200÷240VAC; IN: 6
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Micro Drive FC 51
Current output: 0/4mA...20mA
Voltage output: 0...10V
Operating temperature: 0...50°C
Output frequency: 0...400Hz
Body dimensions: 150x70x148mm
Number of analog inputs: 1
Number of analog outputs: 2
Current rating: 4.2A
Inverter output voltage: 3 x 230V AC
Number of inputs: 6
Supply voltage: 200...240V AC
Protection: anti-overload OPP; short circuit protection SCP
Max motor power: 0.75kW
Input 1 properties: current analog
auf Bestellung 1 Stücke:
Lieferzeit 14-21 Tag (e)
1+379.64 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-051PK75T4E20H3XXCXXXSXXX FC-051PK75T4E20H3XXCXXXSXXX DANFOSS pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B00149A91AA0C7&compId=VLT-Micro-Drive-FC-51-INS-EN.pdf?ci_sign=5ffd2092dc32d153b1abf420cf6bc3c0a92a569c Category: Three Phase Inverters
Description: Vector inverter; 0.75kW; 3x400VAC; 3x380÷480VAC; 0÷10V; IN: 6
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Micro Drive FC 51
Current output: 0/4mA...20mA
Voltage output: 0...10V
Operating temperature: 0...50°C
Output frequency: 0...400Hz
Body dimensions: 150x70x148mm
Number of analog inputs: 1
Number of analog outputs: 2
Current rating: 2.2A
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 6
Protection: anti-overload OPP; short circuit protection SCP
Max motor power: 0.75kW
Input 1 properties: current analog
auf Bestellung 1 Stücke:
Lieferzeit 14-21 Tag (e)
1+520.63 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-280P11KT4E20H1BXCXXXSXXXXAX DANFOSS pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b Category: Three Phase Inverters
Description: Vector inverter; 11kW; 3x400VAC; 3x380÷480VAC; IN: 11; Analog in: 2
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Midi Drive FC 280
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Output frequency: 0...500Hz
Body dimensions: 320x145x245mm
Number of analog outputs: 1
Current rating: 23A
Number of analog inputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 11
Max motor power: 11kW
Protection: anti-overload OPP; short circuit protection SCP
Driver features: integrated brake transistor; integrated EMC filter
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
FC-280P15KT4E20H1BXCXXXSXXXXAX
+1
 		FC-280P15KT4E20H1BXCXXXSXXXXAX DANFOSS pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b Category: Three Phase Inverters
Description: Vector inverter; 15kW; 3x400VAC; 3x380÷480VAC; IN: 11; Analog in: 2
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Midi Drive FC 280
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Output frequency: 0...500Hz
Body dimensions: 320x145x245mm
Number of analog outputs: 1
Current rating: 31A
Number of analog inputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 11
Max motor power: 15kW
Protection: anti-overload OPP; short circuit protection SCP
Driver features: integrated brake transistor; integrated EMC filter
auf Bestellung 4 Stücke:
Lieferzeit 14-21 Tag (e)
1+2737.02 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-280P18KT4E20H1BXCXXXSXXXXAX DANFOSS pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b Category: Three Phase Inverters
Description: Vector inverter; 18.5kW; 3x400VAC; 3x380÷480VAC; IN: 11; 0÷500Hz
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Midi Drive FC 280
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Output frequency: 0...500Hz
Body dimensions: 410x150x245mm
Number of analog outputs: 1
Current rating: 37A
Number of analog inputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 11
Max motor power: 18.5kW
Protection: anti-overload OPP; short circuit protection SCP
Driver features: integrated brake transistor; integrated EMC filter
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
FC-280P1K1S2E20H1XXCXXXSXXXXAX DANFOSS pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b Category: One Phase Inverters
Description: Vector inverter; Max motor power: 1.1kW; Usup: 200÷240VAC; IN: 11
Type of module: vector inverter
Max motor power: 1.1kW
Supply voltage: 200...240V AC
Inverter output voltage: 3 x 230V AC
The programming method: keypad; PC
Electrical connection: screw terminals
Protection: anti-overload OPP; short circuit protection SCP
Mounting: for DIN rail mounting; for wall mounting
Operating temperature: 0...50°C
Output frequency: 0...500Hz
Number of inputs: 11
Number of analog inputs: 2
Number of analog outputs: 1
Current rating: 6A
Body dimensions: 210x75x168mm
Current output: 0/4mA...20mA
Manufacturer series: VLT Midi Drive FC 280
Driver features: integrated brake transistor; integrated EMC filter
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
FC-280P1K1T4E20H1BXCXXXSXXXXAX FC-280P1K1T4E20H1BXCXXXSXXXXAX DANFOSS pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b Category: Three Phase Inverters
Description: Vector inverter; 1.1kW; 3x400VAC; 3x380÷480VAC; IN: 11; 0÷500Hz
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Midi Drive FC 280
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Output frequency: 0...500Hz
Body dimensions: 210x75x168mm
Number of analog outputs: 1
Current rating: 3A
Number of analog inputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 11
Max motor power: 1.1kW
Protection: anti-overload OPP; short circuit protection SCP
Driver features: integrated brake transistor; integrated EMC filter
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
FC-280P1K5S2E20H1XXCXXXSXXXXAX DANFOSS pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b Category: One Phase Inverters
Description: Vector inverter; Max motor power: 1.5kW; Usup: 200÷240VAC; IN: 11
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Midi Drive FC 280
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Output frequency: 0...500Hz
Body dimensions: 210x75x168mm
Number of analog outputs: 1
Current rating: 6.8A
Number of analog inputs: 2
Inverter output voltage: 3 x 230V AC
Supply voltage: 200...240V AC
Number of inputs: 11
Max motor power: 1.5kW
Protection: anti-overload OPP; short circuit protection SCP
Driver features: integrated brake transistor; integrated EMC filter
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
FC-280P1K5T4E20H1BXCXXXSXXXXAX
+1
 		FC-280P1K5T4E20H1BXCXXXSXXXXAX DANFOSS pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b Category: Three Phase Inverters
Description: Vector inverter; 1.5kW; 3x400VAC; 3x380÷480VAC; IN: 11; 0÷500Hz
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Midi Drive FC 280
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Output frequency: 0...500Hz
Body dimensions: 210x75x168mm
Number of analog outputs: 1
Current rating: 3.7A
Number of analog inputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 11
Max motor power: 1.5kW
Protection: anti-overload OPP; short circuit protection SCP
Driver features: integrated brake transistor; integrated EMC filter
auf Bestellung 4 Stücke:
Lieferzeit 14-21 Tag (e)
1+895.61 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-280P22KT4E20H1BXCXXXSXXXXAX DANFOSS pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b Category: Three Phase Inverters
Description: Vector inverter; 22kW; 3x400VAC; 3x380÷480VAC; IN: 11; Analog in: 2
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Midi Drive FC 280
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Output frequency: 0...500Hz
Body dimensions: 410x150x245mm
Number of analog outputs: 1
Current rating: 42.5A
Number of analog inputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 11
Max motor power: 22kW
Protection: anti-overload OPP; short circuit protection SCP
Driver features: integrated brake transistor; integrated EMC filter
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
FC-280P2K2S2E20H1XXCXXXSXXXXAX DANFOSS pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b Category: One Phase Inverters
Description: Vector inverter; Max motor power: 2.2kW; Usup: 200÷240VAC; IN: 11
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Midi Drive FC 280
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Output frequency: 0...500Hz
Body dimensions: 210x75x168mm
Number of analog outputs: 1
Current rating: 9.6A
Number of analog inputs: 2
Inverter output voltage: 3 x 230V AC
Supply voltage: 200...240V AC
Number of inputs: 11
Max motor power: 2.2kW
Protection: anti-overload OPP; short circuit protection SCP
Driver features: integrated brake transistor; integrated EMC filter
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
FC-280P2K2T4E20H1BXCXXXSXXXXAX
+1
 		FC-280P2K2T4E20H1BXCXXXSXXXXAX DANFOSS pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b Category: Three Phase Inverters
Description: Vector inverter; 2.2kW; 3x400VAC; 3x380÷480VAC; IN: 11; 0÷500Hz
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Midi Drive FC 280
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Output frequency: 0...500Hz
Body dimensions: 210x75x168mm
Number of analog outputs: 1
Current rating: 5.3A
Number of analog inputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 11
Max motor power: 2.2kW
Protection: anti-overload OPP; short circuit protection SCP
Driver features: integrated brake transistor; integrated EMC filter
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
FC-280P3K0T4E20H1BXCXXXSXXXXAX DANFOSS pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b Category: Three Phase Inverters
Description: Vector inverter; 3kW; 3x400VAC; 3x380÷480VAC; IN: 11; Analog in: 2
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Midi Drive FC 280
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Output frequency: 0...500Hz
Body dimensions: 272.5x90x267mm
Number of analog outputs: 1
Current rating: 7.2A
Number of analog inputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 11
Max motor power: 3kW
Protection: anti-overload OPP; short circuit protection SCP
Driver features: integrated brake transistor; integrated EMC filter
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
FC-280P4K0T4E20H1BXCXXXSXXXXAX DANFOSS pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b Category: Three Phase Inverters
Description: Vector inverter; 4kW; 3x400VAC; 3x380÷480VAC; IN: 11; Analog in: 2
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Midi Drive FC 280
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Output frequency: 0...500Hz
Body dimensions: 272.5x90x267mm
Number of analog outputs: 1
Current rating: 9A
Number of analog inputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 11
Max motor power: 4kW
Protection: anti-overload OPP; short circuit protection SCP
Driver features: integrated brake transistor; integrated EMC filter
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
FC-280P5K5T4E20H1BXCXXXSXXXXAX FC-280P5K5T4E20H1BXCXXXSXXXXAX DANFOSS pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b Category: Three Phase Inverters
Description: Vector inverter; 5.5kW; 3x400VAC; 3x380÷480VAC; IN: 11; 0÷500Hz
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Midi Drive FC 280
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Output frequency: 0...500Hz
Body dimensions: 272.5x90x267mm
Number of analog outputs: 1
Current rating: 12A
Number of analog inputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 11
Max motor power: 5.5kW
Protection: anti-overload OPP; short circuit protection SCP
Driver features: integrated brake transistor; integrated EMC filter
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
FC-280P7K5T4E20H1BXCXXXSXXXXAX DANFOSS pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b Category: Three Phase Inverters
Description: Vector inverter; 7.5kW; 3x400VAC; 3x380÷480VAC; IN: 11; 0÷500Hz
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Midi Drive FC 280
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Output frequency: 0...500Hz
Body dimensions: 272.5x115x168mm
Number of analog outputs: 1
Current rating: 15.5A
Number of analog inputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 11
Max motor power: 7.5kW
Protection: anti-overload OPP; short circuit protection SCP
Driver features: integrated brake transistor; integrated EMC filter
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
FC-280PK37S2E20H1XXCXXXSXXXXAX DANFOSS pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b Category: One Phase Inverters
Description: Vector inverter; Max motor power: 370W; Usup: 200÷240VAC; 0÷500Hz
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Midi Drive FC 280
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Output frequency: 0...500Hz
Body dimensions: 210x75x168mm
Number of analog outputs: 1
Current rating: 2.2A
Number of analog inputs: 2
Inverter output voltage: 3 x 230V AC
Supply voltage: 200...240V AC
Number of inputs: 11
Max motor power: 0.37kW
Protection: anti-overload OPP; short circuit protection SCP
Driver features: integrated brake transistor; integrated EMC filter
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
FC-280PK37T4E20H1BXCXXXSXXXXAX FC-280PK37T4E20H1BXCXXXSXXXXAX DANFOSS pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b Category: Three Phase Inverters
Description: Vector inverter; 0.37kW; 3x400VAC; 3x380÷480VAC; IN: 11; 0÷500Hz
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Midi Drive FC 280
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Output frequency: 0...500Hz
Body dimensions: 210x75x168mm
Number of analog outputs: 1
Current rating: 1.2A
Number of analog inputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 11
Max motor power: 0.37kW
Protection: anti-overload OPP; short circuit protection SCP
Driver features: integrated brake transistor; integrated EMC filter
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
FC-280PK55S2E20H1XXCXXXSXXXXAX DANFOSS pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b Category: One Phase Inverters
Description: Vector inverter; Max motor power: 0.55kW; Usup: 200÷240VAC; IN: 11
Type of module: vector inverter
Max motor power: 0.55kW
Supply voltage: 200...240V AC
Inverter output voltage: 3 x 230V AC
The programming method: keypad; PC
Electrical connection: screw terminals
Protection: anti-overload OPP; short circuit protection SCP
Mounting: for DIN rail mounting; for wall mounting
Operating temperature: 0...50°C
Output frequency: 0...500Hz
Number of inputs: 11
Number of analog inputs: 2
Number of analog outputs: 1
Current rating: 3.2A
Body dimensions: 210x75x168mm
Current output: 0/4mA...20mA
Manufacturer series: VLT Midi Drive FC 280
Driver features: integrated brake transistor; integrated EMC filter
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
FC-280PK55T4E20H1BXCXXXSXXXXAX FC-280PK55T4E20H1BXCXXXSXXXXAX DANFOSS pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b Category: Three Phase Inverters
Description: Vector inverter; 0.55kW; 3x400VAC; 3x380÷480VAC; IN: 11; 0÷500Hz
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Midi Drive FC 280
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Output frequency: 0...500Hz
Body dimensions: 210x75x168mm
Number of analog outputs: 1
Current rating: 1.7A
Number of analog inputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 11
Max motor power: 0.55kW
Protection: anti-overload OPP; short circuit protection SCP
Driver features: integrated brake transistor; integrated EMC filter
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
FC-280PK75S2E20H1XXCXXXSXXXXAX DANFOSS pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b Category: One Phase Inverters
Description: Vector inverter; Max motor power: 0.75kW; Usup: 200÷240VAC; IN: 11
Mounting: for DIN rail mounting; for wall mounting
Driver features: integrated brake transistor; integrated EMC filter
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Midi Drive FC 280
Current output: 0/4mA...20mA
Operating temperature: 0...50°C
Output frequency: 0...500Hz
Body dimensions: 210x75x168mm
Number of analog inputs: 2
Number of analog outputs: 1
Current rating: 4.2A
Inverter output voltage: 3 x 230V AC
Number of inputs: 11
Supply voltage: 200...240V AC
Protection: anti-overload OPP; short circuit protection SCP
Max motor power: 0.75kW
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
FC-280PK75T4E20H1BXCXXXSXXXXAX DANFOSS pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b Category: Three Phase Inverters
Description: Vector inverter; 0.75kW; 3x400VAC; 3x380÷480VAC; IN: 11; 0÷500Hz
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Midi Drive FC 280
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Output frequency: 0...500Hz
Body dimensions: 210x75x168mm
Number of analog outputs: 1
Current rating: 2.2A
Number of analog inputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 11
Max motor power: 0.75kW
Protection: anti-overload OPP; short circuit protection SCP
Driver features: integrated brake transistor; integrated EMC filter
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
FC-302N132T5E20H2XGCXXXSXXXXAXBXCXXXXDX DANFOSS Category: Three Phase Inverters
Description: Vector inverter; 132kW; 3x400VAC; 3x380÷500VAC; 315A
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Body dimensions: 1004x250x375mm
Current rating: 315A
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...500V AC
Max motor power: 132kW
Protection: anti-overload OPP; short circuit protection SCP
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
FC-051P1K5T4E20H3BXCXXXSXXX FC-051P1K5T4E20H3BXCXXXSXXX DANFOSS pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B00149A91AA0C7&compId=VLT-Micro-Drive-FC-51-INS-EN.pdf?ci_sign=5ffd2092dc32d153b1abf420cf6bc3c0a92a569c Category: Three Phase Inverters
Description: Vector inverter; 1.5kW; 3x400VAC; 3x380÷480VAC; 0÷10V; IN: 6
Manufacturer series: VLT Micro Drive FC 51
Input 1 properties: current analog
Mounting: for DIN rail mounting; for wall mounting
Type of module: vector inverter
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Voltage output: 0...10V
Output frequency: 0...400Hz
Body dimensions: 176x75x168mm
Number of analog inputs: 1
Current rating: 3.7A
Number of analog outputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 6
Max motor power: 1.5kW
The programming method: keypad; PC
Electrical connection: screw terminals
Protection: anti-overload OPP; short circuit protection SCP
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1 Stücke:
Lieferzeit 7-14 Tag (e)
1+740.55 EUR
5+721.56 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-051P2K2S2E20H3BXCXXXSXXX FC-051P2K2S2E20H3BXCXXXSXXX DANFOSS pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B00149A91AA0C7&compId=VLT-Micro-Drive-FC-51-INS-EN.pdf?ci_sign=5ffd2092dc32d153b1abf420cf6bc3c0a92a569c Category: One Phase Inverters
Description: Vector inverter; Max motor power: 2.2kW; Usup: 200÷240VAC; IN: 6
Manufacturer series: VLT Micro Drive FC 51
Input 1 properties: current analog
Mounting: for DIN rail mounting; for wall mounting
Type of module: vector inverter
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Voltage output: 0...10V
Output frequency: 0...400Hz
Body dimensions: 239x90x194mm
Number of analog inputs: 1
Current rating: 9.6A
Number of analog outputs: 2
Inverter output voltage: 3 x 230V AC
Number of inputs: 6
Supply voltage: 200...240V AC
Max motor power: 2.2kW
The programming method: keypad; PC
Electrical connection: screw terminals
Protection: anti-overload OPP; short circuit protection SCP
Anzahl je Verpackung: 1 Stücke
auf Bestellung 6 Stücke:
Lieferzeit 7-14 Tag (e)
1+448.02 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-051P2K2T4E20H3BXCXXXSXXX DANFOSS 132F0022 Three Phase Inverters
auf Bestellung 3 Stücke:
Lieferzeit 7-14 Tag (e)
1+734 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-051P4K0T4E20H3BXCXXXSXXX DANFOSS 132F0026 Three Phase Inverters
auf Bestellung 1 Stücke:
Lieferzeit 7-14 Tag (e)
1+1128.76 EUR
5+1085.34 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-051P5K5T4E20H3BXCXXXSXXX FC-051P5K5T4E20H3BXCXXXSXXX DANFOSS pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B00149A91AA0C7&compId=VLT-Micro-Drive-FC-51-INS-EN.pdf?ci_sign=5ffd2092dc32d153b1abf420cf6bc3c0a92a569c Category: Three Phase Inverters
Description: Vector inverter; 5.5kW; 3x400VAC; 3x380÷480VAC; 0÷10V; IN: 6
Manufacturer series: VLT Micro Drive FC 51
Input 1 properties: current analog
Mounting: for DIN rail mounting; for wall mounting
Type of module: vector inverter
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Voltage output: 0...10V
Output frequency: 0...400Hz
Body dimensions: 239x90x194mm
Number of analog inputs: 1
Current rating: 12A
Number of analog outputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 6
Max motor power: 5.5kW
The programming method: keypad; PC
Electrical connection: screw terminals
Protection: anti-overload OPP; short circuit protection SCP
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1 Stücke:
Lieferzeit 7-14 Tag (e)
1+1311.18 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-051P7K5T4E20H3BXCXXXSXXX DANFOSS 132F0030 Three Phase Inverters
auf Bestellung 1 Stücke:
Lieferzeit 7-14 Tag (e)
1+1533.09 EUR
5+1531.47 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-051PK18S2E20H3XXCXXXSXXX DANFOSS 132F0001 One Phase Inverters
auf Bestellung 1 Stücke:
Lieferzeit 7-14 Tag (e)
1+303.09 EUR
5+291.43 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-051PK37S2E20H3XXCXXXSXXX FC-051PK37S2E20H3XXCXXXSXXX DANFOSS pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B00149A91AA0C7&compId=VLT-Micro-Drive-FC-51-INS-EN.pdf?ci_sign=5ffd2092dc32d153b1abf420cf6bc3c0a92a569c Category: One Phase Inverters
Description: Vector inverter; Max motor power: 0.37kW; Usup: 200÷240VAC; IN: 6
Manufacturer series: VLT Micro Drive FC 51
Input 1 properties: current analog
Mounting: for DIN rail mounting; for wall mounting
Type of module: vector inverter
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Voltage output: 0...10V
Output frequency: 0...400Hz
Body dimensions: 150x70x148mm
Number of analog inputs: 1
Current rating: 2.2A
Number of analog outputs: 2
Inverter output voltage: 3 x 230V AC
Number of inputs: 6
Supply voltage: 200...240V AC
Max motor power: 0.37kW
The programming method: keypad; PC
Electrical connection: screw terminals
Protection: anti-overload OPP; short circuit protection SCP
Anzahl je Verpackung: 1 Stücke
auf Bestellung 2 Stücke:
Lieferzeit 7-14 Tag (e)
1+328.79 EUR
5+319.2 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-051PK37T4E20H3XXCXXXSXXX FC-051PK37T4E20H3XXCXXXSXXX DANFOSS pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B00149A91AA0C7&compId=VLT-Micro-Drive-FC-51-INS-EN.pdf?ci_sign=5ffd2092dc32d153b1abf420cf6bc3c0a92a569c Category: Three Phase Inverters
Description: Vector inverter; 0.37kW; 3x400VAC; 3x380÷480VAC; 0÷10V; IN: 6
Manufacturer series: VLT Micro Drive FC 51
Input 1 properties: current analog
Mounting: for DIN rail mounting; for wall mounting
Type of module: vector inverter
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Voltage output: 0...10V
Output frequency: 0...400Hz
Body dimensions: 150x70x148mm
Number of analog inputs: 1
Current rating: 1.2A
Number of analog outputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 6
Max motor power: 0.37kW
The programming method: keypad; PC
Electrical connection: screw terminals
Protection: anti-overload OPP; short circuit protection SCP
Anzahl je Verpackung: 1 Stücke
auf Bestellung 6 Stücke:
Lieferzeit 7-14 Tag (e)
1+437.31 EUR
5+425.01 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-051PK75S2E20H3XXCXXXSXXX FC-051PK75S2E20H3XXCXXXSXXX DANFOSS pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B00149A91AA0C7&compId=VLT-Micro-Drive-FC-51-INS-EN.pdf?ci_sign=5ffd2092dc32d153b1abf420cf6bc3c0a92a569c Category: One Phase Inverters
Description: Vector inverter; Max motor power: 0.75kW; Usup: 200÷240VAC; IN: 6
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Micro Drive FC 51
Current output: 0/4mA...20mA
Voltage output: 0...10V
Operating temperature: 0...50°C
Output frequency: 0...400Hz
Body dimensions: 150x70x148mm
Number of analog inputs: 1
Number of analog outputs: 2
Current rating: 4.2A
Inverter output voltage: 3 x 230V AC
Number of inputs: 6
Supply voltage: 200...240V AC
Protection: anti-overload OPP; short circuit protection SCP
Max motor power: 0.75kW
Input 1 properties: current analog
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1 Stücke:
Lieferzeit 7-14 Tag (e)
1+379.64 EUR
5+379.62 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-051PK75T4E20H3XXCXXXSXXX FC-051PK75T4E20H3XXCXXXSXXX DANFOSS pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B00149A91AA0C7&compId=VLT-Micro-Drive-FC-51-INS-EN.pdf?ci_sign=5ffd2092dc32d153b1abf420cf6bc3c0a92a569c Category: Three Phase Inverters
Description: Vector inverter; 0.75kW; 3x400VAC; 3x380÷480VAC; 0÷10V; IN: 6
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Micro Drive FC 51
Current output: 0/4mA...20mA
Voltage output: 0...10V
Operating temperature: 0...50°C
Output frequency: 0...400Hz
Body dimensions: 150x70x148mm
Number of analog inputs: 1
Number of analog outputs: 2
Current rating: 2.2A
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 6
Protection: anti-overload OPP; short circuit protection SCP
Max motor power: 0.75kW
Input 1 properties: current analog
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1 Stücke:
Lieferzeit 7-14 Tag (e)
1+520.63 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-280P15KT4E20H1BXCXXXSXXXXAX
+1
 		FC-280P15KT4E20H1BXCXXXSXXXXAX DANFOSS pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b Category: Three Phase Inverters
Description: Vector inverter; 15kW; 3x400VAC; 3x380÷480VAC; IN: 11; Analog in: 2
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Midi Drive FC 280
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Output frequency: 0...500Hz
Body dimensions: 320x145x245mm
Number of analog outputs: 1
Current rating: 31A
Number of analog inputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 11
Max motor power: 15kW
Protection: anti-overload OPP; short circuit protection SCP
Driver features: integrated brake transistor; integrated EMC filter
Anzahl je Verpackung: 1 Stücke
auf Bestellung 4 Stücke:
Lieferzeit 7-14 Tag (e)
1+2737.02 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-280P1K5T4E20H1BXCXXXSXXXXAX
+1
 		FC-280P1K5T4E20H1BXCXXXSXXXXAX DANFOSS pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b Category: Three Phase Inverters
Description: Vector inverter; 1.5kW; 3x400VAC; 3x380÷480VAC; IN: 11; 0÷500Hz
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Midi Drive FC 280
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Output frequency: 0...500Hz
Body dimensions: 210x75x168mm
Number of analog outputs: 1
Current rating: 3.7A
Number of analog inputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 11
Max motor power: 1.5kW
Protection: anti-overload OPP; short circuit protection SCP
Driver features: integrated brake transistor; integrated EMC filter
Anzahl je Verpackung: 1 Stücke
auf Bestellung 4 Stücke:
Lieferzeit 7-14 Tag (e)
1+895.61 EUR
Im Einkaufswagen  Stück im Wert von  UAH
INT 5 DANFOSS 037H3520 Contactors - Accessories
auf Bestellung 3 Stücke:
Lieferzeit 7-14 Tag (e)
3+23.84 EUR
4+17.88 EUR
11+6.51 EUR
Mindestbestellmenge: 3
Im Einkaufswagen  Stück im Wert von  UAH

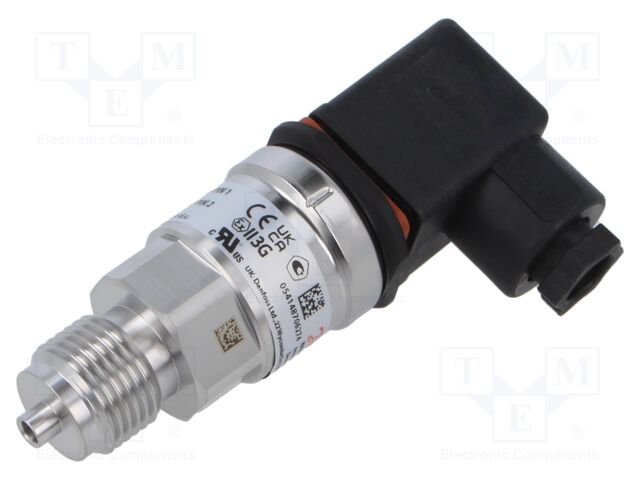

MBS 1700-2011-A1AB08-0 MBS 1700-2011-A1AB08-0 DANFOSS pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B2DB322AD0A30143&compId=MBS1700-EN.pdf?ci_sign=1f92d9b71900a8990680cbc31ddb3be7c84925ce pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B2DB322AD0A2A143&compId=MBS1700-DE.pdf?ci_sign=e2dc43e5754699975d0dad5c5335ca945bf30e2d Category: Pressure Transducers
Description: Converter: pressure; Pressure setting range: 0÷10bar; 9÷32VDC
Manufacturer series: MBS 1700
Mounting: G1/2"
IP rating: IP65
Additional functions: measurement regarding atmospheric pressure
Connection: PG9
Type of converter: pressure
Controlled parameter: relative pressure
Operating temperature: -40...85°C
Current output: 4...20mA
Pressure setting range: 0...10bar
Measurement accuracy: 0.5%
Number of pins: 4
Supply voltage: 9...32V DC
auf Bestellung 8 Stücke:
Lieferzeit 14-21 Tag (e)
1+186.49 EUR
5+179.32 EUR
Im Einkaufswagen  Stück im Wert von  UAH

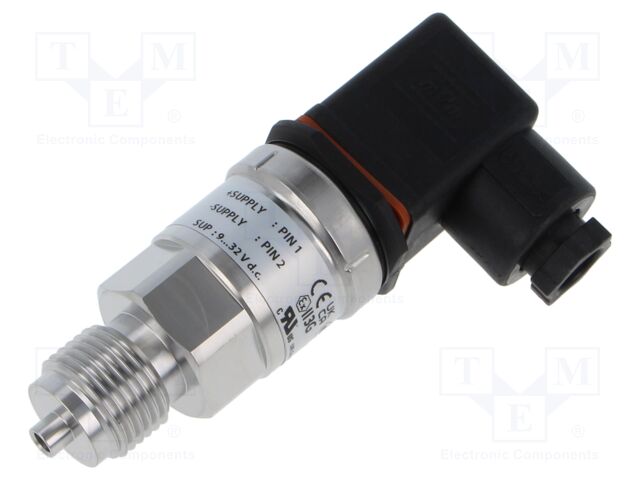

MBS 1700-2211-A1AB04-0 MBS 1700-2211-A1AB04-0 DANFOSS pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B2DB322AD0A30143&compId=MBS1700-EN.pdf?ci_sign=1f92d9b71900a8990680cbc31ddb3be7c84925ce pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B2DB322AD0A2A143&compId=MBS1700-DE.pdf?ci_sign=e2dc43e5754699975d0dad5c5335ca945bf30e2d Category: Pressure Transducers
Description: Converter: pressure; Pressure setting range: 0÷16bar; 9÷32VDC
Mounting: G1/4"
IP rating: IP65
Connection: PG9
Type of converter: pressure
Controlled parameter: relative pressure
Operating temperature: -40...85°C
Pressure setting range: 0...16bar
Current output: 4...20mA
Measurement accuracy: 0.5%
Number of pins: 4
Supply voltage: 9...32V DC
Manufacturer series: MBS 1700
Additional functions: measurement regarding atmospheric pressure
auf Bestellung 5 Stücke:
Lieferzeit 14-21 Tag (e)
1+186.37 EUR
5+179.21 EUR
Im Einkaufswagen  Stück im Wert von  UAH

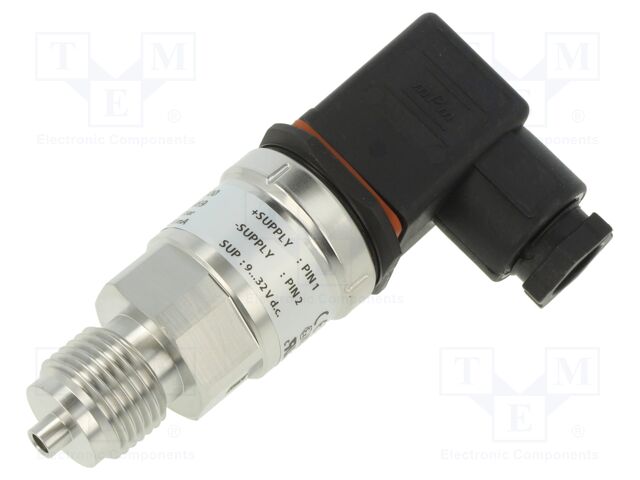

MBS 1700-2411-A1AB08-0 MBS 1700-2411-A1AB08-0 DANFOSS pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B2DB322AD0A30143&compId=MBS1700-EN.pdf?ci_sign=1f92d9b71900a8990680cbc31ddb3be7c84925ce pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B2DB322AD0A2A143&compId=MBS1700-DE.pdf?ci_sign=e2dc43e5754699975d0dad5c5335ca945bf30e2d Category: Pressure Transducers
Description: Converter: pressure; 0÷25bar; 9÷32VDC; 4÷20mA; relative pressure
Manufacturer series: MBS 1700
Mounting: G1/2"
IP rating: IP65
Connection: PG9
Additional functions: measurement regarding atmospheric pressure
Type of converter: pressure
Controlled parameter: relative pressure
Operating temperature: -40...85°C
Pressure setting range: 0...25bar
Current output: 4...20mA
Measurement accuracy: 0.5%
Supply voltage: 9...32V DC
Number of pins: 4
auf Bestellung 5 Stücke:
Lieferzeit 14-21 Tag (e)
1+180.82 EUR
5+179.38 EUR
Im Einkaufswagen  Stück im Wert von  UAH
MBS 3000-1011-A1AB04-0 MBS 3000-1011-A1AB04-0 DANFOSS pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B2DB11175DF7C143&compId=MBS3000-EN.pdf?ci_sign=4805d7be1ff6dd76face3eac35e4126dd35057f2 Category: Pressure Transducers
Description: Converter: pressure; 0÷1bar; 9÷32VDC; 4÷20mA; relative pressure
Supply voltage: 9...32V DC
Mounting: G1/4"
Operating temperature: -40...85°C
Manufacturer series: MBS 3000
IP rating: IP65
Additional functions: measurement regarding atmospheric pressure
Connection: PG9
Type of converter: pressure
Controlled parameter: relative pressure
Pressure setting range: 0...1bar
Current output: 4...20mA
Measurement accuracy: 0.5%
Number of pins: 4
auf Bestellung 4 Stücke:
Lieferzeit 14-21 Tag (e)
1+243.77 EUR
Im Einkaufswagen  Stück im Wert von  UAH
MBS 3000-1021-A1AB08-0 DANFOSS pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B2DB11175DF7C143&compId=MBS3000-EN.pdf?ci_sign=4805d7be1ff6dd76face3eac35e4126dd35057f2 Category: Pressure Transducers
Description: Converter: pressure; Pressure setting range: 0÷1bar; 9÷32VDC
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
MBS 3000-1411-A1AB04-0 MBS 3000-1411-A1AB04-0 DANFOSS pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B2DB11175DF7C143&compId=MBS3000-EN.pdf?ci_sign=4805d7be1ff6dd76face3eac35e4126dd35057f2 Category: Pressure Transducers
Description: Converter: pressure; 0÷2.5bar; 9÷32VDC; 4÷20mA; relative pressure
Manufacturer series: MBS 3000
Connection: PG9
Mounting: G1/4"
IP rating: IP65
Additional functions: measurement regarding atmospheric pressure
Type of converter: pressure
Controlled parameter: relative pressure
Operating temperature: -40...85°C
Pressure setting range: 0...2.5bar
Current output: 4...20mA
Measurement accuracy: 0.5%
Number of pins: 4
Supply voltage: 9...32V DC
auf Bestellung 2 Stücke:
Lieferzeit 14-21 Tag (e)
1+243.56 EUR
Im Einkaufswagen  Stück im Wert von  UAH
MBS 3000-1611-A1AB04-0 MBS 3000-1611-A1AB04-0 DANFOSS pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B2DB11175DF7C143&compId=MBS3000-EN.pdf?ci_sign=4805d7be1ff6dd76face3eac35e4126dd35057f2 Category: Pressure Transducers
Description: Converter: pressure; 0÷4bar; 9÷32VDC; 4÷20mA; relative pressure
Manufacturer series: MBS 3000
Connection: PG9
Mounting: G1/4"
IP rating: IP65
Additional functions: measurement regarding atmospheric pressure
Type of converter: pressure
Controlled parameter: relative pressure
Operating temperature: -40...85°C
Pressure setting range: 0...4bar
Current output: 4...20mA
Measurement accuracy: 0.5%
Number of pins: 4
Supply voltage: 9...32V DC
auf Bestellung 3 Stücke:
Lieferzeit 14-21 Tag (e)
1+209.55 EUR
Im Einkaufswagen  Stück im Wert von  UAH
MBS 3000-1611-A1AB04-0 MBS 3000-1611-A1AB04-0 DANFOSS pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B2DB11175DF7C143&compId=MBS3000-EN.pdf?ci_sign=4805d7be1ff6dd76face3eac35e4126dd35057f2 Category: Pressure Transducers
Description: Converter: pressure; Pressure setting range: 0÷4bar; 9÷32VDC
Connection: PG9
IP rating: IP65
Operating temperature: -40...85°C
Manufacturer series: MBS 3000
Mounting: G1/4"
Additional functions: measurement regarding reference pressure 1013hPa
Type of converter: pressure
Controlled parameter: relative pressure
Pressure setting range: 0...4bar
Current output: 4...20mA
Measurement accuracy: 0.5%
Number of pins: 4
Supply voltage: 9...32V DC
auf Bestellung 1 Stücke:
Lieferzeit 14-21 Tag (e)
1+251.12 EUR
Im Einkaufswagen  Stück im Wert von  UAH
MBS 3000-1811-A1AB04-0 MBS 3000-1811-A1AB04-0 DANFOSS pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B2DB11175DF7C143&compId=MBS3000-EN.pdf?ci_sign=4805d7be1ff6dd76face3eac35e4126dd35057f2 Category: Pressure Transducers
Description: Converter: pressure; 0÷6bar; 9÷32VDC; 4÷20mA; relative pressure
Manufacturer series: MBS 3000
Connection: PG9
Mounting: G1/4"
IP rating: IP65
Additional functions: measurement regarding atmospheric pressure
Type of converter: pressure
Controlled parameter: relative pressure
Operating temperature: -40...85°C
Pressure setting range: 0...6bar
Current output: 4...20mA
Measurement accuracy: 0.5%
Number of pins: 4
Supply voltage: 9...32V DC
auf Bestellung 1 Stücke:
Lieferzeit 14-21 Tag (e)
1+243.56 EUR
Im Einkaufswagen  Stück im Wert von  UAH
MBS 3000-2011-A1AB04-0 MBS 3000-2011-A1AB04-0 DANFOSS pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B2DB11175DF7C143&compId=MBS3000-EN.pdf?ci_sign=4805d7be1ff6dd76face3eac35e4126dd35057f2 Category: Pressure Transducers
Description: Converter: pressure; 0÷10bar; 9÷32VDC; 4÷20mA; relative pressure
Manufacturer series: MBS 3000
Connection: PG9
Mounting: G1/4"
IP rating: IP65
Additional functions: measurement regarding atmospheric pressure
Type of converter: pressure
Controlled parameter: relative pressure
Operating temperature: -40...85°C
Pressure setting range: 0...10bar
Current output: 4...20mA
Measurement accuracy: 0.5%
Number of pins: 4
Supply voltage: 9...32V DC
auf Bestellung 3 Stücke:
Lieferzeit 14-21 Tag (e)
1+243.56 EUR
Im Einkaufswagen  Stück im Wert von  UAH
MBS 3000-2011-A1AB04-0 MBS 3000-2011-A1AB04-0 DANFOSS pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B2DB11175DF7C143&compId=MBS3000-EN.pdf?ci_sign=4805d7be1ff6dd76face3eac35e4126dd35057f2 Category: Pressure Transducers
Description: Converter: pressure; Pressure setting range: 0÷10bar; 9÷32VDC
Connection: PG9
IP rating: IP65
Operating temperature: -40...85°C
Manufacturer series: MBS 3000
Mounting: G1/4"
Additional functions: measurement regarding reference pressure 1013hPa
Type of converter: pressure
Controlled parameter: relative pressure
Pressure setting range: 0...10bar
Current output: 4...20mA
Measurement accuracy: 0.5%
Number of pins: 4
Supply voltage: 9...32V DC
auf Bestellung 8 Stücke:
Lieferzeit 14-21 Tag (e)
1+251.12 EUR
5+241.47 EUR
Im Einkaufswagen  Stück im Wert von  UAH
MBS 3000-2011-A3AB04-0 DANFOSS pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B2DB11175DF7C143&compId=MBS3000-EN.pdf?ci_sign=4805d7be1ff6dd76face3eac35e4126dd35057f2 Category: Pressure Transducers
Description: Converter: pressure; 0÷10bar; 9÷32VDC; 4÷20mA; relative pressure
Manufacturer series: MBS 3000
Connection: cables
Mounting: G1/4"
IP rating: IP67
Additional functions: measurement regarding atmospheric pressure
Type of converter: pressure
Controlled parameter: relative pressure
Operating temperature: -30...85°C
Pressure setting range: 0...10bar
Current output: 4...20mA
Lead length: 2m
Measurement accuracy: 0.5%
Supply voltage: 9...32V DC
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
MBS 3000-2021-A1AB04-0 DANFOSS pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B2DB11175DF7C143&compId=MBS3000-EN.pdf?ci_sign=4805d7be1ff6dd76face3eac35e4126dd35057f2 Category: Pressure Transducers
Description: Converter: pressure; Pressure setting range: 0÷10bar; 9÷32VDC
Manufacturer series: MBS 3000
Mounting: G1/4"
IP rating: IP65
Connection: PG9
Type of converter: pressure
Operating temperature: -40...85°C
Pressure setting range: 0...10bar
Measurement accuracy: 0.5%
Supply voltage: 9...32V DC
Controlled parameter: absolute pressure
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
MBS 3000-2211-A1AB04-0 MBS 3000-2211-A1AB04-0 DANFOSS pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B2DB11175DF7C143&compId=MBS3000-EN.pdf?ci_sign=4805d7be1ff6dd76face3eac35e4126dd35057f2 Category: Pressure Transducers
Description: Converter: pressure; Pressure setting range: 0÷16bar; 9÷32VDC
Connection: PG9
IP rating: IP65
Operating temperature: -40...85°C
Manufacturer series: MBS 3000
Mounting: G1/4"
Additional functions: measurement regarding reference pressure 1013hPa
Type of converter: pressure
Controlled parameter: relative pressure
Pressure setting range: 0...16bar
Current output: 4...20mA
Measurement accuracy: 0.5%
Number of pins: 4
Supply voltage: 9...32V DC
auf Bestellung 10 Stücke:
Lieferzeit 14-21 Tag (e)
1+251.12 EUR
5+241.47 EUR
Im Einkaufswagen  Stück im Wert von  UAH
MBS 3000-2211-A1AB04-0 MBS 3000-2211-A1AB04-0 DANFOSS pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B2DB11175DF7C143&compId=MBS3000-EN.pdf?ci_sign=4805d7be1ff6dd76face3eac35e4126dd35057f2 Category: Pressure Transducers
Description: Converter: pressure; Pressure setting range: 0÷16bar; 9÷32VDC
Manufacturer series: MBS 3000
Mounting: G1/4"
IP rating: IP65
Additional functions: measurement regarding atmospheric pressure
Connection: PG9
Type of converter: pressure
Controlled parameter: relative pressure
Operating temperature: -40...85°C
Current output: 4...20mA
Pressure setting range: 0...16bar
Measurement accuracy: 0.5%
Number of pins: 4
Supply voltage: 9...32V DC
auf Bestellung 3 Stücke:
Lieferzeit 14-21 Tag (e)
1+251.32 EUR
Im Einkaufswagen  Stück im Wert von  UAH
MBS 3000-2611-A1AB04-0 MBS 3000-2611-A1AB04-0 DANFOSS pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B2DB11175DF7C143&compId=MBS3000-EN.pdf?ci_sign=4805d7be1ff6dd76face3eac35e4126dd35057f2 Category: Pressure Transducers
Description: Converter: pressure; Pressure setting range: 0÷40bar; 9÷32VDC
Connection: PG9
IP rating: IP65
Operating temperature: -40...85°C
Manufacturer series: MBS 3000
Mounting: G1/4"
Additional functions: measurement regarding atmospheric pressure
Type of converter: pressure
Controlled parameter: relative pressure
Pressure setting range: 0...40bar
Current output: 4...20mA
Measurement accuracy: 0.5%
Number of pins: 4
Supply voltage: 9...32V DC
auf Bestellung 2 Stücke:
Lieferzeit 14-21 Tag (e)
1+251.12 EUR
Im Einkaufswagen  Stück im Wert von  UAH
MBS 3000-2811-A1AB04-0 MBS 3000-2811-A1AB04-0 DANFOSS pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B2DB11175DF7C143&compId=MBS3000-EN.pdf?ci_sign=4805d7be1ff6dd76face3eac35e4126dd35057f2 Category: Pressure Transducers
Description: Converter: pressure; 0÷60bar; 9÷32VDC; 4÷20mA; relative pressure
Supply voltage: 9...32V DC
Manufacturer series: MBS 3000
Mounting: G1/4"
IP rating: IP65
Connection: PG9
Additional functions: measurement regarding atmospheric pressure
Type of converter: pressure
Controlled parameter: relative pressure
Operating temperature: -40...85°C
Pressure setting range: 0...60bar
Current output: 4...20mA
Measurement accuracy: 0.5%
Number of pins: 4
auf Bestellung 1 Stücke:
Lieferzeit 14-21 Tag (e)
1+245.06 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-051P1K5T4E20H3BXCXXXSXXX pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B00149A91AA0C7&compId=VLT-Micro-Drive-FC-51-INS-EN.pdf?ci_sign=5ffd2092dc32d153b1abf420cf6bc3c0a92a569c
FC-051P1K5T4E20H3BXCXXXSXXX
Hersteller: DANFOSS
Category: Three Phase Inverters
Description: Vector inverter; 1.5kW; 3x400VAC; 3x380÷480VAC; 0÷10V; IN: 6
Manufacturer series: VLT Micro Drive FC 51
Input 1 properties: current analog
Mounting: for DIN rail mounting; for wall mounting
Type of module: vector inverter
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Voltage output: 0...10V
Output frequency: 0...400Hz
Body dimensions: 176x75x168mm
Number of analog inputs: 1
Current rating: 3.7A
Number of analog outputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 6
Max motor power: 1.5kW
The programming method: keypad; PC
Electrical connection: screw terminals
Protection: anti-overload OPP; short circuit protection SCP
auf Bestellung 1 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
1+740.55 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-051P22KT4E20H3BXCXXXSXXX pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B00149A91AA0C7&compId=VLT-Micro-Drive-FC-51-INS-EN.pdf?ci_sign=5ffd2092dc32d153b1abf420cf6bc3c0a92a569c
Hersteller: DANFOSS
Category: Three Phase Inverters
Description: Vector inverter; 22kW; 3x400VAC; 3x380÷480VAC; 0÷10V; IN: 6
Type of module: vector inverter
Max motor power: 22kW
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Input 1 properties: current analog
Voltage output: 0...10V
Current output: 0/4mA...20mA
Electrical connection: screw terminals
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Protection: anti-overload OPP; short circuit protection SCP
Number of inputs: 6
Number of analog inputs: 1
Operating temperature: 0...50°C
Output frequency: 0...400Hz
Current rating: 43A
Number of analog outputs: 2
Body dimensions: 335x165x248mm
Manufacturer series: VLT Micro Drive FC 51
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
FC-051P2K2S2E20H3BXCXXXSXXX pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B00149A91AA0C7&compId=VLT-Micro-Drive-FC-51-INS-EN.pdf?ci_sign=5ffd2092dc32d153b1abf420cf6bc3c0a92a569c
FC-051P2K2S2E20H3BXCXXXSXXX
Hersteller: DANFOSS
Category: One Phase Inverters
Description: Vector inverter; Max motor power: 2.2kW; Usup: 200÷240VAC; IN: 6
Manufacturer series: VLT Micro Drive FC 51
Input 1 properties: current analog
Mounting: for DIN rail mounting; for wall mounting
Type of module: vector inverter
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Voltage output: 0...10V
Output frequency: 0...400Hz
Body dimensions: 239x90x194mm
Number of analog inputs: 1
Current rating: 9.6A
Number of analog outputs: 2
Inverter output voltage: 3 x 230V AC
Number of inputs: 6
Supply voltage: 200...240V AC
Max motor power: 2.2kW
The programming method: keypad; PC
Electrical connection: screw terminals
Protection: anti-overload OPP; short circuit protection SCP
auf Bestellung 6 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
1+448.02 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-051P5K5T4E20H3BXCXXXSXXX pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B00149A91AA0C7&compId=VLT-Micro-Drive-FC-51-INS-EN.pdf?ci_sign=5ffd2092dc32d153b1abf420cf6bc3c0a92a569c
FC-051P5K5T4E20H3BXCXXXSXXX
Hersteller: DANFOSS
Category: Three Phase Inverters
Description: Vector inverter; 5.5kW; 3x400VAC; 3x380÷480VAC; 0÷10V; IN: 6
Manufacturer series: VLT Micro Drive FC 51
Input 1 properties: current analog
Mounting: for DIN rail mounting; for wall mounting
Type of module: vector inverter
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Voltage output: 0...10V
Output frequency: 0...400Hz
Body dimensions: 239x90x194mm
Number of analog inputs: 1
Current rating: 12A
Number of analog outputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 6
Max motor power: 5.5kW
The programming method: keypad; PC
Electrical connection: screw terminals
Protection: anti-overload OPP; short circuit protection SCP
auf Bestellung 1 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
1+1311.18 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-051PK37S2E20H3XXCXXXSXXX pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B00149A91AA0C7&compId=VLT-Micro-Drive-FC-51-INS-EN.pdf?ci_sign=5ffd2092dc32d153b1abf420cf6bc3c0a92a569c
FC-051PK37S2E20H3XXCXXXSXXX
Hersteller: DANFOSS
Category: One Phase Inverters
Description: Vector inverter; Max motor power: 0.37kW; Usup: 200÷240VAC; IN: 6
Manufacturer series: VLT Micro Drive FC 51
Input 1 properties: current analog
Mounting: for DIN rail mounting; for wall mounting
Type of module: vector inverter
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Voltage output: 0...10V
Output frequency: 0...400Hz
Body dimensions: 150x70x148mm
Number of analog inputs: 1
Current rating: 2.2A
Number of analog outputs: 2
Inverter output voltage: 3 x 230V AC
Number of inputs: 6
Supply voltage: 200...240V AC
Max motor power: 0.37kW
The programming method: keypad; PC
Electrical connection: screw terminals
Protection: anti-overload OPP; short circuit protection SCP
auf Bestellung 2 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
1+328.79 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-051PK37T4E20H3XXCXXXSXXX pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B00149A91AA0C7&compId=VLT-Micro-Drive-FC-51-INS-EN.pdf?ci_sign=5ffd2092dc32d153b1abf420cf6bc3c0a92a569c
FC-051PK37T4E20H3XXCXXXSXXX
Hersteller: DANFOSS
Category: Three Phase Inverters
Description: Vector inverter; 0.37kW; 3x400VAC; 3x380÷480VAC; 0÷10V; IN: 6
Manufacturer series: VLT Micro Drive FC 51
Input 1 properties: current analog
Mounting: for DIN rail mounting; for wall mounting
Type of module: vector inverter
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Voltage output: 0...10V
Output frequency: 0...400Hz
Body dimensions: 150x70x148mm
Number of analog inputs: 1
Current rating: 1.2A
Number of analog outputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 6
Max motor power: 0.37kW
The programming method: keypad; PC
Electrical connection: screw terminals
Protection: anti-overload OPP; short circuit protection SCP
auf Bestellung 6 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
1+437.31 EUR
5+425.01 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-051PK75S2E20H3XXCXXXSXXX pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B00149A91AA0C7&compId=VLT-Micro-Drive-FC-51-INS-EN.pdf?ci_sign=5ffd2092dc32d153b1abf420cf6bc3c0a92a569c
FC-051PK75S2E20H3XXCXXXSXXX
Hersteller: DANFOSS
Category: One Phase Inverters
Description: Vector inverter; Max motor power: 0.75kW; Usup: 200÷240VAC; IN: 6
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Micro Drive FC 51
Current output: 0/4mA...20mA
Voltage output: 0...10V
Operating temperature: 0...50°C
Output frequency: 0...400Hz
Body dimensions: 150x70x148mm
Number of analog inputs: 1
Number of analog outputs: 2
Current rating: 4.2A
Inverter output voltage: 3 x 230V AC
Number of inputs: 6
Supply voltage: 200...240V AC
Protection: anti-overload OPP; short circuit protection SCP
Max motor power: 0.75kW
Input 1 properties: current analog
auf Bestellung 1 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
1+379.64 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-051PK75T4E20H3XXCXXXSXXX pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B00149A91AA0C7&compId=VLT-Micro-Drive-FC-51-INS-EN.pdf?ci_sign=5ffd2092dc32d153b1abf420cf6bc3c0a92a569c
FC-051PK75T4E20H3XXCXXXSXXX
Hersteller: DANFOSS
Category: Three Phase Inverters
Description: Vector inverter; 0.75kW; 3x400VAC; 3x380÷480VAC; 0÷10V; IN: 6
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Micro Drive FC 51
Current output: 0/4mA...20mA
Voltage output: 0...10V
Operating temperature: 0...50°C
Output frequency: 0...400Hz
Body dimensions: 150x70x148mm
Number of analog inputs: 1
Number of analog outputs: 2
Current rating: 2.2A
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 6
Protection: anti-overload OPP; short circuit protection SCP
Max motor power: 0.75kW
Input 1 properties: current analog
auf Bestellung 1 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
1+520.63 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-280P11KT4E20H1BXCXXXSXXXXAX pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b
Hersteller: DANFOSS
Category: Three Phase Inverters
Description: Vector inverter; 11kW; 3x400VAC; 3x380÷480VAC; IN: 11; Analog in: 2
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Midi Drive FC 280
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Output frequency: 0...500Hz
Body dimensions: 320x145x245mm
Number of analog outputs: 1
Current rating: 23A
Number of analog inputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 11
Max motor power: 11kW
Protection: anti-overload OPP; short circuit protection SCP
Driver features: integrated brake transistor; integrated EMC filter
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
FC-280P15KT4E20H1BXCXXXSXXXXAX pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b
FC-280P15KT4E20H1BXCXXXSXXXXAX
+1
Hersteller: DANFOSS
Category: Three Phase Inverters
Description: Vector inverter; 15kW; 3x400VAC; 3x380÷480VAC; IN: 11; Analog in: 2
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Midi Drive FC 280
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Output frequency: 0...500Hz
Body dimensions: 320x145x245mm
Number of analog outputs: 1
Current rating: 31A
Number of analog inputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 11
Max motor power: 15kW
Protection: anti-overload OPP; short circuit protection SCP
Driver features: integrated brake transistor; integrated EMC filter
auf Bestellung 4 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
1+2737.02 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-280P18KT4E20H1BXCXXXSXXXXAX pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b
Hersteller: DANFOSS
Category: Three Phase Inverters
Description: Vector inverter; 18.5kW; 3x400VAC; 3x380÷480VAC; IN: 11; 0÷500Hz
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Midi Drive FC 280
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Output frequency: 0...500Hz
Body dimensions: 410x150x245mm
Number of analog outputs: 1
Current rating: 37A
Number of analog inputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 11
Max motor power: 18.5kW
Protection: anti-overload OPP; short circuit protection SCP
Driver features: integrated brake transistor; integrated EMC filter
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
FC-280P1K1S2E20H1XXCXXXSXXXXAX pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b
Hersteller: DANFOSS
Category: One Phase Inverters
Description: Vector inverter; Max motor power: 1.1kW; Usup: 200÷240VAC; IN: 11
Type of module: vector inverter
Max motor power: 1.1kW
Supply voltage: 200...240V AC
Inverter output voltage: 3 x 230V AC
The programming method: keypad; PC
Electrical connection: screw terminals
Protection: anti-overload OPP; short circuit protection SCP
Mounting: for DIN rail mounting; for wall mounting
Operating temperature: 0...50°C
Output frequency: 0...500Hz
Number of inputs: 11
Number of analog inputs: 2
Number of analog outputs: 1
Current rating: 6A
Body dimensions: 210x75x168mm
Current output: 0/4mA...20mA
Manufacturer series: VLT Midi Drive FC 280
Driver features: integrated brake transistor; integrated EMC filter
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
FC-280P1K1T4E20H1BXCXXXSXXXXAX pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b
FC-280P1K1T4E20H1BXCXXXSXXXXAX
Hersteller: DANFOSS
Category: Three Phase Inverters
Description: Vector inverter; 1.1kW; 3x400VAC; 3x380÷480VAC; IN: 11; 0÷500Hz
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Midi Drive FC 280
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Output frequency: 0...500Hz
Body dimensions: 210x75x168mm
Number of analog outputs: 1
Current rating: 3A
Number of analog inputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 11
Max motor power: 1.1kW
Protection: anti-overload OPP; short circuit protection SCP
Driver features: integrated brake transistor; integrated EMC filter
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
FC-280P1K5S2E20H1XXCXXXSXXXXAX pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b
Hersteller: DANFOSS
Category: One Phase Inverters
Description: Vector inverter; Max motor power: 1.5kW; Usup: 200÷240VAC; IN: 11
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Midi Drive FC 280
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Output frequency: 0...500Hz
Body dimensions: 210x75x168mm
Number of analog outputs: 1
Current rating: 6.8A
Number of analog inputs: 2
Inverter output voltage: 3 x 230V AC
Supply voltage: 200...240V AC
Number of inputs: 11
Max motor power: 1.5kW
Protection: anti-overload OPP; short circuit protection SCP
Driver features: integrated brake transistor; integrated EMC filter
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
FC-280P1K5T4E20H1BXCXXXSXXXXAX pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b
FC-280P1K5T4E20H1BXCXXXSXXXXAX
+1
Hersteller: DANFOSS
Category: Three Phase Inverters
Description: Vector inverter; 1.5kW; 3x400VAC; 3x380÷480VAC; IN: 11; 0÷500Hz
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Midi Drive FC 280
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Output frequency: 0...500Hz
Body dimensions: 210x75x168mm
Number of analog outputs: 1
Current rating: 3.7A
Number of analog inputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 11
Max motor power: 1.5kW
Protection: anti-overload OPP; short circuit protection SCP
Driver features: integrated brake transistor; integrated EMC filter
auf Bestellung 4 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
1+895.61 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-280P22KT4E20H1BXCXXXSXXXXAX pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b
Hersteller: DANFOSS
Category: Three Phase Inverters
Description: Vector inverter; 22kW; 3x400VAC; 3x380÷480VAC; IN: 11; Analog in: 2
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Midi Drive FC 280
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Output frequency: 0...500Hz
Body dimensions: 410x150x245mm
Number of analog outputs: 1
Current rating: 42.5A
Number of analog inputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 11
Max motor power: 22kW
Protection: anti-overload OPP; short circuit protection SCP
Driver features: integrated brake transistor; integrated EMC filter
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
FC-280P2K2S2E20H1XXCXXXSXXXXAX pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b
Hersteller: DANFOSS
Category: One Phase Inverters
Description: Vector inverter; Max motor power: 2.2kW; Usup: 200÷240VAC; IN: 11
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Midi Drive FC 280
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Output frequency: 0...500Hz
Body dimensions: 210x75x168mm
Number of analog outputs: 1
Current rating: 9.6A
Number of analog inputs: 2
Inverter output voltage: 3 x 230V AC
Supply voltage: 200...240V AC
Number of inputs: 11
Max motor power: 2.2kW
Protection: anti-overload OPP; short circuit protection SCP
Driver features: integrated brake transistor; integrated EMC filter
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
FC-280P2K2T4E20H1BXCXXXSXXXXAX pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b
FC-280P2K2T4E20H1BXCXXXSXXXXAX
+1
Hersteller: DANFOSS
Category: Three Phase Inverters
Description: Vector inverter; 2.2kW; 3x400VAC; 3x380÷480VAC; IN: 11; 0÷500Hz
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Midi Drive FC 280
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Output frequency: 0...500Hz
Body dimensions: 210x75x168mm
Number of analog outputs: 1
Current rating: 5.3A
Number of analog inputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 11
Max motor power: 2.2kW
Protection: anti-overload OPP; short circuit protection SCP
Driver features: integrated brake transistor; integrated EMC filter
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
FC-280P3K0T4E20H1BXCXXXSXXXXAX pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b
Hersteller: DANFOSS
Category: Three Phase Inverters
Description: Vector inverter; 3kW; 3x400VAC; 3x380÷480VAC; IN: 11; Analog in: 2
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Midi Drive FC 280
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Output frequency: 0...500Hz
Body dimensions: 272.5x90x267mm
Number of analog outputs: 1
Current rating: 7.2A
Number of analog inputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 11
Max motor power: 3kW
Protection: anti-overload OPP; short circuit protection SCP
Driver features: integrated brake transistor; integrated EMC filter
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
FC-280P4K0T4E20H1BXCXXXSXXXXAX pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b
Hersteller: DANFOSS
Category: Three Phase Inverters
Description: Vector inverter; 4kW; 3x400VAC; 3x380÷480VAC; IN: 11; Analog in: 2
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Midi Drive FC 280
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Output frequency: 0...500Hz
Body dimensions: 272.5x90x267mm
Number of analog outputs: 1
Current rating: 9A
Number of analog inputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 11
Max motor power: 4kW
Protection: anti-overload OPP; short circuit protection SCP
Driver features: integrated brake transistor; integrated EMC filter
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
FC-280P5K5T4E20H1BXCXXXSXXXXAX pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b
FC-280P5K5T4E20H1BXCXXXSXXXXAX
Hersteller: DANFOSS
Category: Three Phase Inverters
Description: Vector inverter; 5.5kW; 3x400VAC; 3x380÷480VAC; IN: 11; 0÷500Hz
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Midi Drive FC 280
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Output frequency: 0...500Hz
Body dimensions: 272.5x90x267mm
Number of analog outputs: 1
Current rating: 12A
Number of analog inputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 11
Max motor power: 5.5kW
Protection: anti-overload OPP; short circuit protection SCP
Driver features: integrated brake transistor; integrated EMC filter
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
FC-280P7K5T4E20H1BXCXXXSXXXXAX pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b
Hersteller: DANFOSS
Category: Three Phase Inverters
Description: Vector inverter; 7.5kW; 3x400VAC; 3x380÷480VAC; IN: 11; 0÷500Hz
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Midi Drive FC 280
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Output frequency: 0...500Hz
Body dimensions: 272.5x115x168mm
Number of analog outputs: 1
Current rating: 15.5A
Number of analog inputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 11
Max motor power: 7.5kW
Protection: anti-overload OPP; short circuit protection SCP
Driver features: integrated brake transistor; integrated EMC filter
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
FC-280PK37S2E20H1XXCXXXSXXXXAX pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b
Hersteller: DANFOSS
Category: One Phase Inverters
Description: Vector inverter; Max motor power: 370W; Usup: 200÷240VAC; 0÷500Hz
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Midi Drive FC 280
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Output frequency: 0...500Hz
Body dimensions: 210x75x168mm
Number of analog outputs: 1
Current rating: 2.2A
Number of analog inputs: 2
Inverter output voltage: 3 x 230V AC
Supply voltage: 200...240V AC
Number of inputs: 11
Max motor power: 0.37kW
Protection: anti-overload OPP; short circuit protection SCP
Driver features: integrated brake transistor; integrated EMC filter
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
FC-280PK37T4E20H1BXCXXXSXXXXAX pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b
FC-280PK37T4E20H1BXCXXXSXXXXAX
Hersteller: DANFOSS
Category: Three Phase Inverters
Description: Vector inverter; 0.37kW; 3x400VAC; 3x380÷480VAC; IN: 11; 0÷500Hz
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Midi Drive FC 280
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Output frequency: 0...500Hz
Body dimensions: 210x75x168mm
Number of analog outputs: 1
Current rating: 1.2A
Number of analog inputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 11
Max motor power: 0.37kW
Protection: anti-overload OPP; short circuit protection SCP
Driver features: integrated brake transistor; integrated EMC filter
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
FC-280PK55S2E20H1XXCXXXSXXXXAX pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b
Hersteller: DANFOSS
Category: One Phase Inverters
Description: Vector inverter; Max motor power: 0.55kW; Usup: 200÷240VAC; IN: 11
Type of module: vector inverter
Max motor power: 0.55kW
Supply voltage: 200...240V AC
Inverter output voltage: 3 x 230V AC
The programming method: keypad; PC
Electrical connection: screw terminals
Protection: anti-overload OPP; short circuit protection SCP
Mounting: for DIN rail mounting; for wall mounting
Operating temperature: 0...50°C
Output frequency: 0...500Hz
Number of inputs: 11
Number of analog inputs: 2
Number of analog outputs: 1
Current rating: 3.2A
Body dimensions: 210x75x168mm
Current output: 0/4mA...20mA
Manufacturer series: VLT Midi Drive FC 280
Driver features: integrated brake transistor; integrated EMC filter
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
FC-280PK55T4E20H1BXCXXXSXXXXAX pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b
FC-280PK55T4E20H1BXCXXXSXXXXAX
Hersteller: DANFOSS
Category: Three Phase Inverters
Description: Vector inverter; 0.55kW; 3x400VAC; 3x380÷480VAC; IN: 11; 0÷500Hz
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Midi Drive FC 280
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Output frequency: 0...500Hz
Body dimensions: 210x75x168mm
Number of analog outputs: 1
Current rating: 1.7A
Number of analog inputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 11
Max motor power: 0.55kW
Protection: anti-overload OPP; short circuit protection SCP
Driver features: integrated brake transistor; integrated EMC filter
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
FC-280PK75S2E20H1XXCXXXSXXXXAX pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b
Hersteller: DANFOSS
Category: One Phase Inverters
Description: Vector inverter; Max motor power: 0.75kW; Usup: 200÷240VAC; IN: 11
Mounting: for DIN rail mounting; for wall mounting
Driver features: integrated brake transistor; integrated EMC filter
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Midi Drive FC 280
Current output: 0/4mA...20mA
Operating temperature: 0...50°C
Output frequency: 0...500Hz
Body dimensions: 210x75x168mm
Number of analog inputs: 2
Number of analog outputs: 1
Current rating: 4.2A
Inverter output voltage: 3 x 230V AC
Number of inputs: 11
Supply voltage: 200...240V AC
Protection: anti-overload OPP; short circuit protection SCP
Max motor power: 0.75kW
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
FC-280PK75T4E20H1BXCXXXSXXXXAX pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b
Hersteller: DANFOSS
Category: Three Phase Inverters
Description: Vector inverter; 0.75kW; 3x400VAC; 3x380÷480VAC; IN: 11; 0÷500Hz
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Midi Drive FC 280
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Output frequency: 0...500Hz
Body dimensions: 210x75x168mm
Number of analog outputs: 1
Current rating: 2.2A
Number of analog inputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 11
Max motor power: 0.75kW
Protection: anti-overload OPP; short circuit protection SCP
Driver features: integrated brake transistor; integrated EMC filter
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
FC-302N132T5E20H2XGCXXXSXXXXAXBXCXXXXDX
Hersteller: DANFOSS
Category: Three Phase Inverters
Description: Vector inverter; 132kW; 3x400VAC; 3x380÷500VAC; 315A
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Body dimensions: 1004x250x375mm
Current rating: 315A
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...500V AC
Max motor power: 132kW
Protection: anti-overload OPP; short circuit protection SCP
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
FC-051P1K5T4E20H3BXCXXXSXXX pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B00149A91AA0C7&compId=VLT-Micro-Drive-FC-51-INS-EN.pdf?ci_sign=5ffd2092dc32d153b1abf420cf6bc3c0a92a569c
FC-051P1K5T4E20H3BXCXXXSXXX
Hersteller: DANFOSS
Category: Three Phase Inverters
Description: Vector inverter; 1.5kW; 3x400VAC; 3x380÷480VAC; 0÷10V; IN: 6
Manufacturer series: VLT Micro Drive FC 51
Input 1 properties: current analog
Mounting: for DIN rail mounting; for wall mounting
Type of module: vector inverter
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Voltage output: 0...10V
Output frequency: 0...400Hz
Body dimensions: 176x75x168mm
Number of analog inputs: 1
Current rating: 3.7A
Number of analog outputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 6
Max motor power: 1.5kW
The programming method: keypad; PC
Electrical connection: screw terminals
Protection: anti-overload OPP; short circuit protection SCP
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
1+740.55 EUR
5+721.56 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-051P2K2S2E20H3BXCXXXSXXX pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B00149A91AA0C7&compId=VLT-Micro-Drive-FC-51-INS-EN.pdf?ci_sign=5ffd2092dc32d153b1abf420cf6bc3c0a92a569c
FC-051P2K2S2E20H3BXCXXXSXXX
Hersteller: DANFOSS
Category: One Phase Inverters
Description: Vector inverter; Max motor power: 2.2kW; Usup: 200÷240VAC; IN: 6
Manufacturer series: VLT Micro Drive FC 51
Input 1 properties: current analog
Mounting: for DIN rail mounting; for wall mounting
Type of module: vector inverter
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Voltage output: 0...10V
Output frequency: 0...400Hz
Body dimensions: 239x90x194mm
Number of analog inputs: 1
Current rating: 9.6A
Number of analog outputs: 2
Inverter output voltage: 3 x 230V AC
Number of inputs: 6
Supply voltage: 200...240V AC
Max motor power: 2.2kW
The programming method: keypad; PC
Electrical connection: screw terminals
Protection: anti-overload OPP; short circuit protection SCP
Anzahl je Verpackung: 1 Stücke
auf Bestellung 6 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
1+448.02 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-051P2K2T4E20H3BXCXXXSXXX
Hersteller: DANFOSS
132F0022 Three Phase Inverters
auf Bestellung 3 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
1+734 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-051P4K0T4E20H3BXCXXXSXXX
Hersteller: DANFOSS
132F0026 Three Phase Inverters
auf Bestellung 1 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
1+1128.76 EUR
5+1085.34 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-051P5K5T4E20H3BXCXXXSXXX pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B00149A91AA0C7&compId=VLT-Micro-Drive-FC-51-INS-EN.pdf?ci_sign=5ffd2092dc32d153b1abf420cf6bc3c0a92a569c
FC-051P5K5T4E20H3BXCXXXSXXX
Hersteller: DANFOSS
Category: Three Phase Inverters
Description: Vector inverter; 5.5kW; 3x400VAC; 3x380÷480VAC; 0÷10V; IN: 6
Manufacturer series: VLT Micro Drive FC 51
Input 1 properties: current analog
Mounting: for DIN rail mounting; for wall mounting
Type of module: vector inverter
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Voltage output: 0...10V
Output frequency: 0...400Hz
Body dimensions: 239x90x194mm
Number of analog inputs: 1
Current rating: 12A
Number of analog outputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 6
Max motor power: 5.5kW
The programming method: keypad; PC
Electrical connection: screw terminals
Protection: anti-overload OPP; short circuit protection SCP
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
1+1311.18 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-051P7K5T4E20H3BXCXXXSXXX
Hersteller: DANFOSS
132F0030 Three Phase Inverters
auf Bestellung 1 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
1+1533.09 EUR
5+1531.47 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-051PK18S2E20H3XXCXXXSXXX
Hersteller: DANFOSS
132F0001 One Phase Inverters
auf Bestellung 1 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
1+303.09 EUR
5+291.43 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-051PK37S2E20H3XXCXXXSXXX pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B00149A91AA0C7&compId=VLT-Micro-Drive-FC-51-INS-EN.pdf?ci_sign=5ffd2092dc32d153b1abf420cf6bc3c0a92a569c
FC-051PK37S2E20H3XXCXXXSXXX
Hersteller: DANFOSS
Category: One Phase Inverters
Description: Vector inverter; Max motor power: 0.37kW; Usup: 200÷240VAC; IN: 6
Manufacturer series: VLT Micro Drive FC 51
Input 1 properties: current analog
Mounting: for DIN rail mounting; for wall mounting
Type of module: vector inverter
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Voltage output: 0...10V
Output frequency: 0...400Hz
Body dimensions: 150x70x148mm
Number of analog inputs: 1
Current rating: 2.2A
Number of analog outputs: 2
Inverter output voltage: 3 x 230V AC
Number of inputs: 6
Supply voltage: 200...240V AC
Max motor power: 0.37kW
The programming method: keypad; PC
Electrical connection: screw terminals
Protection: anti-overload OPP; short circuit protection SCP
Anzahl je Verpackung: 1 Stücke
auf Bestellung 2 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
1+328.79 EUR
5+319.2 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-051PK37T4E20H3XXCXXXSXXX pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B00149A91AA0C7&compId=VLT-Micro-Drive-FC-51-INS-EN.pdf?ci_sign=5ffd2092dc32d153b1abf420cf6bc3c0a92a569c
FC-051PK37T4E20H3XXCXXXSXXX
Hersteller: DANFOSS
Category: Three Phase Inverters
Description: Vector inverter; 0.37kW; 3x400VAC; 3x380÷480VAC; 0÷10V; IN: 6
Manufacturer series: VLT Micro Drive FC 51
Input 1 properties: current analog
Mounting: for DIN rail mounting; for wall mounting
Type of module: vector inverter
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Voltage output: 0...10V
Output frequency: 0...400Hz
Body dimensions: 150x70x148mm
Number of analog inputs: 1
Current rating: 1.2A
Number of analog outputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 6
Max motor power: 0.37kW
The programming method: keypad; PC
Electrical connection: screw terminals
Protection: anti-overload OPP; short circuit protection SCP
Anzahl je Verpackung: 1 Stücke
auf Bestellung 6 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
1+437.31 EUR
5+425.01 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-051PK75S2E20H3XXCXXXSXXX pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B00149A91AA0C7&compId=VLT-Micro-Drive-FC-51-INS-EN.pdf?ci_sign=5ffd2092dc32d153b1abf420cf6bc3c0a92a569c
FC-051PK75S2E20H3XXCXXXSXXX
Hersteller: DANFOSS
Category: One Phase Inverters
Description: Vector inverter; Max motor power: 0.75kW; Usup: 200÷240VAC; IN: 6
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Micro Drive FC 51
Current output: 0/4mA...20mA
Voltage output: 0...10V
Operating temperature: 0...50°C
Output frequency: 0...400Hz
Body dimensions: 150x70x148mm
Number of analog inputs: 1
Number of analog outputs: 2
Current rating: 4.2A
Inverter output voltage: 3 x 230V AC
Number of inputs: 6
Supply voltage: 200...240V AC
Protection: anti-overload OPP; short circuit protection SCP
Max motor power: 0.75kW
Input 1 properties: current analog
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
1+379.64 EUR
5+379.62 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-051PK75T4E20H3XXCXXXSXXX pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B00149A91AA0C7&compId=VLT-Micro-Drive-FC-51-INS-EN.pdf?ci_sign=5ffd2092dc32d153b1abf420cf6bc3c0a92a569c
FC-051PK75T4E20H3XXCXXXSXXX
Hersteller: DANFOSS
Category: Three Phase Inverters
Description: Vector inverter; 0.75kW; 3x400VAC; 3x380÷480VAC; 0÷10V; IN: 6
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Micro Drive FC 51
Current output: 0/4mA...20mA
Voltage output: 0...10V
Operating temperature: 0...50°C
Output frequency: 0...400Hz
Body dimensions: 150x70x148mm
Number of analog inputs: 1
Number of analog outputs: 2
Current rating: 2.2A
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 6
Protection: anti-overload OPP; short circuit protection SCP
Max motor power: 0.75kW
Input 1 properties: current analog
Anzahl je Verpackung: 1 Stücke
auf Bestellung 1 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
1+520.63 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-280P15KT4E20H1BXCXXXSXXXXAX pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b
FC-280P15KT4E20H1BXCXXXSXXXXAX
+1
Hersteller: DANFOSS
Category: Three Phase Inverters
Description: Vector inverter; 15kW; 3x400VAC; 3x380÷480VAC; IN: 11; Analog in: 2
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Midi Drive FC 280
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Output frequency: 0...500Hz
Body dimensions: 320x145x245mm
Number of analog outputs: 1
Current rating: 31A
Number of analog inputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 11
Max motor power: 15kW
Protection: anti-overload OPP; short circuit protection SCP
Driver features: integrated brake transistor; integrated EMC filter
Anzahl je Verpackung: 1 Stücke
auf Bestellung 4 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
1+2737.02 EUR
Im Einkaufswagen  Stück im Wert von  UAH
FC-280P1K5T4E20H1BXCXXXSXXXXAX pVersion=0046&contRep=ZT&docId=005056AB90B41EDAB3B5FAB82D9E80C7&compId=VLT-Midi-Drive-FC-280-EN.pdf?ci_sign=c120f9eb0a88339e772f9cf73cf2c352d8d0804b
FC-280P1K5T4E20H1BXCXXXSXXXXAX
+1
Hersteller: DANFOSS
Category: Three Phase Inverters
Description: Vector inverter; 1.5kW; 3x400VAC; 3x380÷480VAC; IN: 11; 0÷500Hz
Mounting: for DIN rail mounting; for wall mounting
The programming method: keypad; PC
Electrical connection: screw terminals
Type of module: vector inverter
Manufacturer series: VLT Midi Drive FC 280
Operating temperature: 0...50°C
Current output: 0/4mA...20mA
Output frequency: 0...500Hz
Body dimensions: 210x75x168mm
Number of analog outputs: 1
Current rating: 3.7A
Number of analog inputs: 2
Inverter output voltage: 3 x 400V AC
Voltage between phases (for three phase system): 3 x 380...480V AC
Number of inputs: 11
Max motor power: 1.5kW
Protection: anti-overload OPP; short circuit protection SCP
Driver features: integrated brake transistor; integrated EMC filter
Anzahl je Verpackung: 1 Stücke
auf Bestellung 4 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
1+895.61 EUR
Im Einkaufswagen  Stück im Wert von  UAH
INT 5
Hersteller: DANFOSS
037H3520 Contactors - Accessories
auf Bestellung 3 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
3+23.84 EUR
4+17.88 EUR
11+6.51 EUR
Mindestbestellmenge: 3
Im Einkaufswagen  Stück im Wert von  UAH
MBS 1700-2011-A1AB08-0 pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B2DB322AD0A30143&compId=MBS1700-EN.pdf?ci_sign=1f92d9b71900a8990680cbc31ddb3be7c84925ce pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B2DB322AD0A2A143&compId=MBS1700-DE.pdf?ci_sign=e2dc43e5754699975d0dad5c5335ca945bf30e2d
MBS 1700-2011-A1AB08-0
Hersteller: DANFOSS
Category: Pressure Transducers
Description: Converter: pressure; Pressure setting range: 0÷10bar; 9÷32VDC
Manufacturer series: MBS 1700
Mounting: G1/2"
IP rating: IP65
Additional functions: measurement regarding atmospheric pressure
Connection: PG9
Type of converter: pressure
Controlled parameter: relative pressure
Operating temperature: -40...85°C
Current output: 4...20mA
Pressure setting range: 0...10bar
Measurement accuracy: 0.5%
Number of pins: 4
Supply voltage: 9...32V DC
auf Bestellung 8 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
1+186.49 EUR
5+179.32 EUR
Im Einkaufswagen  Stück im Wert von  UAH
MBS 1700-2211-A1AB04-0 pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B2DB322AD0A30143&compId=MBS1700-EN.pdf?ci_sign=1f92d9b71900a8990680cbc31ddb3be7c84925ce pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B2DB322AD0A2A143&compId=MBS1700-DE.pdf?ci_sign=e2dc43e5754699975d0dad5c5335ca945bf30e2d
MBS 1700-2211-A1AB04-0
Hersteller: DANFOSS
Category: Pressure Transducers
Description: Converter: pressure; Pressure setting range: 0÷16bar; 9÷32VDC
Mounting: G1/4"
IP rating: IP65
Connection: PG9
Type of converter: pressure
Controlled parameter: relative pressure
Operating temperature: -40...85°C
Pressure setting range: 0...16bar
Current output: 4...20mA
Measurement accuracy: 0.5%
Number of pins: 4
Supply voltage: 9...32V DC
Manufacturer series: MBS 1700
Additional functions: measurement regarding atmospheric pressure
auf Bestellung 5 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
1+186.37 EUR
5+179.21 EUR
Im Einkaufswagen  Stück im Wert von  UAH
MBS 1700-2411-A1AB08-0 pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B2DB322AD0A30143&compId=MBS1700-EN.pdf?ci_sign=1f92d9b71900a8990680cbc31ddb3be7c84925ce pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B2DB322AD0A2A143&compId=MBS1700-DE.pdf?ci_sign=e2dc43e5754699975d0dad5c5335ca945bf30e2d
MBS 1700-2411-A1AB08-0
Hersteller: DANFOSS
Category: Pressure Transducers
Description: Converter: pressure; 0÷25bar; 9÷32VDC; 4÷20mA; relative pressure
Manufacturer series: MBS 1700
Mounting: G1/2"
IP rating: IP65
Connection: PG9
Additional functions: measurement regarding atmospheric pressure
Type of converter: pressure
Controlled parameter: relative pressure
Operating temperature: -40...85°C
Pressure setting range: 0...25bar
Current output: 4...20mA
Measurement accuracy: 0.5%
Supply voltage: 9...32V DC
Number of pins: 4
auf Bestellung 5 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
1+180.82 EUR
5+179.38 EUR
Im Einkaufswagen  Stück im Wert von  UAH
MBS 3000-1011-A1AB04-0 pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B2DB11175DF7C143&compId=MBS3000-EN.pdf?ci_sign=4805d7be1ff6dd76face3eac35e4126dd35057f2
MBS 3000-1011-A1AB04-0
Hersteller: DANFOSS
Category: Pressure Transducers
Description: Converter: pressure; 0÷1bar; 9÷32VDC; 4÷20mA; relative pressure
Supply voltage: 9...32V DC
Mounting: G1/4"
Operating temperature: -40...85°C
Manufacturer series: MBS 3000
IP rating: IP65
Additional functions: measurement regarding atmospheric pressure
Connection: PG9
Type of converter: pressure
Controlled parameter: relative pressure
Pressure setting range: 0...1bar
Current output: 4...20mA
Measurement accuracy: 0.5%
Number of pins: 4
auf Bestellung 4 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
1+243.77 EUR
Im Einkaufswagen  Stück im Wert von  UAH
MBS 3000-1021-A1AB08-0 pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B2DB11175DF7C143&compId=MBS3000-EN.pdf?ci_sign=4805d7be1ff6dd76face3eac35e4126dd35057f2
Hersteller: DANFOSS
Category: Pressure Transducers
Description: Converter: pressure; Pressure setting range: 0÷1bar; 9÷32VDC
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
MBS 3000-1411-A1AB04-0 pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B2DB11175DF7C143&compId=MBS3000-EN.pdf?ci_sign=4805d7be1ff6dd76face3eac35e4126dd35057f2
MBS 3000-1411-A1AB04-0
Hersteller: DANFOSS
Category: Pressure Transducers
Description: Converter: pressure; 0÷2.5bar; 9÷32VDC; 4÷20mA; relative pressure
Manufacturer series: MBS 3000
Connection: PG9
Mounting: G1/4"
IP rating: IP65
Additional functions: measurement regarding atmospheric pressure
Type of converter: pressure
Controlled parameter: relative pressure
Operating temperature: -40...85°C
Pressure setting range: 0...2.5bar
Current output: 4...20mA
Measurement accuracy: 0.5%
Number of pins: 4
Supply voltage: 9...32V DC
auf Bestellung 2 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
1+243.56 EUR
Im Einkaufswagen  Stück im Wert von  UAH
MBS 3000-1611-A1AB04-0 pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B2DB11175DF7C143&compId=MBS3000-EN.pdf?ci_sign=4805d7be1ff6dd76face3eac35e4126dd35057f2
MBS 3000-1611-A1AB04-0
Hersteller: DANFOSS
Category: Pressure Transducers
Description: Converter: pressure; 0÷4bar; 9÷32VDC; 4÷20mA; relative pressure
Manufacturer series: MBS 3000
Connection: PG9
Mounting: G1/4"
IP rating: IP65
Additional functions: measurement regarding atmospheric pressure
Type of converter: pressure
Controlled parameter: relative pressure
Operating temperature: -40...85°C
Pressure setting range: 0...4bar
Current output: 4...20mA
Measurement accuracy: 0.5%
Number of pins: 4
Supply voltage: 9...32V DC
auf Bestellung 3 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
1+209.55 EUR
Im Einkaufswagen  Stück im Wert von  UAH
MBS 3000-1611-A1AB04-0 pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B2DB11175DF7C143&compId=MBS3000-EN.pdf?ci_sign=4805d7be1ff6dd76face3eac35e4126dd35057f2
MBS 3000-1611-A1AB04-0
Hersteller: DANFOSS
Category: Pressure Transducers
Description: Converter: pressure; Pressure setting range: 0÷4bar; 9÷32VDC
Connection: PG9
IP rating: IP65
Operating temperature: -40...85°C
Manufacturer series: MBS 3000
Mounting: G1/4"
Additional functions: measurement regarding reference pressure 1013hPa
Type of converter: pressure
Controlled parameter: relative pressure
Pressure setting range: 0...4bar
Current output: 4...20mA
Measurement accuracy: 0.5%
Number of pins: 4
Supply voltage: 9...32V DC
auf Bestellung 1 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
1+251.12 EUR
Im Einkaufswagen  Stück im Wert von  UAH
MBS 3000-1811-A1AB04-0 pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B2DB11175DF7C143&compId=MBS3000-EN.pdf?ci_sign=4805d7be1ff6dd76face3eac35e4126dd35057f2
MBS 3000-1811-A1AB04-0
Hersteller: DANFOSS
Category: Pressure Transducers
Description: Converter: pressure; 0÷6bar; 9÷32VDC; 4÷20mA; relative pressure
Manufacturer series: MBS 3000
Connection: PG9
Mounting: G1/4"
IP rating: IP65
Additional functions: measurement regarding atmospheric pressure
Type of converter: pressure
Controlled parameter: relative pressure
Operating temperature: -40...85°C
Pressure setting range: 0...6bar
Current output: 4...20mA
Measurement accuracy: 0.5%
Number of pins: 4
Supply voltage: 9...32V DC
auf Bestellung 1 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
1+243.56 EUR
Im Einkaufswagen  Stück im Wert von  UAH
MBS 3000-2011-A1AB04-0 pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B2DB11175DF7C143&compId=MBS3000-EN.pdf?ci_sign=4805d7be1ff6dd76face3eac35e4126dd35057f2
MBS 3000-2011-A1AB04-0
Hersteller: DANFOSS
Category: Pressure Transducers
Description: Converter: pressure; 0÷10bar; 9÷32VDC; 4÷20mA; relative pressure
Manufacturer series: MBS 3000
Connection: PG9
Mounting: G1/4"
IP rating: IP65
Additional functions: measurement regarding atmospheric pressure
Type of converter: pressure
Controlled parameter: relative pressure
Operating temperature: -40...85°C
Pressure setting range: 0...10bar
Current output: 4...20mA
Measurement accuracy: 0.5%
Number of pins: 4
Supply voltage: 9...32V DC
auf Bestellung 3 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
1+243.56 EUR
Im Einkaufswagen  Stück im Wert von  UAH
MBS 3000-2011-A1AB04-0 pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B2DB11175DF7C143&compId=MBS3000-EN.pdf?ci_sign=4805d7be1ff6dd76face3eac35e4126dd35057f2
MBS 3000-2011-A1AB04-0
Hersteller: DANFOSS
Category: Pressure Transducers
Description: Converter: pressure; Pressure setting range: 0÷10bar; 9÷32VDC
Connection: PG9
IP rating: IP65
Operating temperature: -40...85°C
Manufacturer series: MBS 3000
Mounting: G1/4"
Additional functions: measurement regarding reference pressure 1013hPa
Type of converter: pressure
Controlled parameter: relative pressure
Pressure setting range: 0...10bar
Current output: 4...20mA
Measurement accuracy: 0.5%
Number of pins: 4
Supply voltage: 9...32V DC
auf Bestellung 8 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
1+251.12 EUR
5+241.47 EUR
Im Einkaufswagen  Stück im Wert von  UAH
MBS 3000-2011-A3AB04-0 pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B2DB11175DF7C143&compId=MBS3000-EN.pdf?ci_sign=4805d7be1ff6dd76face3eac35e4126dd35057f2
Hersteller: DANFOSS
Category: Pressure Transducers
Description: Converter: pressure; 0÷10bar; 9÷32VDC; 4÷20mA; relative pressure
Manufacturer series: MBS 3000
Connection: cables
Mounting: G1/4"
IP rating: IP67
Additional functions: measurement regarding atmospheric pressure
Type of converter: pressure
Controlled parameter: relative pressure
Operating temperature: -30...85°C
Pressure setting range: 0...10bar
Current output: 4...20mA
Lead length: 2m
Measurement accuracy: 0.5%
Supply voltage: 9...32V DC
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
MBS 3000-2021-A1AB04-0 pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B2DB11175DF7C143&compId=MBS3000-EN.pdf?ci_sign=4805d7be1ff6dd76face3eac35e4126dd35057f2
Hersteller: DANFOSS
Category: Pressure Transducers
Description: Converter: pressure; Pressure setting range: 0÷10bar; 9÷32VDC
Manufacturer series: MBS 3000
Mounting: G1/4"
IP rating: IP65
Connection: PG9
Type of converter: pressure
Operating temperature: -40...85°C
Pressure setting range: 0...10bar
Measurement accuracy: 0.5%
Supply voltage: 9...32V DC
Controlled parameter: absolute pressure
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
MBS 3000-2211-A1AB04-0 pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B2DB11175DF7C143&compId=MBS3000-EN.pdf?ci_sign=4805d7be1ff6dd76face3eac35e4126dd35057f2
MBS 3000-2211-A1AB04-0
Hersteller: DANFOSS
Category: Pressure Transducers
Description: Converter: pressure; Pressure setting range: 0÷16bar; 9÷32VDC
Connection: PG9
IP rating: IP65
Operating temperature: -40...85°C
Manufacturer series: MBS 3000
Mounting: G1/4"
Additional functions: measurement regarding reference pressure 1013hPa
Type of converter: pressure
Controlled parameter: relative pressure
Pressure setting range: 0...16bar
Current output: 4...20mA
Measurement accuracy: 0.5%
Number of pins: 4
Supply voltage: 9...32V DC
auf Bestellung 10 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
1+251.12 EUR
5+241.47 EUR
Im Einkaufswagen  Stück im Wert von  UAH
MBS 3000-2211-A1AB04-0 pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B2DB11175DF7C143&compId=MBS3000-EN.pdf?ci_sign=4805d7be1ff6dd76face3eac35e4126dd35057f2
MBS 3000-2211-A1AB04-0
Hersteller: DANFOSS
Category: Pressure Transducers
Description: Converter: pressure; Pressure setting range: 0÷16bar; 9÷32VDC
Manufacturer series: MBS 3000
Mounting: G1/4"
IP rating: IP65
Additional functions: measurement regarding atmospheric pressure
Connection: PG9
Type of converter: pressure
Controlled parameter: relative pressure
Operating temperature: -40...85°C
Current output: 4...20mA
Pressure setting range: 0...16bar
Measurement accuracy: 0.5%
Number of pins: 4
Supply voltage: 9...32V DC
auf Bestellung 3 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
1+251.32 EUR
Im Einkaufswagen  Stück im Wert von  UAH
MBS 3000-2611-A1AB04-0 pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B2DB11175DF7C143&compId=MBS3000-EN.pdf?ci_sign=4805d7be1ff6dd76face3eac35e4126dd35057f2
MBS 3000-2611-A1AB04-0
Hersteller: DANFOSS
Category: Pressure Transducers
Description: Converter: pressure; Pressure setting range: 0÷40bar; 9÷32VDC
Connection: PG9
IP rating: IP65
Operating temperature: -40...85°C
Manufacturer series: MBS 3000
Mounting: G1/4"
Additional functions: measurement regarding atmospheric pressure
Type of converter: pressure
Controlled parameter: relative pressure
Pressure setting range: 0...40bar
Current output: 4...20mA
Measurement accuracy: 0.5%
Number of pins: 4
Supply voltage: 9...32V DC
auf Bestellung 2 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
1+251.12 EUR
Im Einkaufswagen  Stück im Wert von  UAH
MBS 3000-2811-A1AB04-0 pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B2DB11175DF7C143&compId=MBS3000-EN.pdf?ci_sign=4805d7be1ff6dd76face3eac35e4126dd35057f2
MBS 3000-2811-A1AB04-0
Hersteller: DANFOSS
Category: Pressure Transducers
Description: Converter: pressure; 0÷60bar; 9÷32VDC; 4÷20mA; relative pressure
Supply voltage: 9...32V DC
Manufacturer series: MBS 3000
Mounting: G1/4"
IP rating: IP65
Connection: PG9
Additional functions: measurement regarding atmospheric pressure
Type of converter: pressure
Controlled parameter: relative pressure
Operating temperature: -40...85°C
Pressure setting range: 0...60bar
Current output: 4...20mA
Measurement accuracy: 0.5%
Number of pins: 4
auf Bestellung 1 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
1+245.06 EUR
Im Einkaufswagen  Stück im Wert von  UAH
Wählen Sie Seite:   [  << Vorherige Seite ]  1 2 3 4 5 6 7 8 9 10 11 12  [ Nächste Seite >> ]
