Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 110mm 42 KST-110E1-0001 1.2 3.7
Steps per Revolution: 300.0
Coil Resistance: 1 Ohms
Current Rating (Amps): 3.7 A
NEMA Frame Size: 42
Length - Shaft and Bearing: 1.496" (38.00mm)
Diameter - Shaft: 0.740" (19.00mm)
Torque - Holding (oz-in / mNm): 269.1 / 1900
Step Angle: 1.8°
Operating Temperature: -10°C ~ 50°C
Size / Dimension: Square - 4.330" x 4.333" (110.00mm x 110.00mm)
Voltage - Rated: 3.7VDC
Packaging: Case

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 110mm 42 KST-110E4-0001 1.2 6.8
Packaging: Case
Voltage - Rated: 8.43VDC
Size / Dimension: Square - 4.330" x 4.333" (110.00mm x 110.00mm)
Operating Temperature: -10°C ~ 50°C
Step Angle: 1.8°
Torque - Holding (oz-in / mNm): 2265.79 / 16000
Diameter - Shaft: 0.740" (19.00mm)
Length - Shaft and Bearing: 1.496" (38.00mm)
NEMA Frame Size: 42
Current Rating (Amps): 6.8 A
Coil Resistance: 1.24 Ohms
Steps per Revolution: 300.0

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 130mm 52 KST-130E4-0001 1.2 8.5
Packaging: Case
Voltage - Rated: 8.40VDC
Size / Dimension: Square - 5.118" x 5.118" (130.00mm x 130.00mm)
Operating Temperature: -10°C ~ 50°C
Step Angle: 1.8°
Torque - Holding (oz-in / mNm): 4956 / 35000
Diameter - Shaft: 0.940" (24.00mm)
Length - Shaft and Bearing: 1.732" (44.00mm)
NEMA Frame Size: 52
Current Rating (Amps): 8.5 A
Coil Resistance: 0.99 Ohms
Steps per Revolution: 300.0

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 14mm 6 KST-14D16-ZK-0001 1.8 0.2
Packaging: Case
Voltage - Rated: 4.6VDC
Size / Dimension: Square - 0.559" x 0.559" (14.20mm x 14.20mm)
Operating Temperature: -10°C ~ 50°C
Step Angle: 1.8°
Torque - Holding (oz-in / mNm): 0.82 / 5.8
Diameter - Shaft: 0.157" (4.00mm)
Mounting Hole Spacing: 0.453" (11.50mm)
Length - Shaft and Bearing: 0.394" (10.00mm)
NEMA Frame Size: 6
Current Rating (Amps): 0.21 A
Coil Resistance: 22 Ohms
Steps per Revolution: 200.0

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 20mm 8 KST-20D15-0001 1.8 0.6 0.
Packaging: Case
Voltage - Rated: 3.9VDC
Size / Dimension: Square - 0.787" x 0.787" (20.00mm x 20.00mm)
Operating Temperature: -10°C ~ 50°C
Step Angle: 1.8°
Torque - Holding (oz-in / mNm): 2.27 / 16
Diameter - Shaft: 0.157" (4.00mm)
Mounting Hole Spacing: 0.630" (16.00mm)
Length - Shaft and Bearing: 0.669" (17.00mm)
NEMA Frame Size: 8
Current Rating (Amps): 0.6 A
Coil Resistance: 6.5 Ohms
Steps per Revolution: 200.0

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 0.018Nm torque, 0.6mm lead, 1.8
Packaging: Case
Features: Integrated Encoder
Voltage - Rated: 3.9VDC
Type: Hybrid
Step Angle: 1.8°
Torque - Holding (oz-in / mNm): 2.5 / 17.65
Current Rating (Amps): 0.6 A
Coil Resistance: 6.5 Ohms
Steps per Revolution: 200.0

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 0.022Nm torque, 1mm lead, 1.8 st
Packaging: Case
Features: Integrated Encoder
Voltage - Rated: 2.8VDC
Type: Hybrid
Step Angle: 1.8°
Torque - Holding (oz-in / mNm): 3.12 / 22
Current Rating (Amps): 0.7 A
Coil Resistance: 4 Ohms
Steps per Revolution: 200.0

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 0.018Nm torque, 2mm lead, 1.8 st
Packaging: Case
Features: Integrated Encoder
Voltage - Rated: 3.9VDC
Type: Hybrid
Step Angle: 1.8°
Torque - Holding (oz-in / mNm): 2.5 / 17.65
Current Rating (Amps): 0.6 A
Coil Resistance: 6.5 Ohms
Steps per Revolution: 200.0

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 20mm 8 KST-20D15-ZK-0005 1.8 0.6
Packaging: Case
Voltage - Rated: 3.9VDC
Size / Dimension: Square - 0.787" x 0.787" (20.00mm x 20.00mm)
Operating Temperature: -10°C ~ 50°C
Step Angle: 1.8°
Torque - Holding (oz-in / mNm): 2.55 / 18
Diameter - Shaft: 0.197" (5.00mm)
Mounting Hole Spacing: 0.630" (16.00mm)
Length - Shaft and Bearing: 0.551" (14.00mm)
NEMA Frame Size: 8
Current Rating (Amps): 0.6 A
Coil Resistance: 6.5 Ohms
Steps per Revolution: 200.0

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 20mm 8 KST-20D25-0001 1.8 0.6 0.
Steps per Revolution: 200.0
Coil Resistance: 10 Ohms
Current Rating (Amps): 0.6 A
NEMA Frame Size: 8
Length - Shaft and Bearing: 0.669" (17.00mm)
Mounting Hole Spacing: 0.630" (16.00mm)
Diameter - Shaft: 0.157" (4.00mm)
Torque - Holding (oz-in / mNm): 3.12 / 22
Step Angle: 1.8°
Operating Temperature: -10°C ~ 50°C
Size / Dimension: Square - 0.787" x 0.787" (20.00mm x 20.00mm)
Voltage - Rated: 6.16VDC
Packaging: Case

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 0.022Nm torque, 1mm lead, 1.8 st
Packaging: Case
Features: Integrated Encoder
Voltage - Rated: 5.4VDC
Type: Hybrid
Step Angle: 1.8°
Torque - Holding (oz-in / mNm): 3.12 / 22
Current Rating (Amps): 0.6 A
Coil Resistance: 9 Ohms
Steps per Revolution: 200.0

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 0.022Nm torque, 4.8mm lead, 1.8
Packaging: Case
Features: Integrated Encoder
Voltage - Rated: 5.4VDC
Type: Hybrid
Step Angle: 1.8°
Torque - Holding (oz-in / mNm): 3.12 / 22
Current Rating (Amps): 0.6 A
Coil Resistance: 9 Ohms
Steps per Revolution: 200.0

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: Discover the KST-20D25-E-0004, a
Steps per Revolution: 200.0
Coil Resistance: 12.5 Ohms
Current Rating (Amps): 500 mA
Length - Shaft and Bearing: 0.787" (20.00mm)
Mounting Hole Spacing: 0.606" (15.40mm)
Diameter - Shaft: 0.157" (4.00mm)
Coil Type: Bipolar
Torque - Holding (oz-in / mNm): 2.83 / 20
Step Angle: 1.8°
Termination Style: Wire Leads with Connector
Type: Hybrid
Size / Dimension: Square - 0.787" x 0.787" (20.00mm x 20.00mm)
Voltage - Rated: 24VDC
Features: Round Shaft
Packaging: Case

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 20mm 8 KST-20D25-ZK-0002 1.8 0.6
Packaging: Case
Voltage - Rated: 5.4VDC
Size / Dimension: Square - 0.787" x 0.787" (20.00mm x 20.00mm)
Operating Temperature: -10°C ~ 50°C
Step Angle: 1.8°
Torque - Holding (oz-in / mNm): 2.6 / 18.35
Diameter - Shaft: 0.197" (5.00mm)
Mounting Hole Spacing: 0.630" (16.00mm)
Length - Shaft and Bearing: 0.551" (14.00mm)
NEMA Frame Size: 8
Current Rating (Amps): 0.6 A
Coil Resistance: 9 Ohms
Steps per Revolution: 200.0

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: The KST-20D25-ZKE20-0003 is a co
Type: Hybrid
Size / Dimension: Square - 0.787" x 0.787" (20.00mm x 20.00mm)
Voltage - Rated: 24VDC
Features: Double Round Shaft
Packaging: Case
Steps per Revolution: 200.0
Coil Resistance: 6 Ohms
Current Rating (Amps): 600 mA
Length - Shaft and Bearing: 0.433" (11.00mm)
Mounting Hole Spacing: 0.606" (15.40mm)
Diameter - Shaft: 0.197" (5.00mm)
Coil Type: Bipolar
Torque - Holding (oz-in / mNm): 4.5 / 32
Step Angle: 1.8°
Termination Style: Wire Leads with Connector

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 28mm 11 KST-28D18-0001 1.8 0.7 0
Packaging: Case
Steps per Revolution: 200.0
Coil Resistance: 4.5 Ohms
Current Rating (Amps): 0.7 A
NEMA Frame Size: 11
Length - Shaft and Bearing: 0.591" (15.00mm)
Mounting Hole Spacing: 0.906" (23.00mm)
Diameter - Shaft: 0.197" (5.00mm)
Torque - Holding (oz-in / mNm): 8.5 / 60
Step Angle: 1.8°
Operating Temperature: -10°C ~ 50°C
Size / Dimension: Square - 1.110" x 1.110" (28.20mm x 28.20mm)
Voltage - Rated: 3.15VDC

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 0.06Nm torque, 1mm lead, 1.8 ste
Packaging: Case
Features: Integrated Encoder
Voltage - Rated: 4.7VDC
Type: Hybrid
Step Angle: 1.8°
Torque - Holding (oz-in / mNm): 8.5 / 60
Current Rating (Amps): 0.75 A
Coil Resistance: 6.5 Ohms
Steps per Revolution: 200.0

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 0.06Nm torque, 1.2mm lead, 1.8 s
Steps per Revolution: 200.0
Coil Resistance: 11.9 Ohms
Current Rating (Amps): 0.4 A
Torque - Holding (oz-in / mNm): 8.5 / 60
Step Angle: 1.8°
Type: Hybrid
Voltage - Rated: 4.7VDC
Features: Integrated Encoder
Packaging: Case

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 0.06Nm torque, 2mm lead, 1.8 ste
Features: Integrated Encoder
Packaging: Case
Voltage - Rated: 4.32VDC
Type: Hybrid
Step Angle: 1.8°
Torque - Holding (oz-in / mNm): 8.5 / 60
Current Rating (Amps): 0.67 A
Coil Resistance: 6.5 Ohms
Steps per Revolution: 200.0

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 0.06Nm torque, 2mm lead, 1.8 ste
Features: Integrated Encoder
Packaging: Case
Voltage - Rated: 2.1VDC
Type: Hybrid
Step Angle: 1.8°
Torque - Holding (oz-in / mNm): 8.5 / 60
Current Rating (Amps): 1 A
Coil Resistance: 2.2 Ohms
Steps per Revolution: 200.0

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: Explore the KST-28D18-E-0003, a
Steps per Revolution: 200.0
Coil Resistance: 2.1 Ohms
Current Rating (Amps): 1 A
Length - Shaft and Bearing: 0.492" (12.50mm)
Mounting Hole Spacing: 0.906" (23.00mm)
Diameter - Shaft: 0.197" (5.00mm)
Coil Type: Bipolar
Torque - Holding (oz-in / mNm): 7.08 / 50
Step Angle: 1.8°
Termination Style: Wire Leads with Connector
Type: Hybrid
Size / Dimension: Square - 1.102" x 1.102" (28.00mm x 28.00mm)
Voltage - Rated: 24VDC
Features: Flatted Shaft
Packaging: Case

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: Discover the KST-28D18-EA-0011,
Steps per Revolution: 200.0
Coil Resistance: 2.1 Ohms
Current Rating (Amps): 1 A
Length - Shaft and Bearing: 0.394" (10.00mm)
Mounting Hole Spacing: 0.906" (23.00mm)
Diameter - Shaft: 0.315" (8.00mm)
Coil Type: Bipolar
Torque - Holding (oz-in / mNm): 7.08 / 50
Step Angle: 1.8°
Termination Style: Wire Leads with Connector
Type: Hybrid
Size / Dimension: Square - 1.102" x 1.102" (28.00mm x 28.00mm)
Voltage - Rated: 24VDC
Features: Round Shaft
Packaging: Case

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 28mm 11 KST-28D18-ZK-0004 1.8 0.
Packaging: Case
Voltage - Rated: 3.8VDC
Size / Dimension: Square - 1.110" x 1.110" (28.20mm x 28.20mm)
Operating Temperature: -10°C ~ 50°C
Step Angle: 1.8°
Torque - Holding (oz-in / mNm): 3.12 / 22
Diameter - Shaft: 0.315" (8.00mm)
Mounting Hole Spacing: 0.906" (23.00mm)
Length - Shaft and Bearing: 0.551" (14.00mm)
NEMA Frame Size: 11
Current Rating (Amps): 0.8 A
Coil Resistance: 4.8 Ohms
Steps per Revolution: 200.0

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: The KST-28D18-ZKE-0005 is a 28mm
Type: Hybrid
Size / Dimension: Square - 1.110" x 1.110" (28.20mm x 28.20mm)
Voltage - Rated: 24VDC
Features: Double Round Shaft
Packaging: Case
Steps per Revolution: 200.0
Coil Resistance: 6.5 Ohms
Current Rating (Amps): 670 mA
Length - Shaft and Bearing: 0.433" (11.00mm)
Mounting Hole Spacing: 0.906" (23.00mm)
Diameter - Shaft: 0.197" (5.00mm)
Coil Type: Bipolar
Torque - Holding (oz-in / mNm): 8.49 / 60
Step Angle: 1.8°
Termination Style: Wire Leads with Connector

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 0.08Nm torque, 2mm lead, 1.8 ste
Features: Integrated Encoder
Packaging: Case
Voltage - Rated: 5.6VDC
Type: Hybrid
Step Angle: 1.8°
Torque - Holding (oz-in / mNm): 10.3 / 72.73
Current Rating (Amps): 0.75 A
Coil Resistance: 7.5 Ohms
Steps per Revolution: 200.0

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 28mm 11 KST-28D37-0001 1.8 1 0.1
Step Angle: 1.8°
Operating Temperature: -10°C ~ 50°C
Size / Dimension: Square - 1.110" x 1.110" (28.20mm x 28.20mm)
Voltage - Rated: 3.5VDC
Packaging: Case
Steps per Revolution: 200.0
Coil Resistance: 3.5 Ohms
Current Rating (Amps): 1 A
NEMA Frame Size: 11
Length - Shaft and Bearing: 0.787" (20.00mm)
Mounting Hole Spacing: 0.906" (23.00mm)
Diameter - Shaft: 0.197" (5.00mm)
Torque - Holding (oz-in / mNm): 14.16 / 100

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 28mm 11 KST-28D37-D-0002 1.8 1 0
Length - Shaft and Bearing: 0.787" (20.00mm)
Mounting Hole Spacing: 0.906" (23.00mm)
Diameter - Shaft: 0.197" (5.00mm)
Torque - Holding (oz-in / mNm): 14.16 / 100
Step Angle: 1.8°
Operating Temperature: -10°C ~ 50°C
Size / Dimension: Square - 1.110" x 1.110" (28.20mm x 28.20mm)
Voltage - Rated: 3.5VDC
Packaging: Case
Steps per Revolution: 200.0
Coil Resistance: 3.5 Ohms
Current Rating (Amps): 1 A
NEMA Frame Size: 11

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 28mm 11 KST-28D37-ZK-0004 1.8 1
Packaging: Case
Voltage - Rated: 3.5VDC
Size / Dimension: Square - 1.110" x 1.110" (28.20mm x 28.20mm)
Operating Temperature: -10°C ~ 50°C
Step Angle: 1.8°
Torque - Holding (oz-in / mNm): 8.5 / 60
Diameter - Shaft: 0.315" (8.00mm)
Mounting Hole Spacing: 0.906" (23.00mm)
Length - Shaft and Bearing: 0.551" (14.00mm)
NEMA Frame Size: 11
Current Rating (Amps): 1 A
Coil Resistance: 3.5 Ohms
Steps per Revolution: 200.0

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 35mm 14 KST-35D17-ZK-0001 1.8 1
Packaging: Case
Voltage - Rated: 3.15VDC
Size / Dimension: Square - 1.390" x 1.390" (35.30mm x 35.30mm)
Operating Temperature: -10°C ~ 50°C
Step Angle: 1.8°
Torque - Holding (oz-in / mNm): 18.41 / 130
Diameter - Shaft: 0.315" (8.00mm)
Mounting Hole Spacing: 1.023" (26.00mm)
Length - Shaft and Bearing: 0.610" (15.50mm)
NEMA Frame Size: 14
Current Rating (Amps): 1 A
Coil Resistance: 3.1 Ohms
Steps per Revolution: 200.0

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 35mm 14 KST-35D26-0001 1.8 1 0.2
Packaging: Case
Voltage - Rated: 4.32VDC
Size / Dimension: Square - 1.378" x 1.378" (35.00mm x 35.00mm)
Operating Temperature: -10°C ~ 50°C
Step Angle: 1.8°
Torque - Holding (oz-in / mNm): 34 / 240
Diameter - Shaft: 0.079" (2.00mm)
Mounting Hole Spacing: 1.023" (26.00mm)
Length - Shaft and Bearing: 0.787" (20.00mm)
NEMA Frame Size: 14
Current Rating (Amps): 1 A
Coil Resistance: 4.35 Ohms
Steps per Revolution: 200.0

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 42mm 17 KST-42D16-0001 1.8 0.85
Packaging: Case
Voltage - Rated: 4.85VDC
Size / Dimension: Square - 1.654" x 1.654" (42.00mm x 42.00mm)
Operating Temperature: -10°C ~ 50°C
Step Angle: 1.8°
Torque - Holding (oz-in / mNm): 34 / 240
Diameter - Shaft: 0.197" (5.00mm)
Mounting Hole Spacing: 1.220" (31.00mm)
Length - Shaft and Bearing: 0.787" (20.00mm)
NEMA Frame Size: 17
Current Rating (Amps): 0.85 A
Coil Resistance: 5.7 Ohms
Steps per Revolution: 200.0

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 0.26Nm torque, 2mm lead, 1.8 ste
Features: Integrated Encoder
Packaging: Case
Voltage - Rated: 2.3VDC
Type: Hybrid
Step Angle: 1.8°
Torque - Holding (oz-in / mNm): 36.82 / 260
Current Rating (Amps): 1.5 A
Coil Resistance: 1.56 Ohms
Steps per Revolution: 200.0

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 42mm 17 KST-42D22-0002 1.8 1.6(H
Packaging: Case
Voltage - Rated: 3VDC
Size / Dimension: Square - 1.654" x 1.654" (42.00mm x 42.00mm)
Operating Temperature: -10°C ~ 50°C
Step Angle: 1.8°
Torque - Holding (oz-in / mNm): 43.9 / 310
Diameter - Shaft: 0.197" (5.00mm)
Mounting Hole Spacing: 1.220" (31.00mm)
Length - Shaft and Bearing: 0.945" (24.00mm)
NEMA Frame Size: 17
Current Rating (Amps): 1.6 A
Coil Resistance: 1.9 Ohms
Steps per Revolution: 200.0

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 0.4Nm torque, 4mm lead, 1.8 step
Features: Integrated Encoder
Packaging: Case
Voltage - Rated: 3.15VDC
Type: Hybrid
Step Angle: 1.8°
Torque - Holding (oz-in / mNm): 56.64 / 400
Current Rating (Amps): 1.67 A
Coil Resistance: 1.9 Ohms
Steps per Revolution: 200.0

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 0.4Nm torque, 4mm lead, 1.8 step
Features: Integrated Encoder
Packaging: Case
Voltage - Rated: 2.8VDC
Type: Hybrid
Step Angle: 1.8°
Torque - Holding (oz-in / mNm): 56.64 / 400
Current Rating (Amps): 1.5 A
Coil Resistance: 1.9 Ohms
Steps per Revolution: 200.0

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 0.32Nm torque, 8mm lead, 1.8 ste
Features: Integrated Encoder
Packaging: Case
Voltage - Rated: 2.1VDC
Type: Hybrid
Step Angle: 1.8°
Torque - Holding (oz-in / mNm): 46.74 / 330
Current Rating (Amps): 1.2 A
Coil Resistance: 1.9 Ohms
Steps per Revolution: 200.0

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 0.4Nm torque, 8mm lead, 1.8 step
Features: Integrated Encoder
Packaging: Case
Voltage - Rated: 2.8VDC
Type: Hybrid
Step Angle: 1.8°
Torque - Holding (oz-in / mNm): 56.64 / 400
Current Rating (Amps): 1.5 A
Coil Resistance: 1.9 Ohms
Steps per Revolution: 200.0

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 42mm 17 KST-42D22-D-0003 1.8 1.6
Packaging: Case
Voltage - Rated: 3VDC
Size / Dimension: Square - 1.654" x 1.654" (42.00mm x 42.00mm)
Operating Temperature: -10°C ~ 50°C
Step Angle: 1.8°
Torque - Holding (oz-in / mNm): 14.16 / 100
Diameter - Shaft: 0.197" (5.00mm)
Mounting Hole Spacing: 1.220" (31.00mm)
Length - Shaft and Bearing: 0.867" (22.00mm)
NEMA Frame Size: 17
Current Rating (Amps): 1.6 A
Coil Resistance: 1.9 Ohms
Steps per Revolution: 200.0

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 42mm 17 KST-42D22-M-0010 1.8 1.6
Packaging: Case
Voltage - Rated: 3VDC
Size / Dimension: Square - 1.654" x 1.654" (42.00mm x 42.00mm)
Operating Temperature: -10°C ~ 50°C
Step Angle: 1.8°
Torque - Holding (oz-in / mNm): 339.87 / 2400
Diameter - Shaft: 0.315" (8.00mm)
Mounting Hole Spacing: 1.220" (31.00mm)
Length - Shaft and Bearing: 1.023" (26.00mm)
NEMA Frame Size: 17
Current Rating (Amps): 1.6 A
Coil Resistance: 1.9 Ohms
Steps per Revolution: 200.0

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.

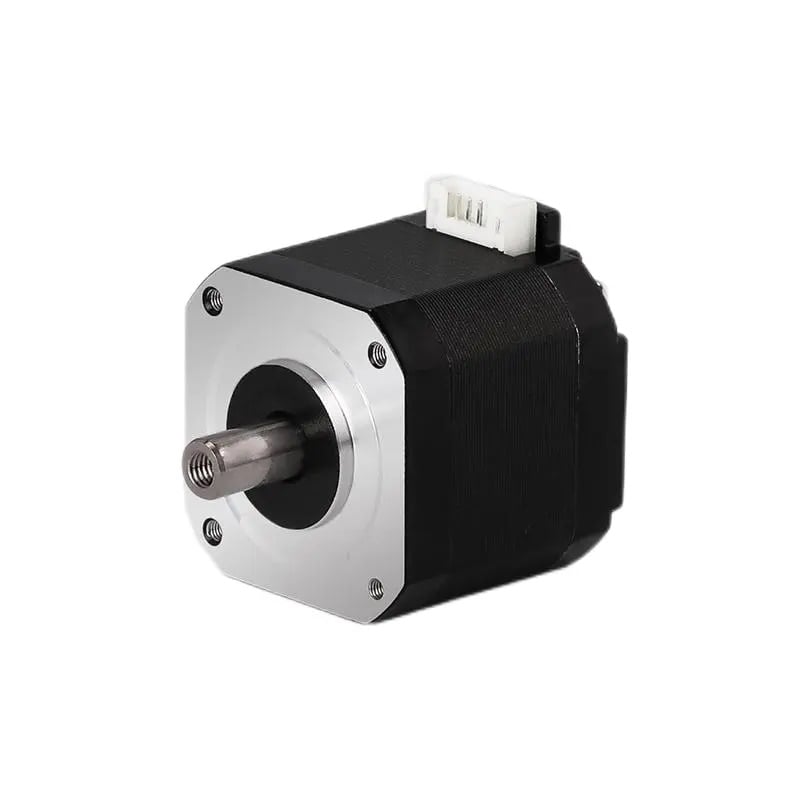

Description: 42mm 17 KST-42D22-ZK-0004 1.8 1.
Packaging: Case
Voltage - Rated: 3.5VDC
Size / Dimension: Square - 1.654" x 1.654" (42.00mm x 42.00mm)
Operating Temperature: -10°C ~ 50°C
Step Angle: 1.8°
Torque - Holding (oz-in / mNm): 21.2 / 150
Diameter - Shaft: 0.315" (8.00mm)
Mounting Hole Spacing: 1.220" (31.00mm)
Length - Shaft and Bearing: 0.591" (15.00mm)
NEMA Frame Size: 17
Current Rating (Amps): 1.3 A
Coil Resistance: 2.7 Ohms
Steps per Revolution: 200.0

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: The KST-42D22-ZKE-0005 is a 42mm
Features: Double Round Shaft
Packaging: Case
Voltage - Rated: 24VDC
Size / Dimension: Square - 1.654" x 1.654" (42.00mm x 42.00mm)
Type: Hybrid
Termination Style: Wire Leads
Step Angle: 1.8°
Torque - Holding (oz-in / mNm): 56.3 / 400
Coil Type: Bipolar
Diameter - Shaft: 0.315" (8.00mm)
Mounting Hole Spacing: 1.220" (31.00mm)
Length - Shaft and Bearing: 0.591" (15.00mm)
Current Rating (Amps): 1.5 A
Coil Resistance: 2.1 Ohms
Steps per Revolution: 200.0

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 42mm 17 KST-42D30-0001 1.8 2 0.6
Packaging: Case
Voltage - Rated: 3VDC
Size / Dimension: Square - 1.654" x 1.654" (42.00mm x 42.00mm)
Operating Temperature: -10°C ~ 50°C
Step Angle: 1.8°
Torque - Holding (oz-in / mNm): 102 / 720
Diameter - Shaft: 0.197" (5.00mm)
Mounting Hole Spacing: 1.220" (31.00mm)
Length - Shaft and Bearing: 0.945" (24.00mm)
NEMA Frame Size: 17
Current Rating (Amps): 2 A
Coil Resistance: 1.5 Ohms
Steps per Revolution: 200.0

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 0.4Nm torque, 2mm lead, 1.8 step
Features: Integrated Encoder
Packaging: Case
Voltage - Rated: 3VDC
Type: Hybrid
Step Angle: 1.8°
Torque - Holding (oz-in / mNm): 56.64 / 400
Current Rating (Amps): 1.5 A
Coil Resistance: 2 Ohms
Steps per Revolution: 200.0

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 0.46Nm torque, 4.8mm lead, 1.8 s
Features: Integrated Encoder
Packaging: Case
Voltage - Rated: 3VDC
Type: Hybrid
Step Angle: 1.8°
Torque - Holding (oz-in / mNm): 66.57 / 470
Current Rating (Amps): 1.5 A
Coil Resistance: 2 Ohms
Steps per Revolution: 200.0

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 42mm 17 KST-42D30-D-0003 1.8 2 0
Packaging: Case
Voltage - Rated: 3VDC
Size / Dimension: Square - 1.654" x 1.654" (42.00mm x 42.00mm)
Operating Temperature: -10°C ~ 50°C
Step Angle: 1.8°
Torque - Holding (oz-in / mNm): 42.49 / 300
Diameter - Shaft: 0.197" (5.00mm)
Mounting Hole Spacing: 1.220" (31.00mm)
Length - Shaft and Bearing: 0.787" (20.00mm)
NEMA Frame Size: 17
Current Rating (Amps): 2 A
Coil Resistance: 1.5 Ohms
Steps per Revolution: 200.0

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: The KST-42D30-E-0005 is a powerf
Features: Flatted Shaft
Packaging: Case
Size / Dimension: Square - 1.654" x 1.654" (42.00mm x 42.00mm)
Type: Hybrid
Termination Style: Wire Leads with Connector
Step Angle: 1.8°
Torque - Holding (oz-in / mNm): 85 / 600
Coil Type: Bipolar
Diameter - Shaft: 0.197" (5.00mm)
Mounting Hole Spacing: 1.220" (31.00mm)
Length - Shaft and Bearing: 0.945" (24.00mm)
Current Rating (Amps): 2 A
Coil Resistance: 1.5 Ohms
Steps per Revolution: 200.0

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: The KST-42D30-EA-0014 two-phase
Features: Flatted Shaft
Packaging: Case
Voltage - Rated: 24VDC
Size / Dimension: Square - 1.654" x 1.654" (42.00mm x 42.00mm)
Type: Hybrid
Termination Style: Wire Leads with Connector
Step Angle: 1.8°
Torque - Holding (oz-in / mNm): 87.8 / 620
Coil Type: Bipolar
Diameter - Shaft: 0.197" (5.00mm)
Mounting Hole Spacing: 1.220" (31.00mm)
Length - Shaft and Bearing: 0.787" (20.00mm)
Current Rating (Amps): 2 A
Coil Resistance: 1.8 Ohms
Steps per Revolution: 200.0

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: Discover the KST-42D30-EM-0007 s
Features: Flatted Shaft
Packaging: Case
Size / Dimension: Square - 1.654" x 1.654" (42.00mm x 42.00mm)
Type: Hybrid
Termination Style: Wire Leads with Connector
Step Angle: 1.8°
Torque - Holding (oz-in / mNm): 85 / 600
Coil Type: Bipolar
Diameter - Shaft: 0.197" (5.00mm)
Mounting Hole Spacing: 1.220" (31.00mm)
Length - Shaft and Bearing: 0.945" (24.00mm)
Current Rating (Amps): 2 A
Coil Resistance: 1.5 Ohms
Steps per Revolution: 200.0

Hersteller: Guangdong Kaifull Electronics Technology Co., Ltd.
Description: 42mm 17 KST-42D30-M-0002 1.8 2 0
Packaging: Case
Voltage - Rated: 3VDC
Size / Dimension: Square - 1.654" x 1.654" (42.00mm x 42.00mm)
Operating Temperature: -10°C ~ 50°C
Step Angle: 1.8°
Torque - Holding (oz-in / mNm): 60.89 / 430
Diameter - Shaft: 0.197" (5.00mm)
Mounting Hole Spacing: 1.220" (31.00mm)
Length - Shaft and Bearing: 0.787" (20.00mm)
NEMA Frame Size: 17
Current Rating (Amps): 2 A
Coil Resistance: 1.5 Ohms
Steps per Revolution: 200.0
