Produkte > HARWIN INC. > Alle Produkte des Herstellers HARWIN INC. (13139) > Seite 213 nach 219

Wählen Sie Seite:   [  << Vorherige Seite ]  1 21 42 63 84 105 126 147 168 189 208 209 210 211 212 213 214 215 216 217 218 219  [ Nächste Seite >> ]
Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
M80-4000000F2-02-PF1-00-000 Harwin Inc. M80-4000000F2-XX-XXX-00-000.pdf Description: 2 POS. FEMALE SIL VERTICAL THROU
Features: Jackscrews, Mounting Flange, Polarizing Key
Packaging: Bulk
Connector Type: Receptacle
Voltage Rating: 800VAC/DC
Current Rating (Amps): 40A
Mounting Type: Through Hole
Number of Positions: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 150°C
Contact Type: Female Socket, Power
Fastening Type: Screw Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.157" (4.00mm)
Contact Finish - Mating: Gold
Contact Finish - Post: Gold
Contact Length - Post: 0.138" (3.50mm)
Insulation Height: 0.205" (5.20mm)
Number of Rows: 1
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-4000000F2-04-PF1-00-000 M80-4000000F2-04-PF1-00-000 Harwin Inc. M80-4000000F2-XX-XXX-00-000.pdf Description: 4 POS. FEMALE SIL VERTICAL THROU
Features: Jackscrews, Mounting Flange, Polarizing Key
Packaging: Bulk
Connector Type: Receptacle
Voltage Rating: 800VAC/DC
Current Rating (Amps): 40A
Mounting Type: Through Hole
Number of Positions: 4
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 150°C
Contact Type: Female Socket, Power
Fastening Type: Screw Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.157" (4.00mm)
Contact Finish - Mating: Gold
Contact Finish - Post: Gold
Contact Length - Post: 0.138" (3.50mm)
Insulation Height: 0.205" (5.20mm)
Number of Rows: 1
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH

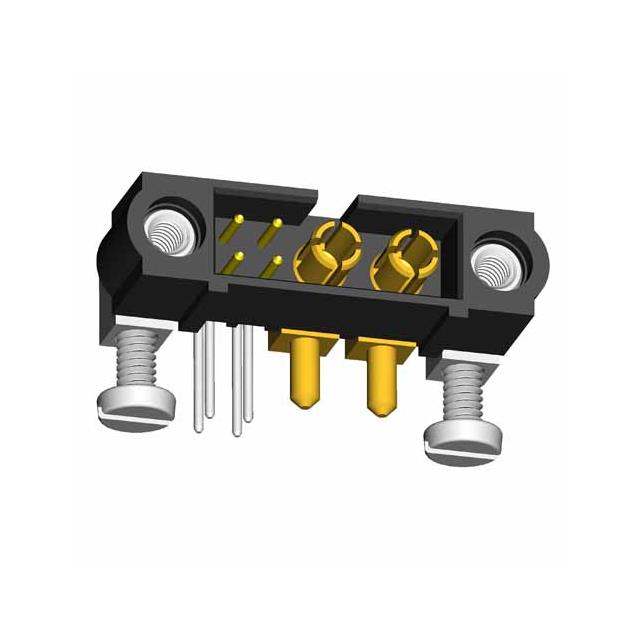

M80-5L20422M5-02-333-00-000 M80-5L20422M5-02-333-00-000 Harwin Inc. DRG-01433-Technical-Drawing-Datasheet-M80-5L20422M5-02-333-00-000-pdf.pdf Description: 4+2 POS. MALE SIGNAL+POWER HORIZ
Features: Jackscrews, Keying Slot, Mating Flange
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A, 20A
Mounting Type: Through Hole, Right Angle
Number of Positions: 6 (4 + 2 Power)
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy, Phosphor Bronze
Insulation Color: Black
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin-Lead
Contact Shape: Circular
Contact Length - Post: 0.177" (4.50mm)
Insulation Height: 0.238" (6.05mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH

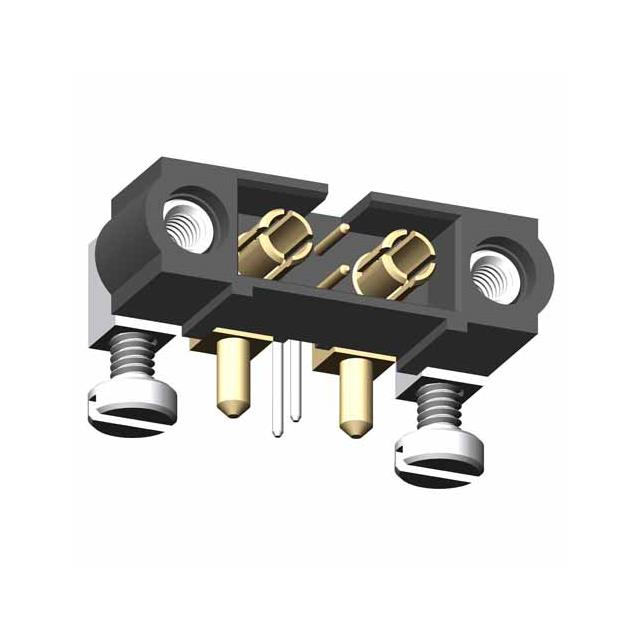

M80-5L10222M5-01-333-01-333 M80-5L10222M5-01-333-01-333 Harwin Inc. PD003-Product-Datasheet-Datamate-Mix-Tek-range-HRi.pdf Description: 2+2 POS. MALE SIGNAL+POWER HORIZ
Features: Jackscrews, Keying Slot, Mating Flange
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A, 20A
Mounting Type: Through Hole, Right Angle
Number of Positions: 4 (2 + 2 Power)
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy, Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.118" (3.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin-Lead
Contact Shape: Circular
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.238" (6.05mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH

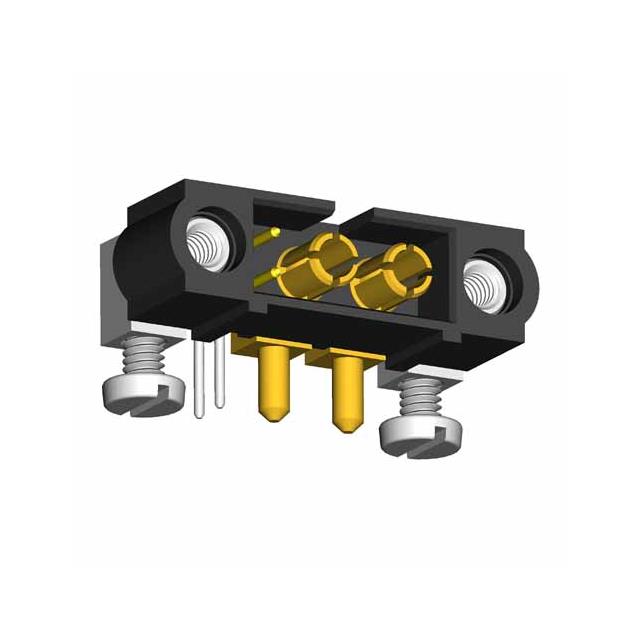

M80-5L10222M5-02-333-00-000 M80-5L10222M5-02-333-00-000 Harwin Inc. PD003-Product-Datasheet-Datamate-Mix-Tek-range-HRi.pdf Description: 2+2 POS. MALE SIGNAL+POWER HORIZ
Features: Jackscrews, Keying Slot, Mating Flange
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A, 20A
Mounting Type: Through Hole, Right Angle
Number of Positions: 4 (2 + 2 Power)
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy, Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.157" (4.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin-Lead
Contact Shape: Circular
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.238" (6.05mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH

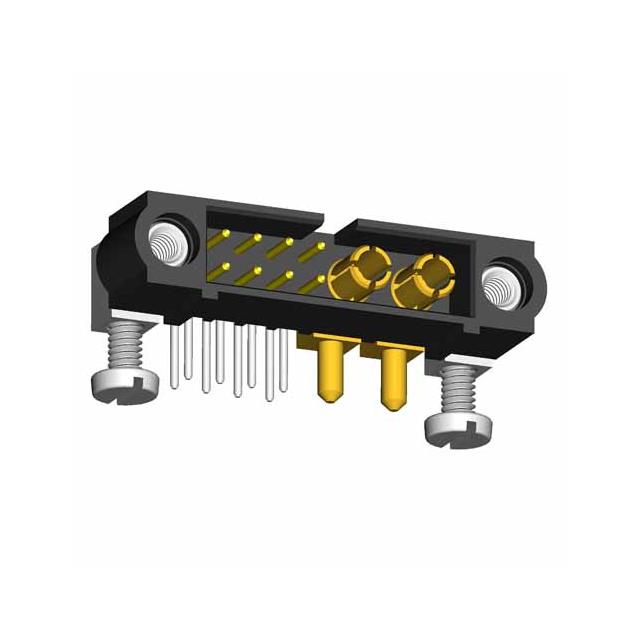

M80-5L10822M5-02-333-00-000 M80-5L10822M5-02-333-00-000 Harwin Inc. M80-5L10822M5-02-333-00-000.pdf Description: 8+2 POS. MALE SIGNAL+POWER HORIZ
Features: Jackscrews, Keying Slot, Mating Flange
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A, 20A
Mounting Type: Through Hole, Right Angle
Number of Positions: 10 (8 + 2 Power)
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy, Phosphor Bronze
Insulation Color: Black
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin-Lead
Contact Shape: Circular
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.238" (6.05mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-4000000F1-04-PF1-00-000 M80-4000000F1-04-PF1-00-000 Harwin Inc. M80-4000000F1-XX-XXX-00-000.pdf Description: 4 POS. FEMALE SIL VERTICAL THROU
Features: Jackscrews, Polarizing Key
Packaging: Bulk
Connector Type: Receptacle
Voltage Rating: 800VAC/DC
Current Rating (Amps): 40A
Mounting Type: Through Hole
Number of Positions: 4
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 150°C
Contact Type: Female Socket, Power
Fastening Type: Screw Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Mated Stacking Heights: 7.3mm
Insulation Color: Black
Pitch - Mating: 0.157" (4.00mm)
Contact Finish - Mating: Gold
Contact Finish - Post: Gold
Contact Length - Post: 0.138" (3.50mm)
Insulation Height: 0.343" (8.71mm)
Number of Rows: 1
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-4S15001FJ Harwin Inc. M80-4S1XXXXFJ.pdf Description: 25+25 POS. FEMALE DIL VERTICAL S
Features: Jackscrews, Mating Flange, Mounting Flange, Polarizing Key
Packaging: Bulk
Connector Type: Receptacle
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Surface Mount
Number of Positions: 50
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Mated Stacking Heights: 7.8mm, 8.05mm
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 12.0µin (0.30µm)
Contact Finish - Post: Tin-Lead
Insulation Height: 0.230" (5.85mm)
Row Spacing - Mating: 0.079" (2.00mm)
Number of Rows: 2
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH

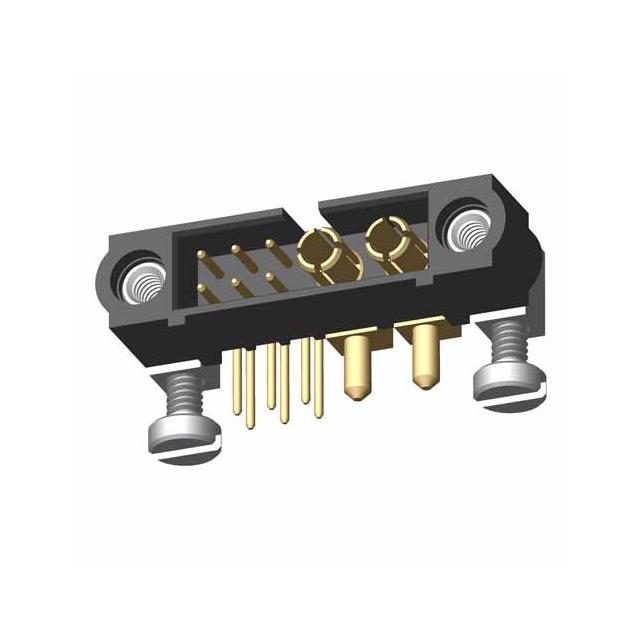

M80-5L10605M5-02-333-00-000 M80-5L10605M5-02-333-00-000 Harwin Inc. M80-5L10605M5-02-333-00-000.pdf Description: 6+2 POS. MALE SIGNAL+POWER HORIZ
Features: Jackscrews, Keying Slot, Mating Flange
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A, 20A
Mounting Type: Through Hole, Right Angle
Number of Positions: 8 (6 + 2 Power)
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy, Phosphor Bronze
Insulation Color: Black
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.238" (6.05mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH

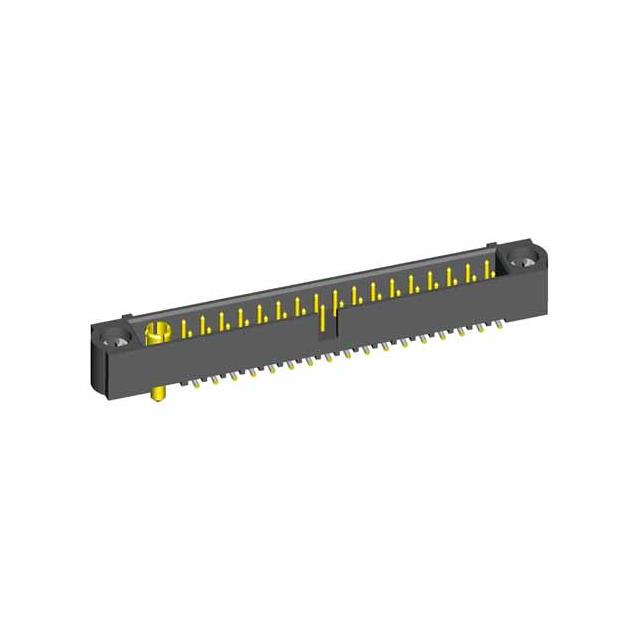

M80-5S13442MC-01-331-00-000 M80-5S13442MC-01-331-00-000 Harwin Inc. M80-5S13442MC-01-331-00-000.pdf Description: 34+1 POS. MALE SIGNAL+POWER VERT
Features: Jackscrews, Keying Slot, Mating Flange
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A, 20A
Mounting Type: Surface Mount
Number of Positions: 35 (34 + 1 Power)
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Screw Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy, Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Contact Shape: Circular
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH

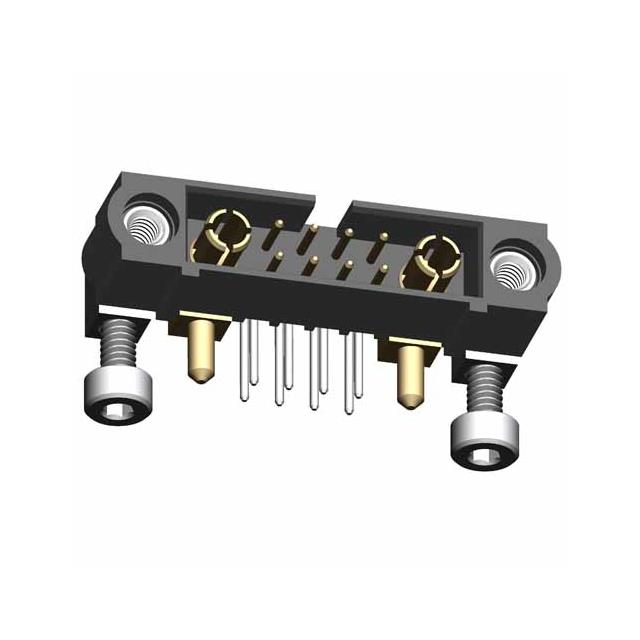

M80-5L10822M7-01-333-01-333 M80-5L10822M7-01-333-01-333 Harwin Inc. M80-5L10822M7-01-333-01-333.pdf Description: 8+2 POS. MALE SIGNAL+POWER HORIZ
Features: Jackscrews, Keying Slot, Mating Flange
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A, 20A
Mounting Type: Through Hole, Right Angle
Number of Positions: 10 (8 + 2 Power)
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy, Phosphor Bronze
Insulation Color: Black
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin-Lead
Contact Shape: Circular
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.238" (6.05mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH

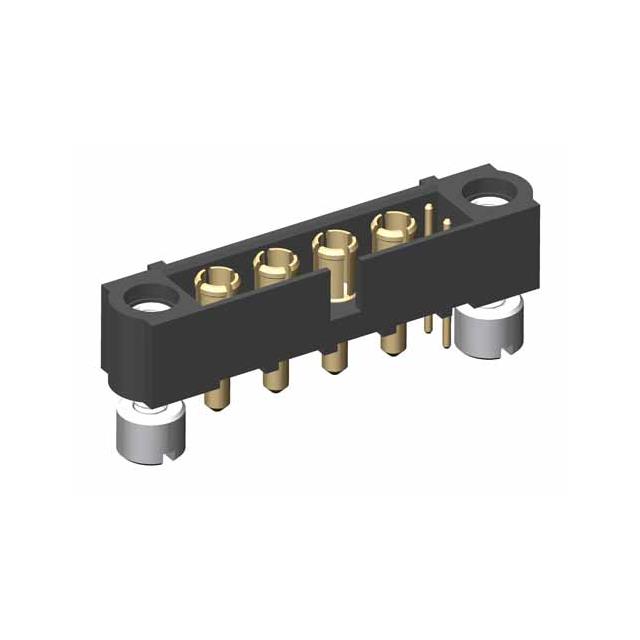

M80-5T10205M3-04-331-00-000 M80-5T10205M3-04-331-00-000 Harwin Inc. DRG-01503-Technical-Drawing-Datasheet-M80-5T10205M3-04-331-00-000-pdf.pdf Description: 2+4 POS. MALE SIGNAL+POWER VERTI
Features: Jackscrews, Keying Slot, Mating Flange
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A, 20A
Mounting Type: Through Hole
Number of Positions: 6 (2 + 4 Power)
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy, Phosphor Bronze
Insulation Color: Black
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M55-8002642-0300A M55-8002642-0300A Harwin Inc. M55-800.pdf Description: CBL ASSEM 1.27MM 26POS F-F 300MM
Features: Latch Lock, Polarizing Key
Packaging: Bulk
Connector Type: Socket to Socket
Contact Finish: Gold
Color: Gray, Ribbon
Length: 0.984' (300.00mm, 11.81")
Shielding: Unshielded
Number of Positions: 26
Number of Rows: 2
Cable Termination: IDC
Pitch - Cable: 0.025" (0.64mm)
Pitch - Connector: 0.050" (1.27mm)
auf Bestellung 20 Stücke:
Lieferzeit 10-14 Tag (e)
1+50.56 EUR
10+41.22 EUR
Im Einkaufswagen  Stück im Wert von  UAH
M80-5110805 Harwin Inc. PD004-Product-Datasheet-Datamate-range-signal-connectors-HRi.pdf Description: 4+4 POS. MALE DIL VERTICAL THROU
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Connector Type: Header
Mounting Type: Through Hole
Number of Positions: 8
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.173" (4.40mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-5012405 Harwin Inc. M80-501.pdf Description: 12+12 POS. MALE DIL VERTICAL THR
Features: Keying Slot
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 24
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Square
Contact Length - Post: 0.173" (4.40mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH

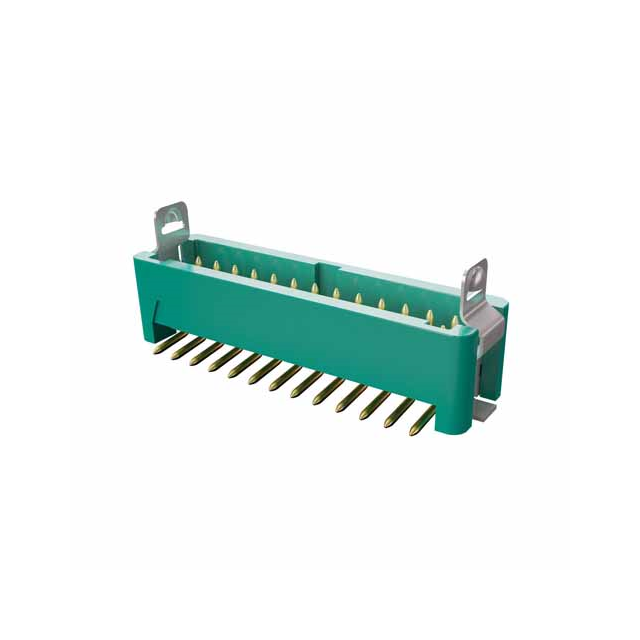

G125-MS12605L3R G125-MS12605L3R Harwin Inc. G125-MS1XX05L3R.pdf Description: CONN HEADER SMD 26POS 1.25MM
Features: Pick and Place, Solder Retention
Packaging: Tape & Reel (TR)
Connector Type: Header
Current Rating (Amps): 2A per Contact
Mounting Type: Surface Mount
Number of Positions: 26
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -65°C ~ 150°C
Contact Type: Male Pin
Fastening Type: Latch Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Green
Pitch - Mating: 0.049" (1.25mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 8.00µin (0.203µm)
Contact Shape: Circular
Insulation Height: 0.193" (4.90mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Row Spacing - Mating: 0.049" (1.25mm)
auf Bestellung 800 Stücke:
Lieferzeit 10-14 Tag (e)
400+14.96 EUR
Mindestbestellmenge: 400
Im Einkaufswagen  Stück im Wert von  UAH
G125-MS12605L3R G125-MS12605L3R Harwin Inc. G125-MS1XX05L3R.pdf Description: CONN HEADER SMD 26POS 1.25MM
Features: Pick and Place, Solder Retention
Packaging: Cut Tape (CT)
Connector Type: Header
Current Rating (Amps): 2A per Contact
Mounting Type: Surface Mount
Number of Positions: 26
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -65°C ~ 150°C
Contact Type: Male Pin
Fastening Type: Latch Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Green
Pitch - Mating: 0.049" (1.25mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 8.00µin (0.203µm)
Contact Shape: Circular
Insulation Height: 0.193" (4.90mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Row Spacing - Mating: 0.049" (1.25mm)
auf Bestellung 1179 Stücke:
Lieferzeit 10-14 Tag (e)
1+25.47 EUR
10+19.95 EUR
100+16.23 EUR
Im Einkaufswagen  Stück im Wert von  UAH
M22-2200846 M22-2200846 Harwin Inc. M22-220_Dwg.pdf Description: CONN HEADER VERT 8POS 2MM
Packaging: Tube
Connector Type: Header
Voltage Rating: 100V
Current Rating (Amps): 2A per Contact
Mounting Type: Through Hole
Number of Positions: 8
Number of Rows: 1
Style: Board to Cable/Wire
Operating Temperature: -25°C ~ 85°C
Contact Type: Male Pin
Fastening Type: Detent Lock
Number of Positions Loaded: All
Termination: Kinked Pin, Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass
Insulation Color: Natural
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.134" (3.40mm)
Insulation Height: 0.240" (6.10mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA9T), Nylon 9T
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-8200222 Harwin Inc. M80-820_Dwg.pdf Description: CONN HEADER VERT 2POS 2MM
Packaging: Bulk
Connector Type: Plug
Voltage Rating: 120V
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 2
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin-Lead
Contact Shape: Circular
Contact Length - Post: 0.215" (5.46mm)
Insulation Height: 0.219" (5.56mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyester, Glass Filled
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M22-129035J0505 Harwin Inc. Description: CONN HEADER R/A 10POS 2MM
Packaging: Bulk
Connector Type: Header
Voltage Rating: 500V
Mounting Type: Through Hole, Right Angle
Number of Positions: 10
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Shape: Square
Contact Length - Post: 0.138" (3.50mm)
Insulation Height: 0.157" (4.00mm)
Shrouding: Unshrouded
Insulation Material: Polyamide (PA6T), Nylon 6T
Row Spacing - Mating: 0.079" (2.00mm)
Contact Length - Mating: 0.508" (12.90mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-9540800 Harwin Inc. M80-9X4XX00.pdf Description: BSHELL PLASTIC FOR 8POS J-TEK
Packaging: Bag
Number of Positions: 8
Accessory Type: Backshell
auf Bestellung 30 Stücke:
Lieferzeit 10-14 Tag (e)
1+26.91 EUR
10+20.7 EUR
25+18.72 EUR
Im Einkaufswagen  Stück im Wert von  UAH
F11-20002042R F11-20002042R Harwin Inc. F11-20XXXX42R.pdf Description: 0.5MM M 20 WAY SGL+PWR (13.20MM)
Packaging: Tape & Reel (TR)
Features: Board Guide, Pick and Place, Solder Retention
Connector Type: Header, Center Strip Contacts, Floating
Contact Finish: Gold
Mounting Type: Surface Mount
Number of Positions: 20
Pitch: 0.020" (0.50mm)
Contact Finish Thickness: FLASH
Mated Stacking Heights: 15mm
Number of Rows: 2
auf Bestellung 150 Stücke:
Lieferzeit 10-14 Tag (e)
150+4.28 EUR
Mindestbestellmenge: 150
Im Einkaufswagen  Stück im Wert von  UAH
F11-20002042R F11-20002042R Harwin Inc. F11-20XXXX42R.pdf Description: 0.5MM M 20 WAY SGL+PWR (13.20MM)
Packaging: Cut Tape (CT)
Features: Board Guide, Pick and Place, Solder Retention
Connector Type: Header, Center Strip Contacts, Floating
Contact Finish: Gold
Mounting Type: Surface Mount
Number of Positions: 20
Pitch: 0.020" (0.50mm)
Contact Finish Thickness: FLASH
Mated Stacking Heights: 15mm
Number of Rows: 2
auf Bestellung 246 Stücke:
Lieferzeit 10-14 Tag (e)
3+6.11 EUR
10+5.18 EUR
25+4.86 EUR
50+4.63 EUR
Mindestbestellmenge: 3
Im Einkaufswagen  Stück im Wert von  UAH
M80-4000000F2-04-325-00-000 M80-4000000F2-04-325-00-000 Harwin Inc. M80-4000000F2-XX-XXX-00-000.pdf Description: FEMALE CABLE CONNECTOR KIT
Packaging: Bulk
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH

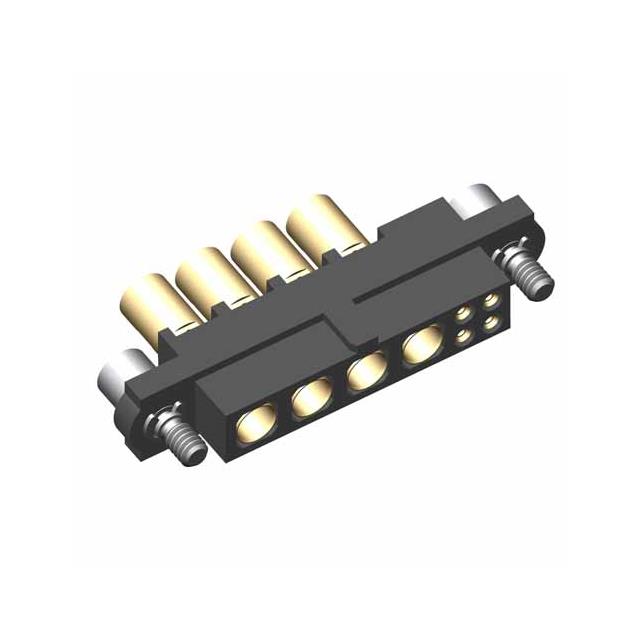

M80-4C10405F2-04-325-00-000 M80-4C10405F2-04-325-00-000 Harwin Inc. DRG-00898-Technical-Drawing-Datasheet-M80-4C10405F2-04-325-00-000-pdf.pdf Description: 4+4 POS. FEMALE 24-28AWG+12AWG C
Packaging: Bulk
Features: Jackscrews
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 24-28 AWG
Number of Positions: 8 (4 + 4 Power)
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Fastening Type: Screw Lock
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Number of Rows: 2
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH

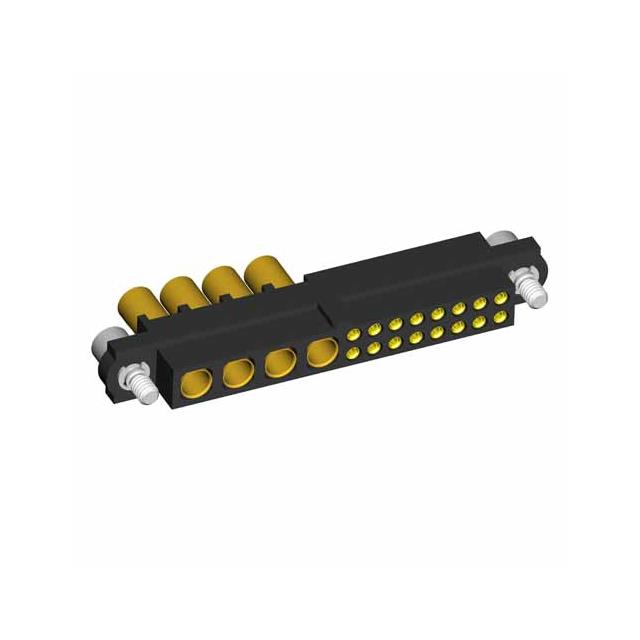

M80-4D11605F2-04-325-00-000 M80-4D11605F2-04-325-00-000 Harwin Inc. DRG-01117-Technical-Drawing-Datasheet-M80-4D11605F2-04-325-00-000-pdf.pdf Description: 16+4 POS. FEMALE 22AWG+12AWG CAB
Packaging: Bulk
Features: Jackscrews
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 20 (16 + 4 Power)
Contact Type: Female Socket
Fastening Type: Screw Lock
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Number of Rows: 2
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-4204242 M80-4204242 Harwin Inc. PD004-Product-Datasheet-Datamate-range-signal-connectors-HRi.pdf Description: CONN RCPT 42POS 0.079 GOLD PCB
Packaging: Tube
Features: Jackscrews, Mating Flange, Mounting Flange, Polarizing Key
Connector Type: Receptacle
Voltage Rating: 120V
Mounting Type: Through Hole
Number of Positions: 42
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Screw Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Mated Stacking Heights: 7.3mm, 7.55mm
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 12.0µin (0.30µm)
Contact Finish - Post: Tin
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.205" (5.20mm)
Row Spacing - Mating: 0.079" (2.00mm)
Number of Rows: 2
auf Bestellung 963 Stücke:
Lieferzeit 10-14 Tag (e)
1+41.69 EUR
10+35.44 EUR
100+30.13 EUR
500+26.9 EUR
Im Einkaufswagen  Stück im Wert von  UAH
M80-4153098 Harwin Inc. M80-415.pdf Description: 15+15 POS. FEMALE DIL CABLE HOUS
Packaging: Bulk
Connector Type: Receptacle
Contact Termination: Crimp
Color: Black
Mounting Type: Panel Mount
Number of Positions: 30
Pitch: 0.079" (2.00mm)
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Threaded
Row Spacing: 0.079" (2.00mm)
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Number of Rows: 2
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
F20-10008045R F20-10008045R Harwin Inc. Description: 0.635MM F 80 WAY SGL (4.28MM)
Packaging: Tape & Reel (TR)
Features: Board Guide, Pick and Place, Solder Retention
Connector Type: Receptacle, Outer Shroud Contacts, Floating
Contact Finish: Gold
Mounting Type: Surface Mount
Number of Positions: 80
Pitch: 0.025" (0.64mm)
Contact Finish Thickness: FLASH
Mated Stacking Heights: 5.98mm
Number of Rows: 2
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
F20-10008045R F20-10008045R Harwin Inc. Description: 0.635MM F 80 WAY SGL (4.28MM)
Packaging: Cut Tape (CT)
Features: Board Guide, Pick and Place, Solder Retention
Connector Type: Receptacle, Outer Shroud Contacts, Floating
Contact Finish: Gold
Mounting Type: Surface Mount
Number of Positions: 80
Pitch: 0.025" (0.64mm)
Contact Finish Thickness: FLASH
Mated Stacking Heights: 5.98mm
Number of Rows: 2
auf Bestellung 990 Stücke:
Lieferzeit 10-14 Tag (e)
4+5.84 EUR
10+4.75 EUR
25+4.38 EUR
50+4.12 EUR
100+3.87 EUR
250+3.57 EUR
500+3.36 EUR
Mindestbestellmenge: 4
Im Einkaufswagen  Stück im Wert von  UAH
M52-040000S0545R Harwin Inc. Description: 2.54X1.27 M VERT SMT DIL 300/R
Packaging: Bulk
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-4100842 M80-4100842 Harwin Inc. M80-410.pdf Description: 2 X 4POS FEMALE PC TAIL 3MM
Features: Mating Flange, Polarizing Key
Packaging: Tube
Connector Type: Receptacle
Voltage Rating: 120VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 8
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Mated Stacking Heights: 7.3mm, 7.55mm
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 12.0µin (0.30µm)
Contact Finish - Post: Tin
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.205" (5.20mm)
Row Spacing - Mating: 0.079" (2.00mm)
Number of Rows: 2
auf Bestellung 71 Stücke:
Lieferzeit 10-14 Tag (e)
3+8.34 EUR
14+6.93 EUR
Mindestbestellmenge: 3
Im Einkaufswagen  Stück im Wert von  UAH
F10-10103045R F10-10103045R Harwin Inc. PD014-Product-Datasheet-Flecto-BBi.pdf Description: 0.5MM F 30 WAY SGL (13.40MM)
Packaging: Tape & Reel (TR)
Features: Board Guide, Pick and Place, Solder Retention
Connector Type: Receptacle, Outer Shroud Contacts, Floating
Contact Finish: Gold
Mounting Type: Surface Mount
Number of Positions: 30
Pitch: 0.020" (0.50mm)
Contact Finish Thickness: FLASH
Mated Stacking Heights: 24.9mm
Number of Rows: 2
auf Bestellung 250 Stücke:
Lieferzeit 10-14 Tag (e)
250+2.72 EUR
Mindestbestellmenge: 250
Im Einkaufswagen  Stück im Wert von  UAH
F10-10103045R F10-10103045R Harwin Inc. PD014-Product-Datasheet-Flecto-BBi.pdf Description: 0.5MM F 30 WAY SGL (13.40MM)
Packaging: Cut Tape (CT)
Features: Board Guide, Pick and Place, Solder Retention
Connector Type: Receptacle, Outer Shroud Contacts, Floating
Contact Finish: Gold
Mounting Type: Surface Mount
Number of Positions: 30
Pitch: 0.020" (0.50mm)
Contact Finish Thickness: FLASH
Mated Stacking Heights: 24.9mm
Number of Rows: 2
auf Bestellung 448 Stücke:
Lieferzeit 10-14 Tag (e)
4+5.02 EUR
10+4.26 EUR
25+4 EUR
50+3.8 EUR
100+3.62 EUR
Mindestbestellmenge: 4
Im Einkaufswagen  Stück im Wert von  UAH
Z9001-00 Z9001-00 Harwin Inc. Z9001.pdf Description: TOOL PUNCH AND DIE SET
Packaging: Bulk
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
MMCX-6005 MMCX-6005 Harwin Inc. Description: CONN MMCX PLUG STR 50 OHM CRIMP
Packaging: Bulk
Connector Type: Plug, Male Pin
Contact Termination: Crimp
Impedance: 50 Ohms
Mounting Type: Free Hanging (In-Line)
Cable Group: RG-178, 196
Fastening Type: Snap-On
Connector Style: MMCX
Housing Color: Gold
Shield Termination: Crimp
Center Contact Material: Brass
Frequency - Max: 6 GHz
Number of Ports: 1
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
G125-MH15005L5P G125-MH15005L5P Harwin Inc. G125-MHXXX05L5P.pdf Description: CONN HEADER R/A 50POS 1.25MM
Packaging: Strip
Features: Board Lock
Connector Type: Header
Voltage Rating: 250V
Current Rating (Amps): 2A
Mounting Type: Through Hole, Right Angle
Number of Positions: 50
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -65°C ~ 150°C
Contact Type: Male Pin
Fastening Type: Latch Holder
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Green
Pitch - Mating: 0.049" (1.25mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 8.00µin (0.203µm)
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.219" (5.56mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Row Spacing - Mating: 0.049" (1.25mm)
auf Bestellung 191 Stücke:
Lieferzeit 10-14 Tag (e)
1+43.07 EUR
10+35.11 EUR
100+28.62 EUR
Im Einkaufswagen  Stück im Wert von  UAH
M80-9130099 M80-9130099 Harwin Inc. C005XX_M80_and_M83_Datamate_Series_Connectors.pdf Description: DATAMATE FEMALE CRIMP CONTACT CA
Packaging: Bulk
Contact Finish: Gold
Color: Red
Length: 5.91" (150.00mm)
Wire Gauge: 28 AWG
Contact End: Socket to Cable (Round)
Contact Finish Thickness: 11.8µin (0.30µm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-4000000F1-03-PF5-00-000 M80-4000000F1-03-PF5-00-000 Harwin Inc. M80-4000000F1-XX-XXX-00-000.pdf Description: 3 POS. FEMALE SIL 10AWG CABLE CO
Features: Jackscrews, Polarizing Key
Packaging: Bulk
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 10 AWG
Number of Positions: 3
Pitch: 0.157" (4.00mm)
Contact Type: Female Socket, Power
Fastening Type: Screw Lock
Wire Type: Discrete
Cable Termination: Solder Cup
Number of Rows: 1
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-5T11442M3 Harwin Inc. Description: 7+7 POS. MALE DIL VERTICAL THROU
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800V
Mounting Type: Through Hole
Number of Positions: 14
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Overall Contact Length: 0.350" (8.89mm)
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M83-LMT2MHN54-0000-000 Harwin Inc. Description: 18 X 3-ROW MALE VERTICAL THROUGH
Features: Jackscrews, Mating Flange, Mounting Flange
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 54
Number of Rows: 3
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Shape: Circular
Contact Length - Post: 0.177" (4.50mm)
Insulation Height: 0.238" (6.05mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS)
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
P70-2410045R P70-2410045R Harwin Inc. DRG-03236-Technical-Drawing-Datasheet-P70-24X-pdf.pdf Description: TH SPG LOADED POGO PIN 9.6MM
Packaging: Tape & Reel (TR)
Contact Finish: Gold
Current Rating (Amps): 12A
Mounting Type: Through Hole
Contact Type: Sleeve & Plunger (Pogo Pins)
Contact Material: Copper Alloy
Mating Cycles: 10000
Recommended Working Height: 0.273" (6.94mm)
Minimum Working Height: 0.228" (5.79mm)
Pad Layout Dimension: Circular - 0.161" (4.10mm) (TH)
Plunger Size: 0.050" (1.27mm) Dia
Operating Force - Mid Compression: 120.34gf
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
P70-2410045R P70-2410045R Harwin Inc. DRG-03236-Technical-Drawing-Datasheet-P70-24X-pdf.pdf Description: TH SPG LOADED POGO PIN 9.6MM
Packaging: Cut Tape (CT)
Contact Finish: Gold
Current Rating (Amps): 12A
Mounting Type: Through Hole
Contact Type: Sleeve & Plunger (Pogo Pins)
Contact Material: Copper Alloy
Mating Cycles: 10000
Recommended Working Height: 0.273" (6.94mm)
Minimum Working Height: 0.228" (5.79mm)
Pad Layout Dimension: Circular - 0.161" (4.10mm) (TH)
Plunger Size: 0.050" (1.27mm) Dia
Operating Force - Mid Compression: 120.34gf
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
P70-2400045R P70-2400045R Harwin Inc. DRG-03236-Technical-Drawing-Datasheet-P70-24X-pdf.pdf Description: TH SPG LOADED POGO PIN 10.02MM
Packaging: Tape & Reel (TR)
Contact Finish: Gold
Current Rating (Amps): 11A
Mounting Type: Through Hole
Contact Type: Sleeve & Plunger (Pogo Pins)
Contact Material: Copper Alloy
Mating Cycles: 10000
Recommended Working Height: 0.175" (4.45mm)
Minimum Working Height: 0.130" (3.29mm)
Pad Layout Dimension: Circular - 0.161" (4.10mm) (TH)
Plunger Size: 0.050" (1.27mm) Dia
Operating Force - Mid Compression: 120.34gf
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
P70-2400045R P70-2400045R Harwin Inc. DRG-03236-Technical-Drawing-Datasheet-P70-24X-pdf.pdf Description: TH SPG LOADED POGO PIN 10.02MM
Packaging: Cut Tape (CT)
Contact Finish: Gold
Current Rating (Amps): 11A
Mounting Type: Through Hole
Contact Type: Sleeve & Plunger (Pogo Pins)
Contact Material: Copper Alloy
Mating Cycles: 10000
Recommended Working Height: 0.175" (4.45mm)
Minimum Working Height: 0.130" (3.29mm)
Pad Layout Dimension: Circular - 0.161" (4.10mm) (TH)
Plunger Size: 0.050" (1.27mm) Dia
Operating Force - Mid Compression: 120.34gf
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-5221622 M80-5221622 Harwin Inc. M80-522.pdf Description: DATAMATE J-TEK DIL MALE VERTICAL
Packaging: Tube
Features: Keying Slot, Mating Flange
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Surface Mount
Number of Positions: 16
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin-Lead
Contact Shape: Circular
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-5T20805M3-02-332-00-000 Harwin Inc. M80-5T20805M3-02-332-00-000.pdf Description: 8+2 POS. MALE SIGNAL+POWER VERTI
Packaging: Bulk
Features: Jackscrews, Mating Flange, Mounting Flange
Connector Type: Header
Voltage Rating: 800VAC/DC
Mounting Type: Through Hole
Number of Positions: 10 (2 + 8 Power)
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin, Power
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy, Phosphor Bronze
Insulation Color: Black
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Shape: Circular
Contact Length - Post: 0.173" (4.40mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-5T21205M3-02-332-00-000 Harwin Inc. M80-5T21205M3-02-332-00-000.pdf Description: 12+2 POS. MALE SIGNAL+POWER VERT
Packaging: Bulk
Features: Jackscrews, Mating Flange, Mounting Flange
Connector Type: Header
Voltage Rating: 800VAC/DC
Mounting Type: Through Hole
Number of Positions: 14 (12 + 2 Power)
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin, Power
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy, Phosphor Bronze
Insulation Color: Black
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Shape: Circular
Contact Length - Post: 0.173" (4.40mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-5000000MD-02-PM3-00-000 M80-5000000MD-02-PM3-00-000 Harwin Inc. PD003-Product-Datasheet-Datamate-Mix-Tek-range-HRi.pdf Description: 2 POS. MALE SIL HORIZONTAL THROU
Features: Jackscrews, Mating Flange, Mounting Flange
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 40A
Mounting Type: Through Hole, Right Angle
Number of Positions: 2
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 150°C
Contact Type: Male Pin, Power
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Beryllium Copper
Insulation Color: Black
Pitch - Mating: 0.157" (4.00mm)
Contact Finish - Mating: Gold
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.138" (3.50mm)
Insulation Height: 0.236" (6.00mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-5003042 Harwin Inc. Description: 15+15 POS. MALE DIL VERTICAL THR
Features: Keying Slot
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 30
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-5003022 Harwin Inc. M80-500.pdf Description: 15+15 POS. MALE DIL VERTICAL THR
Features: Keying Slot, Mating Flange
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 30
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin-Lead
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-5003005 Harwin Inc. Description: 15+15 POS. MALE DIL VERTICAL THR
Features: Keying Slot
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 30
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-8513445 M80-8513445 Harwin Inc. M80-851.pdf Description: DATAMATE L-TEK DIL MALE HORIZONT
Features: Strain Relief Clips
Packaging: Tube
Connector Type: Header
Voltage Rating: 800V
Current Rating (Amps): 2.2A
Mounting Type: Through Hole, Right Angle
Number of Positions: 34
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Shape: Circular
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.235" (5.97mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-5021022P M80-5021022P Harwin Inc. C005XX_M80_and_M83_Datamate_Series_Connectors.pdf Description: DATAMATE J-TEK DIL MALE VERTICAL
Packaging: Tube
Features: Keying Slot, Mating Flange, Pick and Place
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Surface Mount
Number of Positions: 10
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin-Lead
Contact Shape: Circular
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
B5743-220-M-L-0 B5743-220-M-L-0 Harwin Inc. M80-868.pdf Description: 10+10 POS. MALE DIL HORIZONTAL T
Features: Strain Relief Clips
Packaging: Tube
Connector Type: Header
Voltage Rating: 120VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole, Right Angle
Number of Positions: 20
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Holder
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin-Lead
Contact Shape: Circular
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.235" (5.97mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
B5743-220-M-L-1 B5743-220-M-L-1 Harwin Inc. M80-866.pdf Description: 10+10 POS. MALE DIL HORIZONTAL T
Features: Strain Relief Clips
Packaging: Tube
Connector Type: Header
Voltage Rating: 120VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole, Right Angle
Number of Positions: 20
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin-Lead
Contact Shape: Circular
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.235" (5.97mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyester, Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
B5743-220-M-L-3 B5743-220-M-L-3 Harwin Inc. M80-866.pdf Description: 10+10 POS. MALE DIL HORIZONTAL T
Features: Strain Relief Clips
Packaging: Tube
Connector Type: Header
Voltage Rating: 120VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole, Right Angle
Number of Positions: 20
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.235" (5.97mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyester, Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-5L10842M5 Harwin Inc. Description: 4+4 POS. MALE DIL HORIZONTAL THR
Packaging: Bulk
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Connector Type: Header
Voltage Rating: 800V
Mounting Type: Through Hole, Right Angle
Number of Positions: 8
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Contact Shape: Circular
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.238" (6.05mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
G125-32496M5-04-04-00 G125-32496M5-04-04-00 Harwin Inc. G125-32496M5-XX-XX-00.pdf Description: PLUG PNL MNT 4PWR + 4SIGNAL
Packaging: Bag
Features: Threaded Inserts, Polarizing Key
Connector Type: Plug
Contact Termination: Crimp
Color: Green
Mounting Type: Panel Mount
Number of Positions: 8 (4 + 4 Power)
Pitch: 0.049" (1.25mm)
Operating Temperature: -65°C ~ 150°C
Contact Type: Male Pin
Fastening Type: Screw Lock
Row Spacing: 0.049" (1.25mm)
Insulation Material: Polyamide (PA4T), Nylon 4T
Number of Rows: 2
auf Bestellung 20 Stücke:
Lieferzeit 10-14 Tag (e)
1+32.03 EUR
10+26.11 EUR
Im Einkaufswagen  Stück im Wert von  UAH
M50-3904242 Harwin Inc. Description: CONN HEADER R/A 84POS 1.27MM
Packaging: Bulk
Connector Type: Header
Current Rating (Amps): 1A
Mounting Type: Through Hole, Right Angle
Number of Positions: 84
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.079" (2.00mm)
Insulation Height: 0.134" (3.40mm)
Shrouding: Unshrouded
Insulation Material: Thermoplastic
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.150" (3.81mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-4000000F2-02-PF1-00-000 M80-4000000F2-XX-XXX-00-000.pdf
Hersteller: Harwin Inc.
Description: 2 POS. FEMALE SIL VERTICAL THROU
Features: Jackscrews, Mounting Flange, Polarizing Key
Packaging: Bulk
Connector Type: Receptacle
Voltage Rating: 800VAC/DC
Current Rating (Amps): 40A
Mounting Type: Through Hole
Number of Positions: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 150°C
Contact Type: Female Socket, Power
Fastening Type: Screw Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.157" (4.00mm)
Contact Finish - Mating: Gold
Contact Finish - Post: Gold
Contact Length - Post: 0.138" (3.50mm)
Insulation Height: 0.205" (5.20mm)
Number of Rows: 1
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-4000000F2-04-PF1-00-000 M80-4000000F2-XX-XXX-00-000.pdf
M80-4000000F2-04-PF1-00-000
Hersteller: Harwin Inc.
Description: 4 POS. FEMALE SIL VERTICAL THROU
Features: Jackscrews, Mounting Flange, Polarizing Key
Packaging: Bulk
Connector Type: Receptacle
Voltage Rating: 800VAC/DC
Current Rating (Amps): 40A
Mounting Type: Through Hole
Number of Positions: 4
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 150°C
Contact Type: Female Socket, Power
Fastening Type: Screw Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Pitch - Mating: 0.157" (4.00mm)
Contact Finish - Mating: Gold
Contact Finish - Post: Gold
Contact Length - Post: 0.138" (3.50mm)
Insulation Height: 0.205" (5.20mm)
Number of Rows: 1
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-5L20422M5-02-333-00-000 DRG-01433-Technical-Drawing-Datasheet-M80-5L20422M5-02-333-00-000-pdf.pdf
M80-5L20422M5-02-333-00-000
Hersteller: Harwin Inc.
Description: 4+2 POS. MALE SIGNAL+POWER HORIZ
Features: Jackscrews, Keying Slot, Mating Flange
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A, 20A
Mounting Type: Through Hole, Right Angle
Number of Positions: 6 (4 + 2 Power)
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy, Phosphor Bronze
Insulation Color: Black
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin-Lead
Contact Shape: Circular
Contact Length - Post: 0.177" (4.50mm)
Insulation Height: 0.238" (6.05mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-5L10222M5-01-333-01-333 PD003-Product-Datasheet-Datamate-Mix-Tek-range-HRi.pdf
M80-5L10222M5-01-333-01-333
Hersteller: Harwin Inc.
Description: 2+2 POS. MALE SIGNAL+POWER HORIZ
Features: Jackscrews, Keying Slot, Mating Flange
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A, 20A
Mounting Type: Through Hole, Right Angle
Number of Positions: 4 (2 + 2 Power)
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy, Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.118" (3.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin-Lead
Contact Shape: Circular
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.238" (6.05mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-5L10222M5-02-333-00-000 PD003-Product-Datasheet-Datamate-Mix-Tek-range-HRi.pdf
M80-5L10222M5-02-333-00-000
Hersteller: Harwin Inc.
Description: 2+2 POS. MALE SIGNAL+POWER HORIZ
Features: Jackscrews, Keying Slot, Mating Flange
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A, 20A
Mounting Type: Through Hole, Right Angle
Number of Positions: 4 (2 + 2 Power)
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy, Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.157" (4.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin-Lead
Contact Shape: Circular
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.238" (6.05mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-5L10822M5-02-333-00-000 M80-5L10822M5-02-333-00-000.pdf
M80-5L10822M5-02-333-00-000
Hersteller: Harwin Inc.
Description: 8+2 POS. MALE SIGNAL+POWER HORIZ
Features: Jackscrews, Keying Slot, Mating Flange
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A, 20A
Mounting Type: Through Hole, Right Angle
Number of Positions: 10 (8 + 2 Power)
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy, Phosphor Bronze
Insulation Color: Black
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin-Lead
Contact Shape: Circular
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.238" (6.05mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-4000000F1-04-PF1-00-000 M80-4000000F1-XX-XXX-00-000.pdf
M80-4000000F1-04-PF1-00-000
Hersteller: Harwin Inc.
Description: 4 POS. FEMALE SIL VERTICAL THROU
Features: Jackscrews, Polarizing Key
Packaging: Bulk
Connector Type: Receptacle
Voltage Rating: 800VAC/DC
Current Rating (Amps): 40A
Mounting Type: Through Hole
Number of Positions: 4
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 150°C
Contact Type: Female Socket, Power
Fastening Type: Screw Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Mated Stacking Heights: 7.3mm
Insulation Color: Black
Pitch - Mating: 0.157" (4.00mm)
Contact Finish - Mating: Gold
Contact Finish - Post: Gold
Contact Length - Post: 0.138" (3.50mm)
Insulation Height: 0.343" (8.71mm)
Number of Rows: 1
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-4S15001FJ M80-4S1XXXXFJ.pdf
Hersteller: Harwin Inc.
Description: 25+25 POS. FEMALE DIL VERTICAL S
Features: Jackscrews, Mating Flange, Mounting Flange, Polarizing Key
Packaging: Bulk
Connector Type: Receptacle
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Surface Mount
Number of Positions: 50
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Mated Stacking Heights: 7.8mm, 8.05mm
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 12.0µin (0.30µm)
Contact Finish - Post: Tin-Lead
Insulation Height: 0.230" (5.85mm)
Row Spacing - Mating: 0.079" (2.00mm)
Number of Rows: 2
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-5L10605M5-02-333-00-000 M80-5L10605M5-02-333-00-000.pdf
M80-5L10605M5-02-333-00-000
Hersteller: Harwin Inc.
Description: 6+2 POS. MALE SIGNAL+POWER HORIZ
Features: Jackscrews, Keying Slot, Mating Flange
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A, 20A
Mounting Type: Through Hole, Right Angle
Number of Positions: 8 (6 + 2 Power)
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy, Phosphor Bronze
Insulation Color: Black
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.238" (6.05mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-5S13442MC-01-331-00-000 M80-5S13442MC-01-331-00-000.pdf
M80-5S13442MC-01-331-00-000
Hersteller: Harwin Inc.
Description: 34+1 POS. MALE SIGNAL+POWER VERT
Features: Jackscrews, Keying Slot, Mating Flange
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A, 20A
Mounting Type: Surface Mount
Number of Positions: 35 (34 + 1 Power)
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Screw Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy, Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Contact Shape: Circular
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-5L10822M7-01-333-01-333 M80-5L10822M7-01-333-01-333.pdf
M80-5L10822M7-01-333-01-333
Hersteller: Harwin Inc.
Description: 8+2 POS. MALE SIGNAL+POWER HORIZ
Features: Jackscrews, Keying Slot, Mating Flange
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A, 20A
Mounting Type: Through Hole, Right Angle
Number of Positions: 10 (8 + 2 Power)
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy, Phosphor Bronze
Insulation Color: Black
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin-Lead
Contact Shape: Circular
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.238" (6.05mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-5T10205M3-04-331-00-000 DRG-01503-Technical-Drawing-Datasheet-M80-5T10205M3-04-331-00-000-pdf.pdf
M80-5T10205M3-04-331-00-000
Hersteller: Harwin Inc.
Description: 2+4 POS. MALE SIGNAL+POWER VERTI
Features: Jackscrews, Keying Slot, Mating Flange
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A, 20A
Mounting Type: Through Hole
Number of Positions: 6 (2 + 4 Power)
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy, Phosphor Bronze
Insulation Color: Black
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M55-8002642-0300A M55-800.pdf
M55-8002642-0300A
Hersteller: Harwin Inc.
Description: CBL ASSEM 1.27MM 26POS F-F 300MM
Features: Latch Lock, Polarizing Key
Packaging: Bulk
Connector Type: Socket to Socket
Contact Finish: Gold
Color: Gray, Ribbon
Length: 0.984' (300.00mm, 11.81")
Shielding: Unshielded
Number of Positions: 26
Number of Rows: 2
Cable Termination: IDC
Pitch - Cable: 0.025" (0.64mm)
Pitch - Connector: 0.050" (1.27mm)
auf Bestellung 20 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+50.56 EUR
10+41.22 EUR
Im Einkaufswagen  Stück im Wert von  UAH
M80-5110805 PD004-Product-Datasheet-Datamate-range-signal-connectors-HRi.pdf
Hersteller: Harwin Inc.
Description: 4+4 POS. MALE DIL VERTICAL THROU
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Connector Type: Header
Mounting Type: Through Hole
Number of Positions: 8
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.173" (4.40mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-5012405 M80-501.pdf
Hersteller: Harwin Inc.
Description: 12+12 POS. MALE DIL VERTICAL THR
Features: Keying Slot
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 24
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Square
Contact Length - Post: 0.173" (4.40mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
G125-MS12605L3R G125-MS1XX05L3R.pdf
G125-MS12605L3R
Hersteller: Harwin Inc.
Description: CONN HEADER SMD 26POS 1.25MM
Features: Pick and Place, Solder Retention
Packaging: Tape & Reel (TR)
Connector Type: Header
Current Rating (Amps): 2A per Contact
Mounting Type: Surface Mount
Number of Positions: 26
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -65°C ~ 150°C
Contact Type: Male Pin
Fastening Type: Latch Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Green
Pitch - Mating: 0.049" (1.25mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 8.00µin (0.203µm)
Contact Shape: Circular
Insulation Height: 0.193" (4.90mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Row Spacing - Mating: 0.049" (1.25mm)
auf Bestellung 800 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
400+14.96 EUR
Mindestbestellmenge: 400
Im Einkaufswagen  Stück im Wert von  UAH
G125-MS12605L3R G125-MS1XX05L3R.pdf
G125-MS12605L3R
Hersteller: Harwin Inc.
Description: CONN HEADER SMD 26POS 1.25MM
Features: Pick and Place, Solder Retention
Packaging: Cut Tape (CT)
Connector Type: Header
Current Rating (Amps): 2A per Contact
Mounting Type: Surface Mount
Number of Positions: 26
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -65°C ~ 150°C
Contact Type: Male Pin
Fastening Type: Latch Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Green
Pitch - Mating: 0.049" (1.25mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 8.00µin (0.203µm)
Contact Shape: Circular
Insulation Height: 0.193" (4.90mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Row Spacing - Mating: 0.049" (1.25mm)
auf Bestellung 1179 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+25.47 EUR
10+19.95 EUR
100+16.23 EUR
Im Einkaufswagen  Stück im Wert von  UAH
M22-2200846 M22-220_Dwg.pdf
M22-2200846
Hersteller: Harwin Inc.
Description: CONN HEADER VERT 8POS 2MM
Packaging: Tube
Connector Type: Header
Voltage Rating: 100V
Current Rating (Amps): 2A per Contact
Mounting Type: Through Hole
Number of Positions: 8
Number of Rows: 1
Style: Board to Cable/Wire
Operating Temperature: -25°C ~ 85°C
Contact Type: Male Pin
Fastening Type: Detent Lock
Number of Positions Loaded: All
Termination: Kinked Pin, Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass
Insulation Color: Natural
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Tin
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.134" (3.40mm)
Insulation Height: 0.240" (6.10mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA9T), Nylon 9T
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-8200222 M80-820_Dwg.pdf
Hersteller: Harwin Inc.
Description: CONN HEADER VERT 2POS 2MM
Packaging: Bulk
Connector Type: Plug
Voltage Rating: 120V
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 2
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin-Lead
Contact Shape: Circular
Contact Length - Post: 0.215" (5.46mm)
Insulation Height: 0.219" (5.56mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyester, Glass Filled
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M22-129035J0505
Hersteller: Harwin Inc.
Description: CONN HEADER R/A 10POS 2MM
Packaging: Bulk
Connector Type: Header
Voltage Rating: 500V
Mounting Type: Through Hole, Right Angle
Number of Positions: 10
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Shape: Square
Contact Length - Post: 0.138" (3.50mm)
Insulation Height: 0.157" (4.00mm)
Shrouding: Unshrouded
Insulation Material: Polyamide (PA6T), Nylon 6T
Row Spacing - Mating: 0.079" (2.00mm)
Contact Length - Mating: 0.508" (12.90mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-9540800 M80-9X4XX00.pdf
Hersteller: Harwin Inc.
Description: BSHELL PLASTIC FOR 8POS J-TEK
Packaging: Bag
Number of Positions: 8
Accessory Type: Backshell
auf Bestellung 30 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+26.91 EUR
10+20.7 EUR
25+18.72 EUR
Im Einkaufswagen  Stück im Wert von  UAH
F11-20002042R F11-20XXXX42R.pdf
F11-20002042R
Hersteller: Harwin Inc.
Description: 0.5MM M 20 WAY SGL+PWR (13.20MM)
Packaging: Tape & Reel (TR)
Features: Board Guide, Pick and Place, Solder Retention
Connector Type: Header, Center Strip Contacts, Floating
Contact Finish: Gold
Mounting Type: Surface Mount
Number of Positions: 20
Pitch: 0.020" (0.50mm)
Contact Finish Thickness: FLASH
Mated Stacking Heights: 15mm
Number of Rows: 2
auf Bestellung 150 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
150+4.28 EUR
Mindestbestellmenge: 150
Im Einkaufswagen  Stück im Wert von  UAH
F11-20002042R F11-20XXXX42R.pdf
F11-20002042R
Hersteller: Harwin Inc.
Description: 0.5MM M 20 WAY SGL+PWR (13.20MM)
Packaging: Cut Tape (CT)
Features: Board Guide, Pick and Place, Solder Retention
Connector Type: Header, Center Strip Contacts, Floating
Contact Finish: Gold
Mounting Type: Surface Mount
Number of Positions: 20
Pitch: 0.020" (0.50mm)
Contact Finish Thickness: FLASH
Mated Stacking Heights: 15mm
Number of Rows: 2
auf Bestellung 246 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
3+6.11 EUR
10+5.18 EUR
25+4.86 EUR
50+4.63 EUR
Mindestbestellmenge: 3
Im Einkaufswagen  Stück im Wert von  UAH
M80-4000000F2-04-325-00-000 M80-4000000F2-XX-XXX-00-000.pdf
M80-4000000F2-04-325-00-000
Hersteller: Harwin Inc.
Description: FEMALE CABLE CONNECTOR KIT
Packaging: Bulk
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-4C10405F2-04-325-00-000 DRG-00898-Technical-Drawing-Datasheet-M80-4C10405F2-04-325-00-000-pdf.pdf
M80-4C10405F2-04-325-00-000
Hersteller: Harwin Inc.
Description: 4+4 POS. FEMALE 24-28AWG+12AWG C
Packaging: Bulk
Features: Jackscrews
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 24-28 AWG
Number of Positions: 8 (4 + 4 Power)
Pitch: 0.079" (2.00mm)
Contact Type: Female Socket
Fastening Type: Screw Lock
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Number of Rows: 2
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-4D11605F2-04-325-00-000 DRG-01117-Technical-Drawing-Datasheet-M80-4D11605F2-04-325-00-000-pdf.pdf
M80-4D11605F2-04-325-00-000
Hersteller: Harwin Inc.
Description: 16+4 POS. FEMALE 22AWG+12AWG CAB
Packaging: Bulk
Features: Jackscrews
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 22 AWG
Number of Positions: 20 (16 + 4 Power)
Contact Type: Female Socket
Fastening Type: Screw Lock
Row Spacing: 0.079" (2.00mm)
Contact Finish Thickness: 11.8µin (0.30µm)
Wire Type: Discrete
Cable Termination: Crimp
Number of Rows: 2
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-4204242 PD004-Product-Datasheet-Datamate-range-signal-connectors-HRi.pdf
M80-4204242
Hersteller: Harwin Inc.
Description: CONN RCPT 42POS 0.079 GOLD PCB
Packaging: Tube
Features: Jackscrews, Mating Flange, Mounting Flange, Polarizing Key
Connector Type: Receptacle
Voltage Rating: 120V
Mounting Type: Through Hole
Number of Positions: 42
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Screw Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Mated Stacking Heights: 7.3mm, 7.55mm
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 12.0µin (0.30µm)
Contact Finish - Post: Tin
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.205" (5.20mm)
Row Spacing - Mating: 0.079" (2.00mm)
Number of Rows: 2
auf Bestellung 963 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+41.69 EUR
10+35.44 EUR
100+30.13 EUR
500+26.9 EUR
Im Einkaufswagen  Stück im Wert von  UAH
M80-4153098 M80-415.pdf
Hersteller: Harwin Inc.
Description: 15+15 POS. FEMALE DIL CABLE HOUS
Packaging: Bulk
Connector Type: Receptacle
Contact Termination: Crimp
Color: Black
Mounting Type: Panel Mount
Number of Positions: 30
Pitch: 0.079" (2.00mm)
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Fastening Type: Threaded
Row Spacing: 0.079" (2.00mm)
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Number of Rows: 2
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
F20-10008045R
F20-10008045R
Hersteller: Harwin Inc.
Description: 0.635MM F 80 WAY SGL (4.28MM)
Packaging: Tape & Reel (TR)
Features: Board Guide, Pick and Place, Solder Retention
Connector Type: Receptacle, Outer Shroud Contacts, Floating
Contact Finish: Gold
Mounting Type: Surface Mount
Number of Positions: 80
Pitch: 0.025" (0.64mm)
Contact Finish Thickness: FLASH
Mated Stacking Heights: 5.98mm
Number of Rows: 2
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
F20-10008045R
F20-10008045R
Hersteller: Harwin Inc.
Description: 0.635MM F 80 WAY SGL (4.28MM)
Packaging: Cut Tape (CT)
Features: Board Guide, Pick and Place, Solder Retention
Connector Type: Receptacle, Outer Shroud Contacts, Floating
Contact Finish: Gold
Mounting Type: Surface Mount
Number of Positions: 80
Pitch: 0.025" (0.64mm)
Contact Finish Thickness: FLASH
Mated Stacking Heights: 5.98mm
Number of Rows: 2
auf Bestellung 990 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
4+5.84 EUR
10+4.75 EUR
25+4.38 EUR
50+4.12 EUR
100+3.87 EUR
250+3.57 EUR
500+3.36 EUR
Mindestbestellmenge: 4
Im Einkaufswagen  Stück im Wert von  UAH
M52-040000S0545R
Hersteller: Harwin Inc.
Description: 2.54X1.27 M VERT SMT DIL 300/R
Packaging: Bulk
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-4100842 M80-410.pdf
M80-4100842
Hersteller: Harwin Inc.
Description: 2 X 4POS FEMALE PC TAIL 3MM
Features: Mating Flange, Polarizing Key
Packaging: Tube
Connector Type: Receptacle
Voltage Rating: 120VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 8
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Female Socket
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Mated Stacking Heights: 7.3mm, 7.55mm
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 12.0µin (0.30µm)
Contact Finish - Post: Tin
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.205" (5.20mm)
Row Spacing - Mating: 0.079" (2.00mm)
Number of Rows: 2
auf Bestellung 71 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
3+8.34 EUR
14+6.93 EUR
Mindestbestellmenge: 3
Im Einkaufswagen  Stück im Wert von  UAH
F10-10103045R PD014-Product-Datasheet-Flecto-BBi.pdf
F10-10103045R
Hersteller: Harwin Inc.
Description: 0.5MM F 30 WAY SGL (13.40MM)
Packaging: Tape & Reel (TR)
Features: Board Guide, Pick and Place, Solder Retention
Connector Type: Receptacle, Outer Shroud Contacts, Floating
Contact Finish: Gold
Mounting Type: Surface Mount
Number of Positions: 30
Pitch: 0.020" (0.50mm)
Contact Finish Thickness: FLASH
Mated Stacking Heights: 24.9mm
Number of Rows: 2
auf Bestellung 250 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
250+2.72 EUR
Mindestbestellmenge: 250
Im Einkaufswagen  Stück im Wert von  UAH
F10-10103045R PD014-Product-Datasheet-Flecto-BBi.pdf
F10-10103045R
Hersteller: Harwin Inc.
Description: 0.5MM F 30 WAY SGL (13.40MM)
Packaging: Cut Tape (CT)
Features: Board Guide, Pick and Place, Solder Retention
Connector Type: Receptacle, Outer Shroud Contacts, Floating
Contact Finish: Gold
Mounting Type: Surface Mount
Number of Positions: 30
Pitch: 0.020" (0.50mm)
Contact Finish Thickness: FLASH
Mated Stacking Heights: 24.9mm
Number of Rows: 2
auf Bestellung 448 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
4+5.02 EUR
10+4.26 EUR
25+4 EUR
50+3.8 EUR
100+3.62 EUR
Mindestbestellmenge: 4
Im Einkaufswagen  Stück im Wert von  UAH
Z9001-00 Z9001.pdf
Z9001-00
Hersteller: Harwin Inc.
Description: TOOL PUNCH AND DIE SET
Packaging: Bulk
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
MMCX-6005
MMCX-6005
Hersteller: Harwin Inc.
Description: CONN MMCX PLUG STR 50 OHM CRIMP
Packaging: Bulk
Connector Type: Plug, Male Pin
Contact Termination: Crimp
Impedance: 50 Ohms
Mounting Type: Free Hanging (In-Line)
Cable Group: RG-178, 196
Fastening Type: Snap-On
Connector Style: MMCX
Housing Color: Gold
Shield Termination: Crimp
Center Contact Material: Brass
Frequency - Max: 6 GHz
Number of Ports: 1
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
G125-MH15005L5P G125-MHXXX05L5P.pdf
G125-MH15005L5P
Hersteller: Harwin Inc.
Description: CONN HEADER R/A 50POS 1.25MM
Packaging: Strip
Features: Board Lock
Connector Type: Header
Voltage Rating: 250V
Current Rating (Amps): 2A
Mounting Type: Through Hole, Right Angle
Number of Positions: 50
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -65°C ~ 150°C
Contact Type: Male Pin
Fastening Type: Latch Holder
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Green
Pitch - Mating: 0.049" (1.25mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 8.00µin (0.203µm)
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.219" (5.56mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Row Spacing - Mating: 0.049" (1.25mm)
auf Bestellung 191 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+43.07 EUR
10+35.11 EUR
100+28.62 EUR
Im Einkaufswagen  Stück im Wert von  UAH
M80-9130099 C005XX_M80_and_M83_Datamate_Series_Connectors.pdf
M80-9130099
Hersteller: Harwin Inc.
Description: DATAMATE FEMALE CRIMP CONTACT CA
Packaging: Bulk
Contact Finish: Gold
Color: Red
Length: 5.91" (150.00mm)
Wire Gauge: 28 AWG
Contact End: Socket to Cable (Round)
Contact Finish Thickness: 11.8µin (0.30µm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-4000000F1-03-PF5-00-000 M80-4000000F1-XX-XXX-00-000.pdf
M80-4000000F1-03-PF5-00-000
Hersteller: Harwin Inc.
Description: 3 POS. FEMALE SIL 10AWG CABLE CO
Features: Jackscrews, Polarizing Key
Packaging: Bulk
Connector Type: Receptacle
Contact Finish: Gold
Color: Black
Mounting Type: Free Hanging (In-Line)
Wire Gauge: 10 AWG
Number of Positions: 3
Pitch: 0.157" (4.00mm)
Contact Type: Female Socket, Power
Fastening Type: Screw Lock
Wire Type: Discrete
Cable Termination: Solder Cup
Number of Rows: 1
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-5T11442M3
Hersteller: Harwin Inc.
Description: 7+7 POS. MALE DIL VERTICAL THROU
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800V
Mounting Type: Through Hole
Number of Positions: 14
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Overall Contact Length: 0.350" (8.89mm)
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M83-LMT2MHN54-0000-000
Hersteller: Harwin Inc.
Description: 18 X 3-ROW MALE VERTICAL THROUGH
Features: Jackscrews, Mating Flange, Mounting Flange
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 54
Number of Rows: 3
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Shape: Circular
Contact Length - Post: 0.177" (4.50mm)
Insulation Height: 0.238" (6.05mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS)
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
P70-2410045R DRG-03236-Technical-Drawing-Datasheet-P70-24X-pdf.pdf
P70-2410045R
Hersteller: Harwin Inc.
Description: TH SPG LOADED POGO PIN 9.6MM
Packaging: Tape & Reel (TR)
Contact Finish: Gold
Current Rating (Amps): 12A
Mounting Type: Through Hole
Contact Type: Sleeve & Plunger (Pogo Pins)
Contact Material: Copper Alloy
Mating Cycles: 10000
Recommended Working Height: 0.273" (6.94mm)
Minimum Working Height: 0.228" (5.79mm)
Pad Layout Dimension: Circular - 0.161" (4.10mm) (TH)
Plunger Size: 0.050" (1.27mm) Dia
Operating Force - Mid Compression: 120.34gf
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
P70-2410045R DRG-03236-Technical-Drawing-Datasheet-P70-24X-pdf.pdf
P70-2410045R
Hersteller: Harwin Inc.
Description: TH SPG LOADED POGO PIN 9.6MM
Packaging: Cut Tape (CT)
Contact Finish: Gold
Current Rating (Amps): 12A
Mounting Type: Through Hole
Contact Type: Sleeve & Plunger (Pogo Pins)
Contact Material: Copper Alloy
Mating Cycles: 10000
Recommended Working Height: 0.273" (6.94mm)
Minimum Working Height: 0.228" (5.79mm)
Pad Layout Dimension: Circular - 0.161" (4.10mm) (TH)
Plunger Size: 0.050" (1.27mm) Dia
Operating Force - Mid Compression: 120.34gf
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
P70-2400045R DRG-03236-Technical-Drawing-Datasheet-P70-24X-pdf.pdf
P70-2400045R
Hersteller: Harwin Inc.
Description: TH SPG LOADED POGO PIN 10.02MM
Packaging: Tape & Reel (TR)
Contact Finish: Gold
Current Rating (Amps): 11A
Mounting Type: Through Hole
Contact Type: Sleeve & Plunger (Pogo Pins)
Contact Material: Copper Alloy
Mating Cycles: 10000
Recommended Working Height: 0.175" (4.45mm)
Minimum Working Height: 0.130" (3.29mm)
Pad Layout Dimension: Circular - 0.161" (4.10mm) (TH)
Plunger Size: 0.050" (1.27mm) Dia
Operating Force - Mid Compression: 120.34gf
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
P70-2400045R DRG-03236-Technical-Drawing-Datasheet-P70-24X-pdf.pdf
P70-2400045R
Hersteller: Harwin Inc.
Description: TH SPG LOADED POGO PIN 10.02MM
Packaging: Cut Tape (CT)
Contact Finish: Gold
Current Rating (Amps): 11A
Mounting Type: Through Hole
Contact Type: Sleeve & Plunger (Pogo Pins)
Contact Material: Copper Alloy
Mating Cycles: 10000
Recommended Working Height: 0.175" (4.45mm)
Minimum Working Height: 0.130" (3.29mm)
Pad Layout Dimension: Circular - 0.161" (4.10mm) (TH)
Plunger Size: 0.050" (1.27mm) Dia
Operating Force - Mid Compression: 120.34gf
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-5221622 M80-522.pdf
M80-5221622
Hersteller: Harwin Inc.
Description: DATAMATE J-TEK DIL MALE VERTICAL
Packaging: Tube
Features: Keying Slot, Mating Flange
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Surface Mount
Number of Positions: 16
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin-Lead
Contact Shape: Circular
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-5T20805M3-02-332-00-000 M80-5T20805M3-02-332-00-000.pdf
Hersteller: Harwin Inc.
Description: 8+2 POS. MALE SIGNAL+POWER VERTI
Packaging: Bulk
Features: Jackscrews, Mating Flange, Mounting Flange
Connector Type: Header
Voltage Rating: 800VAC/DC
Mounting Type: Through Hole
Number of Positions: 10 (2 + 8 Power)
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin, Power
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy, Phosphor Bronze
Insulation Color: Black
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Shape: Circular
Contact Length - Post: 0.173" (4.40mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-5T21205M3-02-332-00-000 M80-5T21205M3-02-332-00-000.pdf
Hersteller: Harwin Inc.
Description: 12+2 POS. MALE SIGNAL+POWER VERT
Packaging: Bulk
Features: Jackscrews, Mating Flange, Mounting Flange
Connector Type: Header
Voltage Rating: 800VAC/DC
Mounting Type: Through Hole
Number of Positions: 14 (12 + 2 Power)
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin, Power
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy, Phosphor Bronze
Insulation Color: Black
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Shape: Circular
Contact Length - Post: 0.173" (4.40mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-5000000MD-02-PM3-00-000 PD003-Product-Datasheet-Datamate-Mix-Tek-range-HRi.pdf
M80-5000000MD-02-PM3-00-000
Hersteller: Harwin Inc.
Description: 2 POS. MALE SIL HORIZONTAL THROU
Features: Jackscrews, Mating Flange, Mounting Flange
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 40A
Mounting Type: Through Hole, Right Angle
Number of Positions: 2
Number of Rows: 1
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 150°C
Contact Type: Male Pin, Power
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Beryllium Copper
Insulation Color: Black
Pitch - Mating: 0.157" (4.00mm)
Contact Finish - Mating: Gold
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.138" (3.50mm)
Insulation Height: 0.236" (6.00mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-5003042
Hersteller: Harwin Inc.
Description: 15+15 POS. MALE DIL VERTICAL THR
Features: Keying Slot
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 30
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-5003022 M80-500.pdf
Hersteller: Harwin Inc.
Description: 15+15 POS. MALE DIL VERTICAL THR
Features: Keying Slot, Mating Flange
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 30
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin-Lead
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-5003005
Hersteller: Harwin Inc.
Description: 15+15 POS. MALE DIL VERTICAL THR
Features: Keying Slot
Packaging: Bulk
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole
Number of Positions: 30
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.130" (3.30mm)
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-8513445 M80-851.pdf
M80-8513445
Hersteller: Harwin Inc.
Description: DATAMATE L-TEK DIL MALE HORIZONT
Features: Strain Relief Clips
Packaging: Tube
Connector Type: Header
Voltage Rating: 800V
Current Rating (Amps): 2.2A
Mounting Type: Through Hole, Right Angle
Number of Positions: 34
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Shape: Circular
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.235" (5.97mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-5021022P C005XX_M80_and_M83_Datamate_Series_Connectors.pdf
M80-5021022P
Hersteller: Harwin Inc.
Description: DATAMATE J-TEK DIL MALE VERTICAL
Packaging: Tube
Features: Keying Slot, Mating Flange, Pick and Place
Connector Type: Header
Voltage Rating: 800VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Surface Mount
Number of Positions: 10
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin-Lead
Contact Shape: Circular
Insulation Height: 0.220" (5.60mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
B5743-220-M-L-0 M80-868.pdf
B5743-220-M-L-0
Hersteller: Harwin Inc.
Description: 10+10 POS. MALE DIL HORIZONTAL T
Features: Strain Relief Clips
Packaging: Tube
Connector Type: Header
Voltage Rating: 120VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole, Right Angle
Number of Positions: 20
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Holder
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin-Lead
Contact Shape: Circular
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.235" (5.97mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
B5743-220-M-L-1 M80-866.pdf
B5743-220-M-L-1
Hersteller: Harwin Inc.
Description: 10+10 POS. MALE DIL HORIZONTAL T
Features: Strain Relief Clips
Packaging: Tube
Connector Type: Header
Voltage Rating: 120VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole, Right Angle
Number of Positions: 20
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin-Lead
Contact Shape: Circular
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.235" (5.97mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyester, Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
B5743-220-M-L-3 M80-866.pdf
B5743-220-M-L-3
Hersteller: Harwin Inc.
Description: 10+10 POS. MALE DIL HORIZONTAL T
Features: Strain Relief Clips
Packaging: Tube
Connector Type: Header
Voltage Rating: 120VAC/DC
Current Rating (Amps): 2.2A
Mounting Type: Through Hole, Right Angle
Number of Positions: 20
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Latch Lock
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Gold
Contact Shape: Circular
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.235" (5.97mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyester, Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
M80-5L10842M5
Hersteller: Harwin Inc.
Description: 4+4 POS. MALE DIL HORIZONTAL THR
Packaging: Bulk
Features: Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Connector Type: Header
Voltage Rating: 800V
Mounting Type: Through Hole, Right Angle
Number of Positions: 8
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 125°C
Contact Type: Male Pin
Fastening Type: Threaded
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Phosphor Bronze
Insulation Color: Black
Pitch - Mating: 0.079" (2.00mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Contact Shape: Circular
Contact Length - Post: 0.118" (3.00mm)
Insulation Height: 0.238" (6.05mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Polyphenylene Sulfide (PPS), Glass Filled
Row Spacing - Mating: 0.079" (2.00mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
G125-32496M5-04-04-00 G125-32496M5-XX-XX-00.pdf
G125-32496M5-04-04-00
Hersteller: Harwin Inc.
Description: PLUG PNL MNT 4PWR + 4SIGNAL
Packaging: Bag
Features: Threaded Inserts, Polarizing Key
Connector Type: Plug
Contact Termination: Crimp
Color: Green
Mounting Type: Panel Mount
Number of Positions: 8 (4 + 4 Power)
Pitch: 0.049" (1.25mm)
Operating Temperature: -65°C ~ 150°C
Contact Type: Male Pin
Fastening Type: Screw Lock
Row Spacing: 0.049" (1.25mm)
Insulation Material: Polyamide (PA4T), Nylon 4T
Number of Rows: 2
auf Bestellung 20 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
1+32.03 EUR
10+26.11 EUR
Im Einkaufswagen  Stück im Wert von  UAH
M50-3904242
Hersteller: Harwin Inc.
Description: CONN HEADER R/A 84POS 1.27MM
Packaging: Bulk
Connector Type: Header
Current Rating (Amps): 1A
Mounting Type: Through Hole, Right Angle
Number of Positions: 84
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.050" (1.27mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 3.00µin (0.076µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.079" (2.00mm)
Insulation Height: 0.134" (3.40mm)
Shrouding: Unshrouded
Insulation Material: Thermoplastic
Row Spacing - Mating: 0.050" (1.27mm)
Contact Length - Mating: 0.150" (3.81mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
Wählen Sie Seite:   [  << Vorherige Seite ]  1 21 42 63 84 105 126 147 168 189 208 209 210 211 212 213 214 215 216 217 218 219  [ Nächste Seite >> ]
