Hersteller: Keysight
Digital Multimeters True RMS DMM Volt Dt 6000 Count Handheld

Hersteller: KEYSIGHT
Category: Portable digital multimeters
Description: Digital multimeter; LCD; 4 digit (11000); Bargraph: 21segm.
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Illumination: yes
Related items: U1161A; U1162A; U1163A; U1164A; U1168A; U1169A; U1171A; U1172A; U1174A; U1179A; U1180A; U1181A; U1182A; U1183A; U1184A; U1185A; U1186A; U1583B
Standard equipment: calibration certificate; test leads
Measuring instrument features: automatic power-off; HOLD function; low battery indicator; MIN/MAX/MEDIUM function; universal
Type of meter: digital multimeter
Weight with battery: 450g
Continuity test: acoustic indication
Temperature measurement resolution: 0.1°C
Temperature measuring range (with K-type thermocouple): -40...1000°C
Manufacturer series: U1240A
Information: Products are intended for professional and industrial use only, and are not suitable for consumer or household use.
True effective value measurement: True RMS
Bargraph: 21 segm.
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; temperature
Dimensions (W x H x D): 92.2x193.8x58mm
Bandwidth for AC voltage measurements: 40Hz...2kHz
AC current measuring range: 0.1...1000µA; 10mA; 100mA; 440mA; 10A
Resistance measuring range: 100mΩ...1kΩ; 10kΩ; 100kΩ; 1MΩ; 10MΩ; 100MΩ
Bandwidth for AC current measurements: 40Hz...2kHz
DC current measuring range: 0.1...1000µA; 10mA; 100mA; 440mA; 10A
DC voltage measuring range: 0.1...1000mV; 10V; 100V; 1kV
AC voltage measuring range: 0.1...1000mV; 10V; 100V; 1kV
Frequency measuring range: 10mHz...100Hz; 1kHz; 10kHz; 100kHz; 1MHz
Capacitance measuring range: 0.1...1000nF; 10µF; 50µF; 100µF; 1mF; 10mF
Diode test: 0.5mA @1V
Battery/ rechargeable battery: battery LR03 AAA 1,5V x4
Display parameters: 4 digit (11000)
Frequency measuring accuracy: ±(0.03%+3 digit)
Capacitance measuring accuracy: ±(1.2%+ 4 digit)
AC current measuring accuracy: ±(1.5% + 5 digit)
DC voltage measuring accuracy: ±(0.09% + 2 digit)
DC current measuring accuracy: ±(0.2% + 2 digit)
AC voltage measuring accuracy: ±(1% + 5 digit)
Resistance measuring accuracy: ±(0.3%+3 digit)
Temperature measurement accuracy: ±(1% + 1°C)
Kind of display used: LCD
Power supply: battery LR03 AAA 1,5V x4

Hersteller: Keysight
Digital Multimeters True RMS DMM 10000 Count Handheld

Hersteller: KEYSIGHT
Category: Portable digital multimeters
Description: Digital multimeter; LCD; 4,5 digit (10000); True RMS AC; IP67
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Standard equipment: IR-USB cable; manufacturer's calibration certificate; test leads; user's manual
Type of meter: digital multimeter
Weight with battery: 545g
Manufacturer series: U1240
Information: Products are intended for professional and industrial use only, and are not suitable for consumer or household use.
True effective value measurement: True RMS AC
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance
Dimensions (W x H x D): 96x218x59mm
Bandwidth for AC voltage measurements: 40Hz...2kHz
AC current measuring range: 1mA; 10mA; 100mA; 1A; 10A
Resistance measuring range: 100Ω; 1kΩ; 10kΩ; 100kΩ; 1MΩ; 10MΩ; 100MΩ
Bandwidth for AC current measurements: 40Hz...2kHz
DC current measuring range: 1mA; 10mA; 100mA; 600mA; 10A
DC voltage measuring range: 100mV; 600mV; 1V; 10V; 100V; 1kV
AC voltage measuring range: 100mV; 600mV; 1V; 10V; 100V; 1kV
Frequency measuring range: 100Hz; 1kHz; 10kHz; 100kHz; 1MHz; 10MHz
Capacitance measuring range: 1µF; 10µF; 100µF; 1mF; 10mF
Diode test: 1.6mA
Battery/ rechargeable battery: battery LR6 AA 1,5V x4
Display parameters: 4,5 digit (10000)
Frequency measuring accuracy: ±(0.02%+1 digit)
Capacitance measuring accuracy: ±(1%+ 5 digit)
AC current measuring accuracy: ±(1% + 3 digit)
DC voltage measuring accuracy: ±(0.09% + 2 digit)
DC current measuring accuracy: ±(0.1% + 2 digit)
AC voltage measuring accuracy: ±(1% + 3 digit)
Resistance measuring accuracy: ±(0.2%+2 digit)
Kind of display used: LCD
Power supply: battery LR6 AA 1,5V x4
IP rating: IP67

Hersteller: Keysight
Digital Multimeters True RMS DMM 10000 Count Handheld

Hersteller: KEYSIGHT
Category: Portable digital multimeters
Description: Digital multimeter; LCD; 4 digit (11000); Bargraph: 21segm.
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Illumination: yes
Related items: U1161A; U1162A; U1163A; U1164A; U1168A; U1169A; U1171A; U1172A; U1174A; U1179A; U1180A; U1181A; U1182A; U1183A; U1184A; U1185A; U1186A; U1583B
Standard equipment: calibration certificate; test leads
Measuring instrument features: automatic power-off; HOLD function; low battery indicator; manual data recording function; MIN/MAX/MEDIUM function; universal
Type of meter: digital multimeter
Weight with battery: 450g
Continuity test: acoustic indication
Temperature measurement resolution: 0.1°C
Harmonic content measurement: 0...99,9%, of in. volt. 100m...1000V AC
Temperature measuring range (with K-type thermocouple): -40...1000°C
Temperature measuring range (with J-type thermocouple): -40...1000°C
Manufacturer series: U1240A
Information: Products are intended for professional and industrial use only, and are not suitable for consumer or household use.
True effective value measurement: True RMS
Bargraph: 21 segm.
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; differential temperature; frequency; resistance; temperature
Dimensions (W x H x D): 92.2x193.8x58mm
Bandwidth for AC voltage measurements: 40Hz...2kHz
AC current measuring range: 0.1...1000µA; 10mA; 100mA; 440mA; 10A
Resistance measuring range: 100mΩ...1kΩ; 10kΩ; 100kΩ; 1MΩ; 10MΩ; 100MΩ
Bandwidth for AC current measurements: 40Hz...2kHz
DC current measuring range: 0.1...1000µA; 10mA; 100mA; 440mA; 10A
DC voltage measuring range: 0.1...1000mV; 10V; 100V; 1kV
AC voltage measuring range: 0.1...1000mV; 10V; 100V; 1kV
Frequency measuring range: 10mHz...100Hz; 1kHz; 10kHz; 100kHz; 1MHz
Capacitance measuring range: 0.1...1000nF; 10µF; 50µF; 100µF; 1mF; 10mF
Diode test: 0.5mA @1V
Battery/ rechargeable battery: battery LR03 AAA 1,5V x4
Display parameters: 4 digit (11000)
Frequency measuring accuracy: ±(0.03%+3 digit)
Capacitance measuring accuracy: ±(1.2%+ 4 digit)
AC current measuring accuracy: ±(1.5% + 5 digit)
DC voltage measuring accuracy: ±(0.09% + 2 digit)
DC current measuring accuracy: ±(0.2% + 2 digit)
AC voltage measuring accuracy: ±(1% + 5 digit)
Resistance measuring accuracy: ±(0.3%+3 digit)
Temperature measurement accuracy: ±(1% + 1°C)
Kind of display used: LCD
Power supply: battery LR03 AAA 1,5V x4

Hersteller: Keysight
Digital Multimeters True RMS DMM Datalog 10000 Count Handheld

Hersteller: Keysight
Digital Multimeters True RMS DMM 10000 Count Handheld

Hersteller: KEYSIGHT
Category: Portable digital multimeters
Description: Digital multimeter; LCD; 4,5 digit (10000); True RMS AC; IP67
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Standard equipment: IR-USB cable; manufacturer's calibration certificate; test leads; user's manual
Type of meter: digital multimeter
Weight with battery: 545g
Manufacturer series: U1240
Information: Products are intended for professional and industrial use only, and are not suitable for consumer or household use.
True effective value measurement: True RMS AC
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance
Dimensions (W x H x D): 96x218x59mm
Bandwidth for AC voltage measurements: 40Hz...2kHz
AC current measuring range: 1mA; 10mA; 100mA; 1A; 10A
Resistance measuring range: 100Ω; 1kΩ; 10kΩ; 100kΩ; 1MΩ; 10MΩ; 100MΩ
Bandwidth for AC current measurements: 40Hz...2kHz
DC current measuring range: 1mA; 10mA; 100mA; 600mA; 10A
DC voltage measuring range: 100mV; 600mV; 1V; 10V; 100V; 1kV
AC voltage measuring range: 100mV; 600mV; 1V; 10V; 100V; 1kV
Frequency measuring range: 100Hz; 1kHz; 10kHz; 100kHz; 1MHz; 10MHz
Capacitance measuring range: 1µF; 10µF; 100µF; 1mF; 10mF
Diode test: 1.6mA
Battery/ rechargeable battery: battery LR6 AA 1,5V x4
Display parameters: 4,5 digit (10000)
Frequency measuring accuracy: ±(0.02%+1 digit)
Capacitance measuring accuracy: ±(1%+ 5 digit)
AC current measuring accuracy: ±(1% + 3 digit)
DC voltage measuring accuracy: ±(0.09% + 2 digit)
DC current measuring accuracy: ±(0.1% + 2 digit)
AC voltage measuring accuracy: ±(1% + 3 digit)
Resistance measuring accuracy: ±(0.2%+2 digit)
Kind of display used: LCD
Power supply: battery LR6 AA 1,5V x4
IP rating: IP67

Hersteller: KEYSIGHT
Category: Portable digital multimeters
Description: Digital multimeter; Bluetooth (option),IrDA; LCD; True RMS
Type of meter: digital multimeter
Interface: Bluetooth (option); IrDA
Measurement: AC current; AC voltage; capacitance; dBm; DC current; DC voltage; frequency; resistance; temperature
Kind of display used: LCD
Display parameters: 5 digits (50000)
Bargraph: 21 segm.
DC voltage measuring range: 0.001...50mV; 500mV; 1V; 5V; 50V; 500V; 1kV
DC voltage measuring accuracy: ±(0.03% + 5 digit)
AC voltage measuring range: 0.001...50mV; 500mV; 1V; 5V; 50V; 500V; 1kV
AC voltage measuring accuracy: ±(0.6% + 25 digit)
Bandwidth for AC voltage measurements: 30...30kHz
DC current measuring range: 10nA...500µA; 5mA; 50mA; 440mA; 5A; 10A
DC current measuring accuracy: ±(0.1% + 5 digit)
AC current measuring range: 0.01...500µA; 5mA; 50mA; 440mA; 5A; 10A
AC current measuring accuracy: ±(0.8% + 20 digit)
Bandwidth for AC current measurements: 20Hz...20kHz
True effective value measurement: True RMS
Resistance measuring range: 10mΩ...500Ω; 5kΩ; 50kΩ; 500kΩ; 5MΩ; 50MΩ; 500MΩ
Capacitance measuring range: 0.001...10nF; 100nF; 1µF; 10µF; 100µF; 1mF; 10mF; 100mF
Capacitance measuring accuracy: ±(1%+ 5 digit)
Frequency measuring range: 1mHz...100Hz; 1kHz; 10kHz; 100kHz; 1MHz
Frequency measuring accuracy: ±(0.02%+3 digit)
Temperature measurement accuracy: ±(3% + 3°C)
Temperature measuring range (with K-type thermocouple): -200...1372°C
Resistance measuring accuracy: ±(0.08%+5 digit)
Temperature measurement resolution: 0.1°C
Diode test: 2.1V
Continuity test: acoustic indication
Weight with battery: 504g
Power supply: battery 6LR61 9V x1
Standard equipment: calibration certificate; crocodile clips; test leads
Optional equipment: U1117A
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Related items: U1117A; U1161A; U1162A; U1163A; U1164A; U1168A; U1169A; U1170A; U1171A; U1172A; U1173A; U1174A; U1180A; U1181A; U1182A; U1183A; U1184A; U1185A; U1186A; U1583B
Dimensions (W x H x D): 94.4x203.5x59mm
Information: Products are intended for professional and industrial use only, and are not suitable for consumer or household use.
Measuring instrument features: automatic power-off; HOLD function; impact resistant holster; manual and automatic data recording function; MIN/MAX/MEDIUM function; universal
Battery/ rechargeable battery: battery 6LR61 9V x1
Manufacturer series: U1250A

Hersteller: Keysight
Digital Multimeters True RMS DMM 50000 Count Handheld

Hersteller: KEYSIGHT
Category: Portable digital multimeters
Description: Digital multimeter; Bluetooth (option),IrDA; LCD; True RMS
Type of meter: digital multimeter
Interface: Bluetooth (option); IrDA
Measurement: AC current; AC voltage; capacitance; dBm; DC current; DC voltage; frequency; resistance; temperature
Kind of display used: LCD
Display parameters: 5 digits (50000)
Bargraph: 21 segm.
DC voltage measuring range: 0.001...50mV; 500mV; 1V; 5V; 50V; 500V; 1kV
DC voltage measuring accuracy: ±(0.025% + 5 digit)
AC voltage measuring range: 0.001...50mV; 500mV; 1V; 5V; 50V; 500V; 1kV
AC voltage measuring accuracy: ±(0.4% + 25 digit)
Bandwidth for AC voltage measurements: 20Hz...100kHz
DC current measuring range: 10nA...500µA; 5mA; 50mA; 440mA; 5A; 10A
DC current measuring accuracy: ±(0.05% + 5 digit)
AC current measuring range: 0.01...500µA; 5mA; 50mA; 440mA; 5A; 10A
AC current measuring accuracy: ±(0.7% + 20 digit)
Bandwidth for AC current measurements: 30Hz...20kHz
True effective value measurement: True RMS
Resistance measuring range: 10mΩ...500Ω; 5kΩ; 50kΩ; 500kΩ; 5MΩ; 50MΩ; 500MΩ
Capacitance measuring range: 0.001...10nF; 100nF; 1µF; 10µF; 100µF; 1mF; 10mF; 100mF
Capacitance measuring accuracy: ±(1%+ 5 digit)
Frequency measuring range: 1mHz...100Hz; 1kHz; 10kHz; 100kHz; 1MHz
Frequency measuring accuracy: ±(0.02%+3 digit)
Temperature measurement accuracy: ±(3% + 3°C)
Temperature measuring range (with K-type thermocouple): -200...1372°C
Resistance measuring accuracy: ±(0.05%+5 digit)
Temperature measurement resolution: 0.1°C
Diode test: 3.1V
Continuity test: acoustic indication
Weight with battery: 527g
Power supply: battery 6LR61 9V x1
Standard equipment: battery charger; crocodile clips; test leads
Optional equipment: U1117A
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Related items: U1117A; U1161A; U1162A; U1163A; U1164A; U1168A; U1169A; U1170A; U1171A; U1172A; U1173A; U1174A; U1180A; U1181A; U1182A; U1183A; U1184A; U1185A; U1186A; U1583B
Dimensions (W x H x D): 94.4x203.5x59mm
Additional functions: frequency meter
Information: Products are intended for professional and industrial use only, and are not suitable for consumer or household use.
Measuring instrument features: automatic power-off; HOLD function; impact resistant holster; manual and automatic data recording function; MIN/MAX/MEDIUM function; universal
Battery/ rechargeable battery: battery 6LR61 9V x1
Manufacturer series: U1250A
Connectors for the country: Europe
Important information: The meter does not have a valid calibration certificate

Hersteller: Keysight
Digital Multimeters TrueRMS DMM Handheld US Power Cord

Hersteller: KEYSIGHT
Category: Portable digital multimeters
Description: Digital multimeter; Bluetooth (option),IrDA; OLED; True RMS
Type of meter: digital multimeter
Interface: Bluetooth (option); IrDA
Measurement: AC current; AC voltage; capacitance; dBm; DC current; DC voltage; frequency; resistance; temperature
Kind of display used: OLED
Display parameters: 5 digits (50000)
Bargraph: 21 segm.
DC voltage measuring range: 0.001...50mV; 500mV; 1V; 5V; 50V; 500V; 1kV
DC voltage measuring accuracy: ±(0.025% + 5 digit)
AC voltage measuring range: 0.001...50mV; 500mV; 1V; 5V; 50V; 500V; 1kV
AC voltage measuring accuracy: ±(0.4% + 25 digit)
Bandwidth for AC voltage measurements: 20Hz...100kHz
DC current measuring range: 10nA...500µA; 5mA; 50mA; 440mA; 5A; 10A
DC current measuring accuracy: ±(0.05% + 5 digit)
AC current measuring range: 0.01...500µA; 5mA; 50mA; 440mA; 5A; 10A
AC current measuring accuracy: ±(0.7% + 20 digit)
Bandwidth for AC current measurements: 30Hz...20kHz
True effective value measurement: True RMS
Resistance measuring range: 10mΩ...500Ω; 5kΩ; 50kΩ; 500kΩ; 5MΩ; 50MΩ; 500MΩ
Capacitance measuring range: 0.001...10nF; 100nF; 1µF; 10µF; 100µF; 1mF; 10mF; 100mF
Capacitance measuring accuracy: ±(1%+ 5 digit)
Frequency measuring range: 1mHz...100Hz; 1kHz; 10kHz; 100kHz; 1MHz
Frequency measuring accuracy: ±(0.02%+3 digit)
Temperature measurement accuracy: ±(1% + 1°C)
Temperature measuring range (with K-type thermocouple): -200...1372°C
Temperature measuring range (with J-type thermocouple): -210...1200°C
Resistance measuring accuracy: ±(0.05%+5 digit)
Temperature measurement resolution: 0.1°C
Diode test: 1mA
Continuity test: acoustic indication
Weight with battery: 527g
Power supply: battery 6LR61 9V x1
Standard equipment: battery charger; calibration certificate; crocodile clips; test leads
Optional equipment: U1117A
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Related items: U1117A; U1161A; U1162A; U1163A; U1164A; U1168A; U1169A; U1170A; U1171A; U1172A; U1173A; U1174A; U1180A; U1181A; U1182A; U1183A; U1184A; U1185A; U1186A; U1583B
Dimensions (W x H x D): 94.4x203.5x59mm
Additional functions: frequency meter; square waveform generator
Information: Products are intended for professional and industrial use only, and are not suitable for consumer or household use.
Measuring instrument features: automatic power-off; HOLD function; impact resistant holster; low battery indicator; manual and automatic data recording function; universal
Battery/ rechargeable battery: battery 6LR61 9V x1
Manufacturer series: U1250A
Connectors for the country: Europe

Hersteller: Keysight
Digital Multimeters True RMS 50000 count handheld DMM with OLED display, UK / EU Pwr Cord

Hersteller: Keysight
Digital Multimeters True RMS DMM w/OLED US Power Cord

Hersteller: Keysight
Digital Multimeters True RMS DMM 30000 Count Handheld

Hersteller: KEYSIGHT
Category: Portable digital multimeters
Description: Digital multimeter; LCD; VDC: 300mV,3V,30V,300V,1kV; True RMS AC
Operating temperature: -20...55°C
Power supply: battery LR03 AAA 1,5V x4
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Related items: U1161A; U1162A; U1163A; U1164A; U1168A; U1171A; U1173A; U1174A; U1177A; U1180A; U1181A; U1182A; U1183A; U1184A; U1185A; U1186A; U1583B
Standard equipment: drop-like K-type probe; test leads
Measuring instrument features: autoranging; filter that prevents displaying interference signals; HOLD function; low battery indicator; MIN/MAX function; overload protection; PEAK HOLD function; REL function
Type of meter: digital multimeter
Weight with battery: 518g
Continuity test: acoustic indication; <25Ω
Temperature measuring range: -200...1372°C
Manufacturer series: U1270A
Information: Products are intended for professional and industrial use only, and are not suitable for consumer or household use.
True effective value measurement: True RMS AC
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; temperature
Dimensions (W x H x D): 92x207x59mm
AC current measuring range: 0.3mA; 3mA; 30mA; 300mA; 3A; 10A
Resistance measuring range: 30Ω; 300Ω; 3kΩ; 30kΩ; 300kΩ; 3MΩ; 30MΩ; 100MΩ; 300MΩ
DC current measuring range: 0.3mA; 3mA; 30mA; 300mA; 3A; 10A
DC voltage measuring range: 300mV; 3V; 30V; 300V; 1kV
AC voltage measuring range: 300mV; 3V; 30V; 300V; 1kV
Frequency measuring range: 99.999...999.99kHz
Capacitance measuring range: 10nF; 100nF; 1µF; 10µF; 100µF; 1mF; 10mF
Diode test: 3V
Battery/ rechargeable battery: battery LR03 AAA 1,5V x4
Frequency measuring accuracy: ±(0.02%+5 digit)
Capacitance measuring accuracy: ±(1%+ 5 digit)
AC current measuring accuracy: ±(0.9% + 25 digit)
DC voltage measuring accuracy: ±(0.05% + 5 digit)
DC current measuring accuracy: ±(0.2% + 5 digit)
AC voltage measuring accuracy: ±(0.7% + 20 digit)
Resistance measuring accuracy: ±(0.2%+5 digit)
Temperature measurement accuracy: ±(1% + 1°C)
Kind of display used: LCD

Hersteller: Keysight
Digital Multimeters True RMS DMM 30000 Count Handheld

Hersteller: KEYSIGHT
Category: Portable digital multimeters
Description: Digital multimeter; LCD; VDC: 30mV,300mV,3V,30V,300V,1kV; U1270A
Type of meter: digital multimeter
Kind of display used: LCD
True effective value measurement: True RMS AC+DC
DC voltage measuring range: 30mV; 300mV; 3V; 30V; 300V; 1kV
DC voltage measuring accuracy: ±(0.05% + 5 digit)
AC voltage measuring range: 30mV; 300mV; 3V; 30V; 300V; 1kV
AC voltage measuring accuracy: ±(0.6% + 20 digit)
DC current measuring range: 0.3mA; 3mA; 30mA; 300mA; 3A; 10A
DC current measuring accuracy: ±(0.2% + 3 digit)
AC current measuring range: 0.3mA; 3mA; 30mA; 300mA; 3A; 10A
AC current measuring accuracy: ±(0.6% + 25 digit)
Resistance measuring range: 30Ω; 300Ω; 3kΩ; 30kΩ; 300kΩ; 3MΩ; 30MΩ; 300MΩ
Resistance measuring accuracy: ±(0.2%+10 digit)
Capacitance measuring range: 10nF; 100nF; 1µF; 10µF; 100µF; 1mF; 10mF
Capacitance measuring accuracy: ±(1%+ 5 digit)
Frequency measuring range: 99.999...999.99kHz
Frequency measuring accuracy: ±(0.02%+5 digit)
Temperature measuring range: -200...1372°C
Diode test: 3V
Continuity test: acoustic indication; <25Ω
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; temperature
Measuring instrument features: autoranging; filter that prevents displaying interference signals; HOLD function; low battery indicator; MIN/MAX function; overload protection; PEAK HOLD function; REL function
Manufacturer series: U1270A
Information: Products are intended for professional and industrial use only, and are not suitable for consumer or household use.
Battery/ rechargeable battery: battery LR03 AAA 1,5V x4
Temperature measurement accuracy: ±(1% + 1°C)
Dimensions (W x H x D): 92x207x59mm
Operating temperature: -20...55°C
Power supply: battery LR03 AAA 1,5V x4
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Related items: U1161A; U1162A; U1163A; U1164A; U1168A; U1171A; U1173A; U1174A; U1177A; U1180A; U1181A; U1182A; U1183A; U1184A; U1185A; U1186A; U1583B
Standard equipment: drop-like K-type probe; test leads
Weight with battery: 520g

Hersteller: Keysight
Digital Multimeters True RMS DMM w/OLED 30000 Count Handheld

Hersteller: KEYSIGHT
Category: Portable digital multimeters
Description: Digital multimeter; OLED; VDC: 30mV,300mV,3V,30V,300V,1kV
Type of meter: digital multimeter
Kind of display used: OLED
True effective value measurement: True RMS AC+DC
DC voltage measuring range: 30mV; 300mV; 3V; 30V; 300V; 1kV
DC voltage measuring accuracy: ±(0.05% + 5 digit)
AC voltage measuring range: 30mV; 300mV; 3V; 30V; 300V; 1kV
AC voltage measuring accuracy: ±(0.6% + 20 digit)
DC current measuring range: 0.3mA; 3mA; 30mA; 300mA; 3A; 10A
DC current measuring accuracy: ±(0.2% + 5 digit)
AC current measuring range: 0.3mA; 3mA; 30mA; 300mA; 3A; 10A
AC current measuring accuracy: ±(0.6% + 25 digit)
Resistance measuring range: 30Ω; 300Ω; 3kΩ; 30kΩ; 300kΩ; 3MΩ; 30MΩ; 300MΩ
Resistance measuring accuracy: ±(0.2%+10 digit)
Capacitance measuring range: 100nF; 1µF; 10µF; 100µF; 2mF
Capacitance measuring accuracy: ±(1%+ 5 digit)
Frequency measuring range: 99.999...999.99kHz
Frequency measuring accuracy: ±(0.02%+5 digit)
Temperature measuring range: -200...1372°C
Diode test: 3V
Continuity test: acoustic indication; <25Ω
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance; temperature
Measuring instrument features: autoranging; filter that prevents displaying interference signals; HOLD function; low battery indicator; MIN/MAX function; overload protection; PEAK HOLD function; REL function
Manufacturer series: U1270A
Information: Products are intended for professional and industrial use only, and are not suitable for consumer or household use.
Battery/ rechargeable battery: battery LR03 AAA 1,5V x4
Temperature measurement accuracy: ±(1% + 1°C)
Dimensions (W x H x D): 92x207x59mm
Operating temperature: -40...55°C
Power supply: battery LR03 AAA 1,5V x4
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Related items: U1161A; U1162A; U1163A; U1164A; U1168A; U1171A; U1173A; U1174A; U1177A; U1180A; U1181A; U1182A; U1183A; U1184A; U1185A; U1186A; U1583B
Standard equipment: drop-like K-type probe; test leads
Weight with battery: 500g

Hersteller: Keysight
Digital Multimeters True RMS DMM w/OLED 30000 Count Handheld

Hersteller: Keysight
Digital Multimeters True RMS DMM 60000 Count Handheld

Hersteller: Keysight
Digital Multimeters Commercial calibration certificate with test data

Hersteller: Keysight
Digital Multimeters True RMS DMM 60000 Count Handheld

Hersteller: KEYSIGHT
Category: Portable digital multimeters
Description: Digital multimeter; LCD; 5 digits (60000); True RMS AC+DC; IP67
Type of meter: digital multimeter
Measurement: AC current; AC voltage; capacitance; DC current; DC voltage; frequency; resistance
Kind of display used: LCD
Display parameters: 5 digits (60000)
DC voltage measuring range: 60mV; 600mV; 6V; 60V; 600V; 1kV
DC voltage measuring accuracy: ±(0.025% + 5 digit)
AC voltage measuring range: 60mV; 600mV; 6V; 60V; 600V; 1kV
AC voltage measuring accuracy: ±(0.3% + 25 digit)
DC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A
DC current measuring accuracy: ±(0.05% + 5 digit)
AC current measuring range: 600µA; 6mA; 60mA; 600mA; 6A; 10A
AC current measuring accuracy: ±(0.6% + 25 digit)
True effective value measurement: True RMS AC+DC
Resistance measuring range: 60Ω; 600Ω; 6kΩ; 60kΩ; 600kΩ; 6MΩ; 60MΩ; 600MΩ
Capacitance measuring range: 10nF; 100nF; 1µF; 10µF; 100µF; 1mF; 10mF; 100mF
Capacitance measuring accuracy: ±(1%+ 5 digit)
Frequency measuring range: 99.999...9.9999MHz
Frequency measuring accuracy: ±(0.005%+3 digit)
Resistance measuring accuracy: ±(0.05%+2 digit)
Diode test: 1.7mA
Power supply: battery LR6 AA 1,5V x4
Standard equipment: IR-USB cable; manufacturer's calibration certificate; test leads; user's manual
Conform to the norm: CAT III 1000V; CAT IV 600V; EN 61010
Dimensions (W x H x D): 96x218x59mm
Battery/ rechargeable battery: battery LR6 AA 1,5V x4
Weight with battery: 701g
Manufacturer series: U1280
Information: Products are intended for professional and industrial use only, and are not suitable for consumer or household use.
Bandwidth for AC voltage measurements: 20Hz...100kHz
Bandwidth for AC current measurements: 20Hz...100kHz
IP rating: IP67

Hersteller: Keysight
Insulation Testers / Megohmmeters INSULATION RESISTNC TESTER 50V TO 1kV

Hersteller: Keysight
Clamp Multimeters & Accessories AC Current Clamp

Hersteller: KEYSIGHT
Category: Bags & Soft Cases
Description: Cover
Information: Products are intended for professional and industrial use only, and are not suitable for consumer or household use.
Related items: U1610A; U1620A
Type of test accessories: cover

Hersteller: KEYSIGHT
Category: Portable Oscilloscopes, Scopemeters
Description: Handheld oscilloscope; 100MHz; 8bit; colour,LCD TFT 5,7"; Ch: 2
Type of oscilloscope: handheld oscilloscope
Band: 100MHz
Vertical resolution: 8bit
Kind of display used: colour; LCD TFT 5,7"
Number of channels: 2
Sampling: 1Gsps
Memory record length: 120kpts
Time base: 5n...50s/div
Max. input voltage: 300V
Display resolution: 640x480
True effective value measurement: True RMS
Input coupling: AC, DC
Trigger modes: automatic; normal; single
Trigger source: CH1; CH2; external signal
Rise time: 3.5ns
Input sensitivity: 2mV/div...50V/div
Interface: USB
Input impedance: 1MΩ/22pF
Additional functions: multimeter
Power supply: rechargeable battery Li-Ion 10,8V x1
Body dimensions: 183x270x65mm
Information: Products are intended for professional and industrial use only, and are not suitable for consumer or household use.
Measuring instrument features: automatic measurement of many parameters; FFT analysis: Rectangular, Hamming, Hanning, Blackman-Harris, Flattop; mathematical functions: addition, subtraction; real time clock; records input waveform; X-Y, ROLL, MAIN operation mode
Standard equipment: 2 crocodile clips; calibration certificate; mains cable; oscilloscope probe with 10:1 divider; test leads; USB cable
Related items: U1560A; U1562A; U1572A; U1573A; U1575A; U1591A
Battery/ rechargeable battery: rechargeable battery Li-Ion 10,8V x1
Supply voltage: 100...240V AC
Measurement memory: 10
Connectors for the country: Europe

Hersteller: KEYSIGHT
Category: Portable Oscilloscopes, Scopemeters
Description: Handheld oscilloscope; 200MHz; 8bit; colour,LCD TFT 5,7"; Ch: 2
Type of oscilloscope: handheld oscilloscope
Band: 200MHz
Vertical resolution: 8bit
Kind of display used: colour; LCD TFT 5,7"
Number of channels: 2
Sampling: 2Gsps
Memory record length: 2Mpts/ch
Time base: 2n...50s/div
Max. input voltage: 300V
Display resolution: 640x480
True effective value measurement: True RMS
Input coupling: AC, DC
Trigger modes: automatic; normal; single
Trigger source: CH1; CH2; external signal
Rise time: 1.75ns
Input sensitivity: 2mV/div...50V/div
Interface: USB
Input impedance: 1MΩ/22pF
Additional functions: multimeter
Power supply: rechargeable battery Li-Ion 10,8V x1
Body dimensions: 183x270x65mm
Information: Products are intended for professional and industrial use only, and are not suitable for consumer or household use.
Measuring instrument features: automatic measurement of many parameters; FFT analysis: Rectangular, Hamming, Hanning, Blackman-Harris, Flattop; mathematical functions: addition, subtraction; real time clock; records input waveform; X-Y, ROLL, MAIN operation mode
Standard equipment: 2 crocodile clips; calibration certificate; mains cable; oscilloscope probe with 10:1 divider; test leads; USB cable
Related items: U1560A; U1562A; U1572A; U1573A; U1575A; U1591A
Battery/ rechargeable battery: rechargeable battery Li-Ion 10,8V x1
Supply voltage: 100...240V AC
Measurement memory: 10
Connectors for the country: Europe

Hersteller: Keysight
Digital Multimeters Cap Meter Dual Disp 11000 Count Handheld

Hersteller: KEYSIGHT
Category: LCR Meter
Description: LCR meter; LCD; (20000); C accuracy: ±(0.5%+5digit); 184x87x41mm
Type of meter: LCR meter
Kind of display used: LCD
Display parameters: (20000)
Resistance measuring range: 2Ω; 20Ω; 200Ω; 2kΩ; 20kΩ; 200kΩ; 2MΩ; 20MΩ; 200MΩ
Capacitance measuring range: 20pF; 200pF; 2nF; 20nF; 200nF; 2µF; 20µF; 200µF; 2mF; 20mF
Measurement: capacitance; inductance; resistance
Inductance measuring range: 20µH; 200µH; 2mH; 20mH; 200mH; 2H; 20H; 200H; 2kH
Interface: IrDA
Power supply: battery 6F22 9V x1
Dimensions: 184x87x41mm
Measuring instrument features: additional terminal for connecting the SMD tweezers; automatic or manual selection of measuring ranges; automatic power-off; calibration function; HOLD function; low battery indicator; MIN/MAX/MEDIUM function; selectable measuring accuracy
Standard equipment: set of test leads with insulated clips
Information: Products are intended for professional and industrial use only, and are not suitable for consumer or household use.
Measurement frequency: 100Hz; 120Hz; 1kHz
Capacitance measuring accuracy: ±(0.5%+ 5 digit)
Inductance measuring accuracy: ±(0.7% + 5 digit)
Resistance measuring accuracy: ±(0.5%+5 digit)
Tolerance: 1...5...10...20%
Related items: U1174A; U1780A; U1781A; U1782A; U5481A

Hersteller: Keysight
Digital Multimeters LCR Meter Dual Disp 20000 Count Handheld

Hersteller: Keysight
Digital Multimeters LCR Meter Dual Disp 20000 Count Handheld

Hersteller: KEYSIGHT
Category: LCR Meter
Description: LCR meter; LCD; (20000); C accuracy: ±(0.5%+5digit); 184x87x41mm
Type of meter: LCR meter
Kind of display used: LCD
Display parameters: (20000)
Resistance measuring range: 2Ω; 20Ω; 200Ω; 2kΩ; 20kΩ; 200kΩ; 2MΩ; 20MΩ; 200MΩ
Resistance measuring accuracy: ±(0.5%+5 digit)
Capacitance measuring range: 20pF; 200pF; 2nF; 20nF; 200nF; 2µF; 20µF; 200µF; 2mF; 20mF
Capacitance measuring accuracy: ±(0.5%+ 5 digit)
Measurement: capacitance; inductance; resistance
Interface: IrDA
Measuring instrument features: additional terminal for connecting the SMD tweezers; automatic or manual selection of measuring ranges; automatic power-off; calibration function; HOLD function; low battery indicator; MIN/MAX/MEDIUM function; selectable measuring accuracy
Standard equipment: set of test leads with insulated clips
Dimensions: 184x87x41mm
Related items: U1174A; U1780A; U1781A; U1782A; U5481A
Information: Products are intended for professional and industrial use only, and are not suitable for consumer or household use.
Inductance measuring range: 20µH; 200µH; 2mH; 20mH; 200mH; 2H; 20H; 200H; 2kH
Measurement frequency: 100Hz; 120Hz; 1kHz; 10kHz
Inductance measuring accuracy: ±(0.7% + 5 digit)
Tolerance: 1...5...10...20%
Power supply: battery 6F22 9V x1

Hersteller: Keysight
Digital Multimeters LCR Meter Dual Disp 20000 Count Handheld

Hersteller: KEYSIGHT
Category: LCR Meter
Description: LCR meter; LCD; (20000); C accuracy: ±(0.5%+5digit); 184x87x41mm
Type of meter: LCR meter
Kind of display used: LCD
Display parameters: (20000)
Resistance measuring range: 2Ω; 20Ω; 200Ω; 2kΩ; 20kΩ; 200kΩ; 2MΩ; 20MΩ; 200MΩ
Resistance measuring accuracy: ±(0.5%+5 digit)
Capacitance measuring range: 20pF; 200pF; 2nF; 20nF; 200nF; 2µF; 20µF; 200µF; 2mF; 20mF
Capacitance measuring accuracy: ±(0.5%+ 5 digit)
Measurement: capacitance; inductance; resistance
Interface: IrDA
Measuring instrument features: additional terminal for connecting the SMD tweezers; automatic or manual selection of measuring ranges; automatic power-off; calibration function; HOLD function; low battery indicator; MIN/MAX/MEDIUM function; selectable measuring accuracy
Standard equipment: set of test leads with insulated clips
Dimensions: 184x87x41mm
Related items: U1174A; U1780A; U1781A; U1782A; U5481A
Information: Products are intended for professional and industrial use only, and are not suitable for consumer or household use.
Inductance measuring range: 20µH; 200µH; 2mH; 20mH; 200mH; 2H; 20H; 200H; 2kH
Measurement frequency: 100Hz; 120Hz; 1kHz; 10kHz; 100kHz
Inductance measuring accuracy: ±(0.7% + 5 digit)
Tolerance: 1...5...10...20%
Power supply: battery 6F22 9V x1

Hersteller: KEYSIGHT
Category: LCR Meter
Description: Measuring kit: multimeters
Standard equipment: hard case; U1733C bridge; U1780A adapter; U1782A test tweezers; USB cable
Information: Products are intended for professional and industrial use only, and are not suitable for consumer or household use.
Connectors for the country: Europe
Type of measuring kit: multimeters

Hersteller: Keysight
Digital Multimeters Handheld LCR Meter U1733C combo kit with Power cord - India

Hersteller: KEYSIGHT
Category: LCR Meter
Description: Test acces: power supply
Information: Products are intended for professional and industrial use only, and are not suitable for consumer or household use.
Connectors for the country: Europe
Type of test accessories: power supply

Hersteller: Keysight
Desktop AC Adapters AC Power Adapt w/Cord for U1700 Series Handheld Meters 100-240V;US Pwr Cord

Hersteller: Keysight
Test Clips Alligator Clip with Leads

Hersteller: Keysight
Test Accessories - Other Tweezer, SMD

Hersteller: Keysight
USB Coaxial Switch, DC to 18 GHz, SPDT

Hersteller: Keysight
RF Test Equipment USB Sensor, 10MHz- 1 8GHz

Hersteller: Keysight
Test Accessories - Other Power sensor holster (104 mm Long x 50 mm Width x 39 mm Height)

Hersteller: Keysight

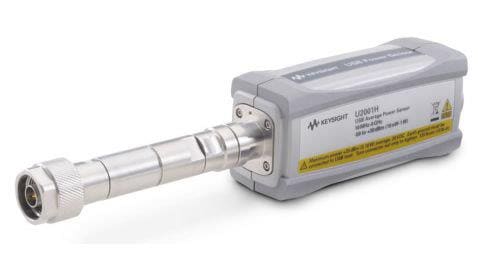

RF Test Equipment USB Sensor, 10MHz to 18GHz (-30 dBm to +44 dBm)

Hersteller: Keysight
RF Test Equipment USB Sensor, 10MHz to 18GHz (-50 dBm to +30 dBm)

Hersteller: Keysight
RF Test Equipment USB Sensor, 10MHz-6GHz

Hersteller: Keysight
RF Test Equipment USB Sensor, 10MHz to 6GHz (-30 dBm to +44 dBm)

Hersteller: Keysight
RF Test Equipment USB Sensor, 10MHz to 6GHz (-50 dBm to +30 dBm)

Hersteller: Keysight
RF Test Equipment USB Sensor, 50MHz-24GHz

Hersteller: Keysight
RF Test Equipment USB Sensor, 50MHz to 24GHz (-50 dBm to +30 dBm)

Hersteller: Keysight
RF Test Equipment USB Sensor, 9kHz-6GHz

Hersteller: Keysight
Function Generators & Synthesisers Arbitrary waveform generation upgrade, fixed perpectual license

Hersteller: Keysight
RF Test Equipment USB Wideband Power Sensor (50MHz - 18GHz)

Hersteller: Keysight
RF Test Equipment USB Wideband Power Sensor (50MHz - 40GHz)

Hersteller: Keysight
USB Cables / IEEE 1394 Cables Power sensor cable; 5-ft (1.5m)
