Produkte > LAPP > Alle Produkte des Herstellers LAPP (12558) > Seite 210 nach 210

Hersteller: LAPP
Category: Multicore Cables - Shielded
Description: Wire; ÖLFLEX® CLASSIC 110 CY; 4G2.5mm2; PVC; transparent; CPR: Eca
Conform to the norm: IEC 60332-1-2
Operating temperature: -40...80°C
CPR standard: E_ca
Resistance to: most of chemical compounds
Kind of wire: ÖLFLEX® CLASSIC 110 CY
Kind of material: no flame propagation
Wire insulation material: PVC
Shield structure: shielded; tinned copper braid
Core structure: stranded
Information: The UL Label and Mark on full factory packaging only
Earth core: yellow-green
Core section: 2.5mm²
Cable external diameter: 11.3mm
Number of cores: 4
Cable structure: 4G2.5mm²
Flexibility class: 5
Rated voltage: 0.3kV; 0.5kV
Core marking: black, numbered + ground wire
Insulation colour: transparent
Type of wire: control cable
Kind of core: Cu

Hersteller: LAPP
Category: Multicore Cables - Unshielded
Description: Wire; UNITRONIC® LiYY; 30x0.5mm2; unshielded; 500V; Cu; stranded
Cable external diameter: 13.2mm
Operating temperature: -5...70°C
Insulation colour: grey
Type of wire: data transmission
Core marking: colours without colour repetition
Kind of core: Cu
CPR standard: E_ca
Kind of wire: UNITRONIC® LiYY
Conform to the norm: IEC 60332-1-2
Resistance to: moisture
Kind of material: no flame propagation
Earth core: none
Wire insulation material: PVC
Core structure: stranded
Information: The UL Label and Mark on full factory packaging only
Shield structure: unshielded
Core section: 0.5mm²
Rated voltage: 0.5kV
Number of cores: 30
Cable structure: 30x0.5mm²
Flexibility class: 5
Cable application: automatics; industrial applications; industrial electronics

Hersteller: LAPP
Category: Inserts for Glands
Description: Insert for gland; polyetylene; 44.5mm; -70÷100°C; SKINTOP®
Type of cable accessories: insert for gland
Seal material: polyetylene
Diameter: 44.5mm
Operating temperature: -70...100°C
Manufacturer series: SKINTOP®
Trade name: SKINTOP® SD

Hersteller: LAPP
Category: Multicore Cables - Shielded
Description: Wire; ÖLFLEX® CLASSIC 135 CH BK; 5G16mm2; FRNC; black; 600V,1kV
Type of wire: control cable
Kind of wire: ÖLFLEX® CLASSIC 135 CH BK
Cable structure: 5G16mm²
Core structure: stranded
Kind of core: Cu
Number of cores: 5
Core section: 16mm²
Core marking: black, numbered + ground wire
Shield structure: shielded; tinned copper braid
Wire insulation material: FRNC
Insulation colour: black
Rated voltage: 0.6kV; 1kV
Kind of material: halogen free; no flame propagation
Operating temperature: -25...70°C
Resistance to: ozone; UV rays
Flexibility class: 5
Cable external diameter: 25mm
CPR standard: D_ca
Earth core: yellow-green

Hersteller: LAPP
Category: LAPP connectors
Description: Enclosure for connectors: HDC; angled; IP65,IP66; zinc alloy
Type enclosure for connectors: HDC
IP rating: IP65; IP66
Body material: zinc
Enclosure material: zinc alloy
Operating temperature: 125°C
Spatial orientation: angled

Hersteller: LAPP
Category: Industrial Ethernet Cables

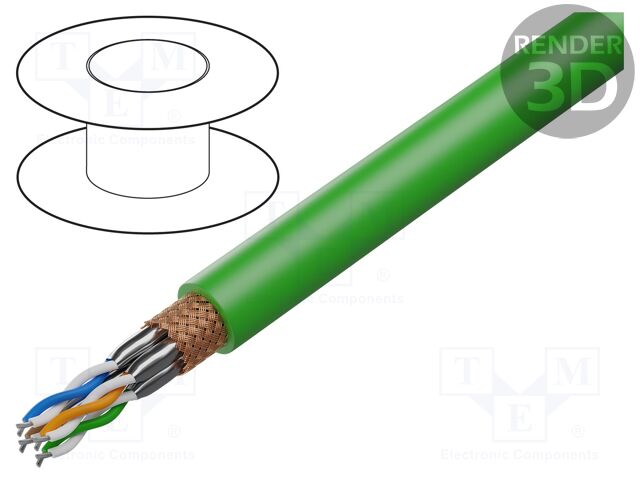

Description: Wire; ETHERLINE® Cat.6a,S/FTP; 4x2x23AWG; 6a; stranded; Cu; PVC
Type of wire: data transmission
Kind of wire: ETHERLINE® Cat.6a; S/FTP
Cable structure: 4x2x23AWG
Insulation colour: green
Core structure: stranded
Kind of core: Cu; tinned
Operating temperature: -40...80°C
Shield structure: braid made of copper wires; pairs shielded with Al-PET foil; shielded twofold
Wire insulation material: PVC
Cable external diameter: 9mm
Number of cores: 8
Rated voltage: 0.125kV
CPR standard: no classification
No. of pairs: 4
Core diameter: 23AWG
Ethernet category: Cat 6a
Resistance to: flame; mineral oils; most of oils; to weather conditions; UV rays
Cable application: automatics; EtherCAT; EtherNet/IP; industrial applications; outdoor; PROFINET
Cable features: twisted pair conductors
Kind of material: no flame propagation
Conform to the norm: FT4; UL 444; UL CMG
Information: The UL Label and Mark on full factory packaging only

Hersteller: LAPP
Category: Industrial Ethernet Cables
Description: Wire; ETHERLINE® Cat.6a,S/FTP; 4x2x23AWG; 6a; stranded; Cu; FRNC
Type of wire: data transmission
Kind of wire: ETHERLINE® Cat.6a; S/FTP
Cable structure: 4x2x23AWG
Insulation colour: green
Core structure: stranded
Kind of core: Cu; tinned
Operating temperature: -25...80°C
Shield structure: braid made of copper wires; pairs shielded with Al-PET foil; shielded twofold
Wire insulation material: FRNC
Cable external diameter: 9mm
Number of cores: 8
Rated voltage: 0.125kV
CPR standard: no classification
No. of pairs: 4
Core diameter: 23AWG
Ethernet category: Cat 6a
Resistance to: flame; mineral oils; most of oils; to weather conditions; UV rays
Cable application: automatics; EtherCAT; EtherNet/IP; industrial applications; outdoor; PROFINET
Cable features: twisted pair conductors
Kind of material: halogen free; no flame propagation
Conform to the norm: UL 444; VW-1
Information: The UL Label and Mark on full factory packaging only

Hersteller: LAPP
Category: Cables for Power Chains - Shielded
Description: Wire: data transmission; ETHERLINE® FESTOON; 2x2x22AWG; green
Type of wire: data transmission
Kind of wire: ETHERLINE® FESTOON
Cable structure: 2x2x22AWG
Insulation colour: green
Core structure: stranded
Kind of core: Cu; tinned
Operating temperature: -40...80°C
Shield structure: Al foil; braid made of copper wires; shielded twofold
Wire insulation material: PVC
Cable external diameter: 6.5mm
Number of cores: 4
Rated voltage: 0.125kV
CPR standard: no classification
No. of pairs: 2
Core diameter: 22AWG
Ethernet category: Cat 5e
Resistance to: flame; mechanical stesses; most of oils; UV rays
Cable application: EtherCAT; EtherNet/IP; Festoon; industrial applications; industrial Ethernet; overhead crane; power chain; PROFINET
Cable features: Fast Connect
Kind of material: no flame propagation
Conform to the norm: CSA FT4; FT1; UL 444; UL 758; UL 21694; UL PLTC
Information: The UL Label and Mark on full factory packaging only

Hersteller: LAPP
Category: Sensors - Cables
Description: Cable: for sensors/automation; M12; PIN: 5; A; 2m; 24VDC; 24VAC; 4A
Kind of connector: valve
Number of pins: 5
Manufacturer series: UNITRONIC SENSOR VALVE-M12
Operating temperature: -15...80°C
Max. operating current: 4A
Cable length: 2m
Max. operating voltage: 24V AC; 24V DC
Connector variant: A
Polarisation: A code - DeviceNet / CANopen
Insulation colour: black
Conform to the norm: CSA C22.2 No. 182.3; UL 2238
Type of connection cable: for sensors/automation
IP rating: IP65; IP67
Indication: LED
Thread: M12
Cable application: power chain

Hersteller: LAPP
Category: Seals
Description: Sealing rings; FKM; 6.5mm; PG13,5; red; -20÷200°C; SKINDICHT®
Resistance to: most of acids; most of chemical compounds; most of oils; most of solvents; temperature
Body colour: red
Gasket material: FKM
Trade name: SKINDICHT® EV
Gland thread: PG13,5
Type of mounting element: sealing rings
Operating temperature: -20...200°C
Thickness: 6.5mm
Manufacturer series: SKINDICHT®

Hersteller: LAPP
Category: LAPP connectors
Description: Enclosure for connectors: HDC; size H-A 3; with latch; straight
Mechanical mounting: flange (2 holes); for panel mounting
Locking system: with latch
Case: size H-A 3
Insert mounting: 21x21mm
Spatial orientation: straight
Enclosure material: zinc alloy
Type enclosure for connectors: HDC
Application - series/manufacturer: EPIC

Hersteller: LAPP
Category: LAPP connectors
Description: Enclosure for connectors: HDC; size H-A 3; for cable; with latch
Mechanical mounting: for cable
Locking system: with latch
Case: size H-A 3
Insert mounting: 21x21mm
Spatial orientation: straight
Enclosure material: zinc alloy
Type enclosure for connectors: HDC
Application - series/manufacturer: EPIC

Hersteller: LAPP
Category: LAPP connectors
Description: Enclosure for connectors: HDC; size H-A 3; for cable; for latch
Mechanical mounting: for cable
Locking system: for latch
Case: size H-A 3
Insert mounting: 21x21mm
Spatial orientation: angled
Enclosure material: zinc alloy
Type enclosure for connectors: HDC
Application - series/manufacturer: EPIC

Hersteller: LAPP
Category: Multicore Cables - Shielded
Description: Wire; UNITRONIC® ROBUST C (TP); 8x2x0.5mm2; black; 500V
Core marking: colours without colour repetition
Type of wire: control cable
Kind of core: Cu
Wire insulation material: elastomer thermoplastic TPE
Kind of material: halogen free
Cable application: indoor; industrial applications; outdoor; photovoltaics; robotics; to work in difficult conditions
Shield structure: shielded; tinned copper braid
Core structure: stranded
Kind of wire: UNITRONIC® ROBUST C (TP)
Operating temperature: -40...90°C
Core section: 0.5mm²
Cable external diameter: 13.1mm
No. of pairs: 8
Cable structure: 8x2x0.5mm²
Number of cores: 16
Rated voltage: 0.5kV
Insulation colour: black
Resistance to: chemical; oils; ozone; UV rays

Hersteller: LAPP
Category: Glands
Description: Cable gland; NPT1 1/2"; IP68; brass; metallic; SKINTOP®
Manufacturer series: SKINTOP®
Conform to the norm: UL 514B
Body material: brass
Type of cable accessories: cable gland
Resistance to: oils; UV rays
Cable accessories features: halogen free
Kind of thread: inch; NPT
IP rating: IP68
Body colour: metallic
Plating material: nickel
Gland thread: NPT1 1/2"
Trade name: SKINTOP® COLD NPT
Operating temperature: -70...100°C
Cable external diameter: 27...35mm
Thread length: 17mm
Spanner size: 65mm

Hersteller: LAPP
Category: Multicore Cables - Shielded
Description: Wire; ÖLFLEX® CLASSIC 135 CH BK; 7G1mm2; FRNC; black; 600V,1kV
Type of wire: control cable
Kind of wire: ÖLFLEX® CLASSIC 135 CH BK
Cable structure: 7G1mm²
Core structure: stranded
Kind of core: Cu
Number of cores: 7
Core section: 1mm²
Core marking: black, numbered + ground wire
Shield structure: shielded; tinned copper braid
Wire insulation material: FRNC
Insulation colour: black
Rated voltage: 0.6kV; 1kV
Kind of material: halogen free; no flame propagation
Operating temperature: -25...70°C
Resistance to: ozone; UV rays
Flexibility class: 5
Cable external diameter: 11.9mm
CPR standard: D_ca
Earth core: yellow-green

Hersteller: LAPP
Category: Heat resistant cables
Description: Wire; ÖLFLEX® HEAT 260 SC; 1x22AWG; stranded; Cu; PTFE; white
Resistance to: contact with liquid nitrogen; mechanical stesses; most of acids; most of chemical compounds; most of oils; most of solvents; ozone; to weather conditions
Kind of core: Cu; silver plated
Kind of material: no flame propagation
Conform to the norm: IEC 60332-1-2; UL 758; UL 11486
CPR standard: no classification
Kind of wire: ÖLFLEX® HEAT 260 SC
Wire insulation material: PTFE
Core structure: stranded
Information: The UL Label and Mark on full factory packaging only
Shield structure: unshielded
Operating temperature: -190...260°C
Cable external diameter: 1.27mm
Number of cores: 1
Cable structure: 1x22AWG
Core diameter: 22AWG
Package contents: 100m
Rated voltage: 0.3kV; 0.5kV
Type of wire: assembly
Insulation colour: white

Hersteller: LAPP
Category: Glands
Description: Cable gland; M12; IP68; brass; SKINTOP®; SKINTOP® MSR-M ATEX
Conform to the norm: ATEX Ex
Body material: brass
Type of cable accessories: cable gland
Manufacturer series: SKINTOP®
IP rating: IP68
Gland thread: M12
Trade name: SKINTOP® MSR-M ATEX
Kind of thread: metric
Plating material: nickel
Caution!: without locknut
Operating temperature: -30...90°C
Cable external diameter: 2...5mm
Thread length: 6.5mm
Spanner size: 16mm
