Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
LDC-002-1-J-051-T2-09 LDC-002-1-J-051-T2-09 Linkplex DC002-1-B_1.0.pdf Description: CONN PWR JACK 2.1X5.5MM SOLDER
Packaging: Bag
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder Eyelet(s)
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.256" (6.50mm OD)
Mating Length/Depth: 0.354" (9.00mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 2.5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-002-1-L-051-T2-09 LDC-002-1-L-051-T2-09 Linkplex DC002-1-B_1.0.pdf Description: CONN PWR JACK 2.5X5.5MM SOLDER
Packaging: Bag
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder Eyelet(s)
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.098" (2.50mm ID), 0.256" (6.50mm OD)
Mating Length/Depth: 0.354" (9.00mm)
Industry Recognized Mating Diameter: 2.50mm ID (0.098"), 5.50mm OD (0.217")
Current Rating (Amps): 2.5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-002-2-J-051-T2-09 LDC-002-2-J-051-T2-09 Linkplex DC002-2-B_1.0.pdf Description: CONN PWR JACK 2.1X5.5MM
Packaging: Bag
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Kinked Pin
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.256" (6.50mm OD)
Mating Length/Depth: 0.354" (9.00mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 2.5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-002-2-L-051-T2-09 LDC-002-2-L-051-T2-09 Linkplex DC002-2-B_1.0.pdf Description: CONN PWR JACK 2.5X5.5MM
Packaging: Bag
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Kinked Pin
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.098" (2.50mm ID), 0.256" (6.50mm OD)
Mating Length/Depth: 0.354" (9.00mm)
Industry Recognized Mating Diameter: 2.50mm ID (0.098"), 5.50mm OD (0.217")
Current Rating (Amps): 2.5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-002H-1-J-051-1AG-09 LDC-002H-1-J-051-1AG-09 Linkplex DC002H-1-B_1.0.pdf Description: CONN PWR JACK 2.1X5.5MM SOLDER
Packaging: Bag
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder Eyelet(s)
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.256" (6.50mm OD)
Mating Length/Depth: 0.354" (9.00mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-002H-1-L-051-1AG-09 LDC-002H-1-L-051-1AG-09 Linkplex DC002H-1-B_1.0.pdf Description: CONN PWR JACK 2.5X5.5MM SOLDER
Packaging: Bag
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder Eyelet(s)
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.098" (2.50mm ID), 0.256" (6.50mm OD)
Mating Length/Depth: 0.354" (9.00mm)
Industry Recognized Mating Diameter: 2.50mm ID (0.098"), 5.50mm OD (0.217")
Current Rating (Amps): 5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-002H-2-J-051-1AG-09 LDC-002H-2-J-051-1AG-09 Linkplex DC002H-2-B_1.1.pdf Description: CONN PWR JACK 2.1X5.5MM
Packaging: Bag
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Kinked Pin
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.256" (6.50mm OD)
Mating Length/Depth: 0.354" (9.00mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-002H-2-L-051-1AG-09 LDC-002H-2-L-051-1AG-09 Linkplex DC002H-2-B_1.1.pdf Description: CONN PWR JACK 2.5X5.5MM
Packaging: Bag
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Kinked Pin
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.098" (2.50mm ID), 0.256" (6.50mm OD)
Mating Length/Depth: 0.354" (9.00mm)
Industry Recognized Mating Diameter: 2.50mm ID (0.098"), 5.50mm OD (0.217")
Current Rating (Amps): 5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-002H-3-J-051-1AG-29 LDC-002H-3-J-051-1AG-29 Linkplex DC002H-3-B_1.1.pdf Description: CONN PWR JACK 2.1X5.5MM SOLDER
Packaging: Tray
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.256" (6.50mm OD)
Mating Length/Depth: 0.354" (9.00mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-002H-3-L-051-1AG-29 LDC-002H-3-L-051-1AG-29 Linkplex DC002H-3-B_1.1.pdf Description: CONN PWR JACK 2.5X5.5MM SOLDER
Packaging: Tray
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.098" (2.50mm ID), 0.256" (6.50mm OD)
Mating Length/Depth: 0.354" (9.00mm)
Industry Recognized Mating Diameter: 2.50mm ID (0.098"), 5.50mm OD (0.217")
Current Rating (Amps): 5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-008H-J-051-1AG-09 LDC-008H-J-051-1AG-09 Linkplex DC008H-B_1.1.pdf Description: CONN PWR JACK 2.1X5.5MM SOLDER
Packaging: Bag
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Panel Mount
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder Eyelet(s)
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.260" (6.60mm OD)
Mating Length/Depth: 0.378" (9.60mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 5 A
auf Bestellung 482 Stücke:
Lieferzeit 10-14 Tag (e)
15+1.2 EUR
18+1.01 EUR
25+0.94 EUR
50+0.9 EUR
100+0.86 EUR
250+0.8 EUR
Mindestbestellmenge: 15
Im Einkaufswagen  Stück im Wert von  UAH
LDC-016H-J-005-1AG-19 LDC-016H-J-005-1AG-19 Linkplex DC016H-A_1.0.pdf Description: CONN PWR JACK 2.1X5.5MM SOLDER
Packaging: Tape & Reel (TR)
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Surface Mount, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.252" (6.40mm OD)
Mating Length/Depth: 0.366" (9.30mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 5 A
auf Bestellung 250 Stücke:
Lieferzeit 10-14 Tag (e)
250+1.12 EUR
Mindestbestellmenge: 250
Im Einkaufswagen  Stück im Wert von  UAH
LDC-016H-J-005-1AG-19 LDC-016H-J-005-1AG-19 Linkplex DC016H-A_1.0.pdf Description: CONN PWR JACK 2.1X5.5MM SOLDER
Packaging: Cut Tape (CT)
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Surface Mount, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.252" (6.40mm OD)
Mating Length/Depth: 0.366" (9.30mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 5 A
auf Bestellung 243 Stücke:
Lieferzeit 10-14 Tag (e)
11+1.65 EUR
13+1.41 EUR
25+1.32 EUR
50+1.25 EUR
100+1.19 EUR
Mindestbestellmenge: 11
Im Einkaufswagen  Stück im Wert von  UAH
LDC-018H-E-005-1AG-19 LDC-018H-E-005-1AG-19 Linkplex DC018H-A_1.0.pdf Description: CONN PWR JACK 1.1X3.5MM SOLDER
Packaging: Tape & Reel (TR)
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Surface Mount, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.039" (1.00mm ID), 0.154" (3.90mm OD)
Mating Length/Depth: 0.236" (6.00mm)
Industry Recognized Mating Diameter: 1.10mm ID (0.043"), 3.50mm OD (0.138")
Current Rating (Amps): 3.5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-018H-E-005-1AG-19 LDC-018H-E-005-1AG-19 Linkplex DC018H-A_1.0.pdf Description: CONN PWR JACK 1.1X3.5MM SOLDER
Packaging: Cut Tape (CT)
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Surface Mount, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.039" (1.00mm ID), 0.154" (3.90mm OD)
Mating Length/Depth: 0.236" (6.00mm)
Industry Recognized Mating Diameter: 1.10mm ID (0.043"), 3.50mm OD (0.138")
Current Rating (Amps): 3.5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-018H-F-005-1AG-19 LDC-018H-F-005-1AG-19 Linkplex DC018H-A_1.0.pdf Description: CONN PWR JACK 1.35X3.5MM SOLDER
Packaging: Tape & Reel (TR)
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Surface Mount, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.051" (1.30mm ID), 0.154" (3.90mm OD)
Mating Length/Depth: 0.236" (6.00mm)
Industry Recognized Mating Diameter: 1.35mm ID (0.053"), 3.50mm OD (0.138")
Current Rating (Amps): 3.5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-018H-F-005-1AG-19 LDC-018H-F-005-1AG-19 Linkplex DC018H-A_1.0.pdf Description: CONN PWR JACK 1.35X3.5MM SOLDER
Packaging: Cut Tape (CT)
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Surface Mount, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.051" (1.30mm ID), 0.154" (3.90mm OD)
Mating Length/Depth: 0.236" (6.00mm)
Industry Recognized Mating Diameter: 1.35mm ID (0.053"), 3.50mm OD (0.138")
Current Rating (Amps): 3.5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-022-E-052-AG-09 LDC-022-E-052-AG-09 Linkplex DC022-B_1.3.pdf Description: CONN PWR JACK 1.1X3.5MM SOLDER
Packaging: Bag
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.039" (1.00mm ID), 0.150" (3.80mm OD)
Mating Length/Depth: 0.256" (6.50mm)
Industry Recognized Mating Diameter: 1.10mm ID (0.043"), 3.50mm OD (0.138")
Current Rating (Amps): 2 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-022-F-052-AG-09 LDC-022-F-052-AG-09 Linkplex DC022-B_1.3.pdf Description: CONN PWR JACK 1.35X3.5MM SOLDER
Packaging: Bag
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.039" (1.00mm ID), 0.150" (3.80mm OD)
Mating Length/Depth: 0.256" (6.50mm)
Industry Recognized Mating Diameter: 1.35mm ID (0.053"), 3.50mm OD (0.138")
Current Rating (Amps): 2 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH

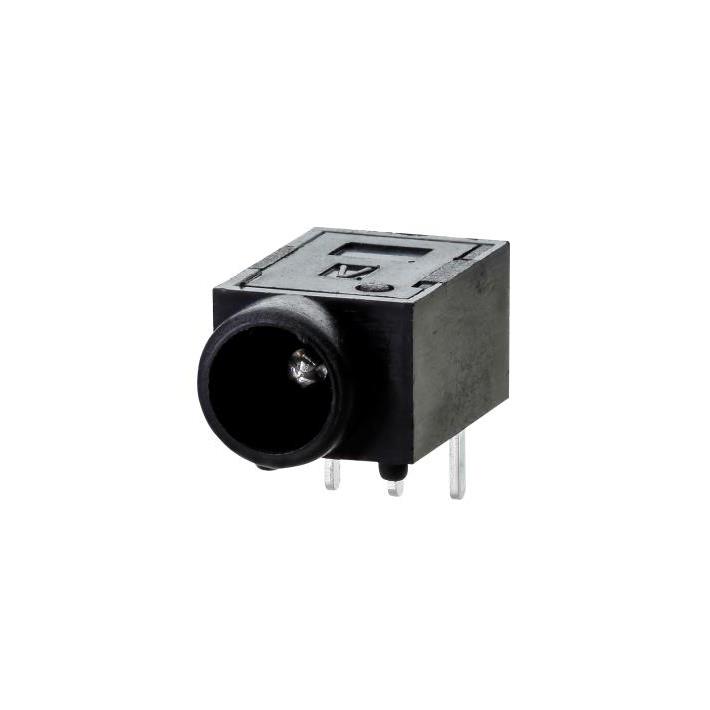

LDC-022H-E-052-1AG-09 LDC-022H-E-052-1AG-09 Linkplex DC022H-B_1.2.pdf Description: CONN PWR JACK 1.1X3.5MM SOLDER
Packaging: Bag
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.039" (1.00mm ID), 0.150" (3.80mm OD)
Mating Length/Depth: 0.256" (6.50mm)
Industry Recognized Mating Diameter: 1.10mm ID (0.043"), 3.50mm OD (0.138")
Current Rating (Amps): 3.5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-022H-F-052-1AG-09 LDC-022H-F-052-1AG-09 Linkplex DC022H-B_1.2.pdf Description: CONN PWR JACK 1.35X3.5MM SOLDER
Packaging: Bag
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.051" (1.30mm ID), 0.150" (3.80mm OD)
Mating Length/Depth: 0.335" (8.50mm)
Industry Recognized Mating Diameter: 1.35mm ID (0.053"), 3.50mm OD (0.138")
Current Rating (Amps): 3.5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-024H-H-051-1AG-09 LDC-024H-H-051-1AG-09 Linkplex DC024H-B_1.1.pdf Description: CONN PWR JACK 1.7X4.75MM
Packaging: Bag
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Kinked Pin
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.065" (1.65mm ID), 0.203" (5.15mm OD)
Mating Length/Depth: 0.335" (8.50mm)
Industry Recognized Mating Diameter: 1.70mm ID (0.067"), 4.75mm OD (0.187") EIAJ-3
Current Rating (Amps): 5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-038HS-J-051-1AG-09 LDC-038HS-J-051-1AG-09 Linkplex DC038HS-B_1.1.pdf Description: CONN PWR JACK 2.1X5.5MM SOLDER
Packaging: Bag
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.236" (6.00mm OD)
Mating Length/Depth: 0.323" (8.20mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-038S-J-051-T2-29 LDC-038S-J-051-T2-29 Linkplex DC038S-B_1.0.pdf Description: CONN PWR JACK 2.1X5.5MM SOLDER
Packaging: Tray
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.236" (6.00mm OD)
Mating Length/Depth: 0.327" (8.30mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 2.5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH

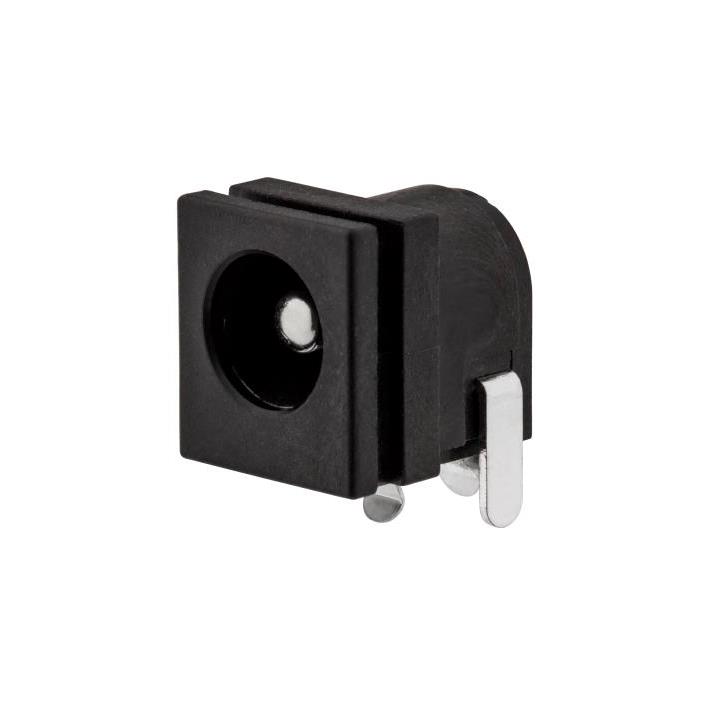

LDC-040H-2-N-051-1AG-09 LDC-040H-2-N-051-1AG-09 Linkplex DC040H-2-3.0-B_1.0.pdf Description: CONN PWR JACK 3X6.5MM SOLDER
Packaging: Bag
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Kinked Pin
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.118" (3.00mm ID), 0.287" (7.30mm OD)
Mating Length/Depth: 0.362" (9.20mm)
Industry Recognized Mating Diameter: 3.00mm ID (0.118"), 6.50mm OD (0.256")
Current Rating (Amps): 5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-058-2-E-051-T2-09 LDC-058-2-E-051-T2-09 Linkplex DC058-2-B_1.1.pdf Description: CONN PWR JACK 1X3.3X5.5MM
Packaging: Bag
Features: Board Guide
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Kinked Pin
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.039" (1.00mm ID), 0.232" (5.90mm OD)
Mating Length/Depth: 0.354" (9.00mm)
Industry Recognized Mating Diameter: 1.00mm ID (0.039"), 3.30mm ID (0.130"), 5.500mm OD (0.217") EIAJ-4
Current Rating (Amps): 3 A
auf Bestellung 456 Stücke:
Lieferzeit 10-14 Tag (e)
17+1.09 EUR
20+0.89 EUR
Mindestbestellmenge: 17
Im Einkaufswagen  Stück im Wert von  UAH
LDC-061DH-J-005-1AG-19 LDC-061DH-J-005-1AG-19 Linkplex DC061DH-A_1.0.pdf Description: CONN PWR JACK 2.1X5.5MM SOLDER
Packaging: Cut Tape (CT)
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Surface Mount, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.252" (6.40mm OD)
Mating Length/Depth: 0.343" (8.70mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 5 A
auf Bestellung 199 Stücke:
Lieferzeit 10-14 Tag (e)
10+1.83 EUR
12+1.56 EUR
25+1.46 EUR
50+1.39 EUR
100+1.32 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
LDC-061DH-J-005-1AG-19 LDC-061DH-J-005-1AG-19 Linkplex DC061DH-A_1.0.pdf Description: CONN PWR JACK 2.1X5.5MM SOLDER
Packaging: Tape & Reel (TR)
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Surface Mount, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.252" (6.40mm OD)
Mating Length/Depth: 0.343" (8.70mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 5 A
auf Bestellung 200 Stücke:
Lieferzeit 10-14 Tag (e)
200+1.26 EUR
Mindestbestellmenge: 200
Im Einkaufswagen  Stück im Wert von  UAH
LDC-069HS-J-005-1AG-19 LDC-069HS-J-005-1AG-19 Linkplex DC069HS-A_2.1.pdf Description: CONN PWR JACK 2.1X5.5MM SOLDER
Packaging: Tape & Reel (TR)
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.228" (5.80mm OD)
Mating Length/Depth: 0.364" (9.25mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-069HS-J-005-1AG-19 LDC-069HS-J-005-1AG-19 Linkplex DC069HS-A_2.1.pdf Description: CONN PWR JACK 2.1X5.5MM SOLDER
Packaging: Cut Tape (CT)
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.228" (5.80mm OD)
Mating Length/Depth: 0.364" (9.25mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 5 A
auf Bestellung 480 Stücke:
Lieferzeit 10-14 Tag (e)
14+1.3 EUR
16+1.11 EUR
25+1.04 EUR
50+0.99 EUR
100+0.94 EUR
250+0.89 EUR
Mindestbestellmenge: 14
Im Einkaufswagen  Stück im Wert von  UAH
LDC-078HS-J-051-1AG-09 LDC-078HS-J-051-1AG-09 Linkplex DC078HS-B_1.1.pdf Description: CONN PWR JACK 2.1X5.5MM
Packaging: Bag
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 2 Contacts
Internal Switch(s): Does Not Contain Switch
Termination: Kinked Pin
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.256" (6.50mm OD)
Mating Length/Depth: 0.348" (8.85mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 8 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-120-J-051-1AG-09 LDC-120-J-051-1AG-09 Linkplex DC120-B_1.0.pdf Description: CONN PWR JACK 2.1X5.5MM
Packaging: Bag
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Panel Mount
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Kinked Pin
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.248" (6.30mm OD)
Mating Length/Depth: 0.374" (9.50mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 2.5 A
auf Bestellung 483 Stücke:
Lieferzeit 10-14 Tag (e)
20+0.9 EUR
23+0.77 EUR
25+0.72 EUR
50+0.69 EUR
100+0.65 EUR
250+0.61 EUR
Mindestbestellmenge: 20
Im Einkaufswagen  Stück im Wert von  UAH
LDC-121-J-051-1AG-09 LDC-121-J-051-1AG-09 Linkplex DC121-B_1.0.pdf Description: CONN PWR JACK 2.1X5.5MM SOLDER
Packaging: Bag
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Panel Mount
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder Eyelet(s)
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.252" (6.40mm OD)
Mating Length/Depth: 0.374" (9.50mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 2.5 A
auf Bestellung 500 Stücke:
Lieferzeit 10-14 Tag (e)
18+1 EUR
21+0.85 EUR
25+0.8 EUR
50+0.76 EUR
100+0.72 EUR
250+0.68 EUR
500+0.64 EUR
Mindestbestellmenge: 18
Im Einkaufswagen  Stück im Wert von  UAH
LDC-122-J-052-1AG-09 LDC-122-J-052-1AG-09 Linkplex DC122-B_1.0.pdf Description: CONN PWR JACK 2.1X5.5MM SOLDER
Packaging: Bag
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder Eyelet(s)
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.248" (6.30mm OD)
Mating Length/Depth: 0.374" (9.50mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 2.5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-124HS-J-007-J-19 LDC-124HS-J-007-J-19 Linkplex DC124HS-A_1.0.pdf Description: CONN PWR JACK 2.1X5.5MM SOLDER
Packaging: Cut Tape (CT)
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Board Cutout, Through Hole, Right Angle
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.228" (5.80mm OD)
Mating Length/Depth: 0.327" (8.30mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 8 A
auf Bestellung 295 Stücke:
Lieferzeit 10-14 Tag (e)
8+2.45 EUR
10+2.08 EUR
25+1.95 EUR
50+1.85 EUR
100+1.77 EUR
Mindestbestellmenge: 8
Im Einkaufswagen  Stück im Wert von  UAH
LDC-124HS-J-007-J-19 LDC-124HS-J-007-J-19 Linkplex DC124HS-A_1.0.pdf Description: CONN PWR JACK 2.1X5.5MM SOLDER
Packaging: Tape & Reel (TR)
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Board Cutout, Through Hole, Right Angle
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.228" (5.80mm OD)
Mating Length/Depth: 0.327" (8.30mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 8 A
auf Bestellung 300 Stücke:
Lieferzeit 10-14 Tag (e)
300+1.63 EUR
Mindestbestellmenge: 300
Im Einkaufswagen  Stück im Wert von  UAH
LDC-125DT1-J-005-1AG-19 LDC-125DT1-J-005-1AG-19 Linkplex DC125DT1-A_1.0.pdf Description: CONN PWR JACK 2.1X5.5MM SOLDER
Packaging: Tape & Reel (TR)
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Panel Mount
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Kinked Pin, Solder Eyelet
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.252" (6.40mm OD)
Mating Length/Depth: 0.374" (9.50mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 2.5 A
auf Bestellung 250 Stücke:
Lieferzeit 10-14 Tag (e)
250+1.36 EUR
Mindestbestellmenge: 250
Im Einkaufswagen  Stück im Wert von  UAH
LDC-125DT1-J-005-1AG-19 LDC-125DT1-J-005-1AG-19 Linkplex DC125DT1-A_1.0.pdf Description: CONN PWR JACK 2.1X5.5MM SOLDER
Packaging: Cut Tape (CT)
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Panel Mount
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Kinked Pin, Solder Eyelet
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.252" (6.40mm OD)
Mating Length/Depth: 0.374" (9.50mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 2.5 A
auf Bestellung 248 Stücke:
Lieferzeit 10-14 Tag (e)
9+2.01 EUR
11+1.71 EUR
25+1.6 EUR
50+1.52 EUR
100+1.45 EUR
Mindestbestellmenge: 9
Im Einkaufswagen  Stück im Wert von  UAH
LDC-126D-H-005-1AG-19 LDC-126D-H-005-1AG-19 Linkplex DC126D-A_1.0.pdf Description: CONN PWR JACK 1.7X4MM SOLDER
Packaging: Tape & Reel (TR)
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Surface Mount, Right Angle
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.065" (1.65mm ID), 0.173" (4.40mm OD)
Mating Length/Depth: 0.315" (8.00mm)
Industry Recognized Mating Diameter: 1.70mm ID (0.067"), 4.00mm OD (0.157") EIAJ-2
Current Rating (Amps): 2.5 A
auf Bestellung 750 Stücke:
Lieferzeit 10-14 Tag (e)
750+0.94 EUR
Mindestbestellmenge: 750
Im Einkaufswagen  Stück im Wert von  UAH
LDC-126D-H-005-1AG-19 LDC-126D-H-005-1AG-19 Linkplex DC126D-A_1.0.pdf Description: CONN PWR JACK 1.7X4MM SOLDER
Packaging: Cut Tape (CT)
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Surface Mount, Right Angle
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.065" (1.65mm ID), 0.173" (4.40mm OD)
Mating Length/Depth: 0.315" (8.00mm)
Industry Recognized Mating Diameter: 1.70mm ID (0.067"), 4.00mm OD (0.157") EIAJ-2
Current Rating (Amps): 2.5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH

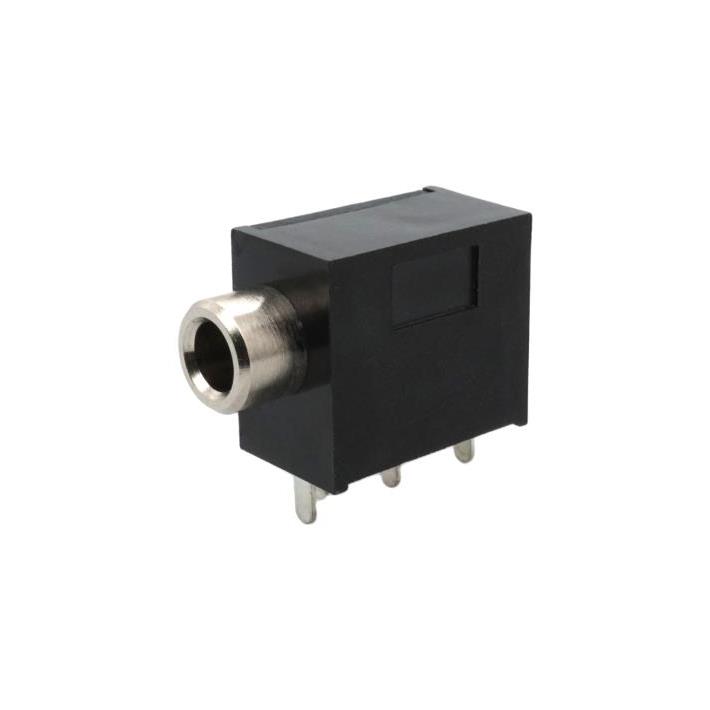

LSH-3555F-051-T2-29 LSH-3555F-051-T2-29 Linkplex SH355-B_1.0.pdf Description: CONN JACK STEREO 3.5MM R/A
Packaging: Tray
Connector Type: Phone Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 3 Conductors, 5 Contacts
Internal Switch(s): Two Switches
Signal Lines: Stereo (3 Conductor, TRS)
Termination: Solder
Actual Diameter: 0.142" (3.60mm)
Industry Recognized Mating Diameter: 3.50mm (0.141", 1/8", Mini Plug) - Headphone
auf Bestellung 397 Stücke:
Lieferzeit 10-14 Tag (e)
11+1.69 EUR
13+1.44 EUR
25+1.35 EUR
50+1.28 EUR
100+1.22 EUR
Mindestbestellmenge: 11
Im Einkaufswagen  Stück im Wert von  UAH

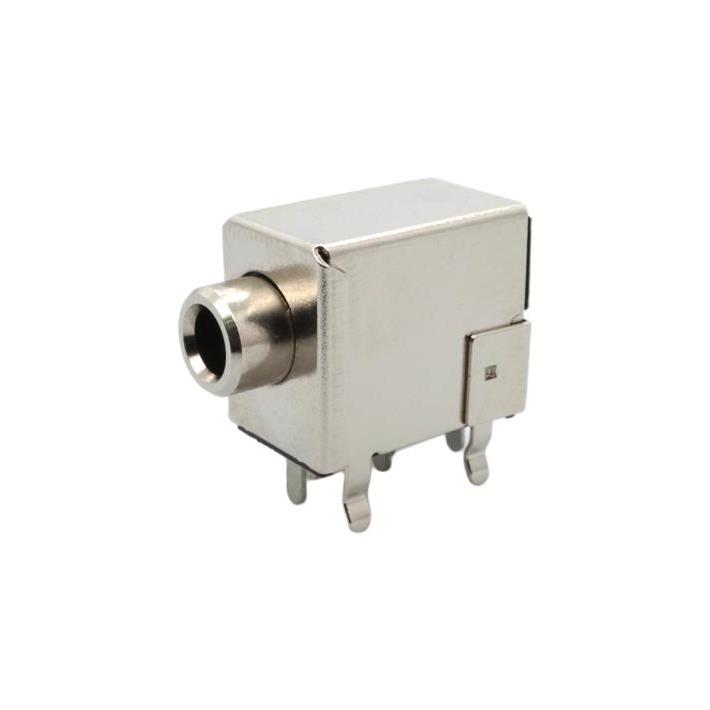

LSH-3555FS-051-T2-29 LSH-3555FS-051-T2-29 Linkplex SH355-B_1.0.pdf Description: CONN JACK STEREO 3.5MM R/A
Packaging: Tray
Connector Type: Phone Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 3 Conductors, 5 Contacts
Internal Switch(s): Two Switches
Signal Lines: Stereo (3 Conductor, TRS)
Termination: Solder
Actual Diameter: 0.142" (3.60mm)
Industry Recognized Mating Diameter: 3.50mm (0.141", 1/8", Mini Plug) - Headphone
auf Bestellung 400 Stücke:
Lieferzeit 10-14 Tag (e)
10+1.76 EUR
12+1.5 EUR
25+1.4 EUR
50+1.34 EUR
100+1.27 EUR
400+1.15 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
LSH-3555N-051-T2-29 LSH-3555N-051-T2-29 Linkplex SH355-B_1.0.pdf Description: CONN JACK STEREO 3.5MM R/A
Packaging: Tray
Connector Type: Phone Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 3 Conductors, 5 Contacts
Internal Switch(s): Two Switches
Signal Lines: Stereo (3 Conductor, TRS)
Termination: Solder
Actual Diameter: 0.142" (3.60mm)
Industry Recognized Mating Diameter: 3.50mm (0.141", 1/8", Mini Plug) - Headphone
auf Bestellung 400 Stücke:
Lieferzeit 10-14 Tag (e)
9+2.08 EUR
10+1.77 EUR
25+1.66 EUR
50+1.58 EUR
100+1.5 EUR
400+1.36 EUR
Mindestbestellmenge: 9
Im Einkaufswagen  Stück im Wert von  UAH

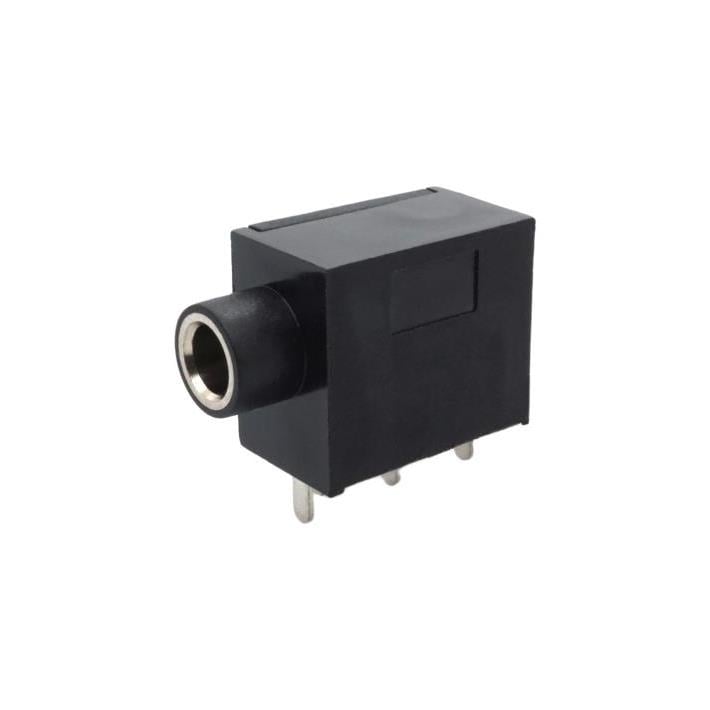

LSH-3645-051-T2-29 LSH-3645-051-T2-29 Linkplex SH364-B_1.0.pdf Description: CONN JACK STEREO 3.5MM R/A
Packaging: Tray
Connector Type: Phone Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 3 Conductors, 5 Contacts
Internal Switch(s): Two Switches
Signal Lines: Stereo (3 Conductor, TRS)
Termination: Solder
Actual Diameter: 0.142" (3.60mm)
Industry Recognized Mating Diameter: 3.50mm (0.141", 1/8", Mini Plug) - Headphone
auf Bestellung 396 Stücke:
Lieferzeit 10-14 Tag (e)
11+1.64 EUR
13+1.39 EUR
25+1.3 EUR
50+1.24 EUR
100+1.18 EUR
Mindestbestellmenge: 11
Im Einkaufswagen  Stück im Wert von  UAH

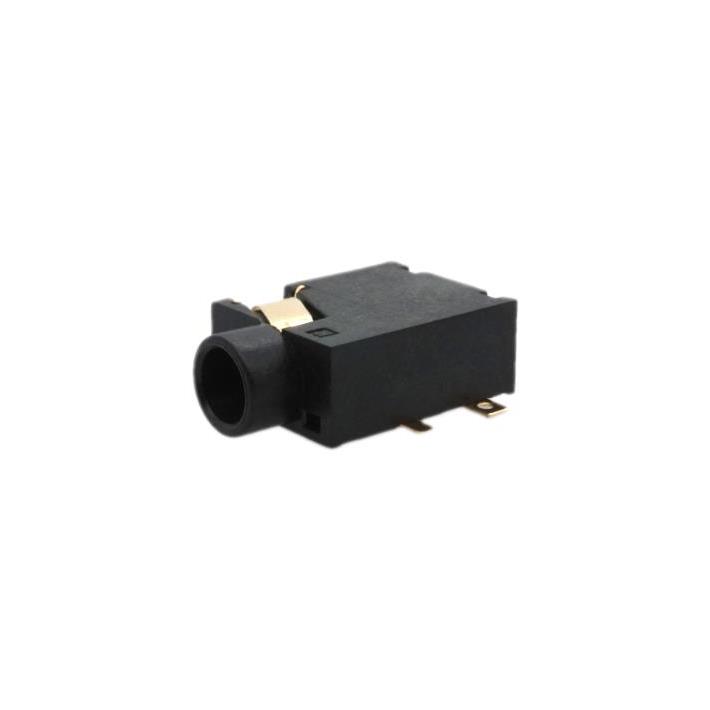

LSH-3675D-005-G-19 LSH-3675D-005-G-19 Linkplex SH367D-A_1.0.pdf Description: CONN JACK STEREO 3.5MM SMD R/A
Packaging: Tape & Reel (TR)
Connector Type: Phone Jack
Gender: Female
Mounting Type: Surface Mount, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 3 Conductors, 5 Contacts
Internal Switch(s): Two Switches
Signal Lines: Stereo (3 Conductor, TRS)
Termination: Solder
Actual Diameter: 0.142" (3.60mm)
Industry Recognized Mating Diameter: 3.50mm (0.141", 1/8", Mini Plug) - Headphone
auf Bestellung 600 Stücke:
Lieferzeit 10-14 Tag (e)
600+0.98 EUR
Mindestbestellmenge: 600
Im Einkaufswagen  Stück im Wert von  UAH
LSH-3675D-005-G-19 LSH-3675D-005-G-19 Linkplex SH367D-A_1.0.pdf Description: CONN JACK STEREO 3.5MM SMD R/A
Packaging: Cut Tape (CT)
Connector Type: Phone Jack
Gender: Female
Mounting Type: Surface Mount, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 3 Conductors, 5 Contacts
Internal Switch(s): Two Switches
Signal Lines: Stereo (3 Conductor, TRS)
Termination: Solder
Actual Diameter: 0.142" (3.60mm)
Industry Recognized Mating Diameter: 3.50mm (0.141", 1/8", Mini Plug) - Headphone
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH

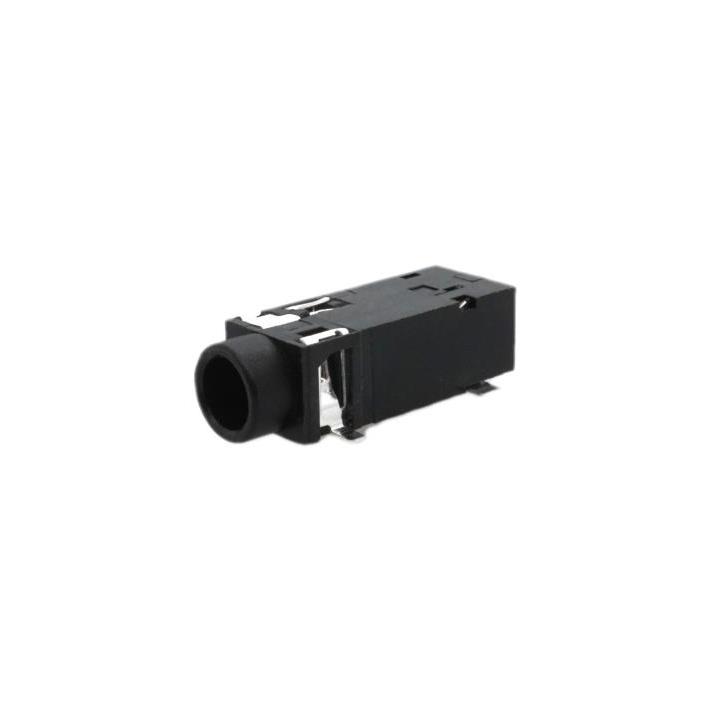

LSH-3695-005-1AG-19 LSH-3695-005-1AG-19 Linkplex SH369-A_1.0.pdf Description: CONN JACK STEREO 3.5MM SMD R/A
Packaging: Tape & Reel (TR)
Connector Type: Phone Jack
Gender: Female
Mounting Type: Surface Mount, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 3 Conductors, 5 Contacts
Internal Switch(s): Two Switches
Signal Lines: Stereo (3 Conductor, TRS)
Termination: Solder
Actual Diameter: 0.142" (3.60mm)
Industry Recognized Mating Diameter: 3.50mm (0.141", 1/8", Mini Plug) - Headphone
auf Bestellung 700 Stücke:
Lieferzeit 10-14 Tag (e)
700+0.99 EUR
Mindestbestellmenge: 700
Im Einkaufswagen  Stück im Wert von  UAH
LSH-3695-005-1AG-19 LSH-3695-005-1AG-19 Linkplex SH369-A_1.0.pdf Description: CONN JACK STEREO 3.5MM SMD R/A
Packaging: Cut Tape (CT)
Connector Type: Phone Jack
Gender: Female
Mounting Type: Surface Mount, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 3 Conductors, 5 Contacts
Internal Switch(s): Two Switches
Signal Lines: Stereo (3 Conductor, TRS)
Termination: Solder
Actual Diameter: 0.142" (3.60mm)
Industry Recognized Mating Diameter: 3.50mm (0.141", 1/8", Mini Plug) - Headphone
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH

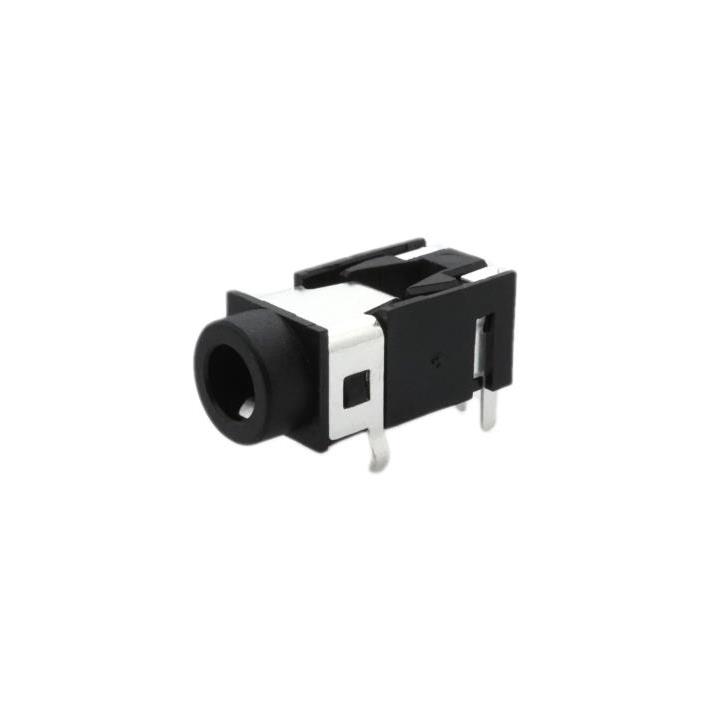

LSH-5114-005-AG-09 LSH-5114-005-AG-09 Linkplex SH511-A_1.1.pdf Description: CONN JACK STEREO 3.5MM R/A
Packaging: Bag
Connector Type: Phone Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 4 Conductors, 4 Contacts
Internal Switch(s): Does Not Contain Switch
Signal Lines: Stereo (4 Conductor, TRRS)
Termination: Kinked Pin, Solder
Actual Diameter: 0.142" (3.60mm)
Industry Recognized Mating Diameter: 3.50mm (0.141", 1/8", Mini Plug) - Headphone
auf Bestellung 500 Stücke:
Lieferzeit 10-14 Tag (e)
12+1.48 EUR
15+1.25 EUR
25+1.17 EUR
50+1.12 EUR
100+1.06 EUR
250+1 EUR
500+0.95 EUR
Mindestbestellmenge: 12
Im Einkaufswagen  Stück im Wert von  UAH

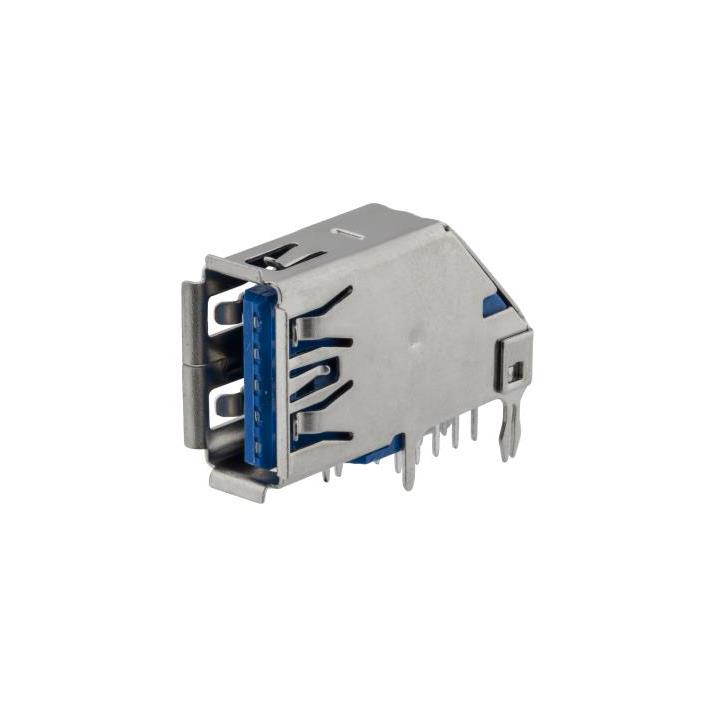

LUB-3002-BE-001-J-29 LUB-3002-BE-001-J-29 Linkplex UB3002-B_1.2.pdf Description: USB 3.2 GEN 1 TYPE-A RIGHT ANGLE
Packaging: Tray
Voltage - Rated: 5VDC
Number of Contacts: 9
Connector Type: USB-A (USB TYPE-A)
Gender: Receptacle
Current Rating (Amps): 0.25A, 1.8A
Mounting Type: Through Hole, Right Angle
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Specifications: USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0))
Mounting Feature: Vertical, Flag
Mating Cycles: 1500
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LUB-3003-BE-001-J-29 LUB-3003-BE-001-J-29 Linkplex Description: USB 3.2 GEN 1 TYPE-A VERT DIP
Packaging: Tray
Voltage - Rated: 5VDC
Number of Contacts: 9
Connector Type: USB-A (USB TYPE-A)
Gender: Receptacle
Current Rating (Amps): 0.25A, 1.8A
Mounting Type: Through Hole
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Specifications: USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0))
Mounting Feature: Vertical
Mating Cycles: 1500
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH

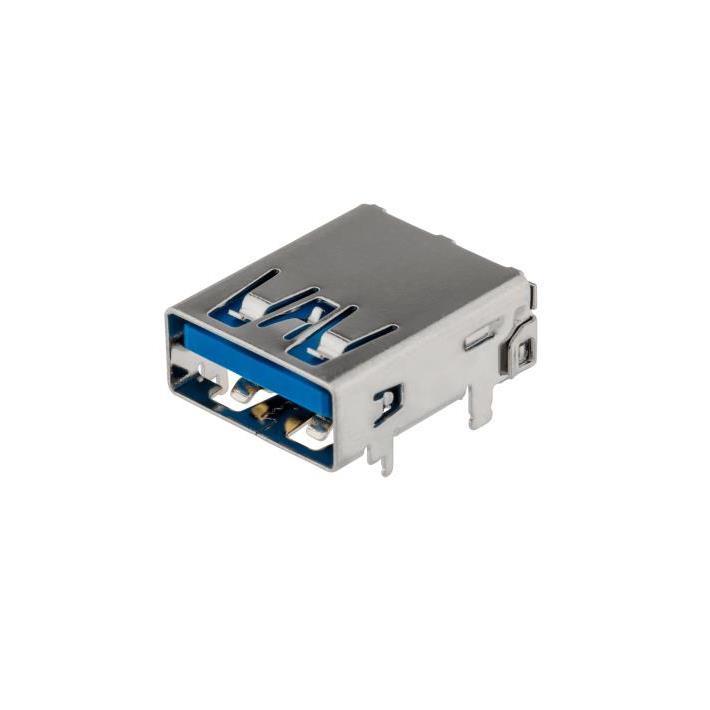

LUB-3004-BE-004-J-19 LUB-3004-BE-004-J-19 Linkplex Description: CONN USB 3.2 GEN 2 TYPE-A DIP
Packaging: Tape & Reel (TR)
Voltage - Rated: 5VDC
Number of Contacts: 9
Connector Type: USB-A (USB TYPE-A)
Gender: Receptacle
Current Rating (Amps): 0.25A, 1.8A
Mounting Type: Through Hole, Right Angle
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Specifications: USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Mating Cycles: 1500
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LUB-3004-BE-004-J-19 LUB-3004-BE-004-J-19 Linkplex Description: CONN USB 3.2 GEN 2 TYPE-A DIP
Packaging: Cut Tape (CT)
Voltage - Rated: 5VDC
Number of Contacts: 9
Connector Type: USB-A (USB TYPE-A)
Gender: Receptacle
Current Rating (Amps): 0.25A, 1.8A
Mounting Type: Through Hole, Right Angle
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Specifications: USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Mating Cycles: 1500
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LUB-3005-BE-001-J-29 LUB-3005-BE-001-J-29 Linkplex UB3005-B_1.1.pdf Description: CONN USB 3.2 GEN 1 TYPE-A DIP
Packaging: Tray
Voltage - Rated: 5VDC
Number of Contacts: 9
Connector Type: USB-A (USB TYPE-A)
Gender: Receptacle
Current Rating (Amps): 0.25A, 1.8A
Mounting Type: Through Hole, Right Angle
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Specifications: USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0))
Mating Cycles: 1500
auf Bestellung 495 Stücke:
Lieferzeit 10-14 Tag (e)
12+1.58 EUR
14+1.29 EUR
25+1.19 EUR
40+1.14 EUR
80+1.07 EUR
230+0.98 EUR
Mindestbestellmenge: 12
Im Einkaufswagen  Stück im Wert von  UAH
LUB-3006D-BE-007-J-29 LUB-3006D-BE-007-J-29 Linkplex UB3006D-A_1.2.pdf Description: CONN USB 3.2 GEN 1 TYPE-A SMT
Packaging: Tray
Voltage - Rated: 5VDC
Number of Contacts: 9
Connector Type: USB-A (USB TYPE-A)
Gender: Receptacle
Current Rating (Amps): 0.25A, 1.5A
Mounting Type: Board Edge, Cutout; Through Hole, Right Angle
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Specifications: USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0))
Mating Cycles: 1500
auf Bestellung 500 Stücke:
Lieferzeit 10-14 Tag (e)
10+1.81 EUR
12+1.48 EUR
25+1.36 EUR
40+1.31 EUR
80+1.23 EUR
230+1.12 EUR
500+1.04 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
LUB-C101D-004-G-19 LUB-C101D-004-G-19 Linkplex UBC101D-A_1.0.pdf Description: USB 4.0 TYPE C 24P MID-MNT
Packaging: Tape & Reel (TR)
Voltage - Rated: 20VDC
Number of Contacts: 24
Connector Type: USB-C (USB TYPE-C)
Gender: Receptacle
Current Rating (Amps): 0.25A, 1.25A, 5A
Mounting Type: Board Edge, Cutout; Surface Mount; Through Hole, Right Angle
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Specifications: USB 4.0
Termination: Solder
Mounting Feature: Horizontal, Mid Mount
Mating Cycles: 10000
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LUB-C101D-004-G-19 LUB-C101D-004-G-19 Linkplex UBC101D-A_1.0.pdf Description: USB 4.0 TYPE C 24P MID-MNT
Packaging: Cut Tape (CT)
Voltage - Rated: 20VDC
Number of Contacts: 24
Connector Type: USB-C (USB TYPE-C)
Gender: Receptacle
Current Rating (Amps): 0.25A, 1.25A, 5A
Mounting Type: Board Edge, Cutout; Surface Mount; Through Hole, Right Angle
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Specifications: USB 4.0
Termination: Solder
Mounting Feature: Horizontal, Mid Mount
Mating Cycles: 10000
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH

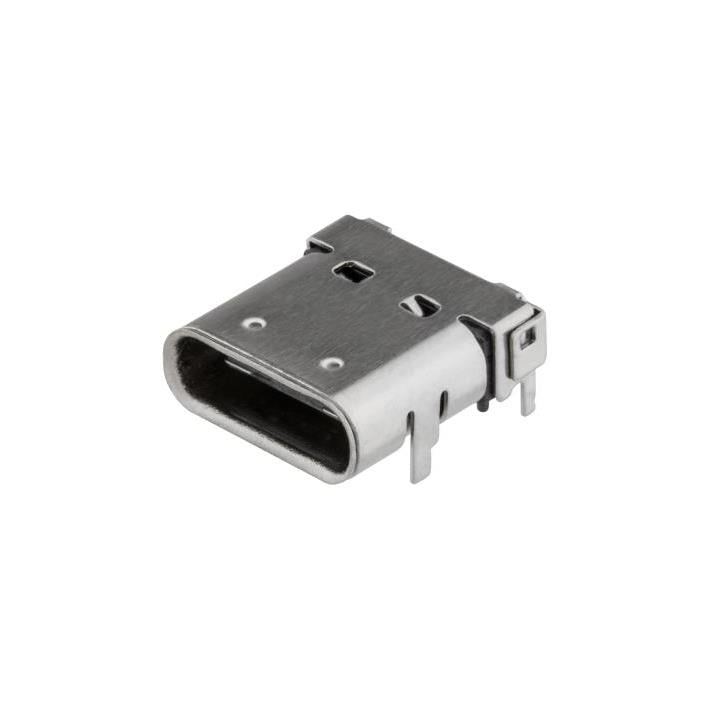

LUB-C103D-007-J-19 LUB-C103D-007-J-19 Linkplex UBC103D-A_1.1.pdf Description: USB 3.2 GEN2 TYPE C 24P
Packaging: Tape & Reel (TR)
Voltage - Rated: 20VDC
Number of Contacts: 24
Connector Type: USB-C (USB TYPE-C)
Gender: Receptacle
Current Rating (Amps): 0.25A, 1.25A, 5A
Mounting Type: Surface Mount, Right Angle; Through Hole
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Specifications: USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Mating Cycles: 10000
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LUB-C103D-007-J-19 LUB-C103D-007-J-19 Linkplex UBC103D-A_1.1.pdf Description: USB 3.2 GEN2 TYPE C 24P
Packaging: Cut Tape (CT)
Voltage - Rated: 20VDC
Number of Contacts: 24
Connector Type: USB-C (USB TYPE-C)
Gender: Receptacle
Current Rating (Amps): 0.25A, 1.25A, 5A
Mounting Type: Surface Mount, Right Angle; Through Hole
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Specifications: USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Mating Cycles: 10000
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LUB-C104D-007-G-19 LUB-C104D-007-G-19 Linkplex Description: CONN USB 2.0 TYPE C 16P
Packaging: Cut Tape (CT)
Voltage - Rated: 20VDC
Number of Contacts: 24 (16+8 Dummy)
Connector Type: USB-C (USB TYPE-C)
Gender: Receptacle
Current Rating (Amps): 0.25A, 1.25A, 5A
Mounting Type: Board Cutout, Surface Mount, Right Angle; Through Hole
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Specifications: USB 2.0
Mating Cycles: 10000
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-002-1-J-051-T2-09 DC002-1-B_1.0.pdf
LDC-002-1-J-051-T2-09
Hersteller: Linkplex
Description: CONN PWR JACK 2.1X5.5MM SOLDER
Packaging: Bag
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder Eyelet(s)
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.256" (6.50mm OD)
Mating Length/Depth: 0.354" (9.00mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 2.5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-002-1-L-051-T2-09 DC002-1-B_1.0.pdf
LDC-002-1-L-051-T2-09
Hersteller: Linkplex
Description: CONN PWR JACK 2.5X5.5MM SOLDER
Packaging: Bag
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder Eyelet(s)
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.098" (2.50mm ID), 0.256" (6.50mm OD)
Mating Length/Depth: 0.354" (9.00mm)
Industry Recognized Mating Diameter: 2.50mm ID (0.098"), 5.50mm OD (0.217")
Current Rating (Amps): 2.5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-002-2-J-051-T2-09 DC002-2-B_1.0.pdf
LDC-002-2-J-051-T2-09
Hersteller: Linkplex
Description: CONN PWR JACK 2.1X5.5MM
Packaging: Bag
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Kinked Pin
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.256" (6.50mm OD)
Mating Length/Depth: 0.354" (9.00mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 2.5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-002-2-L-051-T2-09 DC002-2-B_1.0.pdf
LDC-002-2-L-051-T2-09
Hersteller: Linkplex
Description: CONN PWR JACK 2.5X5.5MM
Packaging: Bag
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Kinked Pin
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.098" (2.50mm ID), 0.256" (6.50mm OD)
Mating Length/Depth: 0.354" (9.00mm)
Industry Recognized Mating Diameter: 2.50mm ID (0.098"), 5.50mm OD (0.217")
Current Rating (Amps): 2.5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-002H-1-J-051-1AG-09 DC002H-1-B_1.0.pdf
LDC-002H-1-J-051-1AG-09
Hersteller: Linkplex
Description: CONN PWR JACK 2.1X5.5MM SOLDER
Packaging: Bag
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder Eyelet(s)
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.256" (6.50mm OD)
Mating Length/Depth: 0.354" (9.00mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-002H-1-L-051-1AG-09 DC002H-1-B_1.0.pdf
LDC-002H-1-L-051-1AG-09
Hersteller: Linkplex
Description: CONN PWR JACK 2.5X5.5MM SOLDER
Packaging: Bag
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder Eyelet(s)
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.098" (2.50mm ID), 0.256" (6.50mm OD)
Mating Length/Depth: 0.354" (9.00mm)
Industry Recognized Mating Diameter: 2.50mm ID (0.098"), 5.50mm OD (0.217")
Current Rating (Amps): 5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-002H-2-J-051-1AG-09 DC002H-2-B_1.1.pdf
LDC-002H-2-J-051-1AG-09
Hersteller: Linkplex
Description: CONN PWR JACK 2.1X5.5MM
Packaging: Bag
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Kinked Pin
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.256" (6.50mm OD)
Mating Length/Depth: 0.354" (9.00mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-002H-2-L-051-1AG-09 DC002H-2-B_1.1.pdf
LDC-002H-2-L-051-1AG-09
Hersteller: Linkplex
Description: CONN PWR JACK 2.5X5.5MM
Packaging: Bag
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Kinked Pin
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.098" (2.50mm ID), 0.256" (6.50mm OD)
Mating Length/Depth: 0.354" (9.00mm)
Industry Recognized Mating Diameter: 2.50mm ID (0.098"), 5.50mm OD (0.217")
Current Rating (Amps): 5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-002H-3-J-051-1AG-29 DC002H-3-B_1.1.pdf
LDC-002H-3-J-051-1AG-29
Hersteller: Linkplex
Description: CONN PWR JACK 2.1X5.5MM SOLDER
Packaging: Tray
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.256" (6.50mm OD)
Mating Length/Depth: 0.354" (9.00mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-002H-3-L-051-1AG-29 DC002H-3-B_1.1.pdf
LDC-002H-3-L-051-1AG-29
Hersteller: Linkplex
Description: CONN PWR JACK 2.5X5.5MM SOLDER
Packaging: Tray
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.098" (2.50mm ID), 0.256" (6.50mm OD)
Mating Length/Depth: 0.354" (9.00mm)
Industry Recognized Mating Diameter: 2.50mm ID (0.098"), 5.50mm OD (0.217")
Current Rating (Amps): 5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-008H-J-051-1AG-09 DC008H-B_1.1.pdf
LDC-008H-J-051-1AG-09
Hersteller: Linkplex
Description: CONN PWR JACK 2.1X5.5MM SOLDER
Packaging: Bag
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Panel Mount
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder Eyelet(s)
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.260" (6.60mm OD)
Mating Length/Depth: 0.378" (9.60mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 5 A
auf Bestellung 482 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
15+1.2 EUR
18+1.01 EUR
25+0.94 EUR
50+0.9 EUR
100+0.86 EUR
250+0.8 EUR
Mindestbestellmenge: 15
Im Einkaufswagen  Stück im Wert von  UAH
LDC-016H-J-005-1AG-19 DC016H-A_1.0.pdf
LDC-016H-J-005-1AG-19
Hersteller: Linkplex
Description: CONN PWR JACK 2.1X5.5MM SOLDER
Packaging: Tape & Reel (TR)
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Surface Mount, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.252" (6.40mm OD)
Mating Length/Depth: 0.366" (9.30mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 5 A
auf Bestellung 250 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
250+1.12 EUR
Mindestbestellmenge: 250
Im Einkaufswagen  Stück im Wert von  UAH
LDC-016H-J-005-1AG-19 DC016H-A_1.0.pdf
LDC-016H-J-005-1AG-19
Hersteller: Linkplex
Description: CONN PWR JACK 2.1X5.5MM SOLDER
Packaging: Cut Tape (CT)
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Surface Mount, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.252" (6.40mm OD)
Mating Length/Depth: 0.366" (9.30mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 5 A
auf Bestellung 243 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
11+1.65 EUR
13+1.41 EUR
25+1.32 EUR
50+1.25 EUR
100+1.19 EUR
Mindestbestellmenge: 11
Im Einkaufswagen  Stück im Wert von  UAH
LDC-018H-E-005-1AG-19 DC018H-A_1.0.pdf
LDC-018H-E-005-1AG-19
Hersteller: Linkplex
Description: CONN PWR JACK 1.1X3.5MM SOLDER
Packaging: Tape & Reel (TR)
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Surface Mount, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.039" (1.00mm ID), 0.154" (3.90mm OD)
Mating Length/Depth: 0.236" (6.00mm)
Industry Recognized Mating Diameter: 1.10mm ID (0.043"), 3.50mm OD (0.138")
Current Rating (Amps): 3.5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-018H-E-005-1AG-19 DC018H-A_1.0.pdf
LDC-018H-E-005-1AG-19
Hersteller: Linkplex
Description: CONN PWR JACK 1.1X3.5MM SOLDER
Packaging: Cut Tape (CT)
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Surface Mount, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.039" (1.00mm ID), 0.154" (3.90mm OD)
Mating Length/Depth: 0.236" (6.00mm)
Industry Recognized Mating Diameter: 1.10mm ID (0.043"), 3.50mm OD (0.138")
Current Rating (Amps): 3.5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-018H-F-005-1AG-19 DC018H-A_1.0.pdf
LDC-018H-F-005-1AG-19
Hersteller: Linkplex
Description: CONN PWR JACK 1.35X3.5MM SOLDER
Packaging: Tape & Reel (TR)
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Surface Mount, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.051" (1.30mm ID), 0.154" (3.90mm OD)
Mating Length/Depth: 0.236" (6.00mm)
Industry Recognized Mating Diameter: 1.35mm ID (0.053"), 3.50mm OD (0.138")
Current Rating (Amps): 3.5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-018H-F-005-1AG-19 DC018H-A_1.0.pdf
LDC-018H-F-005-1AG-19
Hersteller: Linkplex
Description: CONN PWR JACK 1.35X3.5MM SOLDER
Packaging: Cut Tape (CT)
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Surface Mount, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.051" (1.30mm ID), 0.154" (3.90mm OD)
Mating Length/Depth: 0.236" (6.00mm)
Industry Recognized Mating Diameter: 1.35mm ID (0.053"), 3.50mm OD (0.138")
Current Rating (Amps): 3.5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-022-E-052-AG-09 DC022-B_1.3.pdf
LDC-022-E-052-AG-09
Hersteller: Linkplex
Description: CONN PWR JACK 1.1X3.5MM SOLDER
Packaging: Bag
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.039" (1.00mm ID), 0.150" (3.80mm OD)
Mating Length/Depth: 0.256" (6.50mm)
Industry Recognized Mating Diameter: 1.10mm ID (0.043"), 3.50mm OD (0.138")
Current Rating (Amps): 2 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-022-F-052-AG-09 DC022-B_1.3.pdf
LDC-022-F-052-AG-09
Hersteller: Linkplex
Description: CONN PWR JACK 1.35X3.5MM SOLDER
Packaging: Bag
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.039" (1.00mm ID), 0.150" (3.80mm OD)
Mating Length/Depth: 0.256" (6.50mm)
Industry Recognized Mating Diameter: 1.35mm ID (0.053"), 3.50mm OD (0.138")
Current Rating (Amps): 2 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-022H-E-052-1AG-09 DC022H-B_1.2.pdf
LDC-022H-E-052-1AG-09
Hersteller: Linkplex
Description: CONN PWR JACK 1.1X3.5MM SOLDER
Packaging: Bag
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.039" (1.00mm ID), 0.150" (3.80mm OD)
Mating Length/Depth: 0.256" (6.50mm)
Industry Recognized Mating Diameter: 1.10mm ID (0.043"), 3.50mm OD (0.138")
Current Rating (Amps): 3.5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-022H-F-052-1AG-09 DC022H-B_1.2.pdf
LDC-022H-F-052-1AG-09
Hersteller: Linkplex
Description: CONN PWR JACK 1.35X3.5MM SOLDER
Packaging: Bag
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.051" (1.30mm ID), 0.150" (3.80mm OD)
Mating Length/Depth: 0.335" (8.50mm)
Industry Recognized Mating Diameter: 1.35mm ID (0.053"), 3.50mm OD (0.138")
Current Rating (Amps): 3.5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-024H-H-051-1AG-09 DC024H-B_1.1.pdf
LDC-024H-H-051-1AG-09
Hersteller: Linkplex
Description: CONN PWR JACK 1.7X4.75MM
Packaging: Bag
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Kinked Pin
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.065" (1.65mm ID), 0.203" (5.15mm OD)
Mating Length/Depth: 0.335" (8.50mm)
Industry Recognized Mating Diameter: 1.70mm ID (0.067"), 4.75mm OD (0.187") EIAJ-3
Current Rating (Amps): 5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-038HS-J-051-1AG-09 DC038HS-B_1.1.pdf
LDC-038HS-J-051-1AG-09
Hersteller: Linkplex
Description: CONN PWR JACK 2.1X5.5MM SOLDER
Packaging: Bag
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.236" (6.00mm OD)
Mating Length/Depth: 0.323" (8.20mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-038S-J-051-T2-29 DC038S-B_1.0.pdf
LDC-038S-J-051-T2-29
Hersteller: Linkplex
Description: CONN PWR JACK 2.1X5.5MM SOLDER
Packaging: Tray
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.236" (6.00mm OD)
Mating Length/Depth: 0.327" (8.30mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 2.5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-040H-2-N-051-1AG-09 DC040H-2-3.0-B_1.0.pdf
LDC-040H-2-N-051-1AG-09
Hersteller: Linkplex
Description: CONN PWR JACK 3X6.5MM SOLDER
Packaging: Bag
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Kinked Pin
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.118" (3.00mm ID), 0.287" (7.30mm OD)
Mating Length/Depth: 0.362" (9.20mm)
Industry Recognized Mating Diameter: 3.00mm ID (0.118"), 6.50mm OD (0.256")
Current Rating (Amps): 5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-058-2-E-051-T2-09 DC058-2-B_1.1.pdf
LDC-058-2-E-051-T2-09
Hersteller: Linkplex
Description: CONN PWR JACK 1X3.3X5.5MM
Packaging: Bag
Features: Board Guide
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Kinked Pin
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.039" (1.00mm ID), 0.232" (5.90mm OD)
Mating Length/Depth: 0.354" (9.00mm)
Industry Recognized Mating Diameter: 1.00mm ID (0.039"), 3.30mm ID (0.130"), 5.500mm OD (0.217") EIAJ-4
Current Rating (Amps): 3 A
auf Bestellung 456 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
17+1.09 EUR
20+0.89 EUR
Mindestbestellmenge: 17
Im Einkaufswagen  Stück im Wert von  UAH
LDC-061DH-J-005-1AG-19 DC061DH-A_1.0.pdf
LDC-061DH-J-005-1AG-19
Hersteller: Linkplex
Description: CONN PWR JACK 2.1X5.5MM SOLDER
Packaging: Cut Tape (CT)
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Surface Mount, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.252" (6.40mm OD)
Mating Length/Depth: 0.343" (8.70mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 5 A
auf Bestellung 199 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
10+1.83 EUR
12+1.56 EUR
25+1.46 EUR
50+1.39 EUR
100+1.32 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
LDC-061DH-J-005-1AG-19 DC061DH-A_1.0.pdf
LDC-061DH-J-005-1AG-19
Hersteller: Linkplex
Description: CONN PWR JACK 2.1X5.5MM SOLDER
Packaging: Tape & Reel (TR)
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Surface Mount, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.252" (6.40mm OD)
Mating Length/Depth: 0.343" (8.70mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 5 A
auf Bestellung 200 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
200+1.26 EUR
Mindestbestellmenge: 200
Im Einkaufswagen  Stück im Wert von  UAH
LDC-069HS-J-005-1AG-19 DC069HS-A_2.1.pdf
LDC-069HS-J-005-1AG-19
Hersteller: Linkplex
Description: CONN PWR JACK 2.1X5.5MM SOLDER
Packaging: Tape & Reel (TR)
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.228" (5.80mm OD)
Mating Length/Depth: 0.364" (9.25mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-069HS-J-005-1AG-19 DC069HS-A_2.1.pdf
LDC-069HS-J-005-1AG-19
Hersteller: Linkplex
Description: CONN PWR JACK 2.1X5.5MM SOLDER
Packaging: Cut Tape (CT)
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.228" (5.80mm OD)
Mating Length/Depth: 0.364" (9.25mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 5 A
auf Bestellung 480 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
14+1.3 EUR
16+1.11 EUR
25+1.04 EUR
50+0.99 EUR
100+0.94 EUR
250+0.89 EUR
Mindestbestellmenge: 14
Im Einkaufswagen  Stück im Wert von  UAH
LDC-078HS-J-051-1AG-09 DC078HS-B_1.1.pdf
LDC-078HS-J-051-1AG-09
Hersteller: Linkplex
Description: CONN PWR JACK 2.1X5.5MM
Packaging: Bag
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 2 Contacts
Internal Switch(s): Does Not Contain Switch
Termination: Kinked Pin
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.256" (6.50mm OD)
Mating Length/Depth: 0.348" (8.85mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 8 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-120-J-051-1AG-09 DC120-B_1.0.pdf
LDC-120-J-051-1AG-09
Hersteller: Linkplex
Description: CONN PWR JACK 2.1X5.5MM
Packaging: Bag
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Panel Mount
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Kinked Pin
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.248" (6.30mm OD)
Mating Length/Depth: 0.374" (9.50mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 2.5 A
auf Bestellung 483 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
20+0.9 EUR
23+0.77 EUR
25+0.72 EUR
50+0.69 EUR
100+0.65 EUR
250+0.61 EUR
Mindestbestellmenge: 20
Im Einkaufswagen  Stück im Wert von  UAH
LDC-121-J-051-1AG-09 DC121-B_1.0.pdf
LDC-121-J-051-1AG-09
Hersteller: Linkplex
Description: CONN PWR JACK 2.1X5.5MM SOLDER
Packaging: Bag
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Panel Mount
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder Eyelet(s)
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.252" (6.40mm OD)
Mating Length/Depth: 0.374" (9.50mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 2.5 A
auf Bestellung 500 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
18+1 EUR
21+0.85 EUR
25+0.8 EUR
50+0.76 EUR
100+0.72 EUR
250+0.68 EUR
500+0.64 EUR
Mindestbestellmenge: 18
Im Einkaufswagen  Stück im Wert von  UAH
LDC-122-J-052-1AG-09 DC122-B_1.0.pdf
LDC-122-J-052-1AG-09
Hersteller: Linkplex
Description: CONN PWR JACK 2.1X5.5MM SOLDER
Packaging: Bag
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder Eyelet(s)
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.248" (6.30mm OD)
Mating Length/Depth: 0.374" (9.50mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 2.5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LDC-124HS-J-007-J-19 DC124HS-A_1.0.pdf
LDC-124HS-J-007-J-19
Hersteller: Linkplex
Description: CONN PWR JACK 2.1X5.5MM SOLDER
Packaging: Cut Tape (CT)
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Board Cutout, Through Hole, Right Angle
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.228" (5.80mm OD)
Mating Length/Depth: 0.327" (8.30mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 8 A
auf Bestellung 295 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
8+2.45 EUR
10+2.08 EUR
25+1.95 EUR
50+1.85 EUR
100+1.77 EUR
Mindestbestellmenge: 8
Im Einkaufswagen  Stück im Wert von  UAH
LDC-124HS-J-007-J-19 DC124HS-A_1.0.pdf
LDC-124HS-J-007-J-19
Hersteller: Linkplex
Description: CONN PWR JACK 2.1X5.5MM SOLDER
Packaging: Tape & Reel (TR)
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Board Cutout, Through Hole, Right Angle
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.228" (5.80mm OD)
Mating Length/Depth: 0.327" (8.30mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 8 A
auf Bestellung 300 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
300+1.63 EUR
Mindestbestellmenge: 300
Im Einkaufswagen  Stück im Wert von  UAH
LDC-125DT1-J-005-1AG-19 DC125DT1-A_1.0.pdf
LDC-125DT1-J-005-1AG-19
Hersteller: Linkplex
Description: CONN PWR JACK 2.1X5.5MM SOLDER
Packaging: Tape & Reel (TR)
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Panel Mount
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Kinked Pin, Solder Eyelet
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.252" (6.40mm OD)
Mating Length/Depth: 0.374" (9.50mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 2.5 A
auf Bestellung 250 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
250+1.36 EUR
Mindestbestellmenge: 250
Im Einkaufswagen  Stück im Wert von  UAH
LDC-125DT1-J-005-1AG-19 DC125DT1-A_1.0.pdf
LDC-125DT1-J-005-1AG-19
Hersteller: Linkplex
Description: CONN PWR JACK 2.1X5.5MM SOLDER
Packaging: Cut Tape (CT)
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Panel Mount
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Kinked Pin, Solder Eyelet
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.079" (2.00mm ID), 0.252" (6.40mm OD)
Mating Length/Depth: 0.374" (9.50mm)
Industry Recognized Mating Diameter: 2.10mm ID (0.083"), 5.50mm OD (0.217")
Current Rating (Amps): 2.5 A
auf Bestellung 248 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
9+2.01 EUR
11+1.71 EUR
25+1.6 EUR
50+1.52 EUR
100+1.45 EUR
Mindestbestellmenge: 9
Im Einkaufswagen  Stück im Wert von  UAH
LDC-126D-H-005-1AG-19 DC126D-A_1.0.pdf
LDC-126D-H-005-1AG-19
Hersteller: Linkplex
Description: CONN PWR JACK 1.7X4MM SOLDER
Packaging: Tape & Reel (TR)
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Surface Mount, Right Angle
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.065" (1.65mm ID), 0.173" (4.40mm OD)
Mating Length/Depth: 0.315" (8.00mm)
Industry Recognized Mating Diameter: 1.70mm ID (0.067"), 4.00mm OD (0.157") EIAJ-2
Current Rating (Amps): 2.5 A
auf Bestellung 750 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
750+0.94 EUR
Mindestbestellmenge: 750
Im Einkaufswagen  Stück im Wert von  UAH
LDC-126D-H-005-1AG-19 DC126D-A_1.0.pdf
LDC-126D-H-005-1AG-19
Hersteller: Linkplex
Description: CONN PWR JACK 1.7X4MM SOLDER
Packaging: Cut Tape (CT)
Voltage - Rated: 24VDC
Connector Type: Jack
Gender: Female
Mounting Type: Surface Mount, Right Angle
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 2 Conductors, 3 Contacts
Internal Switch(s): Single Switch, Normally Closed
Termination: Solder
Material Flammability Rating: UL94 V-0
Actual Diameter: 0.065" (1.65mm ID), 0.173" (4.40mm OD)
Mating Length/Depth: 0.315" (8.00mm)
Industry Recognized Mating Diameter: 1.70mm ID (0.067"), 4.00mm OD (0.157") EIAJ-2
Current Rating (Amps): 2.5 A
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LSH-3555F-051-T2-29 SH355-B_1.0.pdf
LSH-3555F-051-T2-29
Hersteller: Linkplex
Description: CONN JACK STEREO 3.5MM R/A
Packaging: Tray
Connector Type: Phone Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 3 Conductors, 5 Contacts
Internal Switch(s): Two Switches
Signal Lines: Stereo (3 Conductor, TRS)
Termination: Solder
Actual Diameter: 0.142" (3.60mm)
Industry Recognized Mating Diameter: 3.50mm (0.141", 1/8", Mini Plug) - Headphone
auf Bestellung 397 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
11+1.69 EUR
13+1.44 EUR
25+1.35 EUR
50+1.28 EUR
100+1.22 EUR
Mindestbestellmenge: 11
Im Einkaufswagen  Stück im Wert von  UAH
LSH-3555FS-051-T2-29 SH355-B_1.0.pdf
LSH-3555FS-051-T2-29
Hersteller: Linkplex
Description: CONN JACK STEREO 3.5MM R/A
Packaging: Tray
Connector Type: Phone Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 3 Conductors, 5 Contacts
Internal Switch(s): Two Switches
Signal Lines: Stereo (3 Conductor, TRS)
Termination: Solder
Actual Diameter: 0.142" (3.60mm)
Industry Recognized Mating Diameter: 3.50mm (0.141", 1/8", Mini Plug) - Headphone
auf Bestellung 400 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
10+1.76 EUR
12+1.5 EUR
25+1.4 EUR
50+1.34 EUR
100+1.27 EUR
400+1.15 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
LSH-3555N-051-T2-29 SH355-B_1.0.pdf
LSH-3555N-051-T2-29
Hersteller: Linkplex
Description: CONN JACK STEREO 3.5MM R/A
Packaging: Tray
Connector Type: Phone Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 3 Conductors, 5 Contacts
Internal Switch(s): Two Switches
Signal Lines: Stereo (3 Conductor, TRS)
Termination: Solder
Actual Diameter: 0.142" (3.60mm)
Industry Recognized Mating Diameter: 3.50mm (0.141", 1/8", Mini Plug) - Headphone
auf Bestellung 400 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
9+2.08 EUR
10+1.77 EUR
25+1.66 EUR
50+1.58 EUR
100+1.5 EUR
400+1.36 EUR
Mindestbestellmenge: 9
Im Einkaufswagen  Stück im Wert von  UAH
LSH-3645-051-T2-29 SH364-B_1.0.pdf
LSH-3645-051-T2-29
Hersteller: Linkplex
Description: CONN JACK STEREO 3.5MM R/A
Packaging: Tray
Connector Type: Phone Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 3 Conductors, 5 Contacts
Internal Switch(s): Two Switches
Signal Lines: Stereo (3 Conductor, TRS)
Termination: Solder
Actual Diameter: 0.142" (3.60mm)
Industry Recognized Mating Diameter: 3.50mm (0.141", 1/8", Mini Plug) - Headphone
auf Bestellung 396 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
11+1.64 EUR
13+1.39 EUR
25+1.3 EUR
50+1.24 EUR
100+1.18 EUR
Mindestbestellmenge: 11
Im Einkaufswagen  Stück im Wert von  UAH
LSH-3675D-005-G-19 SH367D-A_1.0.pdf
LSH-3675D-005-G-19
Hersteller: Linkplex
Description: CONN JACK STEREO 3.5MM SMD R/A
Packaging: Tape & Reel (TR)
Connector Type: Phone Jack
Gender: Female
Mounting Type: Surface Mount, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 3 Conductors, 5 Contacts
Internal Switch(s): Two Switches
Signal Lines: Stereo (3 Conductor, TRS)
Termination: Solder
Actual Diameter: 0.142" (3.60mm)
Industry Recognized Mating Diameter: 3.50mm (0.141", 1/8", Mini Plug) - Headphone
auf Bestellung 600 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
600+0.98 EUR
Mindestbestellmenge: 600
Im Einkaufswagen  Stück im Wert von  UAH
LSH-3675D-005-G-19 SH367D-A_1.0.pdf
LSH-3675D-005-G-19
Hersteller: Linkplex
Description: CONN JACK STEREO 3.5MM SMD R/A
Packaging: Cut Tape (CT)
Connector Type: Phone Jack
Gender: Female
Mounting Type: Surface Mount, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 3 Conductors, 5 Contacts
Internal Switch(s): Two Switches
Signal Lines: Stereo (3 Conductor, TRS)
Termination: Solder
Actual Diameter: 0.142" (3.60mm)
Industry Recognized Mating Diameter: 3.50mm (0.141", 1/8", Mini Plug) - Headphone
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LSH-3695-005-1AG-19 SH369-A_1.0.pdf
LSH-3695-005-1AG-19
Hersteller: Linkplex
Description: CONN JACK STEREO 3.5MM SMD R/A
Packaging: Tape & Reel (TR)
Connector Type: Phone Jack
Gender: Female
Mounting Type: Surface Mount, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 3 Conductors, 5 Contacts
Internal Switch(s): Two Switches
Signal Lines: Stereo (3 Conductor, TRS)
Termination: Solder
Actual Diameter: 0.142" (3.60mm)
Industry Recognized Mating Diameter: 3.50mm (0.141", 1/8", Mini Plug) - Headphone
auf Bestellung 700 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
700+0.99 EUR
Mindestbestellmenge: 700
Im Einkaufswagen  Stück im Wert von  UAH
LSH-3695-005-1AG-19 SH369-A_1.0.pdf
LSH-3695-005-1AG-19
Hersteller: Linkplex
Description: CONN JACK STEREO 3.5MM SMD R/A
Packaging: Cut Tape (CT)
Connector Type: Phone Jack
Gender: Female
Mounting Type: Surface Mount, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 3 Conductors, 5 Contacts
Internal Switch(s): Two Switches
Signal Lines: Stereo (3 Conductor, TRS)
Termination: Solder
Actual Diameter: 0.142" (3.60mm)
Industry Recognized Mating Diameter: 3.50mm (0.141", 1/8", Mini Plug) - Headphone
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LSH-5114-005-AG-09 SH511-A_1.1.pdf
LSH-5114-005-AG-09
Hersteller: Linkplex
Description: CONN JACK STEREO 3.5MM R/A
Packaging: Bag
Connector Type: Phone Jack
Gender: Female
Mounting Type: Through Hole, Right Angle
Shielding: Unshielded
Operating Temperature: -25°C ~ 85°C
Number of Positions/Contacts: 4 Conductors, 4 Contacts
Internal Switch(s): Does Not Contain Switch
Signal Lines: Stereo (4 Conductor, TRRS)
Termination: Kinked Pin, Solder
Actual Diameter: 0.142" (3.60mm)
Industry Recognized Mating Diameter: 3.50mm (0.141", 1/8", Mini Plug) - Headphone
auf Bestellung 500 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
12+1.48 EUR
15+1.25 EUR
25+1.17 EUR
50+1.12 EUR
100+1.06 EUR
250+1 EUR
500+0.95 EUR
Mindestbestellmenge: 12
Im Einkaufswagen  Stück im Wert von  UAH
LUB-3002-BE-001-J-29 UB3002-B_1.2.pdf
LUB-3002-BE-001-J-29
Hersteller: Linkplex
Description: USB 3.2 GEN 1 TYPE-A RIGHT ANGLE
Packaging: Tray
Voltage - Rated: 5VDC
Number of Contacts: 9
Connector Type: USB-A (USB TYPE-A)
Gender: Receptacle
Current Rating (Amps): 0.25A, 1.8A
Mounting Type: Through Hole, Right Angle
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Specifications: USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0))
Mounting Feature: Vertical, Flag
Mating Cycles: 1500
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LUB-3003-BE-001-J-29
LUB-3003-BE-001-J-29
Hersteller: Linkplex
Description: USB 3.2 GEN 1 TYPE-A VERT DIP
Packaging: Tray
Voltage - Rated: 5VDC
Number of Contacts: 9
Connector Type: USB-A (USB TYPE-A)
Gender: Receptacle
Current Rating (Amps): 0.25A, 1.8A
Mounting Type: Through Hole
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Specifications: USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0))
Mounting Feature: Vertical
Mating Cycles: 1500
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LUB-3004-BE-004-J-19
LUB-3004-BE-004-J-19
Hersteller: Linkplex
Description: CONN USB 3.2 GEN 2 TYPE-A DIP
Packaging: Tape & Reel (TR)
Voltage - Rated: 5VDC
Number of Contacts: 9
Connector Type: USB-A (USB TYPE-A)
Gender: Receptacle
Current Rating (Amps): 0.25A, 1.8A
Mounting Type: Through Hole, Right Angle
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Specifications: USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Mating Cycles: 1500
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LUB-3004-BE-004-J-19
LUB-3004-BE-004-J-19
Hersteller: Linkplex
Description: CONN USB 3.2 GEN 2 TYPE-A DIP
Packaging: Cut Tape (CT)
Voltage - Rated: 5VDC
Number of Contacts: 9
Connector Type: USB-A (USB TYPE-A)
Gender: Receptacle
Current Rating (Amps): 0.25A, 1.8A
Mounting Type: Through Hole, Right Angle
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Specifications: USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Mating Cycles: 1500
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LUB-3005-BE-001-J-29 UB3005-B_1.1.pdf
LUB-3005-BE-001-J-29
Hersteller: Linkplex
Description: CONN USB 3.2 GEN 1 TYPE-A DIP
Packaging: Tray
Voltage - Rated: 5VDC
Number of Contacts: 9
Connector Type: USB-A (USB TYPE-A)
Gender: Receptacle
Current Rating (Amps): 0.25A, 1.8A
Mounting Type: Through Hole, Right Angle
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Specifications: USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0))
Mating Cycles: 1500
auf Bestellung 495 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
12+1.58 EUR
14+1.29 EUR
25+1.19 EUR
40+1.14 EUR
80+1.07 EUR
230+0.98 EUR
Mindestbestellmenge: 12
Im Einkaufswagen  Stück im Wert von  UAH
LUB-3006D-BE-007-J-29 UB3006D-A_1.2.pdf
LUB-3006D-BE-007-J-29
Hersteller: Linkplex
Description: CONN USB 3.2 GEN 1 TYPE-A SMT
Packaging: Tray
Voltage - Rated: 5VDC
Number of Contacts: 9
Connector Type: USB-A (USB TYPE-A)
Gender: Receptacle
Current Rating (Amps): 0.25A, 1.5A
Mounting Type: Board Edge, Cutout; Through Hole, Right Angle
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Specifications: USB 3.2 Gen 1 (USB 3.1 Gen 1, Superspeed (USB 3.0))
Mating Cycles: 1500
auf Bestellung 500 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
10+1.81 EUR
12+1.48 EUR
25+1.36 EUR
40+1.31 EUR
80+1.23 EUR
230+1.12 EUR
500+1.04 EUR
Mindestbestellmenge: 10
Im Einkaufswagen  Stück im Wert von  UAH
LUB-C101D-004-G-19 UBC101D-A_1.0.pdf
LUB-C101D-004-G-19
Hersteller: Linkplex
Description: USB 4.0 TYPE C 24P MID-MNT
Packaging: Tape & Reel (TR)
Voltage - Rated: 20VDC
Number of Contacts: 24
Connector Type: USB-C (USB TYPE-C)
Gender: Receptacle
Current Rating (Amps): 0.25A, 1.25A, 5A
Mounting Type: Board Edge, Cutout; Surface Mount; Through Hole, Right Angle
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Specifications: USB 4.0
Termination: Solder
Mounting Feature: Horizontal, Mid Mount
Mating Cycles: 10000
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LUB-C101D-004-G-19 UBC101D-A_1.0.pdf
LUB-C101D-004-G-19
Hersteller: Linkplex
Description: USB 4.0 TYPE C 24P MID-MNT
Packaging: Cut Tape (CT)
Voltage - Rated: 20VDC
Number of Contacts: 24
Connector Type: USB-C (USB TYPE-C)
Gender: Receptacle
Current Rating (Amps): 0.25A, 1.25A, 5A
Mounting Type: Board Edge, Cutout; Surface Mount; Through Hole, Right Angle
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Specifications: USB 4.0
Termination: Solder
Mounting Feature: Horizontal, Mid Mount
Mating Cycles: 10000
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LUB-C103D-007-J-19 UBC103D-A_1.1.pdf
LUB-C103D-007-J-19
Hersteller: Linkplex
Description: USB 3.2 GEN2 TYPE C 24P
Packaging: Tape & Reel (TR)
Voltage - Rated: 20VDC
Number of Contacts: 24
Connector Type: USB-C (USB TYPE-C)
Gender: Receptacle
Current Rating (Amps): 0.25A, 1.25A, 5A
Mounting Type: Surface Mount, Right Angle; Through Hole
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Specifications: USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Mating Cycles: 10000
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LUB-C103D-007-J-19 UBC103D-A_1.1.pdf
LUB-C103D-007-J-19
Hersteller: Linkplex
Description: USB 3.2 GEN2 TYPE C 24P
Packaging: Cut Tape (CT)
Voltage - Rated: 20VDC
Number of Contacts: 24
Connector Type: USB-C (USB TYPE-C)
Gender: Receptacle
Current Rating (Amps): 0.25A, 1.25A, 5A
Mounting Type: Surface Mount, Right Angle; Through Hole
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Specifications: USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Mating Cycles: 10000
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
LUB-C104D-007-G-19
LUB-C104D-007-G-19
Hersteller: Linkplex
Description: CONN USB 2.0 TYPE C 16P
Packaging: Cut Tape (CT)
Voltage - Rated: 20VDC
Number of Contacts: 24 (16+8 Dummy)
Connector Type: USB-C (USB TYPE-C)
Gender: Receptacle
Current Rating (Amps): 0.25A, 1.25A, 5A
Mounting Type: Board Cutout, Surface Mount, Right Angle; Through Hole
Shielding: Shielded
Operating Temperature: -25°C ~ 85°C
Specifications: USB 2.0
Mating Cycles: 10000
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
Wählen Sie Seite:   1 2 3  [ Nächste Seite >> ]
