Produkte > MABUCHI MOTOR > Alle Produkte des Herstellers MABUCHI MOTOR (18) > Seite 1 nach 1

Hersteller: Mabuchi Motor
Description: CONTROLLER FOR IR-94BZA, MR-94BZ
Packaging: Box
Features: Current Limit, Open/Closed Loop, Speed Control
For Use With/Related Products: IR94 and MR94
Mounting Type: Through Hole
Current - Output: 37A
Interface: CAN
Type: Module
Operating Temperature: -10°C ~ 50°C
Voltage - Supply: 24 ~ 48VDC
Voltage - Load: 17 ~ 45V
Number of Motors: 1
Motor Type: Brushless DC (BLDC)
Control / Drive Type: Brushless

Hersteller: Mabuchi Motor
Description: CONTROLLER FOR IS-94BZA, MS-94BZ
Packaging: Box
Features: Current Limit, Open/Closed Loop, Speed Control
For Use With/Related Products: IS94 and MS94
Mounting Type: Through Hole
Current - Output: 50A
Interface: CAN
Type: Module
Operating Temperature: -10°C ~ 50°C
Voltage - Supply: 24 ~ 36VDC
Voltage - Load: 17 ~ 45V
Number of Motors: 1
Motor Type: Brushless DC (BLDC)
Control / Drive Type: Brushless

Hersteller: Mabuchi Motor
Description: CONTROLLER FOR IS-74BZA
Packaging: Box
Features: Current Limit, Open/Closed Loop, Speed Control
For Use With/Related Products: IS74
Mounting Type: Through Hole
Current - Output: 29A
Interface: CAN
Type: Module
Operating Temperature: -10°C ~ 50°C
Voltage - Supply: 24 ~ 36VDC
Voltage - Load: 17 ~ 45V
Number of Motors: 1
Motor Type: Brushless DC (BLDC)
Control / Drive Type: Brushless

Hersteller: Mabuchi Motor
Description: BLDC 24 V RESOLVER 85MM
Packaging: Box
Features: Resolver
Voltage - Rated: 48VDC
Size / Dimension: Square - 3.346" x 3.346" (85.00mm x 85.00mm)
Function: Standard
RPM: 3400 RPM
Type: DC Motor
Operating Temperature: -10°C ~ 50°C
Termination Style: Cable with Connector
Power - Rated: 355W
Diameter - Shaft: 0.472" (12.00mm)
Mounting Hole Spacing: 3.740" (95.00mm)
Length - Shaft and Bearing: 1.181" (30.00mm)
Motor Type: Brushless (BLDC)
Torque - Rated (oz-in / mNm): 141.6 / 1000
Torque - Max Momentary (oz-in / mNm): 280 / 2000

Hersteller: Mabuchi Motor
Description: BLDC 24 V HALL SENSOR 60MM
Packaging: Box
Features: Hall Sensor, Thermistor
Voltage - Rated: 24VDC
Size / Dimension: Square - 2.362" x 2.362" (60.00mm x 60.00mm)
Function: Standard
RPM: 3200 RPM
Type: DC Motor
Operating Temperature: -10°C ~ 50°C
Termination Style: Cable with Connector
Power - Rated: 200W
Diameter - Shaft: 0.315" (8.00mm)
Mounting Hole Spacing: 2.756" (70.00mm)
Length - Shaft and Bearing: 1.181" (30.00mm)
Torque - Rated (oz-in / mNm): 84.99 / 600
Torque - Max Momentary (oz-in / mNm): 127.5 / 900

Hersteller: Mabuchi Motor
Description: BLDC 24 V HALL SENSOR 85MM
Packaging: Box
Features: Hall Sensor, Thermistor
Voltage - Rated: 24VDC
Size / Dimension: Square - 3.346" x 3.346" (85.00mm x 85.00mm)
Function: Standard
RPM: 2400 RPM
Type: DC Motor
Operating Temperature: -10°C ~ 50°C
Termination Style: Cable with Connector
Power - Rated: 250W
Diameter - Shaft: 0.472" (12.00mm)
Mounting Hole Spacing: 3.740" (95.00mm)
Length - Shaft and Bearing: 1.181" (30.00mm)
Torque - Rated (oz-in / mNm): 141.6 / 1000
Torque - Max Momentary (oz-in / mNm): 280 / 2000

Hersteller: Mabuchi Motor
Description: BLDC 24 V HALL SENSOR 100MM
Packaging: Box
Features: Hall Sensor, Thermistor
Voltage - Rated: 48VDC
Size / Dimension: Square - 3.937" x 3.937" (100.00mm x 100.00mm)
Function: Standard
RPM: 2660 RPM
Type: DC Motor
Operating Temperature: -10°C ~ 50°C
Termination Style: Cable with Connector
Power - Rated: 640W
Diameter - Shaft: 0.591" (15.00mm)
Mounting Hole Spacing: 4.528" (115.00mm)
Length - Shaft and Bearing: 1.181" (30.00mm)
Torque - Rated (oz-in / mNm): 326 / 2300
Torque - Max Momentary (oz-in / mNm): 566.5 / 4000

Hersteller: Mabuchi Motor
Modulare Elemente > Motoren

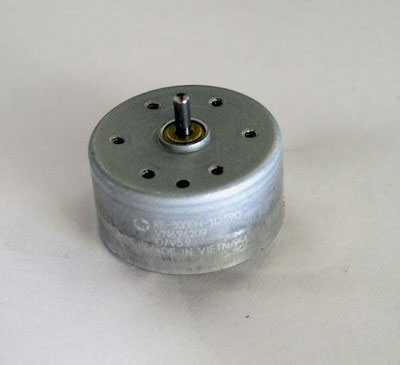

Beschreibung: Motor für CD/DVD-Laufwerke. Bereich Spannung 2.8-7V, Betriebsspannung 5.9V, Gehäuse RF300EH_1D390
Typ: Gleichstrom
Versorgungsspannung, V: 2,8...7 В

Hersteller: Mabuchi Motor
Description: BLDC 24V RESOLVER 85MM 10:1 GB
Packaging: Box
Features: Resolver
Voltage - Rated: 24VDC
Size / Dimension: Square - 3.346" x 3.346" (85.00mm x 85.00mm)
Function: Gearmotor
RPM: 200 RPM
Type: DC Motor
Operating Temperature: -10°C ~ 50°C
Termination Style: Cable with Connector
Power - Rated: 180W
Diameter - Shaft: 0.984" (25.00mm)
Mounting Hole Spacing: 3.740" (95.00mm)
Length - Shaft and Bearing: 1.260" (32.00mm)
Gear Reduction Ratio: 10
Motor Type: Brushless (BLDC)
Torque - Rated (oz-in / mNm): 1217 / 8600
Torque - Max Momentary (oz-in / mNm): 2435 / 17200

Hersteller: Mabuchi Motor
Description: 24V RESOLVER 85MM 10:1 GB BRAKE
Packaging: Box
Features: Resolver, Static Brake
Voltage - Rated: 24VDC
Size / Dimension: Square - 3.346" x 3.346" (85.00mm x 85.00mm)
Function: Gearmotor
RPM: 200 RPM
Type: DC Motor
Operating Temperature: -10°C ~ 50°C
Termination Style: Cable with Connector
Power - Rated: 180W
Diameter - Shaft: 0.984" (25.00mm)
Mounting Hole Spacing: 3.740" (95.00mm)
Length - Shaft and Bearing: 1.260" (32.00mm)
Gear Reduction Ratio: 10
Torque - Rated (oz-in / mNm): 1217 / 8600
Torque - Max Momentary (oz-in / mNm): 2435 / 17200

Hersteller: Mabuchi Motor
Description: BLDC 24 V HES 85MM 10:1 GB
Packaging: Box
Features: Hall Sensor, Thermistor
Voltage - Rated: 24VDC
Size / Dimension: Square - 3.346" x 3.346" (85.00mm x 85.00mm)
Function: Gearmotor
RPM: 225 RPM
Type: DC Motor
Operating Temperature: -10°C ~ 50°C
Termination Style: Cable with Connector
Power - Rated: 202W
Diameter - Shaft: 0.984" (25.00mm)
Mounting Hole Spacing: 3.740" (95.00mm)
Length - Shaft and Bearing: 1.260" (32.00mm)
Gear Reduction Ratio: 10
Motor Type: Brushless (BLDC)
Torque - Rated (oz-in / mNm): 1217 / 8600
Torque - Max Momentary (oz-in / mNm): 2435 / 17200

Hersteller: Mabuchi Motor
Description: BLDC 24V HES 85MM 10:1 GB BRAKE
Packaging: Box
Features: Static Brake, Hall Sensor, Thermistor
Voltage - Rated: 24VDC
Size / Dimension: Square - 3.346" x 3.346" (85.00mm x 85.00mm)
Function: Gearmotor
RPM: 225 RPM
Type: DC Motor
Operating Temperature: -10°C ~ 50°C
Termination Style: Cable with Connector
Power - Rated: 202W
Diameter - Shaft: 0.984" (25.00mm)
Mounting Hole Spacing: 3.740" (95.00mm)
Length - Shaft and Bearing: 1.260" (32.00mm)
Gear Reduction Ratio: 10
Torque - Rated (oz-in / mNm): 1217 / 8600
Torque - Max Momentary (oz-in / mNm): 2435 / 17200

Hersteller: Mabuchi Motor
Description: 24V HES 85MM 10:1 GB WHEEL BRAKE
Packaging: Box
Features: Wheel Static Brake, Hall Sensor, Thermistor
Voltage - Rated: 24VDC
Function: Gearmotor
RPM: 225 RPM
Type: DC Motor
Operating Temperature: -10°C ~ 50°C
Termination Style: Cable with Connector
Power - Rated: 202W
Mounting Hole Spacing: 2.205" (56.00mm)
Gear Reduction Ratio: 10
Torque - Rated (oz-in / mNm): 1217 / 8600
Torque - Max Momentary (oz-in / mNm): 2435 / 17200

Hersteller: Mabuchi Motor
Description: BLDC 24 V HES 85MM 20:1 GB
Packaging: Box
Features: Hall Sensor, Thermistor
Voltage - Rated: 24VDC
Size / Dimension: Square - 3.346" x 3.346" (85.00mm x 85.00mm)
Function: Gearmotor
RPM: 121 RPM
Type: DC Motor
Operating Temperature: -10°C ~ 50°C
Termination Style: Cable with Connector
Power - Rated: 203W
Diameter - Shaft: 0.984" (25.00mm)
Mounting Hole Spacing: 3.740" (95.00mm)
Length - Shaft and Bearing: 1.260" (32.00mm)
Gear Reduction Ratio: 20
Torque - Rated (oz-in / mNm): 2266 / 16000
Torque - Max Momentary (oz-in / mNm): 4248 / 30000

Hersteller: Mabuchi Motor
Description: BLDC 24V HES 85MM 20:1 GB BRAKE
Packaging: Box
Features: Static Brake, Hall Sensor, Thermistor
Voltage - Rated: 24VDC
Size / Dimension: Square - 3.346" x 3.346" (85.00mm x 85.00mm)
Function: Gearmotor
RPM: 121 RPM
Type: DC Motor
Operating Temperature: -10°C ~ 50°C
Termination Style: Cable with Connector
Power - Rated: 203W
Diameter - Shaft: 0.984" (25.00mm)
Mounting Hole Spacing: 3.740" (95.00mm)
Length - Shaft and Bearing: 1.260" (32.00mm)
Gear Reduction Ratio: 20
Torque - Rated (oz-in / mNm): 2266 / 16000
Torque - Max Momentary (oz-in / mNm): 4248 / 30000

Hersteller: Mabuchi Motor
Description: 24V HES 85MM 20:1 GB WHEEL BRAKE
Packaging: Box
Features: Wheel Static Brake, Hall Sensor, Thermistor
Voltage - Rated: 24VDC
Function: Gearmotor
RPM: 121 RPM
Type: DC Motor
Operating Temperature: -10°C ~ 50°C
Termination Style: Cable with Connector
Power - Rated: 203W
Mounting Hole Spacing: 2.205" (56.00mm)
Gear Reduction Ratio: 20
Torque - Rated (oz-in / mNm): 2266 / 16000
Torque - Max Momentary (oz-in / mNm): 4248 / 30000

Hersteller: Mabuchi Motor
Modulare Elemente > Motoren
Beschreibung: Motor RF-300FA-12350 für CD/DVD-Laufwerke
Drehzahl, U/min: 3500
Versorgungsspannung, V: 5,9 В

Hersteller: Mabuchi Motor
Modulare Elemente > Motoren
Beschreibung: Präzisions Mikro-Motor, 3000rpm
Typ: Gleichstrom
Drehzahl, U/min: 3000
Versorgungsspannung, V: 3...12 V
Strom, A: 0,17 A
