0096001 LAPP
Hersteller: LAPP
Category: Heat resistant cables

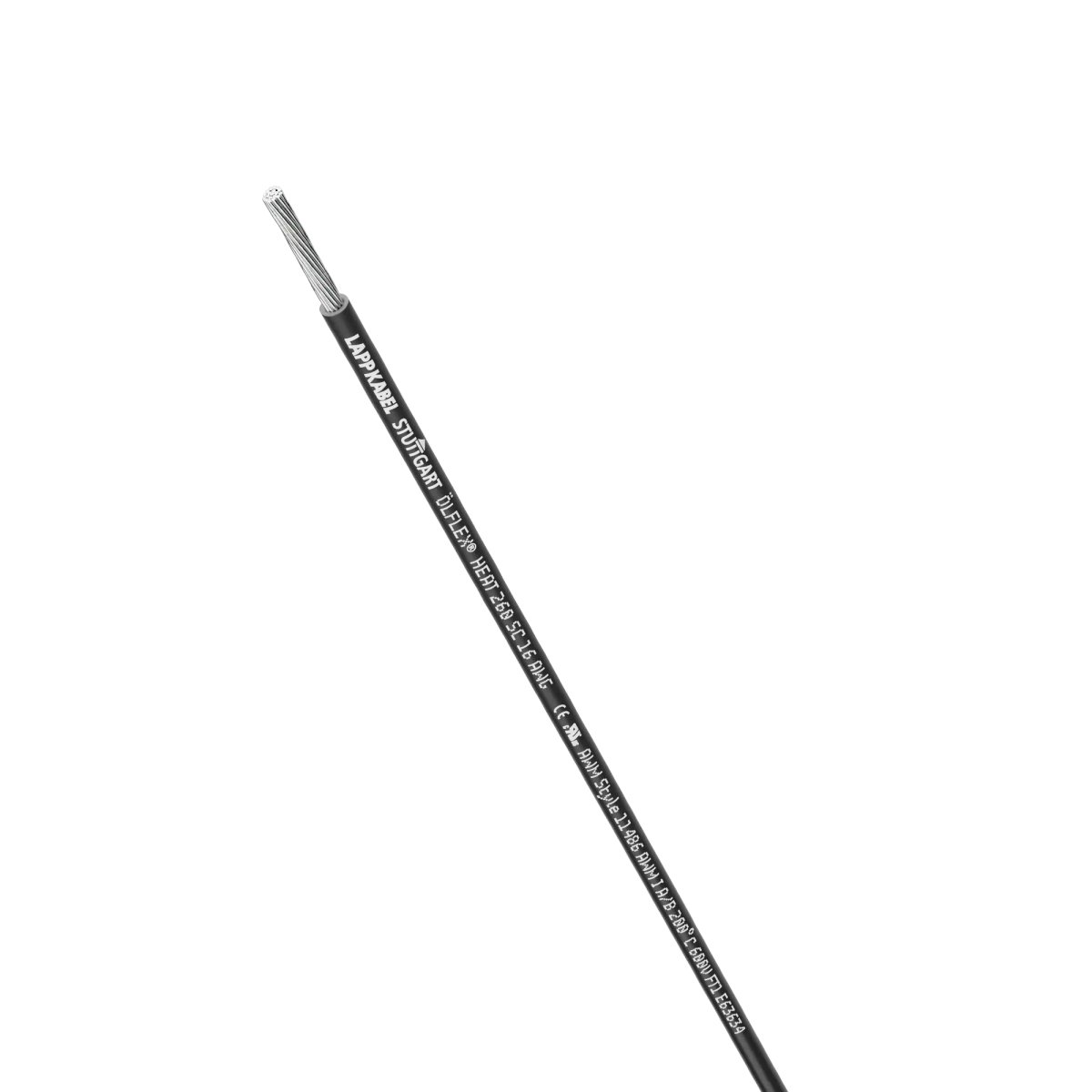

Description: Wire; ÖLFLEX® HEAT 260 SC; 1x26AWG; stranded; Cu; PTFE; black
Type of wire: assembly
Kind of wire: ÖLFLEX® HEAT 260 SC
Cable structure: 1x26AWG
Core structure: stranded
Kind of core: Cu; silver plated
Number of cores: 1
Core diameter: 26AWG
Shield structure: unshielded
Wire insulation material: PTFE
Insulation colour: black
Package contents: 100m
Cable external diameter: 0.99mm
Resistance to: contact with liquid nitrogen; mechanical stesses; most of acids; most of chemical compounds; most of oils; most of solvents; ozone; to weather conditions
Conform to the norm: IEC 60332-1-2; UL 758; UL 11486
CPR standard: no classification
Kind of material: no flame propagation
Information: The UL Label and Mark on full factory packaging only
Operating temperature: -190...260°C
Flexibility class: 5
Rated voltage: 0.3kV; 0.5kV
| Anzahl | Preis |
|---|---|
| 35+ | 2.1 EUR |
| 39+ | 1.84 EUR |
| 45+ | 1.6 EUR |
| 50+ | 1.43 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 0096001 LAPP
Category: Heat resistant cables, Description: Wire; ÖLFLEX® HEAT 260 SC; 1x26AWG; stranded; Cu; PTFE; black, Type of wire: assembly, Kind of wire: ÖLFLEX® HEAT 260 SC, Cable structure: 1x26AWG, Core structure: stranded, Kind of core: Cu; silver plated, Number of cores: 1, Core diameter: 26AWG, Shield structure: unshielded, Wire insulation material: PTFE, Insulation colour: black, Package contents: 100m, Cable external diameter: 0.99mm, Resistance to: contact with liquid nitrogen; mechanical stesses; most of acids; most of chemical compounds; most of oils; most of solvents; ozone; to weather conditions, Conform to the norm: IEC 60332-1-2; UL 758; UL 11486, CPR standard: no classification, Kind of material: no flame propagation, Information: The UL Label and Mark on full factory packaging only, Operating temperature: -190...260°C, Flexibility class: 5, Rated voltage: 0.3kV; 0.5kV.
Weitere Produktangebote 0096001
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis |
|---|---|---|---|---|---|
 |
0096001 | Hersteller : LAPP |
Description: LFLEX HEAT 260 SC 26/19AWG BK Features: Chemical Resistant, Oil Resistant, UV Resistant Packaging: Spool Length: 328.1' (100.0m) Wire Gauge: 26 AWG Jacket (Insulation) Material: Polytetrafluoroethylene (PTFE) Operating Temperature: -190°C ~ 200°C Cable Type: Hook-Up Jacket (Insulation) Diameter: 0.039" (0.99mm) Conductor Material: Copper, Silver Coated Jacket Color: Black Part Status: Active |
Produkt ist nicht verfügbar |
