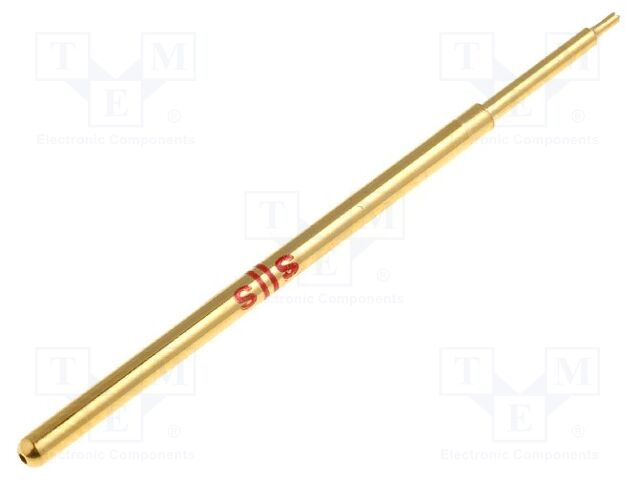

100-PRG2574S QA TECHNOLOGY

Hersteller: QA TECHNOLOGY
Category: Test Probes
Description: Test acces: test needle; Maksimum spring compression: 6.35mm
Operating temperature: 5...120°C
Manufacturer series: 100-25
Current rating: 6.5A
Operational spring compression: 6.35mm
Max. contact resistance:: 13mΩ
Blade tip shape: head 74
Minimum pitch: 2.54mm
Type of test accessories: test needle
Contact plating: gold-plated; nickel plated
Maksimum spring compression: 6.35mm
Contact material: beryl bronze

auf Bestellung 150 Stücke:

Lieferzeit 14-21 Tag (e)

Im Einkaufswagen Stück im Wert von UAH

Produktrezensionen

Produktbewertung abgeben

Technische Details 100-PRG2574S QA TECHNOLOGY

Category: Test Probes, Description: Test acces: test needle; Maksimum spring compression: 6.35mm, Operating temperature: 5...120°C, Manufacturer series: 100-25, Current rating: 6.5A, Operational spring compression: 6.35mm, Max. contact resistance:: 13mΩ, Blade tip shape: head 74, Minimum pitch: 2.54mm, Type of test accessories: test needle, Contact plating: gold-plated; nickel plated, Maksimum spring compression: 6.35mm, Contact material: beryl bronze.
