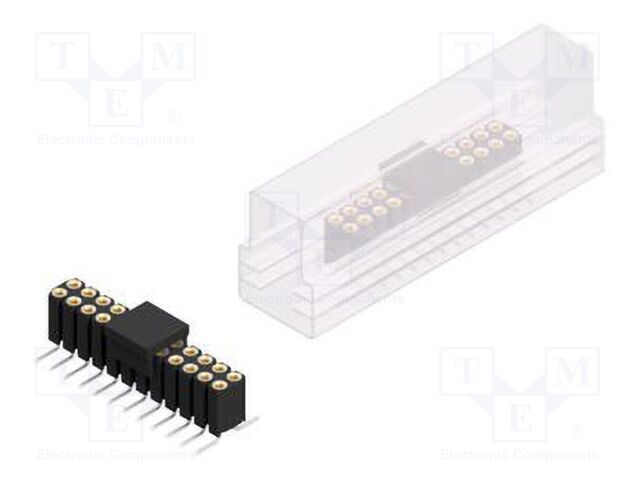

10026119 FISCHER ELEKTRONIK
Hersteller: FISCHER ELEKTRONIK
Category: Pin headers
Description: Connector: pin strips; socket; female; PIN: 24; SMT; 3A; 150V; 2.54mm
Spatial orientation: straight
Kind of connector: female
Contact plating: gold-plated
Connector variant: pick and place; precision; turned contacts
Type of connector: pin strips
Electrical mounting: SMT
Connector: socket
Kind of package: tube
Flammability rating: UL94V-0
Operating temperature: -40...163°C
Plating thickness: 0.75µm
Row pitch: 2.54mm
Contacts pitch: 2.54mm
Lead length: 4mm
Overall length: 8.6mm
Current rating: 3A
Number of pins: 24
Connector pinout layout: 2x12
Rated voltage: 150V
Manufacturer series: BL 16 SMD
Contact material: beryllium copper
Category: Pin headers
Description: Connector: pin strips; socket; female; PIN: 24; SMT; 3A; 150V; 2.54mm
Spatial orientation: straight
Kind of connector: female
Contact plating: gold-plated
Connector variant: pick and place; precision; turned contacts
Type of connector: pin strips
Electrical mounting: SMT
Connector: socket
Kind of package: tube
Flammability rating: UL94V-0
Operating temperature: -40...163°C
Plating thickness: 0.75µm
Row pitch: 2.54mm
Contacts pitch: 2.54mm
Lead length: 4mm
Overall length: 8.6mm
Current rating: 3A
Number of pins: 24
Connector pinout layout: 2x12
Rated voltage: 150V
Manufacturer series: BL 16 SMD
Contact material: beryllium copper
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details 10026119 FISCHER ELEKTRONIK
Category: Pin headers, Description: Connector: pin strips; socket; female; PIN: 24; SMT; 3A; 150V; 2.54mm, Spatial orientation: straight, Kind of connector: female, Contact plating: gold-plated, Connector variant: pick and place; precision; turned contacts, Type of connector: pin strips, Electrical mounting: SMT, Connector: socket, Kind of package: tube, Flammability rating: UL94V-0, Operating temperature: -40...163°C, Plating thickness: 0.75µm, Row pitch: 2.54mm, Contacts pitch: 2.54mm, Lead length: 4mm, Overall length: 8.6mm, Current rating: 3A, Number of pins: 24, Connector pinout layout: 2x12, Rated voltage: 150V, Manufacturer series: BL 16 SMD, Contact material: beryllium copper.
