Produkte > FISCHER ELEKTRONIK > 10026822
10026822

10026822 FISCHER ELEKTRONIK

pVersion=0046&contRep=ZT&docId=005056AB90B41EDA9FF9F55E6D23C0C4&compId=BL7.22Z.pdf?ci_sign=86093ee9e0bfd9b5dffb1d93f5711fc77200a597 Hersteller: FISCHER ELEKTRONIK
Category: Pin headers

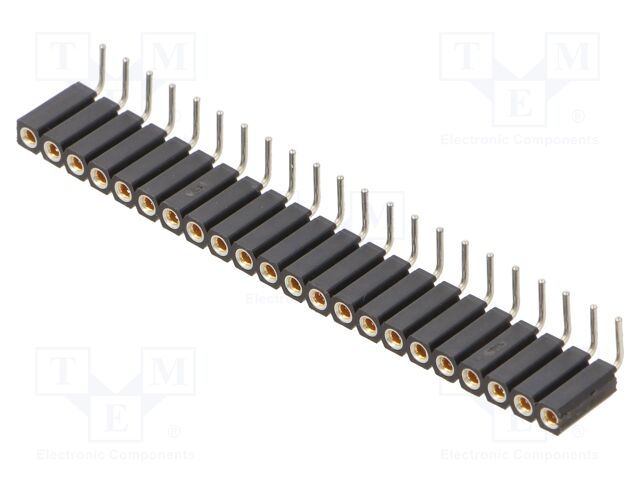

Description: Connector: pin strips; socket; female; PIN: 22; BL 7; 3A; 150V; THT
Spatial orientation: angled
Manufacturer series: BL 7
Contact material: beryllium copper
Electrical mounting: THT
Type of connector: pin strips
Kind of connector: female
Contact plating: gold-plated
Connector: socket
Flammability rating: UL94V-0
Operating temperature: -40...163°C
Plating thickness: 0.75µm
Contacts pitch: 2.54mm
Height: 2.54mm
Lead length: 3.2mm
Overall length: 5.74mm
Current rating: 3A
Number of pins: 22
Rated voltage: 150V
Connector pinout layout: 1x22
Connector variant: precision; turned contacts
auf Bestellung 70 Stücke:
Lieferzeit 14-21 Tag (e)
Anzahl Preis
8+9.62 EUR
10+7.31 EUR
Mindestbestellmenge: 8
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details 10026822 FISCHER ELEKTRONIK

Category: Pin headers, Description: Connector: pin strips; socket; female; PIN: 22; BL 7; 3A; 150V; THT, Spatial orientation: angled, Manufacturer series: BL 7, Contact material: beryllium copper, Electrical mounting: THT, Type of connector: pin strips, Kind of connector: female, Contact plating: gold-plated, Connector: socket, Flammability rating: UL94V-0, Operating temperature: -40...163°C, Plating thickness: 0.75µm, Contacts pitch: 2.54mm, Height: 2.54mm, Lead length: 3.2mm, Overall length: 5.74mm, Current rating: 3A, Number of pins: 22, Rated voltage: 150V, Connector pinout layout: 1x22, Connector variant: precision; turned contacts.
