10026863 FISCHER ELEKTRONIK
Hersteller: FISCHER ELEKTRONIK
Category: Pin headers

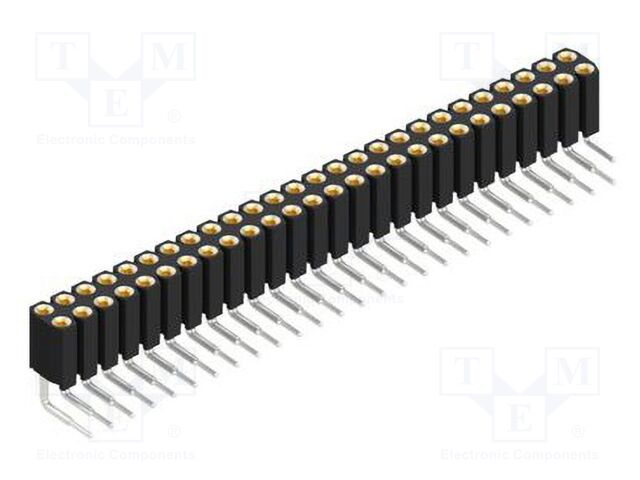

Description: Connector: pin strips; socket; female; PIN: 52; THT; 3A; 150V; BL 8
Manufacturer series: BL 8
Operating temperature: -40...163°C
Kind of connector: female
Contact plating: gold-plated
Connector variant: precision; turned contacts
Connector: socket
Type of connector: pin strips
Electrical mounting: THT
Flammability rating: UL94V-0
Plating thickness: 0.75µm
Height: 5.08mm
Contacts pitch: 2.54mm
Row pitch: 2.54mm
Lead length: 3.2mm
Overall length: 8.3mm
Current rating: 3A
Number of pins: 52
Rated voltage: 150V
Connector pinout layout: 2x26
Spatial orientation: angled
Contact material: beryllium copper
Category: Pin headers
Description: Connector: pin strips; socket; female; PIN: 52; THT; 3A; 150V; BL 8
Manufacturer series: BL 8
Operating temperature: -40...163°C
Kind of connector: female
Contact plating: gold-plated
Connector variant: precision; turned contacts
Connector: socket
Type of connector: pin strips
Electrical mounting: THT
Flammability rating: UL94V-0
Plating thickness: 0.75µm
Height: 5.08mm
Contacts pitch: 2.54mm
Row pitch: 2.54mm
Lead length: 3.2mm
Overall length: 8.3mm
Current rating: 3A
Number of pins: 52
Rated voltage: 150V
Connector pinout layout: 2x26
Spatial orientation: angled
Contact material: beryllium copper
