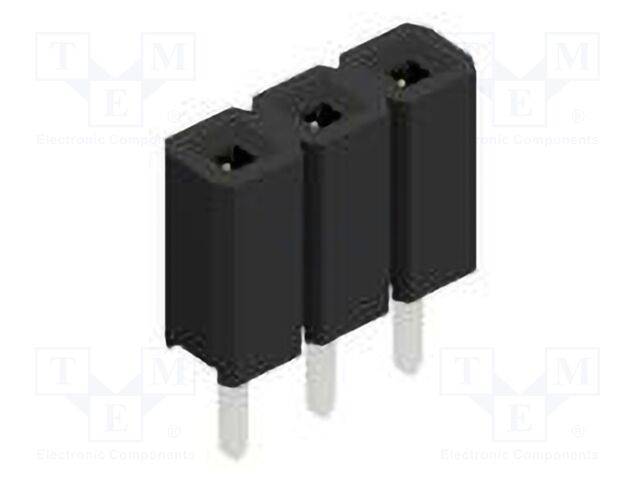

10026927 FISCHER ELEKTRONIK
Hersteller: FISCHER ELEKTRONIK
Category: Pin headers
Description: Connector: pin strips; socket; female; PIN: 3; THT; 3A; 125V; BL LP 1
Rated voltage: 125V
Spatial orientation: straight
Electrical mounting: THT
Flammability rating: UL94V-0
Operating temperature: -40...200°C
Connector pinout layout: 1x3
Plating thickness: 0.254µm
Contacts pitch: 2.54mm
Lead length: 3mm
Height: 5.5mm
Overall length: 8.5mm
Number of pins: 3
Current rating: 3A
Manufacturer series: BL LP 1
Contact material: bronze
Kind of connector: female
Contact plating: gold-plated
Type of connector: pin strips
Connector: socket
Category: Pin headers
Description: Connector: pin strips; socket; female; PIN: 3; THT; 3A; 125V; BL LP 1
Rated voltage: 125V
Spatial orientation: straight
Electrical mounting: THT
Flammability rating: UL94V-0
Operating temperature: -40...200°C
Connector pinout layout: 1x3
Plating thickness: 0.254µm
Contacts pitch: 2.54mm
Lead length: 3mm
Height: 5.5mm
Overall length: 8.5mm
Number of pins: 3
Current rating: 3A
Manufacturer series: BL LP 1
Contact material: bronze
Kind of connector: female
Contact plating: gold-plated
Type of connector: pin strips
Connector: socket
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details 10026927 FISCHER ELEKTRONIK
Category: Pin headers, Description: Connector: pin strips; socket; female; PIN: 3; THT; 3A; 125V; BL LP 1, Rated voltage: 125V, Spatial orientation: straight, Electrical mounting: THT, Flammability rating: UL94V-0, Operating temperature: -40...200°C, Connector pinout layout: 1x3, Plating thickness: 0.254µm, Contacts pitch: 2.54mm, Lead length: 3mm, Height: 5.5mm, Overall length: 8.5mm, Number of pins: 3, Current rating: 3A, Manufacturer series: BL LP 1, Contact material: bronze, Kind of connector: female, Contact plating: gold-plated, Type of connector: pin strips, Connector: socket.
