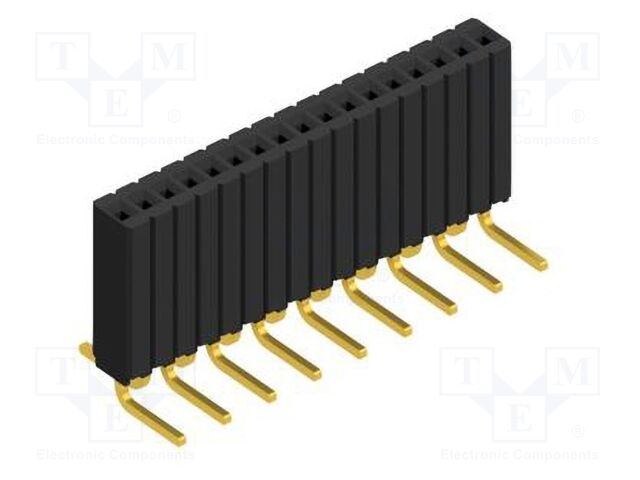

10027154 FISCHER ELEKTRONIK
Hersteller: FISCHER ELEKTRONIK
Category: Pin headers
Description: Connector: pin strips; socket; female; PIN: 17; BLM 1 SMD; 1.5A
Type of connector: pin strips
Connector: socket
Kind of connector: female
Current rating: 1.5A
Rated voltage: 125V
Number of pins: 17
Spatial orientation: vertical
Electrical mounting: SMT
Contact material: bronze
Contact plating: gold-plated
Flammability rating: UL94V-0
Contacts pitch: 1.27mm
Operating temperature: -40...163°C
Overall length: 10.25mm
Manufacturer series: BLM 1 SMD
Plating thickness: 0.254µm
Height: 8.5mm
Connector pinout layout: 1x17
Anzahl je Verpackung: 1 Stücke
Category: Pin headers
Description: Connector: pin strips; socket; female; PIN: 17; BLM 1 SMD; 1.5A
Type of connector: pin strips
Connector: socket
Kind of connector: female
Current rating: 1.5A
Rated voltage: 125V
Number of pins: 17
Spatial orientation: vertical
Electrical mounting: SMT
Contact material: bronze
Contact plating: gold-plated
Flammability rating: UL94V-0
Contacts pitch: 1.27mm
Operating temperature: -40...163°C
Overall length: 10.25mm
Manufacturer series: BLM 1 SMD
Plating thickness: 0.254µm
Height: 8.5mm
Connector pinout layout: 1x17
Anzahl je Verpackung: 1 Stücke
