10027552 FISCHER ELEKTRONIK
Hersteller: FISCHER ELEKTRONIK
Category: Pin headers

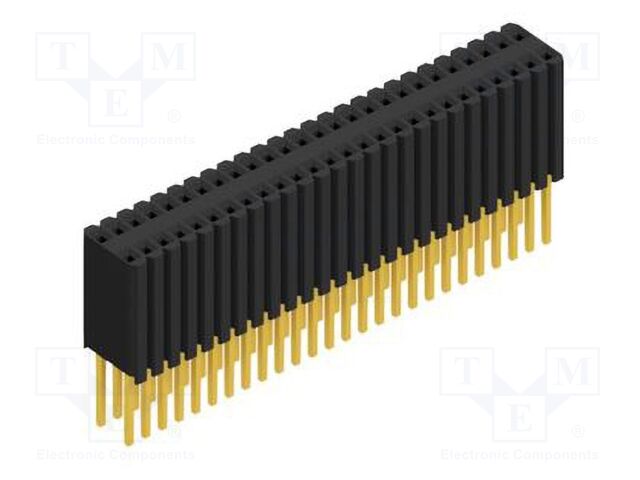

Description: Connector: pin strips; socket; female; PIN: 52; THT; 1.5A; 125V; 2x26
Operating temperature: -40...163°C
Contact material: bronze
Electrical mounting: THT
Kind of connector: female
Type of connector: pin strips
Contact plating: gold-plated
Connector: socket
Flammability rating: UL94V-0
Plating thickness: 0.254µm
Contacts pitch: 1.27mm
Row pitch: 1.27mm
Lead length: 5.1mm
Height: 8.5mm
Overall length: 13.6mm
Current rating: 1.5A
Number of pins: 52
Rated voltage: 125V
Connector pinout layout: 2x26
Manufacturer series: BLM LG 2
Spatial orientation: straight
Category: Pin headers
Description: Connector: pin strips; socket; female; PIN: 52; THT; 1.5A; 125V; 2x26
Operating temperature: -40...163°C
Contact material: bronze
Electrical mounting: THT
Kind of connector: female
Type of connector: pin strips
Contact plating: gold-plated
Connector: socket
Flammability rating: UL94V-0
Plating thickness: 0.254µm
Contacts pitch: 1.27mm
Row pitch: 1.27mm
Lead length: 5.1mm
Height: 8.5mm
Overall length: 13.6mm
Current rating: 1.5A
Number of pins: 52
Rated voltage: 125V
Connector pinout layout: 2x26
Manufacturer series: BLM LG 2
Spatial orientation: straight
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details 10027552 FISCHER ELEKTRONIK
Category: Pin headers, Description: Connector: pin strips; socket; female; PIN: 52; THT; 1.5A; 125V; 2x26, Operating temperature: -40...163°C, Contact material: bronze, Electrical mounting: THT, Kind of connector: female, Type of connector: pin strips, Contact plating: gold-plated, Connector: socket, Flammability rating: UL94V-0, Plating thickness: 0.254µm, Contacts pitch: 1.27mm, Row pitch: 1.27mm, Lead length: 5.1mm, Height: 8.5mm, Overall length: 13.6mm, Current rating: 1.5A, Number of pins: 52, Rated voltage: 125V, Connector pinout layout: 2x26, Manufacturer series: BLM LG 2, Spatial orientation: straight.
