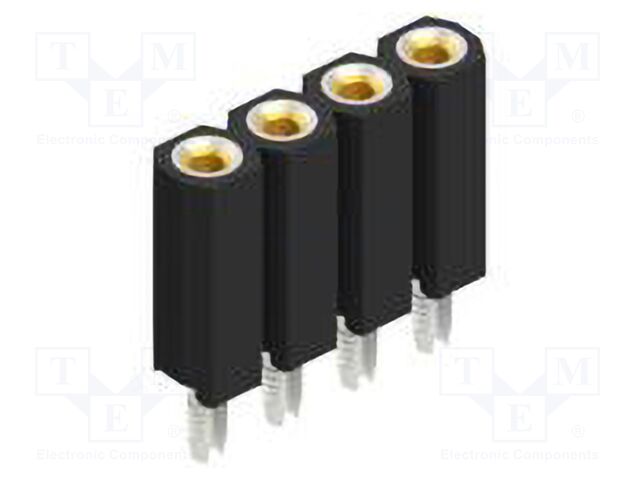

10027577 FISCHER ELEKTRONIK
Hersteller: FISCHER ELEKTRONIK
Category: Pin headers
Description: Connector: pin strips; socket; female; PIN: 4; BLP 1; 2A; 150V; THT
Type of connector: pin strips
Connector: socket
Kind of connector: female
Number of pins: 4
Spatial orientation: straight
Electrical mounting: THT
Contacts pitch: 2.54mm
Connector pinout layout: 1x4
Contact plating: gold-plated
Height: 7mm
Contact material: beryllium copper
Connector variant: precision; turned contacts
Overall length: 9.5mm
Lead length: 2.5mm
Manufacturer series: BLP 1
Plating thickness: 0.75µm
Rated voltage: 150V
Operating temperature: -40...163°C
Current rating: 2A
Flammability rating: UL94V-0
Anzahl je Verpackung: 1 Stücke
Category: Pin headers
Description: Connector: pin strips; socket; female; PIN: 4; BLP 1; 2A; 150V; THT
Type of connector: pin strips
Connector: socket
Kind of connector: female
Number of pins: 4
Spatial orientation: straight
Electrical mounting: THT
Contacts pitch: 2.54mm
Connector pinout layout: 1x4
Contact plating: gold-plated
Height: 7mm
Contact material: beryllium copper
Connector variant: precision; turned contacts
Overall length: 9.5mm
Lead length: 2.5mm
Manufacturer series: BLP 1
Plating thickness: 0.75µm
Rated voltage: 150V
Operating temperature: -40...163°C
Current rating: 2A
Flammability rating: UL94V-0
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details 10027577 FISCHER ELEKTRONIK
Category: Pin headers, Description: Connector: pin strips; socket; female; PIN: 4; BLP 1; 2A; 150V; THT, Type of connector: pin strips, Connector: socket, Kind of connector: female, Number of pins: 4, Spatial orientation: straight, Electrical mounting: THT, Contacts pitch: 2.54mm, Connector pinout layout: 1x4, Contact plating: gold-plated, Height: 7mm, Contact material: beryllium copper, Connector variant: precision; turned contacts, Overall length: 9.5mm, Lead length: 2.5mm, Manufacturer series: BLP 1, Plating thickness: 0.75µm, Rated voltage: 150V, Operating temperature: -40...163°C, Current rating: 2A, Flammability rating: UL94V-0, Anzahl je Verpackung: 1 Stücke.
