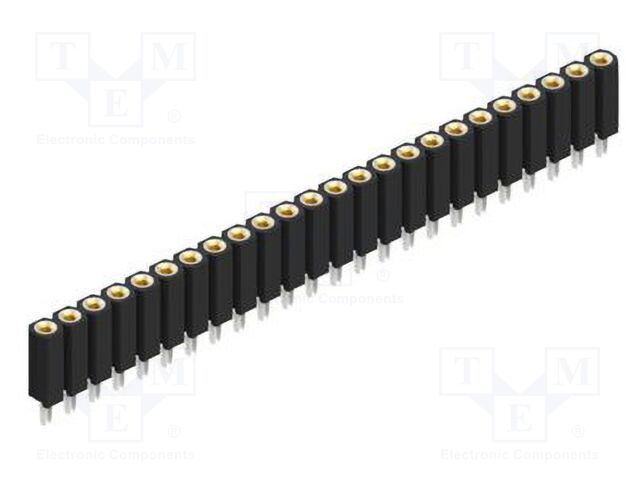

10027596 FISCHER ELEKTRONIK

Category: Pin headers, Description: Connector: pin strips; socket; female; PIN: 24; BLP 1; 2A; 150V; THT, Type of connector: pin strips, Connector: socket, Kind of connector: female, Contact material: beryllium copper, Contact plating: gold-plated, Electrical mounting: THT, Contacts pitch: 2.54mm, Manufacturer series: BLP 1, Plating thickness: 0.75µm, Spatial orientation: straight, Rated voltage: 150V, Operating temperature: -40...163°C, Current rating: 2A, Flammability rating: UL94V-0, Height: 7mm, Number of pins: 24, Connector pinout layout: 1x24, Connector variant: precision; turned contacts, Overall length: 9.5mm, Lead length: 2.5mm, Anzahl je Verpackung: 1 Stücke.
