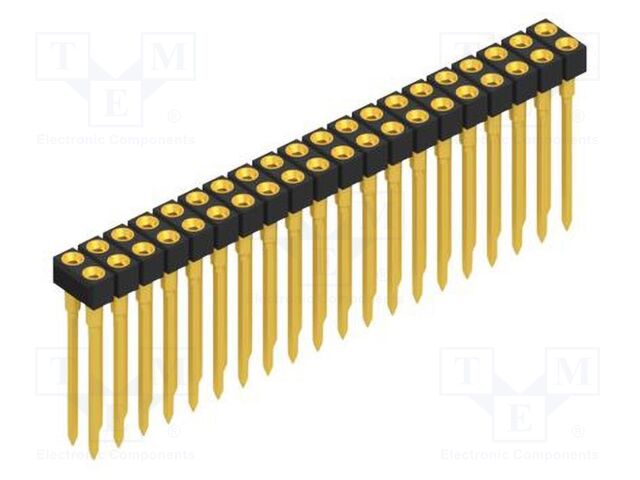

10041638 FISCHER ELEKTRONIK
Hersteller: FISCHER ELEKTRONIK
Category: Pin headers
Description: Connector: pin strips; socket; female; PIN: 40; MK 207; 1.5A; 60V
Overall length: 17.9mm
Manufacturer series: MK 207
Connector variant: precision; turned contacts
Connector: socket
Spatial orientation: straight
Electrical mounting: THT
Flammability rating: UL94V-0
Operating temperature: -40...163°C
Plating thickness: 0.75µm
Contacts pitch: 2.54mm
Row pitch: 2.54mm
Height: 5.5mm
Lead length: 12.4mm
Current rating: 1.5A
Number of pins: 40
Rated voltage: 60V
Connector pinout layout: 2x20
Contact material: beryllium copper
Kind of connector: female
Contact plating: gold-plated
Type of connector: pin strips
Anzahl je Verpackung: 1 Stücke
Category: Pin headers
Description: Connector: pin strips; socket; female; PIN: 40; MK 207; 1.5A; 60V
Overall length: 17.9mm
Manufacturer series: MK 207
Connector variant: precision; turned contacts
Connector: socket
Spatial orientation: straight
Electrical mounting: THT
Flammability rating: UL94V-0
Operating temperature: -40...163°C
Plating thickness: 0.75µm
Contacts pitch: 2.54mm
Row pitch: 2.54mm
Height: 5.5mm
Lead length: 12.4mm
Current rating: 1.5A
Number of pins: 40
Rated voltage: 60V
Connector pinout layout: 2x20
Contact material: beryllium copper
Kind of connector: female
Contact plating: gold-plated
Type of connector: pin strips
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details 10041638 FISCHER ELEKTRONIK
Category: Pin headers, Description: Connector: pin strips; socket; female; PIN: 40; MK 207; 1.5A; 60V, Overall length: 17.9mm, Manufacturer series: MK 207, Connector variant: precision; turned contacts, Connector: socket, Spatial orientation: straight, Electrical mounting: THT, Flammability rating: UL94V-0, Operating temperature: -40...163°C, Plating thickness: 0.75µm, Contacts pitch: 2.54mm, Row pitch: 2.54mm, Height: 5.5mm, Lead length: 12.4mm, Current rating: 1.5A, Number of pins: 40, Rated voltage: 60V, Connector pinout layout: 2x20, Contact material: beryllium copper, Kind of connector: female, Contact plating: gold-plated, Type of connector: pin strips, Anzahl je Verpackung: 1 Stücke.
