10042041 FISCHER ELEKTRONIK

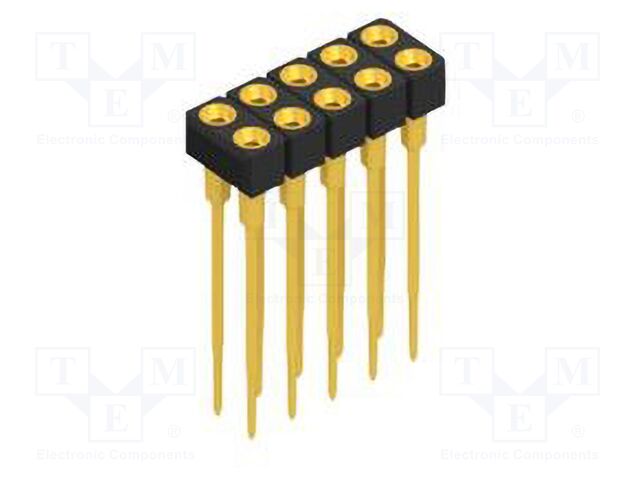

Category: Pin headers, Description: Connector: pin strips; socket; female; PIN: 10; MK 213 X 2; 1.5A, Connector variant: precision; turned contacts, Contacts pitch: 2.54mm, Rated voltage: 60V, Contact plating: gold-plated, Kind of connector: female, Connector: socket, Type of connector: pin strips, Overall length: 17.8mm, Electrical mounting: THT, Lead length: 4mm, Manufacturer series: MK 213 X 2, Plating thickness: 0.75µm, Spatial orientation: straight, Row pitch: 2.54mm, Current rating: 1.5A, Operating temperature: -40...163°C, Flammability rating: UL94V-0, Height: 13.8mm, Number of pins: 10, Contact material: beryllium copper, Connector pinout layout: 2x5, Anzahl je Verpackung: 1 Stücke.
