10042179 FISCHER ELEKTRONIK
Hersteller: FISCHER ELEKTRONIK
Category: Pin headers

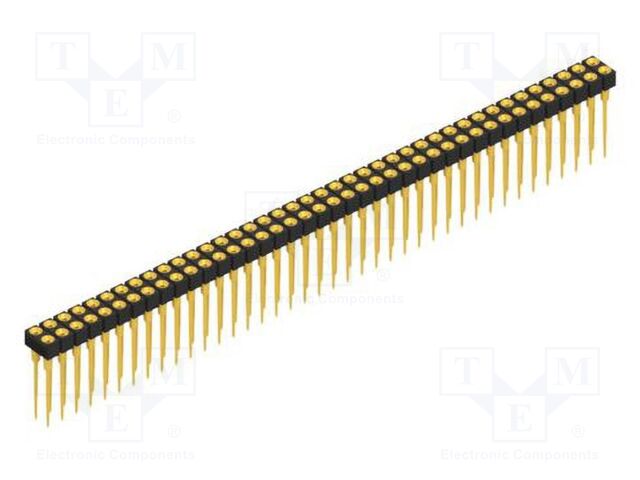

Description: Connector: pin strips; socket; female; PIN: 80; MK 213 X 1; 1.5A
Lead length: 4mm
Operating temperature: -40...163°C
Connector variant: precision; turned contacts
Contacts pitch: 2.54mm
Overall length: 14.8mm
Electrical mounting: THT
Row pitch: 2.54mm
Manufacturer series: MK 213 X 1
Plating thickness: 0.75µm
Spatial orientation: straight
Type of connector: pin strips
Connector: socket
Kind of connector: female
Contact plating: gold-plated
Rated voltage: 60V
Current rating: 1.5A
Flammability rating: UL94V-0
Height: 10.8mm
Number of pins: 80
Contact material: beryllium copper
Connector pinout layout: 2x40
Anzahl je Verpackung: 1 Stücke
Category: Pin headers
Description: Connector: pin strips; socket; female; PIN: 80; MK 213 X 1; 1.5A
Lead length: 4mm
Operating temperature: -40...163°C
Connector variant: precision; turned contacts
Contacts pitch: 2.54mm
Overall length: 14.8mm
Electrical mounting: THT
Row pitch: 2.54mm
Manufacturer series: MK 213 X 1
Plating thickness: 0.75µm
Spatial orientation: straight
Type of connector: pin strips
Connector: socket
Kind of connector: female
Contact plating: gold-plated
Rated voltage: 60V
Current rating: 1.5A
Flammability rating: UL94V-0
Height: 10.8mm
Number of pins: 80
Contact material: beryllium copper
Connector pinout layout: 2x40
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details 10042179 FISCHER ELEKTRONIK
Category: Pin headers, Description: Connector: pin strips; socket; female; PIN: 80; MK 213 X 1; 1.5A, Lead length: 4mm, Operating temperature: -40...163°C, Connector variant: precision; turned contacts, Contacts pitch: 2.54mm, Overall length: 14.8mm, Electrical mounting: THT, Row pitch: 2.54mm, Manufacturer series: MK 213 X 1, Plating thickness: 0.75µm, Spatial orientation: straight, Type of connector: pin strips, Connector: socket, Kind of connector: female, Contact plating: gold-plated, Rated voltage: 60V, Current rating: 1.5A, Flammability rating: UL94V-0, Height: 10.8mm, Number of pins: 80, Contact material: beryllium copper, Connector pinout layout: 2x40, Anzahl je Verpackung: 1 Stücke.
