10042680 FISCHER ELEKTRONIK
Hersteller: FISCHER ELEKTRONIK
Category: Pin headers

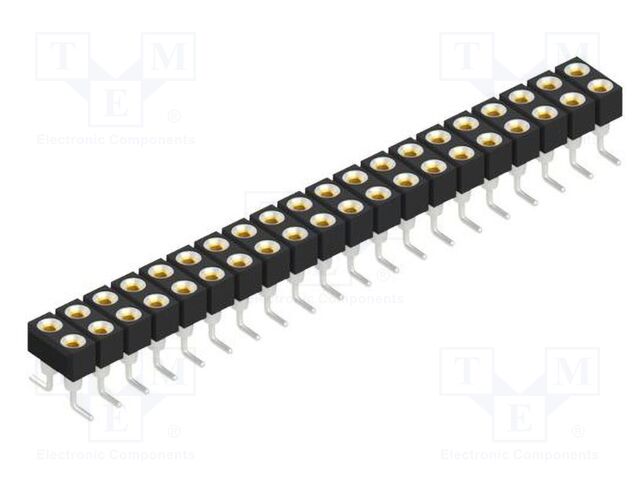

Description: Connector: pin strips; socket; female; PIN: 40; MK 223 SMD; 1.5A
Lead length: 2.1mm
Flammability rating: UL94V-0
Number of pins: 40
Contact material: beryllium copper
Connector pinout layout: 2x20
Connector variant: precision; turned contacts
Contacts pitch: 2.54mm
Overall length: 5.8mm
Electrical mounting: SMT
Row pitch: 2.54mm
Manufacturer series: MK 223 SMD
Plating thickness: 0.254µm
Spatial orientation: straight
Type of connector: pin strips
Connector: socket
Kind of connector: female
Contact plating: gold-plated
Rated voltage: 60V
Operating temperature: -40...163°C
Current rating: 1.5A
Anzahl je Verpackung: 1 Stücke
Category: Pin headers
Description: Connector: pin strips; socket; female; PIN: 40; MK 223 SMD; 1.5A
Lead length: 2.1mm
Flammability rating: UL94V-0
Number of pins: 40
Contact material: beryllium copper
Connector pinout layout: 2x20
Connector variant: precision; turned contacts
Contacts pitch: 2.54mm
Overall length: 5.8mm
Electrical mounting: SMT
Row pitch: 2.54mm
Manufacturer series: MK 223 SMD
Plating thickness: 0.254µm
Spatial orientation: straight
Type of connector: pin strips
Connector: socket
Kind of connector: female
Contact plating: gold-plated
Rated voltage: 60V
Operating temperature: -40...163°C
Current rating: 1.5A
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar
