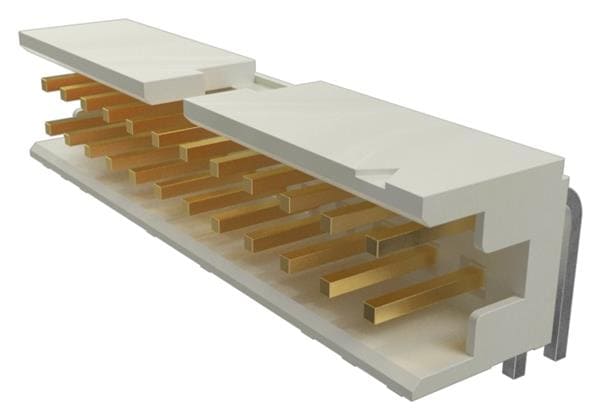

10072354-G01-24KLF Amphenol ICC (FCI)

Description: CONN HEADER R/A 24POS 2MM, Contact Length - Mating: 0.157" (4.00mm), Row Spacing - Mating: 0.079" (2.00mm), Insulation Material: Thermoplastic, Shrouding: Shrouded - 4 Wall, Insulation Height: 0.240" (6.10mm), Contact Length - Post: 0.079" (2.00mm), Contact Shape: Square, Part Status: Active, Contact Finish - Post: Tin, Current Rating (Amps): 3A, Voltage Rating: 200V (AC/DC), Connector Type: Header, Features: Keying Slot, Packaging: Tape & Reel (TR), Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Mating: Gold, GXT™, Pitch - Mating: 0.079" (2.00mm), Insulation Color: Cream, Contact Material: Copper Alloy, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Detent Lock, Contact Type: Male Pin, Style: Board to Board or Cable, Number of Rows: 2, Number of Positions: 24, Mounting Type: Through Hole, Right Angle.
