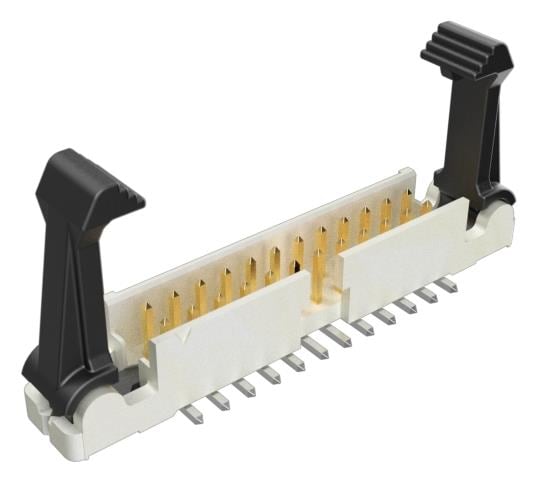

10078995-G01-24BLF FCI

Description: CONN HEADER SMD 24POS 2MM, Features: Keying Slot, Packaging: Tube, Connector Type: Header, Voltage Rating: 200V (AC/DC), Current Rating (Amps): 2A (AC/DC), Mounting Type: Surface Mount, Number of Positions: 24, Number of Rows: 2, Style: Board to Cable/Wire, Contact Type: Male Pin, Fastening Type: Latch Lock/Eject Hooks, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Cream, Pitch - Mating: 0.079" (2.00mm), Contact Finish - Mating: Gold, GXT™, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Post: Gold, Part Status: Active, Contact Shape: Square, Insulation Height: 0.244" (6.20mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Thermoplastic, Row Spacing - Mating: 0.079" (2.00mm), Contact Length - Mating: 0.157" (4.00mm).
