Produkte > AMPHENOL FCI > 10129381-914001BLF
10129381-914001BLF

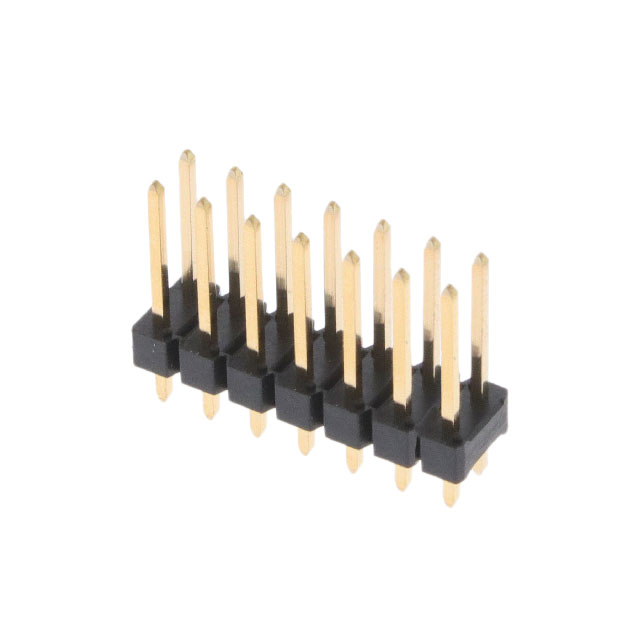

10129381-914001BLF Amphenol FCI


bwb_econostik_254headers.pdf Hersteller: Amphenol FCI
Headers & Wire Housings ECONOSTIK HEADER DR VT TH 2X7
auf Bestellung 792 Stücke:

Lieferzeit 10-14 Tag (e)
Anzahl Preis
4+0.79 EUR
10+0.67 EUR
25+0.63 EUR
100+0.54 EUR
300+0.51 EUR
1000+0.49 EUR
2500+0.32 EUR
Mindestbestellmenge: 4
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details 10129381-914001BLF Amphenol FCI

Description: CONN HEADER VERT 14POS 2.54MM, Packaging: Bulk, Connector Type: Header, Cuttable, Voltage Rating: 110VDC, Current Rating (Amps): 3A, Mounting Type: Through Hole, Number of Positions: 14, Number of Rows: 2, Style: Board to Board or Cable, Operating Temperature: -55°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Push-Pull, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.100" (2.54mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 1.00µin (0.025µm), Contact Shape: Square, Contact Length - Post: 0.120" (3.05mm), Insulation Height: 0.100" (2.54mm), Shrouding: Unshrouded, Overall Contact Length: 0.450" (11.43mm), Insulation Material: Thermoplastic, Row Spacing - Mating: 0.100" (2.54mm), Contact Length - Mating: 0.230" (5.84mm).

Weitere Produktangebote 10129381-914001BLF

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
10129381-914001BLF 10129381-914001BLF Hersteller : FCI 1010129381.pdf Unshrouded Header, Double Row, Vertical, Through Hole, 14 Positions, 2.54mm Pitch, 5.84mm (0.23inch) Mating, 3.05mm (0.12inch) Tail
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
10129381-914001BLF 10129381-914001BLF Hersteller : Amphenol ICC (FCI) bwb_econostik_254headers.pdf Description: CONN HEADER VERT 14POS 2.54MM
Packaging: Bulk
Connector Type: Header, Cuttable
Voltage Rating: 110VDC
Current Rating (Amps): 3A
Mounting Type: Through Hole
Number of Positions: 14
Number of Rows: 2
Style: Board to Board or Cable
Operating Temperature: -55°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Push-Pull
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Copper Alloy
Insulation Color: Black
Pitch - Mating: 0.100" (2.54mm)
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 1.00µin (0.025µm)
Contact Shape: Square
Contact Length - Post: 0.120" (3.05mm)
Insulation Height: 0.100" (2.54mm)
Shrouding: Unshrouded
Overall Contact Length: 0.450" (11.43mm)
Insulation Material: Thermoplastic
Row Spacing - Mating: 0.100" (2.54mm)
Contact Length - Mating: 0.230" (5.84mm)
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
