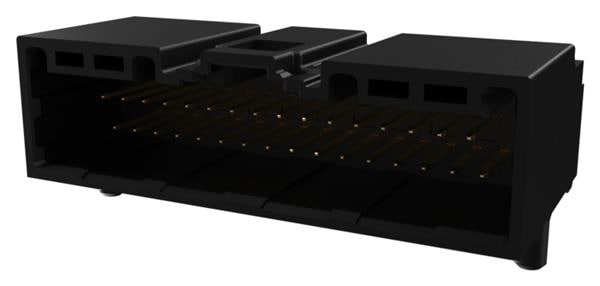

10153118-132KCLF Amphenol ICC (FCI)

Description: WIRELOCK SERIES R/A HD C-1015311
Features: Board Guide
Packaging: Tape & Reel (TR)
Connector Type: Header
Current Rating (Amps): 2A per Contact
Mounting Type: Through Hole, Right Angle
Number of Positions: 32
Number of Rows: 2
Style: Board to Cable/Wire
Operating Temperature: -40°C ~ 105°C
Contact Type: Male Pin
Fastening Type: Latch Holder
Number of Positions Loaded: All
Termination: Solder
Material Flammability Rating: UL94 V-0
Contact Material: Brass
Insulation Color: Black
Pitch - Mating: 0.071" (1.80mm)
Contact Finish - Mating: Tin
Contact Finish Thickness - Mating: 39.4µin (1.00µm)
Contact Finish - Post: Tin
Contact Shape: Square
Contact Length - Post: 0.091" (2.30mm)
Insulation Height: 0.409" (10.40mm)
Shrouding: Shrouded - 4 Wall
Insulation Material: Thermoplastic
Row Spacing - Mating: 0.098" (2.50mm)
Contact Length - Mating: 0.220" (5.59mm)
Produkt ist nicht verfügbar
Produktrezensionen
Produktbewertung abgeben
Technische Details 10153118-132KCLF Amphenol ICC (FCI)
Description: WIRELOCK SERIES R/A HD C-1015311, Features: Board Guide, Packaging: Tape & Reel (TR), Connector Type: Header, Current Rating (Amps): 2A per Contact, Mounting Type: Through Hole, Right Angle, Number of Positions: 32, Number of Rows: 2, Style: Board to Cable/Wire, Operating Temperature: -40°C ~ 105°C, Contact Type: Male Pin, Fastening Type: Latch Holder, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-0, Contact Material: Brass, Insulation Color: Black, Pitch - Mating: 0.071" (1.80mm), Contact Finish - Mating: Tin, Contact Finish Thickness - Mating: 39.4µin (1.00µm), Contact Finish - Post: Tin, Contact Shape: Square, Contact Length - Post: 0.091" (2.30mm), Insulation Height: 0.409" (10.40mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Thermoplastic, Row Spacing - Mating: 0.098" (2.50mm), Contact Length - Mating: 0.220" (5.59mm).
