1016-085 MEGGER
Hersteller: MEGGER
Category: Insulation Resistance Meters
Description: Meter: insulation resistance; LCD; VAC: 30÷660V; VDC: 30÷660V; IP65
Type of meter: insulation resistance
Kind of display used: LCD
Measurement: AC voltage; DC voltage; insulation resistance; stepped increasing voltage (SV)
AC voltage measuring range: 30...660V
DC voltage measuring range: 30...660V
DC voltage measuring accuracy: ±(3% + 3V)
Interface: USB
Test voltage: 250V; 500V; 1kV; 2.5kV; 5kV
Conform to the norm: CAT IV 600V
Measuring instrument features: polarization index (PI), dielelectric absorption ratio (DAR) and dielectric discharge (DD); ramp test; real time clock

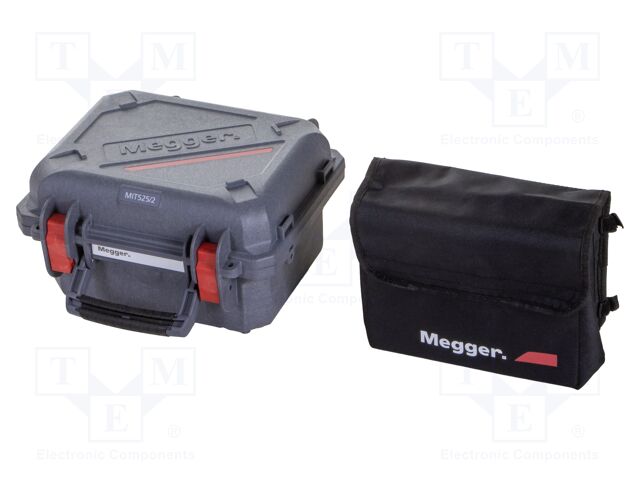

Standard equipment: mains cable; manufacturer's calibration certificate; test leads; USB cable
Power supply: rechargeable battery Li-Ion 10,8V 5200mAh x1
IP rating: IP65
Body dimensions: 315x285x181mm
Insulation resistance measuring ranges: 10kΩ...15TΩ
Battery/ rechargeable battery: rechargeable battery Li-Ion 10,8V 5200mAh x1
Software: included
Supply voltage: 90...265V AC
Bargraph: yes
AC voltage measuring accuracy: ±(3% + 3V)
Weight with battery: 4.5kg
Category: Insulation Resistance Meters
Description: Meter: insulation resistance; LCD; VAC: 30÷660V; VDC: 30÷660V; IP65
Type of meter: insulation resistance
Kind of display used: LCD
Measurement: AC voltage; DC voltage; insulation resistance; stepped increasing voltage (SV)
AC voltage measuring range: 30...660V
DC voltage measuring range: 30...660V
DC voltage measuring accuracy: ±(3% + 3V)
Interface: USB
Test voltage: 250V; 500V; 1kV; 2.5kV; 5kV
Conform to the norm: CAT IV 600V
Measuring instrument features: polarization index (PI), dielelectric absorption ratio (DAR) and dielectric discharge (DD); ramp test; real time clock
Standard equipment: mains cable; manufacturer's calibration certificate; test leads; USB cable
Power supply: rechargeable battery Li-Ion 10,8V 5200mAh x1
IP rating: IP65
Body dimensions: 315x285x181mm
Insulation resistance measuring ranges: 10kΩ...15TΩ
Battery/ rechargeable battery: rechargeable battery Li-Ion 10,8V 5200mAh x1
Software: included
Supply voltage: 90...265V AC
Bargraph: yes
AC voltage measuring accuracy: ±(3% + 3V)
Weight with battery: 4.5kg
auf Bestellung 1 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis |
|---|---|
| 1+ | 4540.51 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 1016-085 MEGGER
Category: Insulation Resistance Meters, Description: Meter: insulation resistance; LCD; VAC: 30÷660V; VDC: 30÷660V; IP65, Type of meter: insulation resistance, Kind of display used: LCD, Measurement: AC voltage; DC voltage; insulation resistance; stepped increasing voltage (SV), AC voltage measuring range: 30...660V, DC voltage measuring range: 30...660V, DC voltage measuring accuracy: ±(3% + 3V), Interface: USB, Test voltage: 250V; 500V; 1kV; 2.5kV; 5kV, Conform to the norm: CAT IV 600V, Measuring instrument features: polarization index (PI), dielelectric absorption ratio (DAR) and dielectric discharge (DD); ramp test; real time clock, Standard equipment: mains cable; manufacturer's calibration certificate; test leads; USB cable, Power supply: rechargeable battery Li-Ion 10,8V 5200mAh x1, IP rating: IP65, Body dimensions: 315x285x181mm, Insulation resistance measuring ranges: 10kΩ...15TΩ, Battery/ rechargeable battery: rechargeable battery Li-Ion 10,8V 5200mAh x1, Software: included, Supply voltage: 90...265V AC, Bargraph: yes, AC voltage measuring accuracy: ±(3% + 3V), Weight with battery: 4.5kg.
