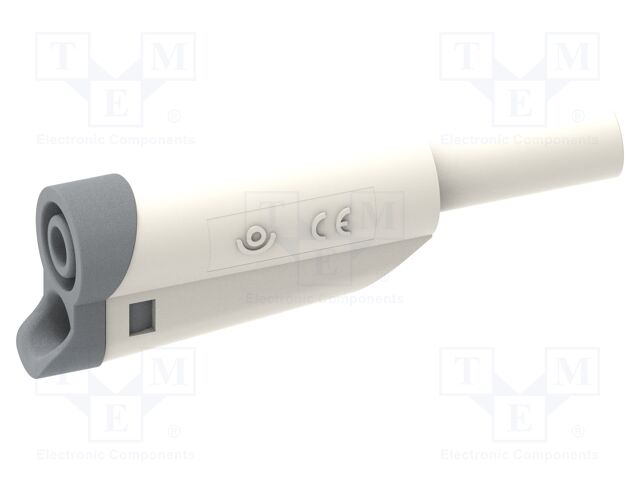

1076-BC ELECTRO-PJP

pVersion=0046&contRep=ZT&docId=005056AB281E1FD096970181578940E1&compId=Datasheet_1076.pdf?ci_sign=ebef05b1b6696f69bec8643dbc630299cce17b1e

Hersteller: ELECTRO-PJP
Category: 4mm Banana Plugs
Description: Connector: 4mm banana; plug; 36A; white; insulated; nickel plated
Mounting: on cable; screw terminal
Colour: white
Contact material: brass
Conform to the norm: CAT II 1000VAC; CAT II 1500VDC; CAT III 1000V; CAT IV 600V
Connector variant: insulated
Contact plating: nickel plated
Connector: plug
Operating temperature: -20...80°C
Max. wire diameter: 2.6mm
Overall length: 59mm
Current rating: 36A
Type of lab connector: 4mm banana

Produkt ist nicht verfügbar

Im Einkaufswagen Stück im Wert von UAH

Produktrezensionen

Produktbewertung abgeben

Technische Details 1076-BC ELECTRO-PJP

Category: 4mm Banana Plugs, Description: Connector: 4mm banana; plug; 36A; white; insulated; nickel plated, Mounting: on cable; screw terminal, Colour: white, Contact material: brass, Conform to the norm: CAT II 1000VAC; CAT II 1500VDC; CAT III 1000V; CAT IV 600V, Connector variant: insulated, Contact plating: nickel plated, Connector: plug, Operating temperature: -20...80°C, Max. wire diameter: 2.6mm, Overall length: 59mm, Current rating: 36A, Type of lab connector: 4mm banana.
