Produkte > HELUKABEL > 11008706
11008706

11008706 HELUKABEL


JZ-520-EN.pdf Hersteller: HELUKABEL
Category: Multicore Cables - Unshielded

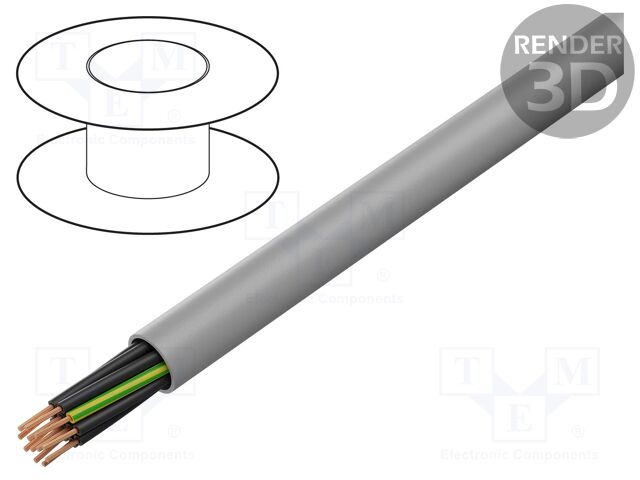

Description: Wire; HELUCONTROL®,JZ-520 HMH; 5G2.5mm2; unshielded; 300V,500V
Type of wire: control cable
Kind of wire: HELUCONTROL®; JZ-520 HMH
Cable structure: 5G2.5mm2
Shield structure: unshielded
Rated voltage: 300V; 500V
Wire insulation material: LSZH
Kind of core: Cu
Core structure: stranded
Number of cores: 5
Core section: 2.5mm2
Core marking: black, numbered + ground wire
Insulation colour: grey
Cable external diameter: 10.1mm
Kind of material: halogen free; no flame propagation
Operating temperature: -40...70°C
Resistance to: flame; most of oils
Flexibility class: 5
Earth core: yellow-green
CPR standard: B2ca
Cable application: assembly line tools; industrial applications; mechanical engineering; production line tools
Cable features: low smoke density
Anzahl je Verpackung: 1 Stücke
Produkt ist nicht verfügbar

Produktrezensionen
Produktbewertung abgeben

Technische Details 11008706 HELUKABEL

Category: Multicore Cables - Unshielded, Description: Wire; HELUCONTROL®,JZ-520 HMH; 5G2.5mm2; unshielded; 300V,500V, Type of wire: control cable, Kind of wire: HELUCONTROL®; JZ-520 HMH, Cable structure: 5G2.5mm2, Shield structure: unshielded, Rated voltage: 300V; 500V, Wire insulation material: LSZH, Kind of core: Cu, Core structure: stranded, Number of cores: 5, Core section: 2.5mm2, Core marking: black, numbered + ground wire, Insulation colour: grey, Cable external diameter: 10.1mm, Kind of material: halogen free; no flame propagation, Operating temperature: -40...70°C, Resistance to: flame; most of oils, Flexibility class: 5, Earth core: yellow-green, CPR standard: B2ca, Cable application: assembly line tools; industrial applications; mechanical engineering; production line tools, Cable features: low smoke density, Anzahl je Verpackung: 1 Stücke.
