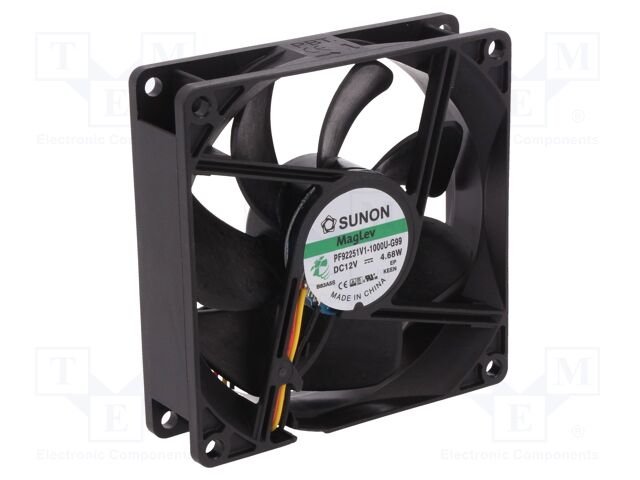

PF92251V1-1000U-G99 SUNON
Hersteller: SUNONCategory: DC12V Fans
Description: Fan: DC; axial; 12VDC; 92x92x25mm; 126.75m3/h; 45.5dBA; Vapo; 24AWG
Fan motor: brushless DC
Type of fan: DC
Leads: leads x3
Signal output: F type
Enclosure material: thermoplastic
Impeller material: thermoplastic
Flammability rating: UL94V-0
Operating temperature: -10...70°C
Fan dimensions: 92x92x25mm
Current rating: 0.37A
Lead length: 0.305m
Power consumption: 4.44W
Fan efficiency: 126.75m3/h
Static pressure: 8.89mm H2O
Operating voltage: 6...13.8V DC
Supply voltage: 12V DC
Noise level: 45.5dBA
Wire size: 24AWG
Rotational rate/speed: 4500rpm
Min. insulation resistance: 10MΩ
Insulation class: A
Additional functions: autorestart
Kind of fan: axial
Kind of Bearing: Vapo
Anzahl je Verpackung: 1 Stücke
auf Bestellung 3399 Stücke:
Lieferzeit 7-14 Tag (e)
| Anzahl | Preis |
|---|---|
| 10+ | 7.88 EUR |
| 11+ | 7.09 EUR |
| 50+ | 6.69 EUR |
| 200+ | 5.91 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details PF92251V1-1000U-G99 SUNON
Category: DC12V Fans, Description: Fan: DC; axial; 12VDC; 92x92x25mm; 126.75m3/h; 45.5dBA; Vapo; 24AWG, Fan motor: brushless DC, Type of fan: DC, Leads: leads x3, Signal output: F type, Enclosure material: thermoplastic, Impeller material: thermoplastic, Flammability rating: UL94V-0, Operating temperature: -10...70°C, Fan dimensions: 92x92x25mm, Current rating: 0.37A, Lead length: 0.305m, Power consumption: 4.44W, Fan efficiency: 126.75m3/h, Static pressure: 8.89mm H2O, Operating voltage: 6...13.8V DC, Supply voltage: 12V DC, Noise level: 45.5dBA, Wire size: 24AWG, Rotational rate/speed: 4500rpm, Min. insulation resistance: 10MΩ, Insulation class: A, Additional functions: autorestart, Kind of fan: axial, Kind of Bearing: Vapo, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote PF92251V1-1000U-G99 nach Preis ab 5.91 EUR bis 24.96 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
PF92251V1-1000U-G99 | Hersteller : SUNON |
Category: DC12V Fans Description: Fan: DC; axial; 12VDC; 92x92x25mm; 126.75m3/h; 45.5dBA; Vapo; 24AWG Fan motor: brushless DC Type of fan: DC Leads: leads x3 Signal output: F type Enclosure material: thermoplastic Impeller material: thermoplastic Flammability rating: UL94V-0 Operating temperature: -10...70°C Fan dimensions: 92x92x25mm Current rating: 0.37A Lead length: 0.305m Power consumption: 4.44W Fan efficiency: 126.75m3/h Static pressure: 8.89mm H2O Operating voltage: 6...13.8V DC Supply voltage: 12V DC Noise level: 45.5dBA Wire size: 24AWG Rotational rate/speed: 4500rpm Min. insulation resistance: 10MΩ Insulation class: A Additional functions: autorestart Kind of fan: axial Kind of Bearing: Vapo |
auf Bestellung 3399 Stücke: Lieferzeit 14-21 Tag (e) |
|
||||||||||||
 |
PF92251V1-1000U-G99 | Hersteller : Sunon |
DC Fans Axial Fan, 92x92x25mm, 12VDC, 0.35"H2O, Vapo, 3x Wire, Auto Restart, Tach |
auf Bestellung 25 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
 |
PF92251V1-1000U-G99 | Hersteller : Sunon Fans |
Description: FAN AXIAL 92X25MM 12VDC WIRE Features: Auto Restart, Speed Sensor (Tach) Packaging: Bulk Voltage - Rated: 12VDC Size / Dimension: Square - 92mm L x 92mm H Bearing Type: Vapo-Bearing™ RPM: 4500 RPM Air Flow: 75.0 CFM (2.10m³/min) Width: 25.00mm Weight: 0.234 lb (106.14 g) Operating Temperature: 14 ~ 158°F (-10 ~ 70°C) Termination: 3 Wire Leads Approval Agency: CE, CUR, TUV, UL Fan Type: Tubeaxial Noise: 45.5dB(A) Static Pressure: 0.350 in H2O (87.2 Pa) Part Status: Active Power (Watts): 4.44 W |
auf Bestellung 116 Stücke: Lieferzeit 10-14 Tag (e) |
|
||||||||||||
| PF92251V1-1000U-G99 | Hersteller : Sunon |
PF92251V1-1000U-G99 |
auf Bestellung 3422 Stücke: Lieferzeit 14-21 Tag (e) |
|
|||||||||||||
|
12ВDC; 92x92x25мм; 126,75м3/г; 45,5дБА (PF92251V1-1000U-G99 - SUNON) Produktcode: 201574
