Produkte > NEXANS > 13-MYF21Z12P-V1
13-MYF21Z12P-V1

13-MYF21Z12P-V1 NEXANS

pVersion=0046&contRep=ZT&docId=005056AB90B41EDBA787072AF17440C7&compId=Nexans-EN.pdf?ci_sign=baef36b66e14dfe325988986c0877712eed82975 Hersteller: NEXANS
Category: Cables for Power Chains - Shielded

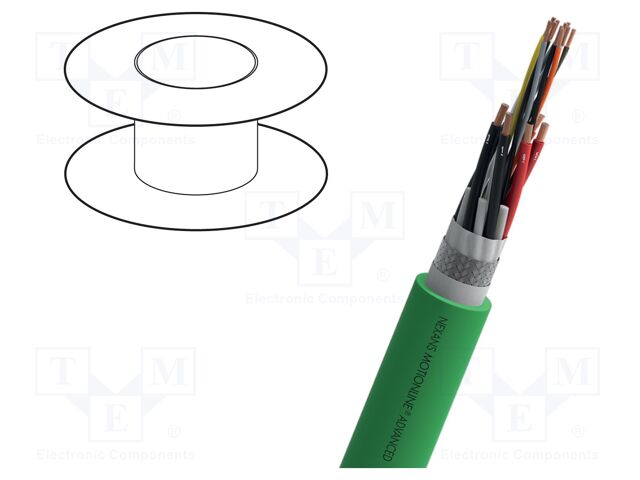

Description: Wire: test lead cable; hybrid,MOTIONLINE® ADVANCED; green; PUR
Rated voltage: 300V
Operating temperature: -20...80°C
Shield structure: shielded; tinned copper braid
Core structure: stranded
Type of wire: test lead cable
Information: The UL Label and Mark on full factory packaging only
Core section: 0.18mm2; 0.5mm2
Cable external diameter: 8.7mm
Cable structure: 3x2x0.18mm2; 6x0.5mm2
Core marking: black, numbered; colours with colour repetition
Number of cores: 12
Conform to the norm: CSA FT1; UL 1581
Kind of core: Cu; tinned
Cable application: FANUC STANDARD
Resistance to: flame; most of oils
Insulation colour: green
Kind of material: halogen free; no flame propagation
Kind of wire: hybrid; MOTIONLINE® ADVANCED
Wire insulation material: PUR
Anzahl je Verpackung: 5 Stücke
auf Bestellung 135 Stücke:
Lieferzeit 7-14 Tag (e)
Anzahl Preis
15+5.92 EUR
100+5.83 EUR
Mindestbestellmenge: 15
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details 13-MYF21Z12P-V1 NEXANS

Category: Cables for Power Chains - Shielded, Description: Wire: test lead cable; hybrid,MOTIONLINE® ADVANCED; green; PUR, Rated voltage: 300V, Operating temperature: -20...80°C, Shield structure: shielded; tinned copper braid, Core structure: stranded, Type of wire: test lead cable, Information: The UL Label and Mark on full factory packaging only, Core section: 0.18mm2; 0.5mm2, Cable external diameter: 8.7mm, Cable structure: 3x2x0.18mm2; 6x0.5mm2, Core marking: black, numbered; colours with colour repetition, Number of cores: 12, Conform to the norm: CSA FT1; UL 1581, Kind of core: Cu; tinned, Cable application: FANUC STANDARD, Resistance to: flame; most of oils, Insulation colour: green, Kind of material: halogen free; no flame propagation, Kind of wire: hybrid; MOTIONLINE® ADVANCED, Wire insulation material: PUR, Anzahl je Verpackung: 5 Stücke.
