14K-503-421-AD1

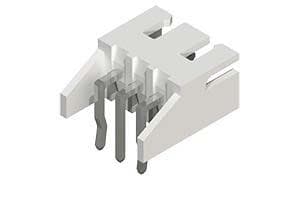

14K-503-421-AD1 EDAC Inc.

14K-503-421-AD1%20-%20EDAC%20E-MATE%20(Pin%20Header)%20Connector.PDF
Hersteller: EDAC Inc.
Description: 14K SERIES (.098"(2.50MM) CONTAC
Insulation Material: Polyamide (PA66), Nylon 6/6
Shrouding: Shrouded - 4 Wall
Insulation Height: 0.226" (5.74mm)
Contact Length - Post: 0.134" (3.40mm)
Contact Shape: Square
Contact Finish - Post: Tin
Contact Finish - Mating: Tin
Pitch - Mating: 0.098" (2.50mm)
Insulation Color: Natural
Contact Material: Brass
Material Flammability Rating: UL94 V-0
Termination: Kinked Pin, Solder
Number of Positions Loaded: All
Fastening Type: Detent Lock
Contact Type: Male Pin
Operating Temperature: -40°C ~ 105°C
Style: Board to Cable/Wire
Number of Rows: 1
Number of Positions: 3
Mounting Type: Through Hole, Right Angle
Current Rating (Amps): 3A
Voltage Rating: 250VAC/DC
Connector Type: Header
Packaging: Tape & Reel (TR)
auf Bestellung 490 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
63+0.28 EUR
76+0.23 EUR
100+0.2 EUR
Mindestbestellmenge: 63
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details 14K-503-421-AD1 EDAC Inc.

Description: 14K SERIES (.098"(2.50MM) CONTAC, Insulation Material: Polyamide (PA66), Nylon 6/6, Shrouding: Shrouded - 4 Wall, Insulation Height: 0.226" (5.74mm), Contact Length - Post: 0.134" (3.40mm), Contact Shape: Square, Contact Finish - Post: Tin, Contact Finish - Mating: Tin, Pitch - Mating: 0.098" (2.50mm), Insulation Color: Natural, Contact Material: Brass, Material Flammability Rating: UL94 V-0, Termination: Kinked Pin, Solder, Number of Positions Loaded: All, Fastening Type: Detent Lock, Contact Type: Male Pin, Operating Temperature: -40°C ~ 105°C, Style: Board to Cable/Wire, Number of Rows: 1, Number of Positions: 3, Mounting Type: Through Hole, Right Angle, Current Rating (Amps): 3A, Voltage Rating: 250VAC/DC, Connector Type: Header, Packaging: Tape & Reel (TR).

Weitere Produktangebote 14K-503-421-AD1 nach Preis ab 0.15 EUR bis 0.36 EUR

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit
Preis
14K-503-421-AD1 14K-503-421-AD1 Hersteller : EDAC 14K_503_421_AD1___EDAC_E_MATE__Pin_Header__Connector.PDF Headers & Wire Housings 14K Series (.098"(2.50mm) contact spacing) Inline side entry pin header with 3 tin plated kink 1 contact and PCB stabilizer in a single row
auf Bestellung 990 Stücke:
Lieferzeit 10-14 Tag (e)
Anzahl Preis
8+0.36 EUR
10+0.3 EUR
25+0.25 EUR
100+0.23 EUR
250+0.19 EUR
1000+0.16 EUR
3000+0.15 EUR
Mindestbestellmenge: 8
