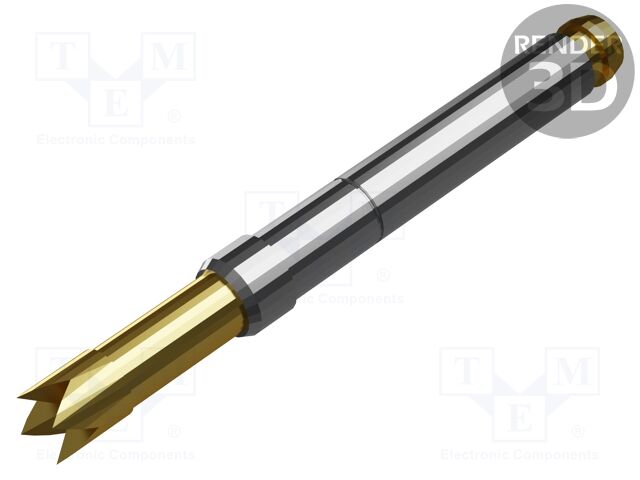

150.06.25.20 FIXTEST
Hersteller: FIXTEST
Category: Test Probes
Description: Test acces: test needle; -55÷120°C; 4A,5.5A; Ø: 2.5mm; 2N; L: 27mm
Current rating: 4A; 5.5A
Operating temperature: -55...120°C
Contact material: CuBe
Manufacturer series: series 150
Operational spring compression: 3.4mm
Length: 27mm
Tip diameter: 2.5mm
Max. contact resistance:: 20mΩ
Spring compression force: 2N
Type of test accessories: test needle
Measuring instruments application: series 150
Contact plating: gold-plated
Maksimum spring compression: 5mm
| Anzahl | Privatkunde |
|---|---|
| 24+ | 3.59 EUR |
| 27+ | 3.18 EUR |
| 29+ | 3.03 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 150.06.25.20 FIXTEST
Category: Test Probes, Description: Test acces: test needle; -55÷120°C; 4A,5.5A; Ø: 2.5mm; 2N; L: 27mm, Current rating: 4A; 5.5A, Operating temperature: -55...120°C, Contact material: CuBe, Manufacturer series: series 150, Operational spring compression: 3.4mm, Length: 27mm, Tip diameter: 2.5mm, Max. contact resistance:: 20mΩ, Spring compression force: 2N, Type of test accessories: test needle, Measuring instruments application: series 150, Contact plating: gold-plated, Maksimum spring compression: 5mm.
