Produkte > LAPP > 15340024
15340024

15340024 LAPP


pVersion=0046&contRep=ZT&docId=005056AB281E1FD0A5F20BC1AE4520E2&compId=DB15340000EN.pdf?ci_sign=e8719d569f2142b62687faabd3ab3c7c0a8079a9 Hersteller: LAPP
Category: Multicore Cables - Unshielded

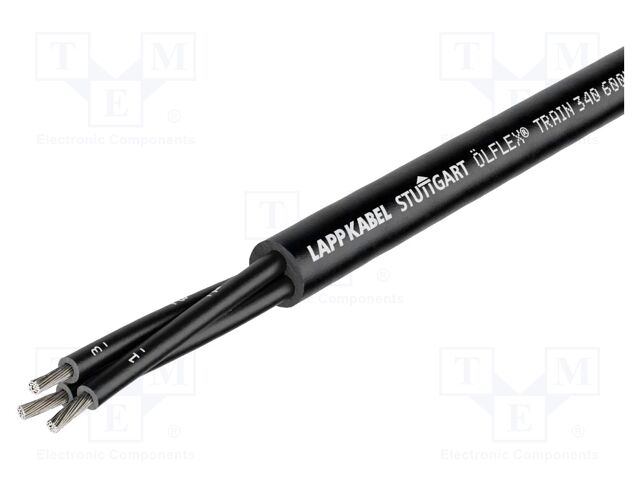

Description: Wire; ÖLFLEX® TRAIN 340 600V; 3x50mm2; unshielded; 600V,1kV; Cu
Type of wire: mains
Kind of wire: ÖLFLEX® TRAIN 340 600V
Cable structure: 3x50mm2
Shield structure: unshielded
Rated voltage: 0.6kV; 1kV
Wire insulation material: crosslinked polymer
Kind of core: Cu; tinned
Core structure: stranded
Number of cores: 3
Core section: 50mm2
Insulation colour: black
Cable external diameter: 28mm
Kind of material: halogen free; no flame propagation
Operating temperature: -40...120°C
Resistance to: flame; most of alkalis; most of chemical compounds; most of dissolvents; most of oils; ozone; UV rays
CPR standard: no classification
Cable application: railway industry
Conform to the norm: EN 45545-2; EN 50264-3
Produkt ist nicht verfügbar

Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details 15340024 LAPP

Category: Multicore Cables - Unshielded, Description: Wire; ÖLFLEX® TRAIN 340 600V; 3x50mm2; unshielded; 600V,1kV; Cu, Type of wire: mains, Kind of wire: ÖLFLEX® TRAIN 340 600V, Cable structure: 3x50mm2, Shield structure: unshielded, Rated voltage: 0.6kV; 1kV, Wire insulation material: crosslinked polymer, Kind of core: Cu; tinned, Core structure: stranded, Number of cores: 3, Core section: 50mm2, Insulation colour: black, Cable external diameter: 28mm, Kind of material: halogen free; no flame propagation, Operating temperature: -40...120°C, Resistance to: flame; most of alkalis; most of chemical compounds; most of dissolvents; most of oils; ozone; UV rays, CPR standard: no classification, Cable application: railway industry, Conform to the norm: EN 45545-2; EN 50264-3.
