15345024 LAPP

Category: Multicore Cables - Shielded

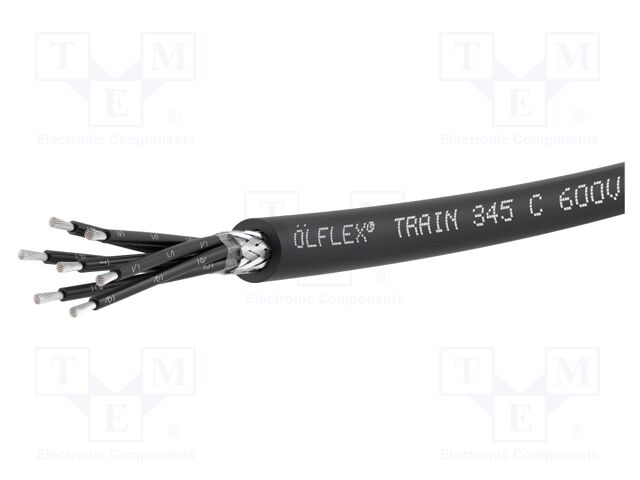

Description: Wire; ÖLFLEX® TRAIN 345 C 600V; 3x50mm2; crosslinked polymer
Operating temperature: -40...120°C
Wire insulation material: crosslinked polymer
Kind of core: Cu; tinned
Conform to the norm: EN 45545-2; EN 50264-3
Resistance to: flame; most of alkalis; most of chemical compounds; most of dissolvents; most of oils; ozone; UV rays
Kind of material: halogen free; no flame propagation
Kind of wire: ÖLFLEX® TRAIN 345 C 600V
CPR standard: no classification
Cable application: railway industry
Shield structure: shielded; tinned copper braid
Core structure: stranded
Core section: 50mm2
Cable external diameter: 29.8mm
Number of cores: 3
Cable structure: 3x50mm2
Rated voltage: 0.6kV; 1kV
Type of wire: mains
Insulation colour: black
