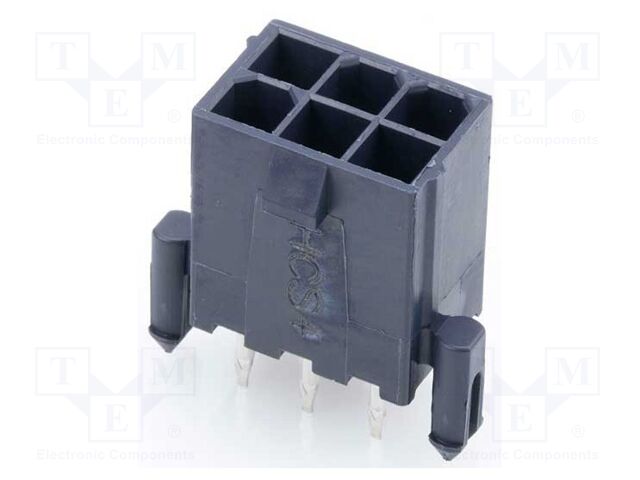

172675-0614 Molex

Description: CONN HEADER VERT 6POS 4.2MM, Features: Board Lock, Glow Wire Compliant, Packaging: Tray, Connector Type: Header, Mounting Type: Through Hole, Number of Positions: 6, Number of Rows: 2, Style: Board to Cable/Wire, Contact Type: Male Pin, Fastening Type: Locking Ramp, Number of Positions Loaded: All, Termination: Solder, Material Flammability Rating: UL94 V-2, Contact Material: Copper Alloy, Insulation Color: Black, Pitch - Mating: 0.165" (4.20mm), Contact Finish - Mating: Gold, Contact Finish Thickness - Mating: 30.0µin (0.76µm), Contact Finish - Post: Tin, Part Status: Active, Contact Shape: Rectangular, Contact Length - Post: 0.138" (3.50mm), Insulation Height: 0.504" (12.80mm), Shrouding: Shrouded - 4 Wall, Insulation Material: Polyamide (PA), Nylon, Row Spacing - Mating: 0.165" (4.20mm).
