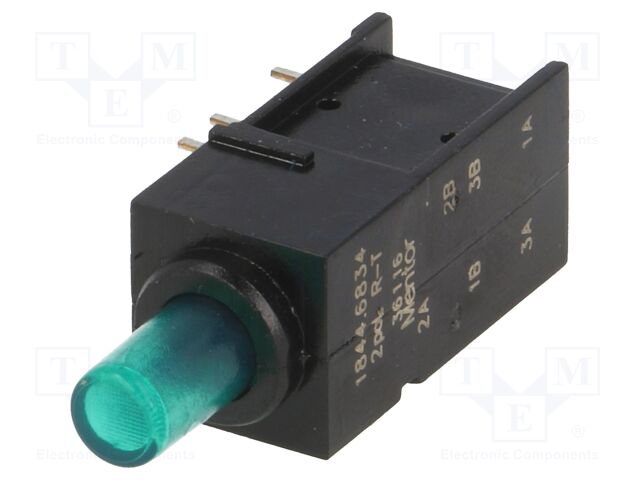

1844.6834 MENTOR
Hersteller: MENTOR
Category: Standard Switches
Description: Switch: push-button; Pos: 2; DPDT; 0.5A/60VAC; 0.5A/60VDC; ON-(ON)
Button shape: round
Type of switch: push-button
Button height: 7.4mm
Mechanical durability: 20000 cycles
DC contacts rating @R: 0.5A / 60V DC
AC contacts rating @R: 0.5A / 60V AC
Operating temperature: -40...85°C
Key button colour: green
Contacts configuration: DPDT
Stable positions number: 1
Leads: for PCB; straight
Operating Force: 8N
Body dimensions: 29.66x9.95x9.95mm
Switching method: ON-(ON)
Min. insulation resistance: 100GΩ
Max. contact resistance:: 30mΩ
Number of positions: 2
Terminal pitch: 2.54mm
Mounting: THT
| Anzahl | Privatkunde |
|---|---|
| 28+ | 3.06 EUR |
| 30+ | 2.86 EUR |
| 31+ | 2.76 EUR |
| 105+ | 2.55 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 1844.6834 MENTOR
Category: Standard Switches, Description: Switch: push-button; Pos: 2; DPDT; 0.5A/60VAC; 0.5A/60VDC; ON-(ON), Button shape: round, Type of switch: push-button, Button height: 7.4mm, Mechanical durability: 20000 cycles, DC contacts rating @R: 0.5A / 60V DC, AC contacts rating @R: 0.5A / 60V AC, Operating temperature: -40...85°C, Key button colour: green, Contacts configuration: DPDT, Stable positions number: 1, Leads: for PCB; straight, Operating Force: 8N, Body dimensions: 29.66x9.95x9.95mm, Switching method: ON-(ON), Min. insulation resistance: 100GΩ, Max. contact resistance:: 30mΩ, Number of positions: 2, Terminal pitch: 2.54mm, Mounting: THT.
