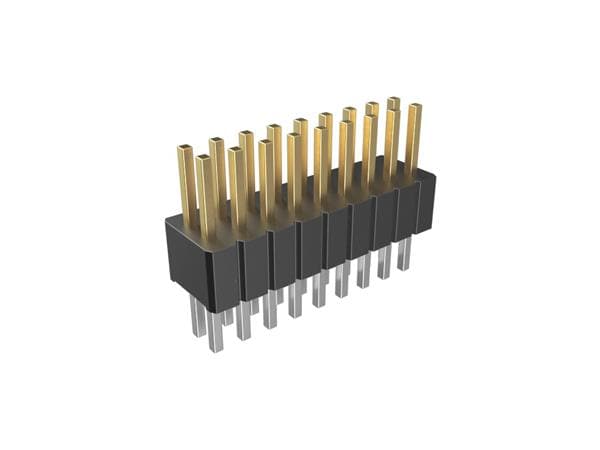

20021111-00018T4LF Amphenol FCI

Description: CONN HEADER VERT 18POS 1.27MM, Operating Temperature: -55°C ~ 125°C, Style: Board to Board, Number of Rows: 2, Number of Positions: 18, Mounting Type: Through Hole, Current Rating (Amps): 1A per Contact, Voltage Rating: 125VAC, Connector Type: Header, Packaging: Tube, Overall Contact Length: 0.309" (7.86mm), Shrouding: Unshrouded, Insulation Height: 0.098" (2.50mm), Contact Length - Post: 0.091" (2.30mm), Contact Shape: Square, Part Status: Active, Contact Finish - Post: Tin, Contact Finish Thickness - Mating: 10.0µin (0.25µm), Contact Finish - Mating: Gold, Pitch - Mating: 0.050" (1.27mm), Insulation Color: Black, Contact Material: Copper Alloy, Material Flammability Rating: UL94 V-0, Termination: Solder, Number of Positions Loaded: All, Fastening Type: Push-Pull, Contact Type: Male Pin, Contact Length - Mating: 0.120" (3.05mm), Row Spacing - Mating: 0.050" (1.27mm), Insulation Material: Thermoplastic.
