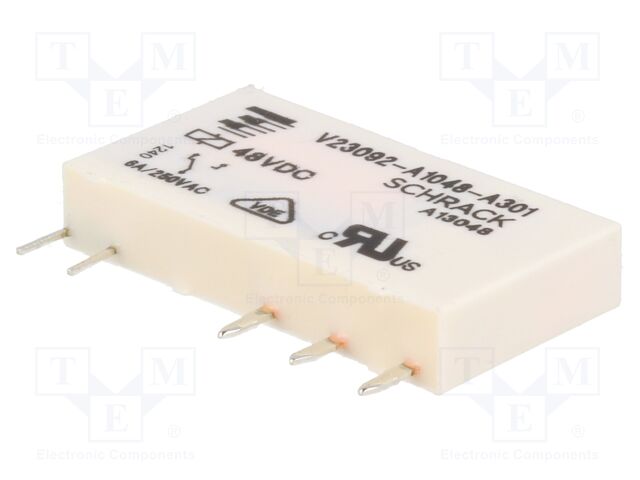

3-1393236-7 TE Connectivity
Hersteller: TE Connectivity
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 48VDC; Icontacts max: 6A; PCB
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 48V DC
Contact current max.: 6A
AC contacts rating @R: 6A / 250V AC
DC contacts rating @R: 6A / 30V DC
Switched voltage: max. 300V DC; max. 440V AC
Relay variant: interface
Mounting: PCB
Coil resistance: 10.6kΩ
Operate time: 5ms
Body dimensions: 28x5x15mm
Release time: 2.5ms
Coil power consumption: 217mW
IP rating: IP67
Mechanical durability: 100000000 cycles
Operating temperature: -40...85°C
Relay series: SNR
Contact material: AgSnO2
Terminal pitch: 5mm
Coil current: 4.5mA
Category: Miniature Electromagnetic Relays
Description: Relay: electromagnetic; SPDT; Ucoil: 48VDC; Icontacts max: 6A; PCB
Type of relay: electromagnetic
Contacts configuration: SPDT
Rated coil voltage: 48V DC
Contact current max.: 6A
AC contacts rating @R: 6A / 250V AC
DC contacts rating @R: 6A / 30V DC
Switched voltage: max. 300V DC; max. 440V AC
Relay variant: interface
Mounting: PCB
Coil resistance: 10.6kΩ
Operate time: 5ms
Body dimensions: 28x5x15mm
Release time: 2.5ms
Coil power consumption: 217mW
IP rating: IP67
Mechanical durability: 100000000 cycles
Operating temperature: -40...85°C
Relay series: SNR
Contact material: AgSnO2
Terminal pitch: 5mm
Coil current: 4.5mA
auf Bestellung 29 Stücke:
Lieferzeit 14-21 Tag (e)
| Anzahl | Preis ohne MwSt |
|---|---|
| 6+ | 12.53 EUR |
| 8+ | 9.01 EUR |
Produktrezensionen
Produktbewertung abgeben
Technische Details 3-1393236-7 TE Connectivity
Category: Miniature Electromagnetic Relays, Description: Relay: electromagnetic; SPDT; Ucoil: 48VDC; Icontacts max: 6A; PCB, Type of relay: electromagnetic, Contacts configuration: SPDT, Rated coil voltage: 48V DC, Contact current max.: 6A, AC contacts rating @R: 6A / 250V AC, DC contacts rating @R: 6A / 30V DC, Switched voltage: max. 300V DC; max. 440V AC, Relay variant: interface, Mounting: PCB, Coil resistance: 10.6kΩ, Operate time: 5ms, Body dimensions: 28x5x15mm, Release time: 2.5ms, Coil power consumption: 217mW, IP rating: IP67, Mechanical durability: 100000000 cycles, Operating temperature: -40...85°C, Relay series: SNR, Contact material: AgSnO2, Terminal pitch: 5mm, Coil current: 4.5mA, Anzahl je Verpackung: 1 Stücke.
Weitere Produktangebote 3-1393236-7 nach Preis ab 9.01 EUR bis 12.53 EUR
| Foto | Bezeichnung | Hersteller | Beschreibung |
Verfügbarkeit |
Preis ohne MwSt | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
3-1393236-7 | Hersteller : TE Connectivity |
Category: Miniature Electromagnetic Relays Description: Relay: electromagnetic; SPDT; Ucoil: 48VDC; Icontacts max: 6A; PCB Type of relay: electromagnetic Contacts configuration: SPDT Rated coil voltage: 48V DC Contact current max.: 6A AC contacts rating @R: 6A / 250V AC DC contacts rating @R: 6A / 30V DC Switched voltage: max. 300V DC; max. 440V AC Relay variant: interface Mounting: PCB Coil resistance: 10.6kΩ Operate time: 5ms Body dimensions: 28x5x15mm Release time: 2.5ms Coil power consumption: 217mW IP rating: IP67 Mechanical durability: 100000000 cycles Operating temperature: -40...85°C Relay series: SNR Contact material: AgSnO2 Terminal pitch: 5mm Coil current: 4.5mA Anzahl je Verpackung: 1 Stücke |
auf Bestellung 29 Stücke: Lieferzeit 7-14 Tag (e) |
|
||||||
 |
3-1393236-7 | Hersteller : TE Connectivity |
 Power Relay 48VDC 6A SPDT(28mm 5mm 15mm) THT |
auf Bestellung 4000 Stücke: Lieferzeit 14-21 Tag (e) |
