Produkte > EDAC INC. > 307-021-505-112
307-021-505-112

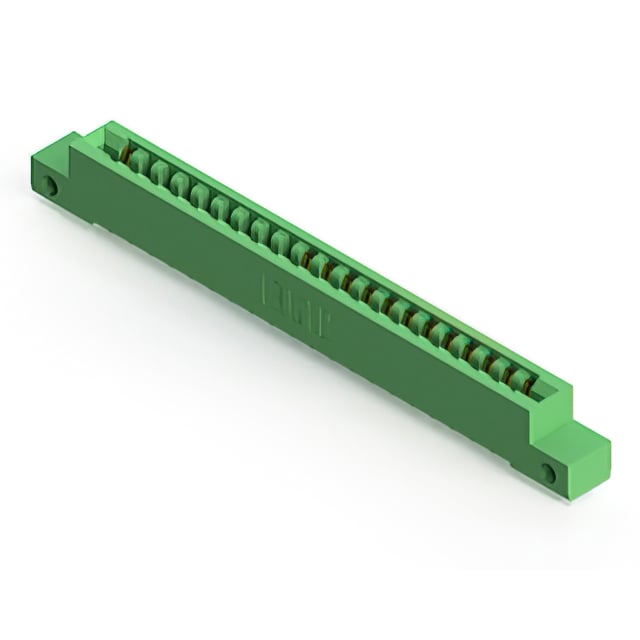

307-021-505-112 EDAC Inc.

EDAC%20307%20357%20Series%20Card%20Edge%20Connectors%20English%20Ordering%20Guide.pdf
Hersteller: EDAC Inc.
Description: CONN EDGE SGL FMALE 21POS 0.156
Packaging: Box
Gender: Female
Contact Finish: Gold
Color: Green
Mounting Type: Through Hole
Number of Positions: 21
Pitch: 0.156" (3.96mm)
Operating Temperature: -40°C ~ 105°C
Read Out: Single
Contact Type: Semi Bellows
Card Type: Non Specified - Single Edge
Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia
Termination: Solder Eyelet(s)
Contact Finish Thickness: 10.0µin (0.25µm)
Contact Material: Copper Alloy
Number of Positions/Bay/Row: 21
Number of Rows: 1
Produkt ist nicht verfügbar
Mindestbestellmenge: 25 Stücke
Im Einkaufswagen  Stück im Wert von  UAH
Produktrezensionen
Produktbewertung abgeben

Technische Details 307-021-505-112 EDAC Inc.

Description: CONN EDGE SGL FMALE 21POS 0.156, Packaging: Box, Gender: Female, Contact Finish: Gold, Color: Green, Mounting Type: Through Hole, Number of Positions: 21, Pitch: 0.156" (3.96mm), Operating Temperature: -40°C ~ 105°C, Read Out: Single, Contact Type: Semi Bellows, Card Type: Non Specified - Single Edge, Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm), Flange Feature: Flush Mount, Side Opening, Unthreaded, 0.128" (3.25mm) Dia, Termination: Solder Eyelet(s), Contact Finish Thickness: 10.0µin (0.25µm), Contact Material: Copper Alloy, Number of Positions/Bay/Row: 21, Number of Rows: 1.

Weitere Produktangebote 307-021-505-112

Foto Bezeichnung Hersteller Beschreibung Verfügbarkeit Privatkunde
307-021-505-112 307-021-505-112 EDAC 307-021-505-112_-_EDAC_Card_Edge_Connector-1641813.pdf Standard Card Edge Connectors (.156" (3.96mm) contact spacing) Card Edge Connector with 21 Wire Hole type contacts. The tails are .087" x .013" (2.21mm x 0.33mm) thick and .282" (7.16mm) long in a Single Row formation, reading one side of the daughter boa
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
307-021-505-112 307-021-505-112_-_EDAC_Card_Edge_Connector-1641813.pdf
307-021-505-112
Hersteller: EDAC
Standard Card Edge Connectors (.156" (3.96mm) contact spacing) Card Edge Connector with 21 Wire Hole type contacts. The tails are .087" x .013" (2.21mm x 0.33mm) thick and .282" (7.16mm) long in a Single Row formation, reading one side of the daughter boa
Produkt ist nicht verfügbar
Im Einkaufswagen  Stück im Wert von  UAH
